Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless TX/RX Deluxe Set Gold-Mount

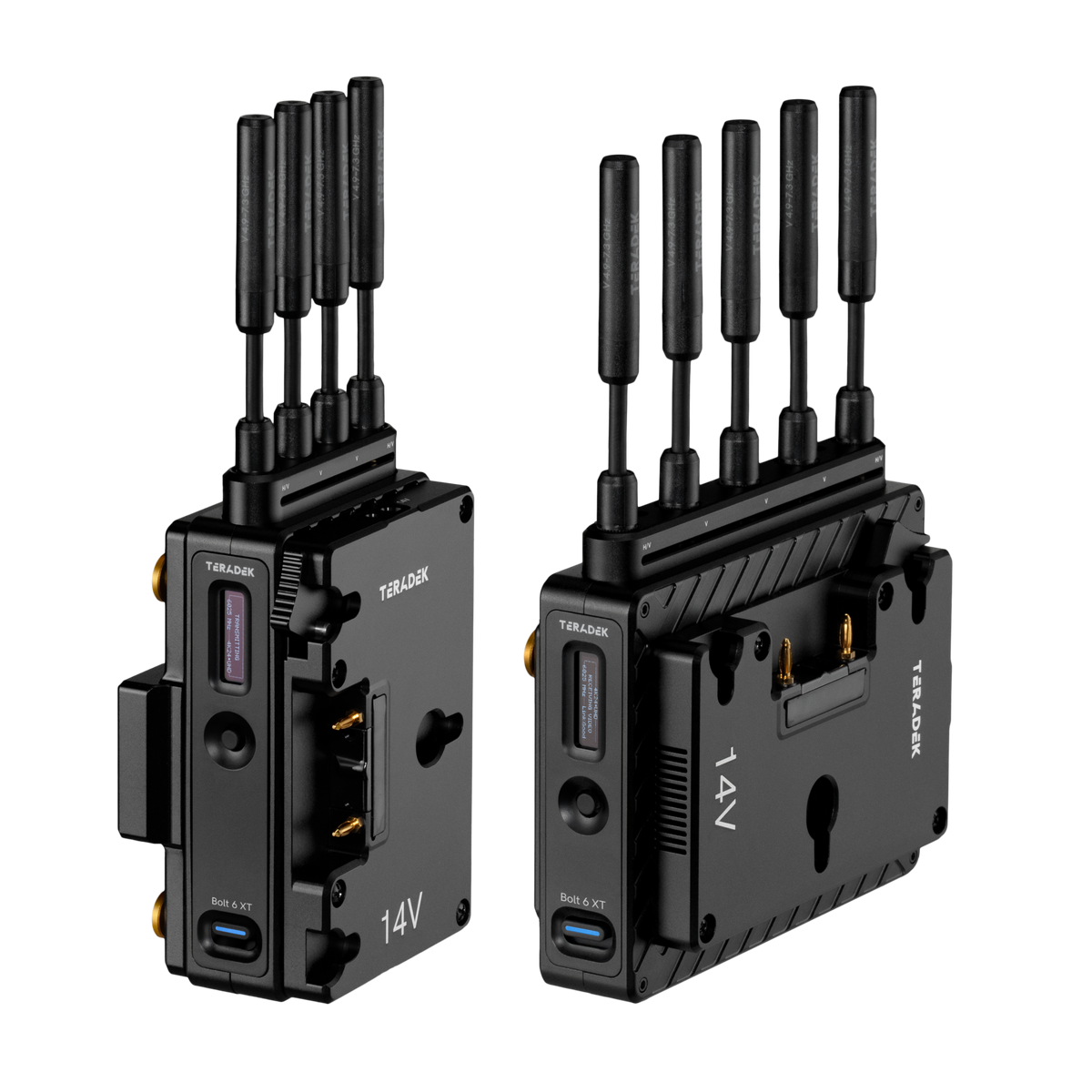

Bolt 6 XT 750 Deluxe TX/RX Gold-Mount

A complete wireless system with a transmitter, receiver, Gold-Mount configuration, and original accessories in the Deluxe kit.

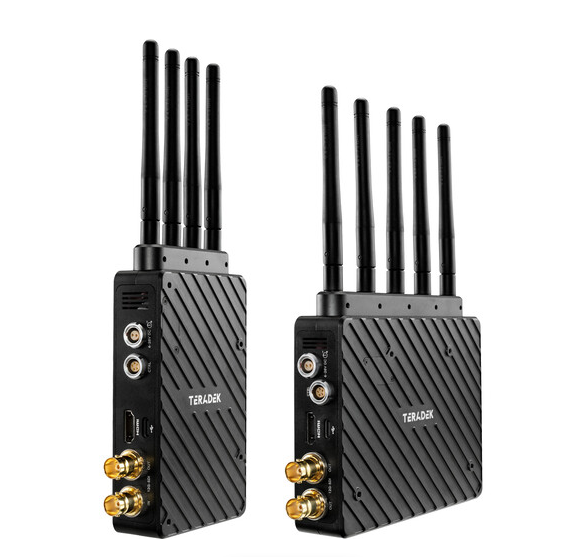

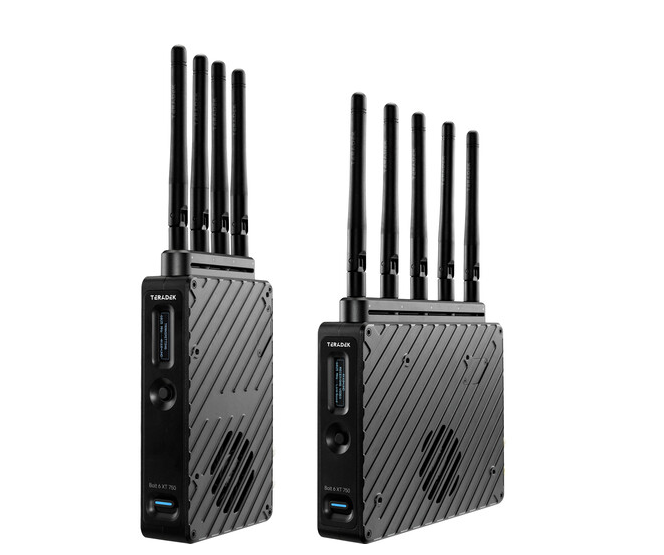

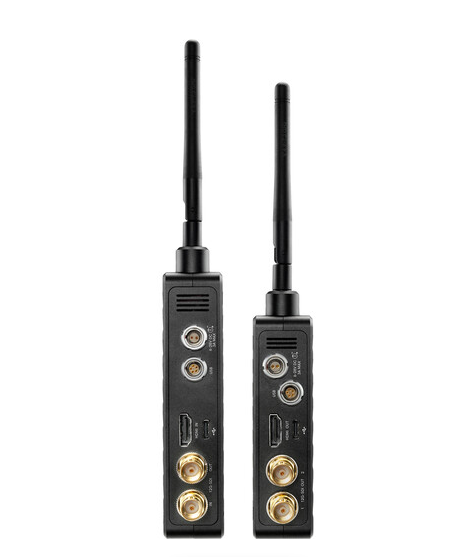

The Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless TX/RX Deluxe kit offers a complete wireless video solution for professional camera and monitoring applications. The system includes Bolt 6 XT 750 transmitters and receivers, which support video transmission at resolutions up to 4K60 with 10-bit 4:2:2 color space and Rec. 2020 HDR. The transmitter accepts video via HDMI 2.0 or 12G-SDI and provides a 12G-SDI loop-through output, while the receiver transmits video via both HDMI 2.0 and 12G-SDI.

Utilizing the 5 GHz and 6 GHz wireless spectrum, the system provides line-of-sight transmission up to a distance of 750 ft / 228.6 m. Bolt 6 series devices can utilize the new 6 GHz band, while the system remains backward compatible with Bolt 4K series devices operating in the 5 GHz band. The system uses uncompressed wireless video transmission for high-quality images and supports a wide range of DCI 4K, UHD 4K, HD, and SD formats. Support for timecode, metadata, and camera start/stop further integrates the system into professional production workflows.

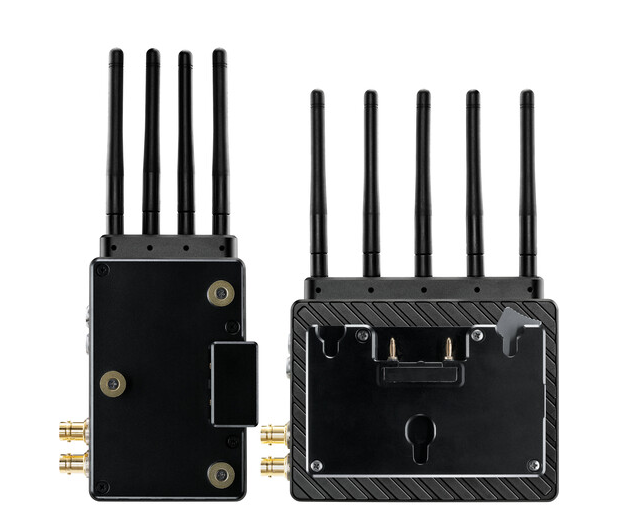

The receiver is equipped with a fixed Gold Mount battery plate, which allows it to be powered directly from compatible professional batteries. The transmitter has a power consumption of approximately 20 W, while the receiver consumes approximately 18 W. Both units feature an aluminum construction and multiple mounting points for installation on cameras, cages, rigs, tripods, and other production equipment.

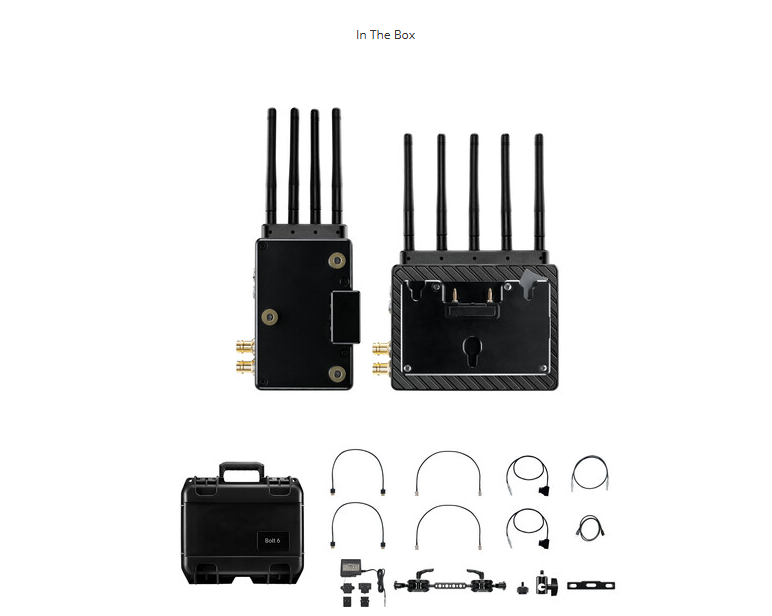

For RF signal management, the Bolt 6 XT 750 offers both automatic and manual channel configuration, 20/40 MHz channel bandwidth options, AES-256 encryption with 1024 RSA key pairing, and enhanced noise suppression. The system can simultaneously transmit to up to six compatible Bolt receivers. Bluetooth connectivity enables wireless control via the Teradek mobile app for iOS and Android, including spectrum analysis, channel selection, and remote configuration. The Deluxe Set also includes a protective carrying case and other accessories for convenient transport and use during production.

Key Features

• Complete wireless TX/RX system with transmitter and receiver
• Wireless range of up to 750 ft / 228.6 m in line of sight
• Supports the 6 GHz frequency band
• Compatible with the Bolt 6 series in the 6 GHz band and the Bolt 4K series in the 5 GHz band
• Supports video transmission up to 4K60 resolution
• Supports 10-bit 4:2:2 color format
• Supports HDR according to the Rec. 2020 standard
• HDMI 2.0 and 12G-SDI connections
• The transmitter includes a 12G-SDI loop-through output
• The receiver includes HDMI 2.0 and 12G-SDI outputs
• Uncompressed wireless video transmission
• Near-zero-latency operation
• Support for timecode and camera start/stop triggers
• AES-256 encryption with 1024 RSA key pairing
• Transmission to up to six compatible receivers
• Gold-plated battery terminal on the receiver
• Bluetooth connectivity with a mobile app for iOS/Android
• Spectral analyzer and remote configuration via the app
• Enhanced long-range mode
• SDI Eye Pattern Tool for checking SDI cable integrity
• Multiple mounting points for cameras, cage enclosures, and mounts
• Compact aluminum construction
• The Deluxe Kit includes additional accessories and a carrying case
