VAXIS STORM 1000S KIT,1 TX 1RX GOLD MOUNT

+10
  • Free transport
SKU: VS19-1000-TR02

The Vaxis Storm 1000S Wireless Kit (Gold Mount) transmits visually lossless 1080p60 video up to 1148' line-of-sight with <1 ms latency, featuring SDI/HDMI I/O, multicast, timecode/metadata, and cross-compatibility with Storm 058/800/2000/5000 systems.

More information

3 299 € with VAT 2 726.45 € without VAT
Add to Compare Price history
Availability
on request
SKU:
VS19-1000-TR02
Add to Compare Price history
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Vaxis Storm 1000S Wireless Kit (Gold Mount) transmits visually lossless 1080p60 video up to 1148' line-of-sight with <1 ms latency, featuring SDI/HDMI I/O, multicast, timecode/metadata, and cross-compatibility with Storm 058/800/2000/5000 systems.

The Vaxis Storm 1000S Wireless Kit (Gold Mount) delivers professional-grade, uncompressed 1080p60 video transmission with sub-1 ms latency over 1148' line-of-sight using 20 selectable 40/20 MHz channels in the 5.1–5.9 GHz band. The transmitter offers 1x 3G-SDI input, 1x SDI loop, and 1x HDMI input with HDMI/SDI cross-conversion, while the receiver provides 2x 3G-SDI and 1x HDMI outputs. Both units feature bright LCD displays, side-vented cooling fans, internal antennas, and 1/4"-20 mounting. The receiver includes a fixed Gold mount plate; both support 2-pin LEMO or micro-USB power (7–36 VDC). Multicast enables one TX to multiple RXs, and 0' mode supports instant playback on ALEXA Mini. Fully compatible with Vaxis Storm 058, 800, 2000, and 5000 systems, the kit comes in a protective flight case.

Key Features

  • 1x TX + 1x RX with 1148' / 350 m line-of-sight range
  • <1 ms latency, uncompressed 1080p60
  • TX: 1x 3G-SDI in, 1x SDI loop, 1x HDMI in
  • RX: 2x 3G-SDI out, 1x HDMI out
  • HDMI/SDI cross-conversion on TX
  • Multicast to multiple receivers
  • Timecode, metadata, and 0' mode (ALEXA Mini) support
  • 20 channels (5.1–5.9 GHz), LCD status/scan
  • Gold mount on receiver, 2-pin LEMO + micro-USB power
  • Compatible with Storm 058/800/2000/5000

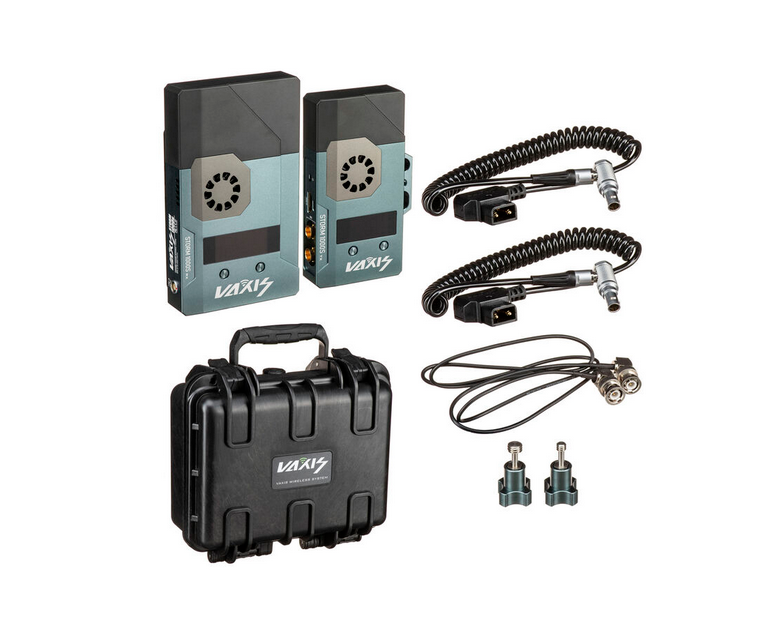

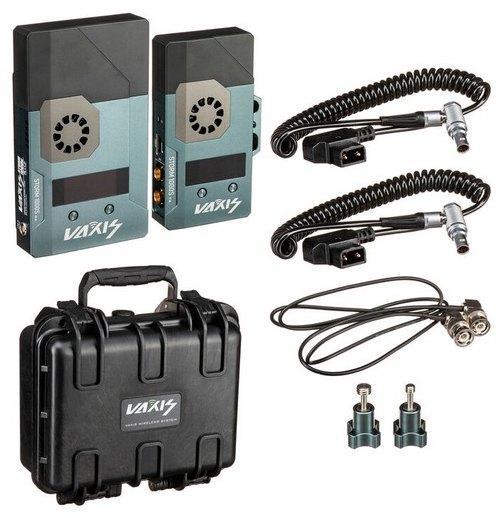

PACKAGE CONTENT

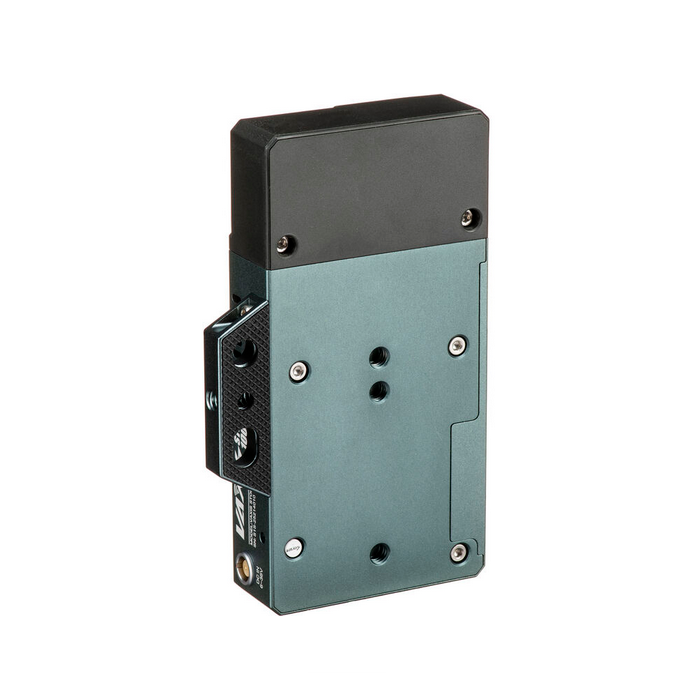

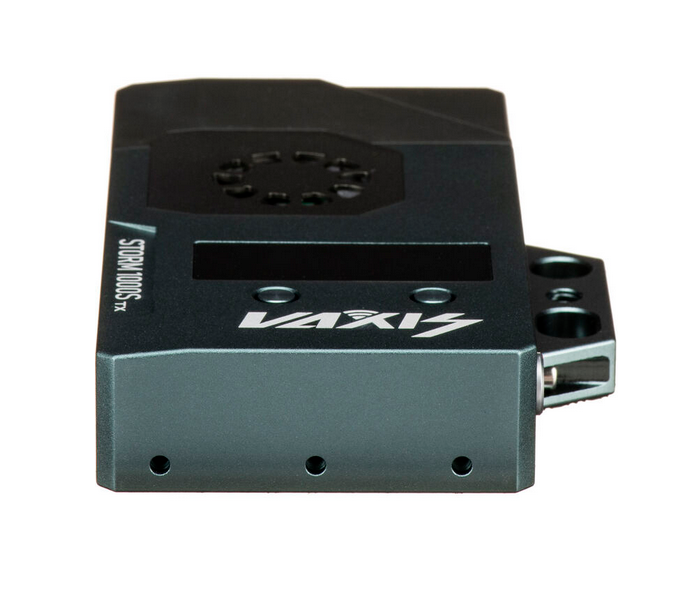

  • 1 × ATOM 1000 Transmitter

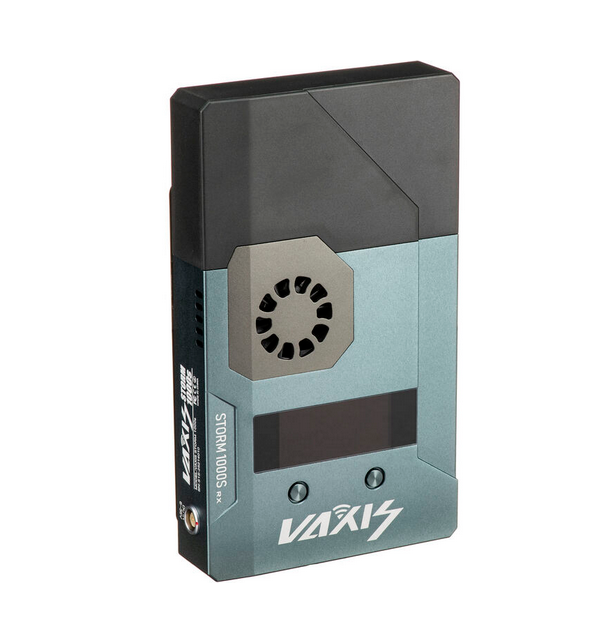

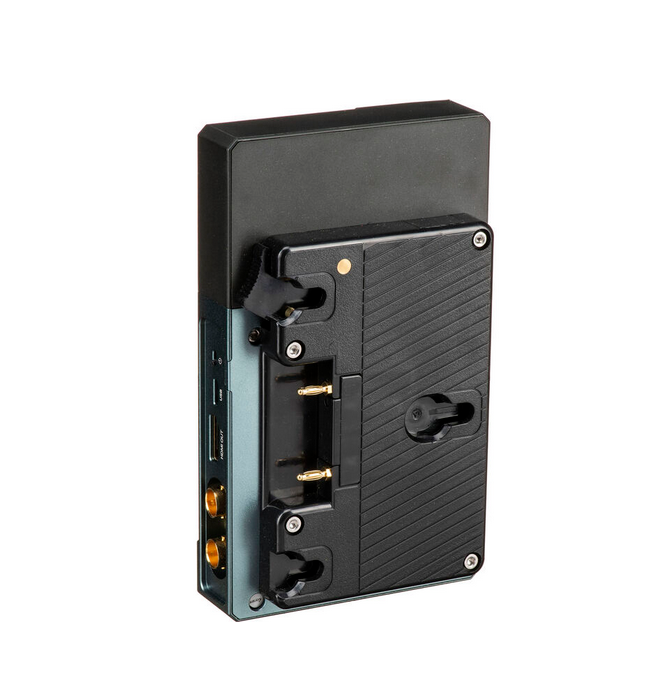

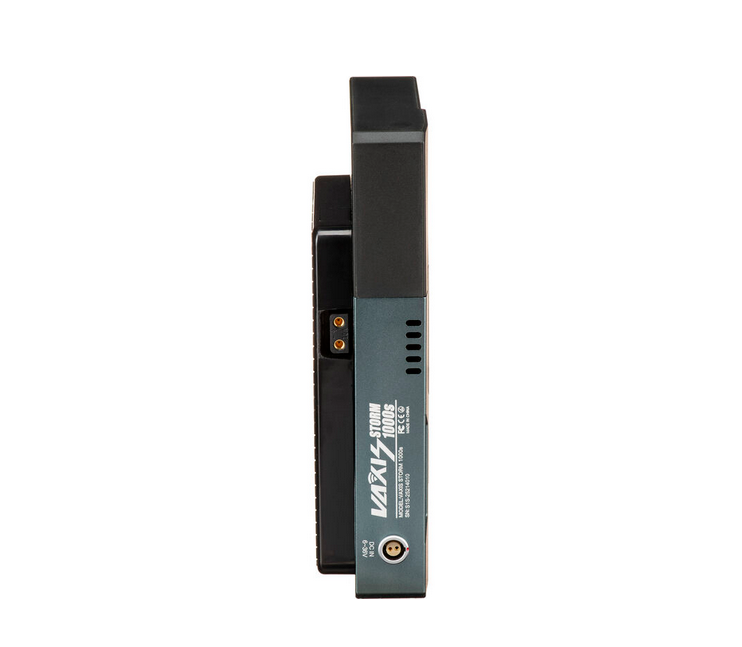

  • 1 × ATOM 1000 Receiver (Gold Mount)

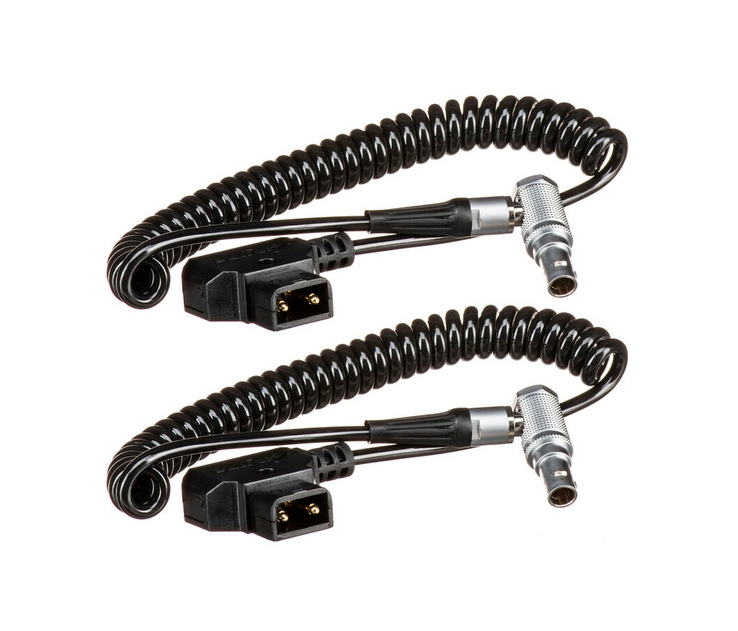

  • 2 × Power Cable

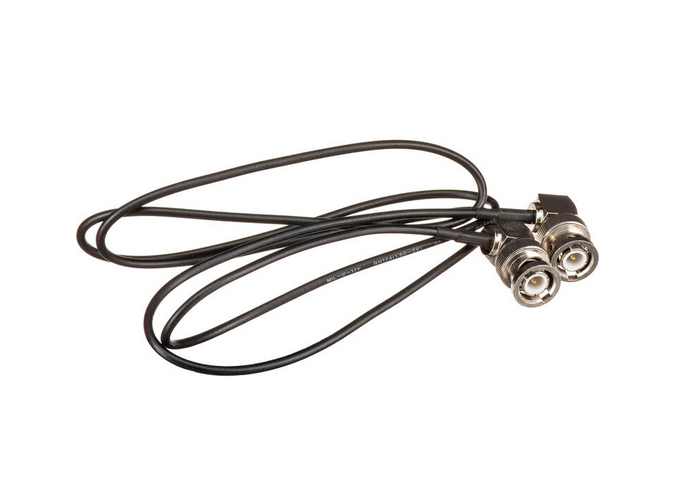

  • 1 × BNC Cable

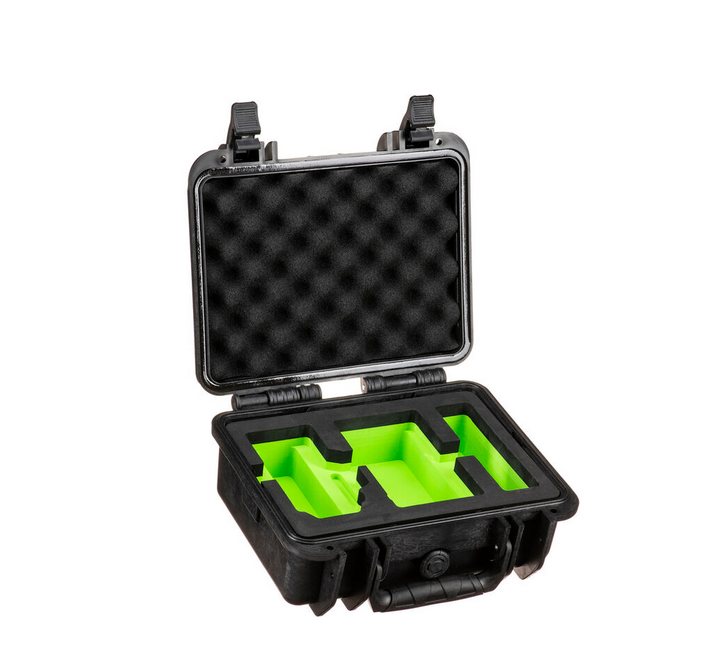

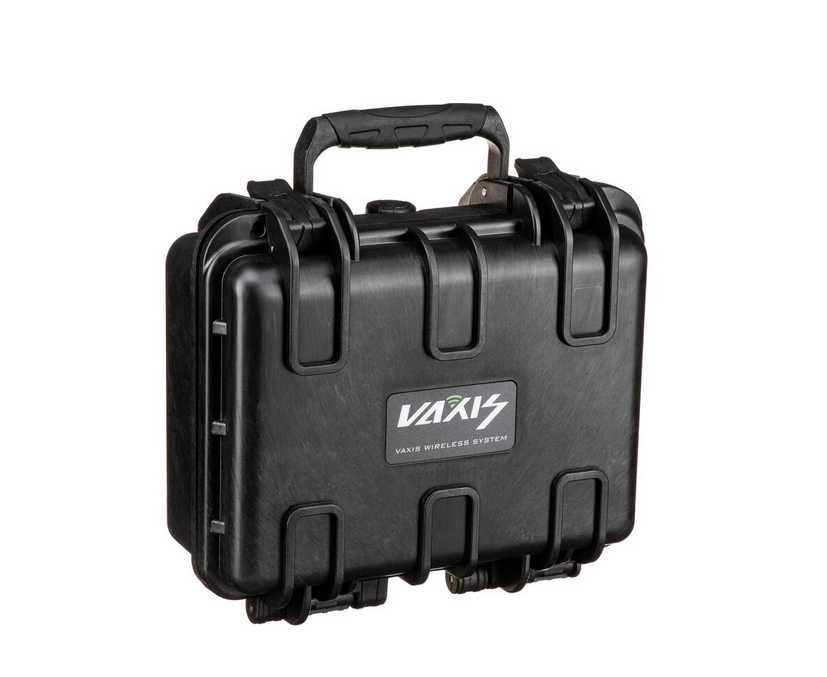

  • 1 × Flight Case

SPECIFICATIONS

  • Video I/O (TX): 1x BNC (3G-SDI) Input, 1x BNC Loop, 1x HDMI Input

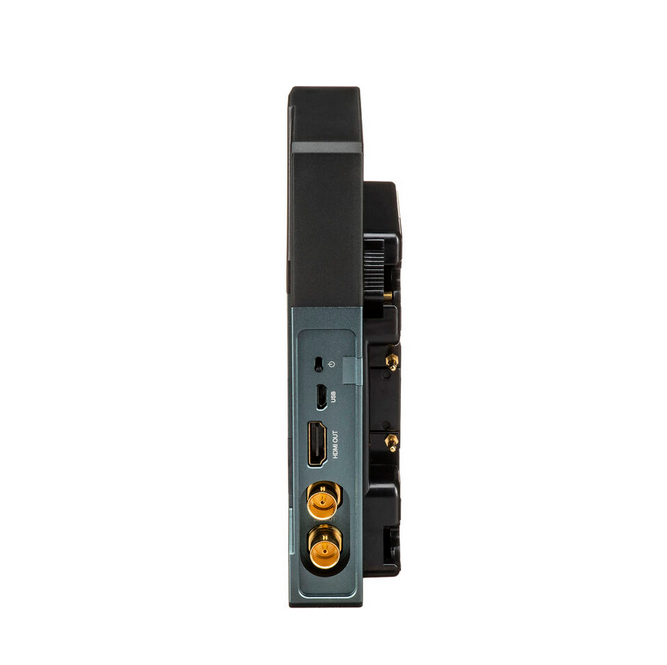

  • Video I/O (RX): 2x BNC (3G-SDI) Output, 1x HDMI Output
  • Embedded Audio: SDI/HDMI 2-Channel
  • Latency: <1 ms
  • Video Format: 1080p (60/59.94/50/24/23.98)
  • Wireless Range: 1148.3' / 350 m (LOS)
  • Channels: 20 (40/20 MHz bandwidth)
  • Frequency: 5.1–5.9 GHz
  • Power: 7–36 VDC via 2-pin LEMO or micro-USB
  • Battery (RX): 1x Gold Mount (fixed)

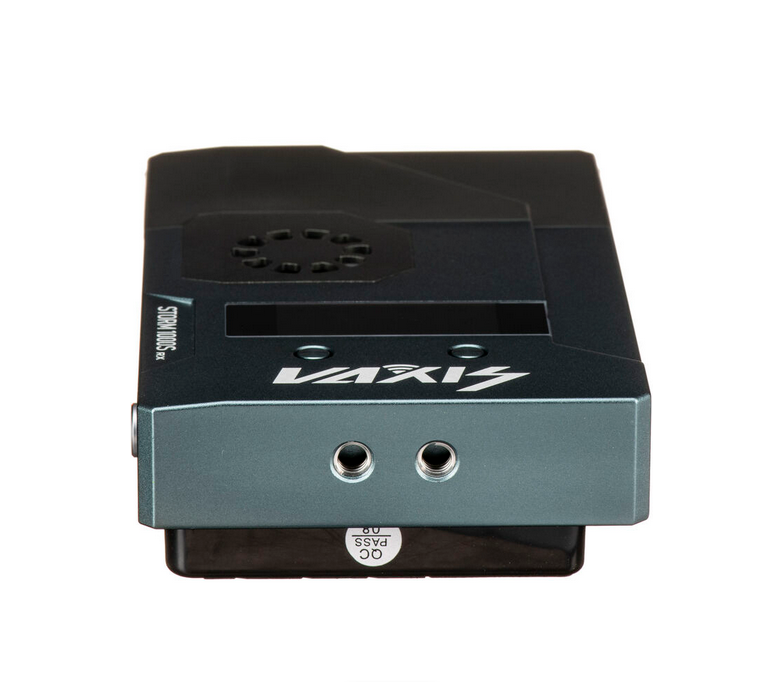

  • Mounting: 1x 1/4"-20 female (each unit)
  • Dimensions (TX): 5.4 x 2.7 x 1" / 138 x 69.5 x 24.5 mm
  • Dimensions (RX): 6.1 x 3.6 x 1" / 156 x 91.5 x 24.5 mm
  • Weight (TX): 10.23 oz / 290 g
  • Weight (RX): 15.34 oz / 435 g
  • Package Weight: 5.465 lb
  • Box Dimensions: 11.9 x 10.45 x 5.7"

WE RECOMMEND

The Vaxis Storm 1000S is a professional wireless video transmission system with a Gold Mount mount that features zero latency and a long range. For optimal use in a production environment, we recommend supplementing the kit with high-quality mounting hardware and optical filters for the camera system with which the transmitter is directly compatible.

4x5.65" Optical Filters - Professional filters designed for matte boxes on camera rigs equipped with the Storm transmitter.

95mm Optical Filters - Circular filters for 95mm diameter lenses for creative image editing directly at the signal source.

Accessories and Mounting - Accessories for secure mounting of wireless components and powering peripherals.

Parameters

Parameters

Manufacturer: Vaxis
Category: Wireless video transmission

Main parameters

Latency1ms
Input wireless videoHDM+BNC (3G-SDI)
