Teradek Bolt 6 Monitor Module 750 Int Ant RX V Mount

The Teradek Bolt 6 Monitor Module 750 RX Internal Antenna V-Mount (10-2199-V7I) is a wireless receiver module for the SmallHD Cine 7, 702 Touch, and Indie 7 monitoring systems. It receives video up to 4K30 in 10-bit 4:2:2 HDR, transmits it with virtually zero latency, and operates on both the 5 GHz and 6 GHz bands.

The receiver supports up to 4K30 10-bit 4:2:2 HDR video with under 1 ms transmitter-to-receiver delay when no format conversion is used. This 750 version reaches up to 750 ft (about 229 m) line of sight and uses permanently built-in antennas for a compact, robust monitor rig. The V-Mount configuration suits a matching battery system; the module feeds video to the attached SmallHD Smart 7 through its internal HDMI connection rather than offering a separate user-facing HDMI output.

BOLT 6 · RX 750 · V-MOUNT

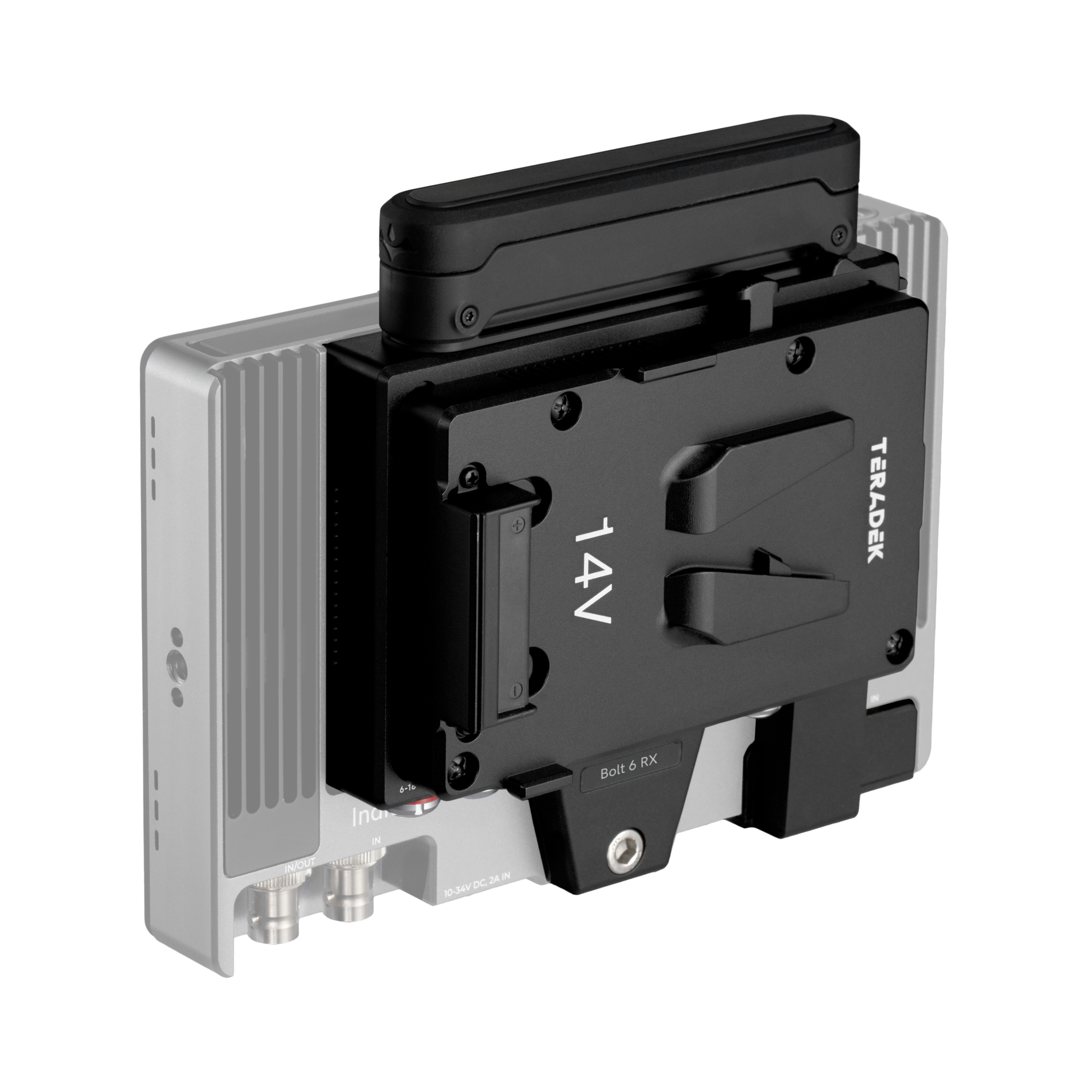

Wireless video at the monitor

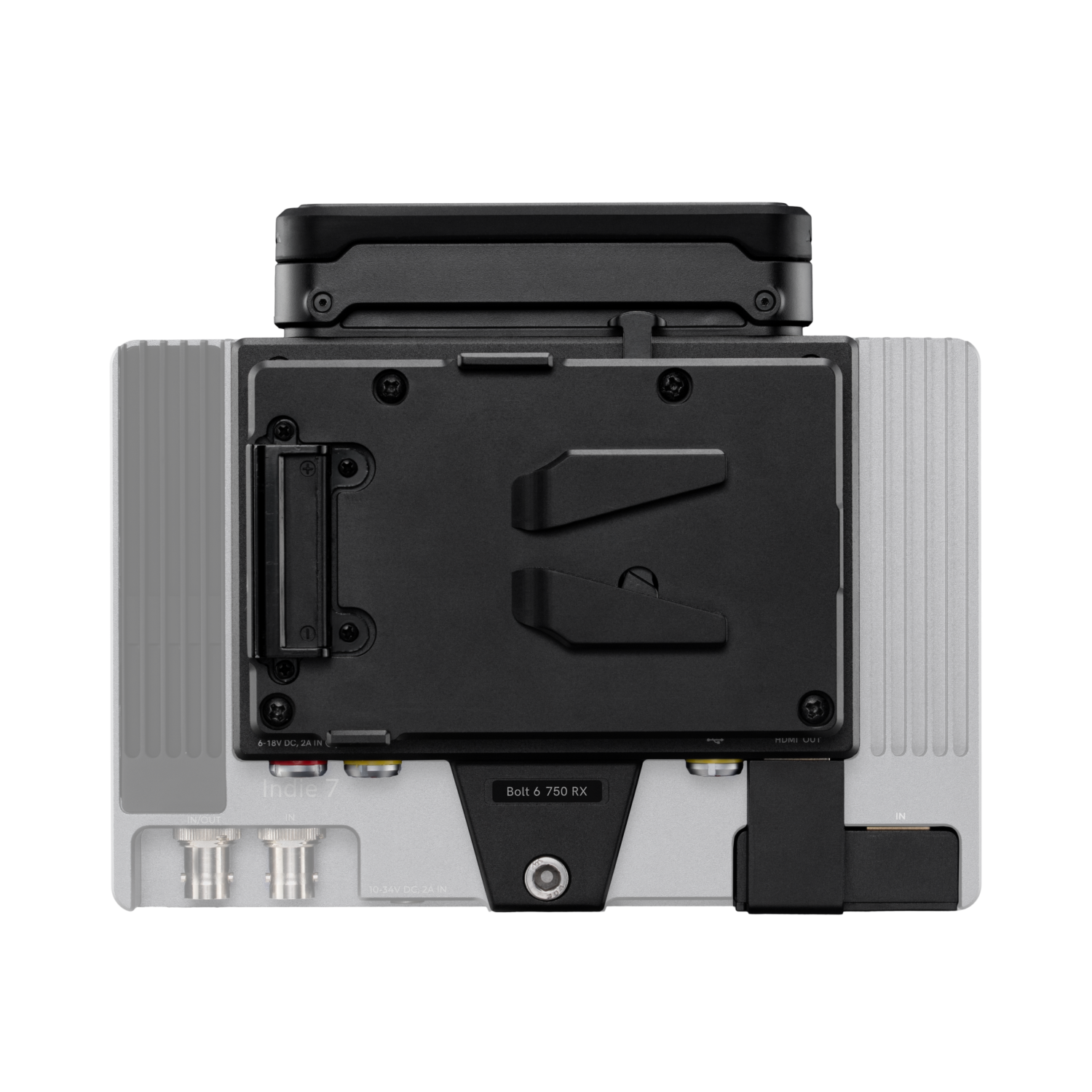

The internal-antenna receiver attaches directly to a compatible SmallHD Smart 7 monitor. A V-Mount battery workflow and built-in antennas keep the director’s or client display compact, with a line-of-sight link up to 750 ft.

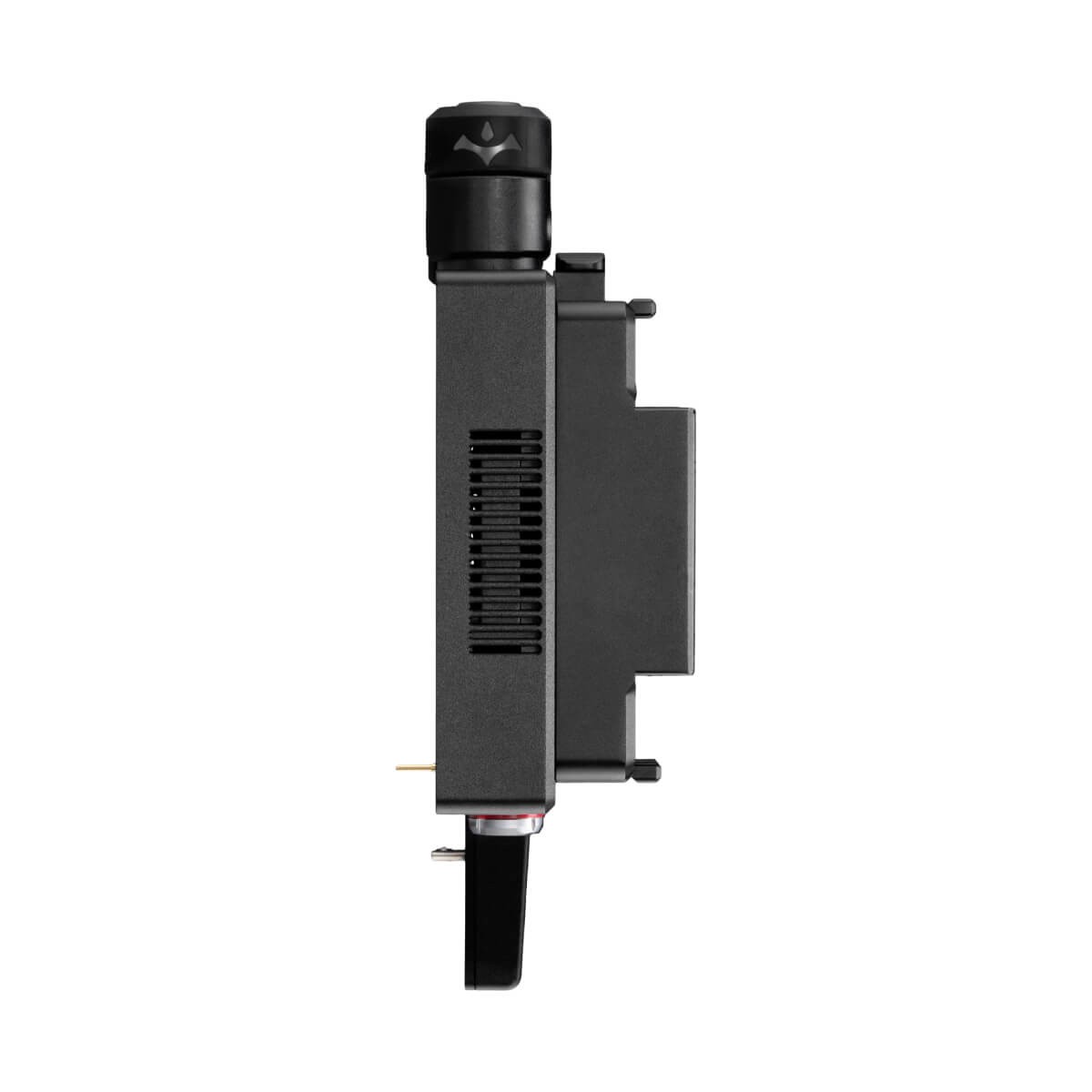

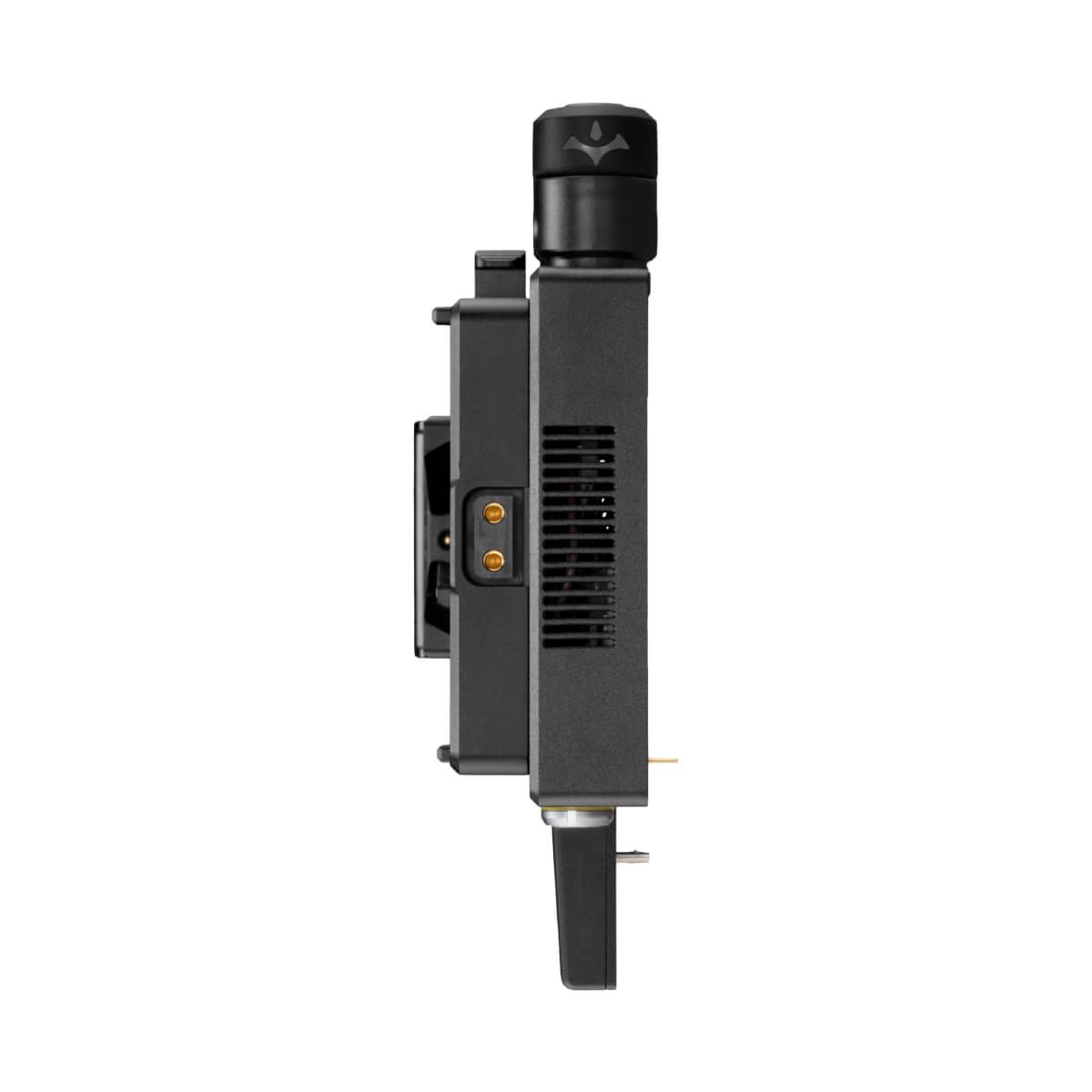

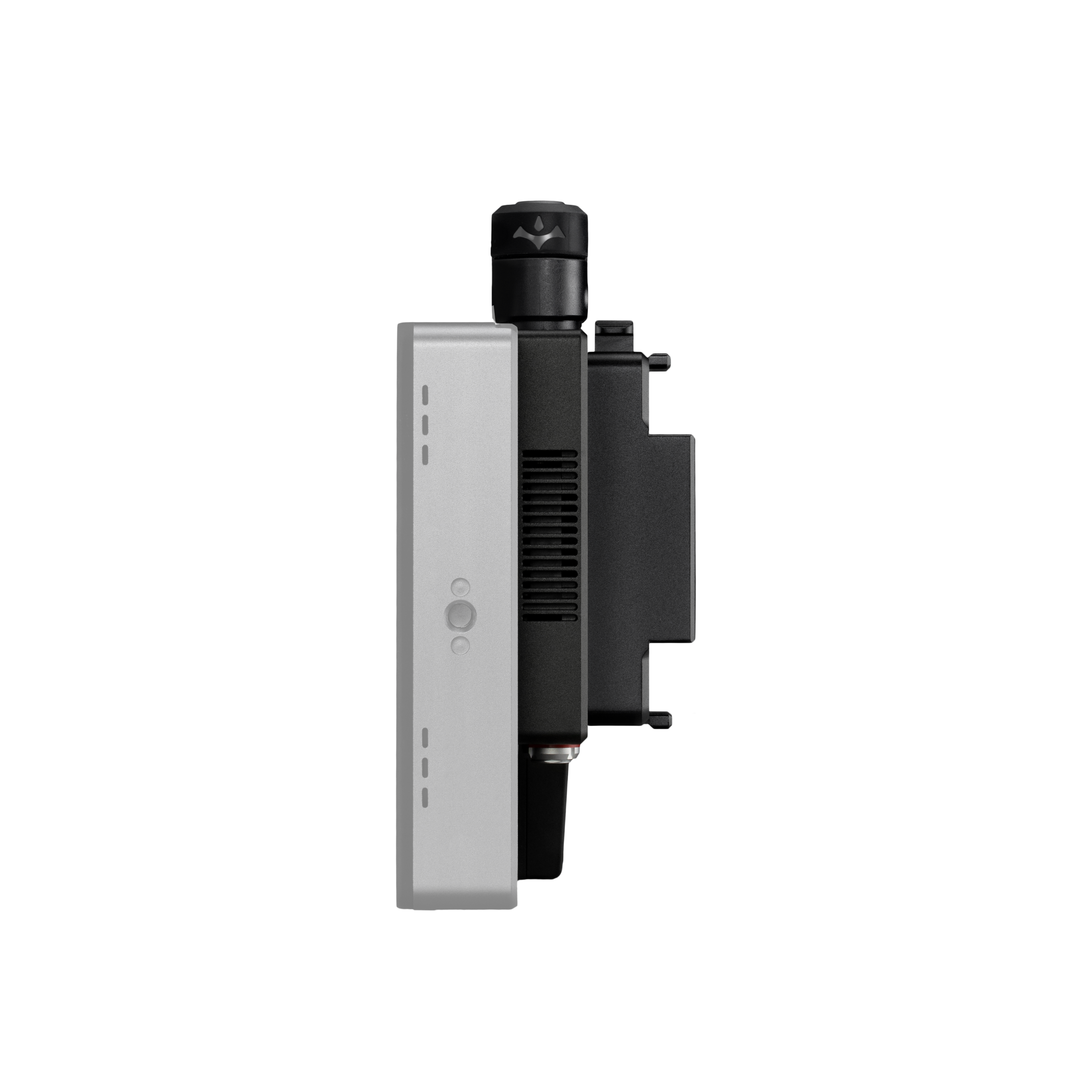

Compact side profile

The exact V-Mount receiver has its antennas built into the module, so no removable aerials protrude from the director’s monitor. The side view shows how the receiver and battery plate form a slim stack behind a compatible SmallHD Smart 7 display.

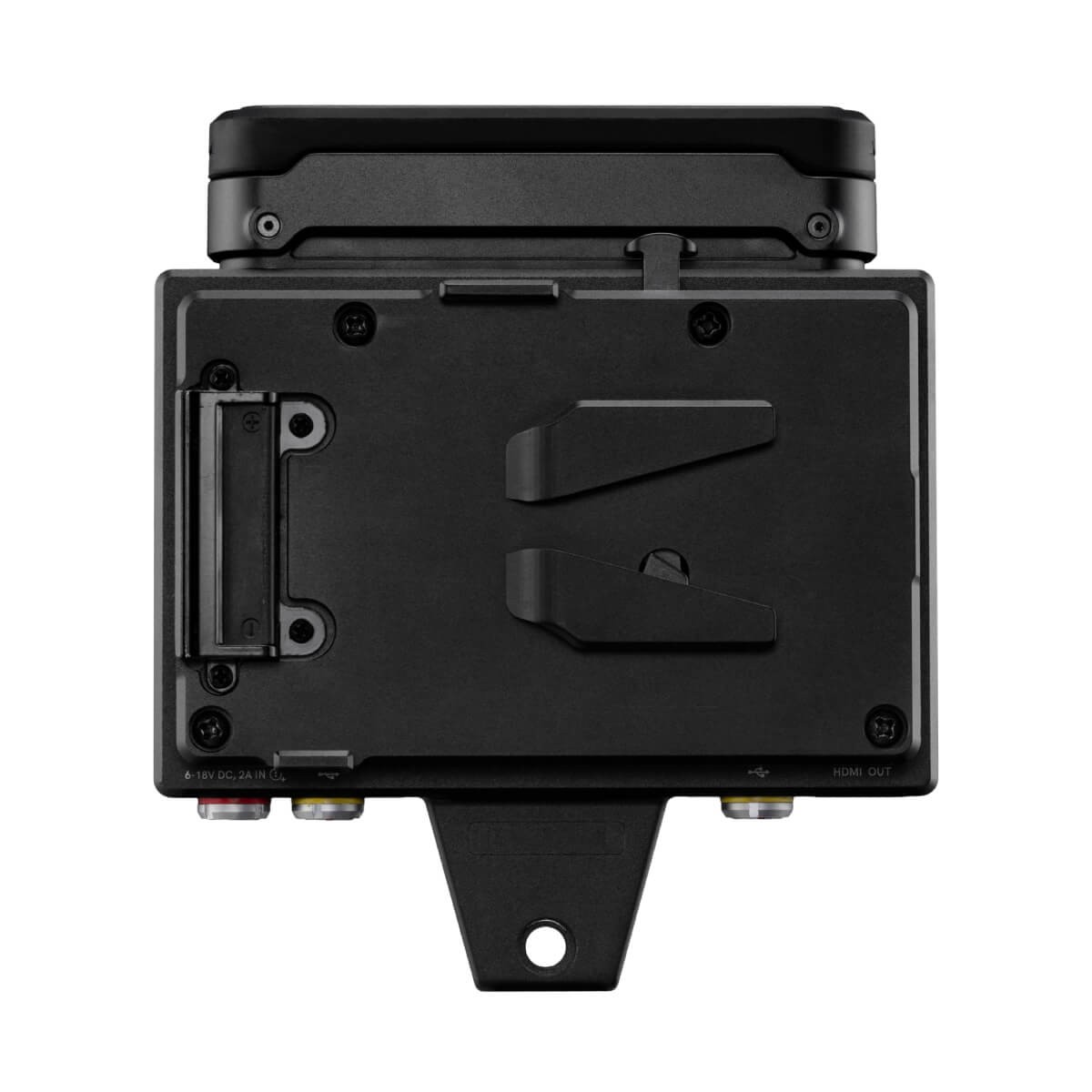

V-Mount power in one rig

A compatible V-Mount battery on the integrated plate can power the monitor assembly. The receiver shares power and video with Cine 7, 702 Touch and Indie 7 through their direct module interface.

Responsive monitoring

Bolt 6 receives up to 4K30 video over supported 5 and 6 GHz channels. With no format conversion, transmitter-to-receiver delay is under 1 ms; 6 GHz availability depends on local regulations.
