Teradek Bolt 6 Monitor Module 750 Int Ant RX Gold Mount

Teradek Bolt 6 Monitor Module 750 RX with internal antennas and Gold Mount is a compact wireless-video receiver for SmallHD Smart 7 monitors. It connects directly to Cine 7, 702 Touch, and Indie 7 monitors, sharing power and video to reduce cabling at a director's or client monitor and supporting wireless camera control through the SmallHD interface.

The receiver supports up to 4K30 10-bit 4:2:2 HDR video with under 1 ms transmitter-to-receiver delay when no format conversion is used. This 750 version reaches up to 750 ft (about 229 m) line of sight and uses permanently built-in antennas for a compact, robust monitor rig. The Gold Mount configuration suits a matching battery system; the module feeds video to the attached SmallHD Smart 7 through its internal HDMI connection rather than offering a separate user-facing HDMI output.

BOLT 6 · RX 750 · GOLD MOUNT

Wireless video at the monitor

The internal-antenna receiver attaches directly to a compatible SmallHD Smart 7 monitor. A Gold Mount battery workflow and built-in antennas keep the director’s or client display compact, with a line-of-sight link up to 750 ft.

A cleaner SmallHD rig

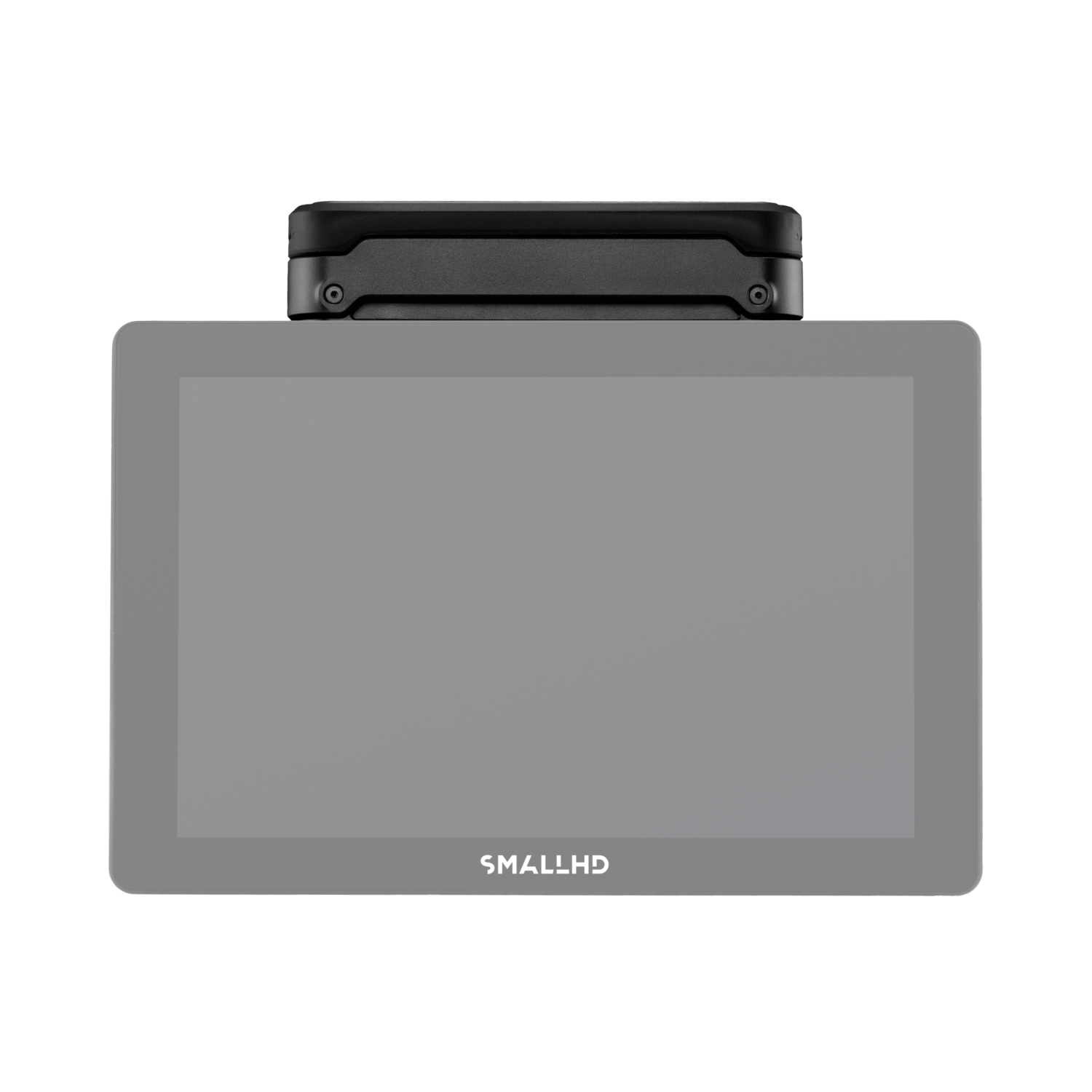

Mounted behind a Cine 7, 702 Touch or Indie 7, the receiver shares power and video with the display. Its internal HDMI connection feeds the attached monitor without a separate user-facing HDMI output or an extra signal cable.

Antennas stay protected

Permanently integrated antennas avoid exposed removable elements and help keep the monitor assembly easier to handle. The internal-antenna choice cannot be converted to the external version after purchase.

Responsive monitoring

Bolt 6 receives up to 4K30 video over supported 5 and 6 GHz channels. With no format conversion, transmitter-to-receiver delay is under 1 ms; 6 GHz availability depends on local regulations.
