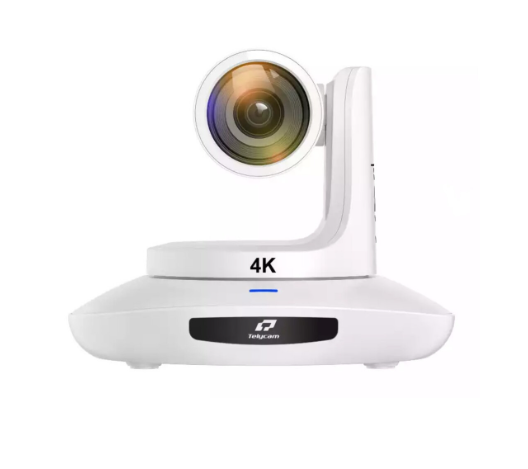

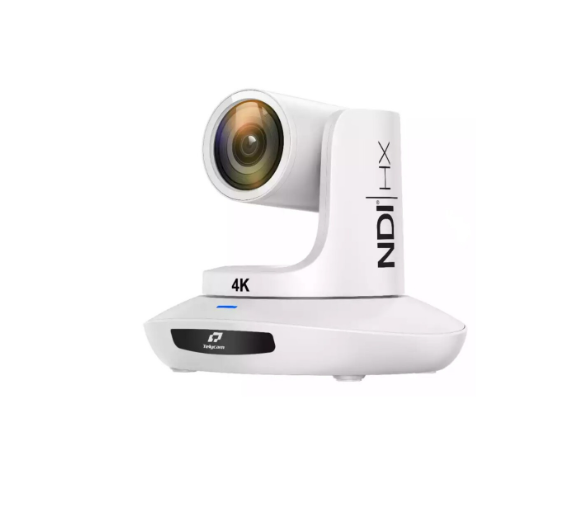

The Telycam Vision+ 4KN 12X White PTZ Camera delivers stunning 4K60 video with 12X optical zoom, built-in auto-tracking, FreeD support, and NDI® | HX streaming. With multi-interface outputs and PoE+ support, it’s ideal for professional live streaming, broadcasting, and VR/AR production.
The Telycam Vision+ 4KN 12X White PTZ Camera delivers stunning 4K60 video with 12X optical zoom, built-in auto-tracking, FreeD support, and NDI® | HX streaming. With multi-interface outputs and PoE+ support, it’s ideal for professional live streaming, broadcasting, and VR/AR production.
The Telycam Vision+ 4KN 12X White PTZ Camera is a high-performance 4K UHD solution designed for professional live streaming, broadcasting, and virtual production environments. Equipped with a Sony 1/2.8-inch 8.4MP CMOS sensor and advanced image processing technology, it produces crystal-clear 4K60 video with exceptional color accuracy and detail, even in low-light conditions.
Featuring a 12X optical zoom lens with an 80.5° wide field of view, the camera offers flexible framing from wide-angle coverage to detailed close-ups. Its compact and robust PTZ design ensures smooth, silent pan, tilt, and zoom movements, making it perfect for studios, conference rooms, and houses of worship.

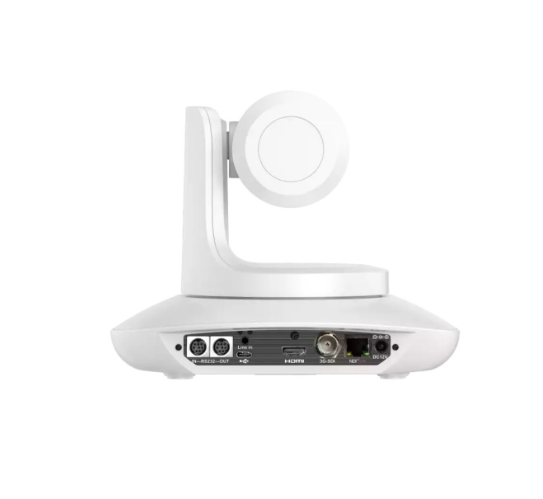

The Vision+ 4KN 12X supports multiple simultaneous outputs, including NDI® | HX, HDMI 2.0, 3G-SDI, and USB Type-C, allowing seamless integration into modern production workflows. Built-in auto-tracking enables accurate subject tracking without additional software, while FreeD protocol support provides precise PTZF data for VR/AR and virtual studio applications.
With PoE+ support, SRT streaming capability, and extensive control options, this camera offers a powerful, flexible, and easy-to-deploy solution for professional video production.
Key Features:
4K UHD 3840×2160p60 video resolution
12X optical zoom with 80.5° wide field of view
Built-in auto-tracking with customizable target settings
FreeD protocol for VR/AR and virtual studio integration
Multi-output: NDI® | HX, HDMI 2.0, 3G-SDI, USB Type-C
Simultaneous 4K and Full HD output
PoE+ (IEEE802.3at) support for single-cable power and data
SRT support for low-latency streaming
Smooth, quiet PTZ movement with precise motor control
Advanced image processing with 2D/3D noise reduction
1 × Telycam Vision+ 4KN 12X PTZ Camera (White)
1 × Power Adapter (if included)
1 × Mounting Accessories
1 × User Manual
Sensor: 1/2.8-inch 8.4MP CMOS
Lens: 3.4–40.3 mm, F1.8–F3.6
Zoom: 12X optical + 4X digital
Field of View: 80.5° (Wide) – 7.6° (Tele)
Minimum Focus Distance: Wide: 1 m, Tele: 1.5 m
Minimum Illumination: 0.01 lux
Video Outputs: NDI® | HX, HDMI 2.0, 3G-SDI, USB Type-C
Audio Input: 3.5 mm line-in
Video Encoding: H.264 / H.265 (VBR/CBR, 1024–61440 Kbps)
Protocols: NDI® | HX, VISCA, VISCA over IP, RTSP, RTMP, HTTP, ONVIF, PELCO-P/D
Pan/Tilt: Pan: -170° to +170° (0.1–120°/s), Tilt: -30° to +90° (0.1–80°/s)
Presets: 10 (remote), 128 (serial), 0.1° accuracy
Tally Light: Supported
Power: DC12V, PoE+ (IEEE802.3at)
Dimensions: 220 × 190 × 173 mm
Weight: 1.5 kg
Color: White
The Telycam Vision+ 4KN 12X is a state-of-the-art PTZ camera with support for 4K60, NDI® | HX, and PoE+, making it ideal for professional streaming and broadcasting. To fully realize its potential, we recommend accessories for stable mounting, remote control via IP protocols, and high-quality cabling for long-distance signal transmission.
Control and Monitoring - Professional controllers and remote controls for precise movement and adjustment of PTZ cameras.
Mounting Accessories - Brackets and mounts designed for secure camera installation on walls, ceilings, or monitors.
Cabling and Power - Hybrid USB cables for stable long-distance data transmission and replacement power supplies.
Audio - Microphone systems suitable for conference and production use with PTZ cameras.
| Manufacturer: | TelyCam |
| Category: | PTZ |
| Camera Sensor size | 1/2.8-inch 8.4MP CMOS |
| Zoom | 124x |
| Output | NDI® | HX, HDMI 2.0, 3G-SDI, USB Type-C |
| Lens lens aperture | 1.8f |
