The Telycam Drive+ SE HDMI (White) is a versatile Full HD PTZ camera featuring 20× optical zoom, NDI®|HX streaming, and simultaneous HDMI and USB 3.0 outputs. Designed for professional streaming and conferencing, it delivers sharp 1080p60 video with reliable performance.
The Telycam Drive+ SE HDMI (White) is a versatile Full HD PTZ camera featuring 20× optical zoom, NDI®|HX streaming, and simultaneous HDMI and USB 3.0 outputs. Designed for professional streaming and conferencing, it delivers sharp 1080p60 video with reliable performance.
The Telycam Drive+ SE HDMI PTZ Camera (White) is a powerful and flexible Full HD camera solution built for live streaming, video conferencing, education, and broadcast environments. Featuring a high-quality 1/2.8-inch 2.4MP CMOS sensor and advanced image processing, it delivers crisp and vibrant 1080p60 video, even in low-light conditions.
Equipped with a 20× optical zoom lens and a wide 60° field of view, the Drive+ SE allows users to capture both expansive scenes and detailed close-ups with precision. Its advanced focusing algorithm ensures fast and accurate focus during zoom and movement, making it ideal for dynamic environments such as classrooms, meeting rooms, and houses of worship.
With integrated NDI®|HX technology, the camera enables efficient, low-latency IP video streaming, simplifying production workflows. It also supports simultaneous HDMI and USB 3.0 outputs, offering excellent flexibility for hybrid setups, live streaming, and use as a high-quality webcam.
The built-in tally indicator provides clear visual feedback during live productions, while PoE+ support enables easy installation using a single cable for power, control, and video transmission. Designed for reliability and ease of use, the Drive+ SE is a dependable solution for a wide range of professional applications.
Key Features:
Full HD 1080p60 video output
1/2.8" 2.4MP CMOS sensor with advanced image processing
20× optical zoom with fast and accurate autofocus
NDI®|HX support for IP-based streaming
Simultaneous HDMI and USB 3.0 video outputs
Wide 60° field of view
Built-in tally light indicator
SRT and RTMP support for live streaming
PoE+ (IEEE802.3at) for single-cable installation
Smooth PTZ movement with preset support
1 × Telycam Drive+ SE HDMI PTZ Camera (White)
1 × Power Adapter
1 × Remote Controller
1 × User Manual
Sensor: 1/2.8-inch 2.4MP CMOS
Lens: 4.9–98 mm, F1.5–F3.0
Optical Zoom: 20×
Field of View: 60° (Wide) – 3.2° (Tele)
Minimum Focus Distance: 1.0 m
Minimum Illumination: 0.7 lux
S/N Ratio: ≥50 dB
Video Outputs:
NDI®|HX, HDMI, USB 3.0
Video Formats:
Up to 1920×1080p60 (Full HD)
IP Streaming:
Encoding: H.264 / H.265
Bitrate: 1024 Kbps – 16384 Kbps
Protocols: NDI®|HX, SRT, RTSP, RTMP, HTTP, ONVIF, VISCA over IP
Pan/Tilt:
Pan: -170° to +170° (0.1–80°/s)
Tilt: -30° to +90° (0.1–80°/s)
Presets: 10 (remote), 128 (serial), 0.1° accuracy

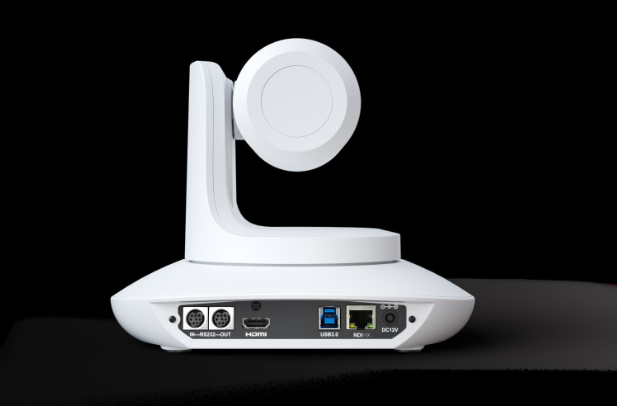

Interfaces:
Control: RS232, RS485, USB, NDI®|HX
Video: NDI®|HX, HDMI, USB 3.0, 3G-SDI
Tally: Supported
Power & Build:
Power: DC12V, PoE+ (IEEE802.3at)
Dimensions: 220 × 190 × 173 mm
Weight: 1.35 kg
Color: White
The Telycam Drive+ SE is a high-performance Full HD PTZ camera with 20x optical zoom and NDI®|HX support, which requires reliable accessories for professional installations. For optimal performance, we recommend dedicated IP controllers, certified mounting kits, and active USB cables to ensure lossless signal transmission.
PTZ Camera Control - Professional controllers and remote controls for precise positioning and simultaneous management of multiple cameras.
Mounting kits and brackets - Compatible brackets for secure camera installation on walls, ceilings, or monitors.
Cabling and Power - Active hybrid USB cables for stable long-distance video transmission and replacement power supplies.
Audio Accessories - Wireless microphone arrays to ensure clear audio during video conferences.
| Manufacturer: | TelyCam |
| Category: | PTZ |
| Camera Sensor size | 1/2.8-inch 2.4MP CMOS |
| Zoom | 20x |
| Version | PTZ |
| Lens lens aperture | 1.5f |
