Telycam Drive+ N 20X white is a professional Full HD PTZ camera with NDI® HX, 20× optical zoom and simultaneous HDMI, 3G-SDI and USB 3.0 outputs. It is well suited to streaming, corporate and educational production, podcasts and houses of worship.
Telycam Drive+ N 20X white is a professional Full HD PTZ camera with NDI® HX, 20× optical zoom and simultaneous HDMI, 3G-SDI and USB 3.0 outputs. It is well suited to streaming, corporate and educational production, podcasts and houses of worship.
Telycam Drive+ N 20X white is a professional Full HD PTZ camera with NDI® HX, 20× optical zoom and simultaneous HDMI, 3G-SDI and USB 3.0 outputs. It is well suited to streaming, corporate and educational production, podcasts and houses of worship.
Key features
Full HD 1080p at up to 60 fps
20× optical zoom
NDI® HX, HDMI, 3G-SDI and USB 3.0
SRT, RTMP, RTSP, ONVIF and additional IP protocols
Fast, quiet PTZ movement
Tally, PoE+ and daisy chain
Smooth 1080p60 Imaging
A 1/2.8-inch sensor and image processor deliver clean Full HD video at up to 60 fps, including in challenging light.

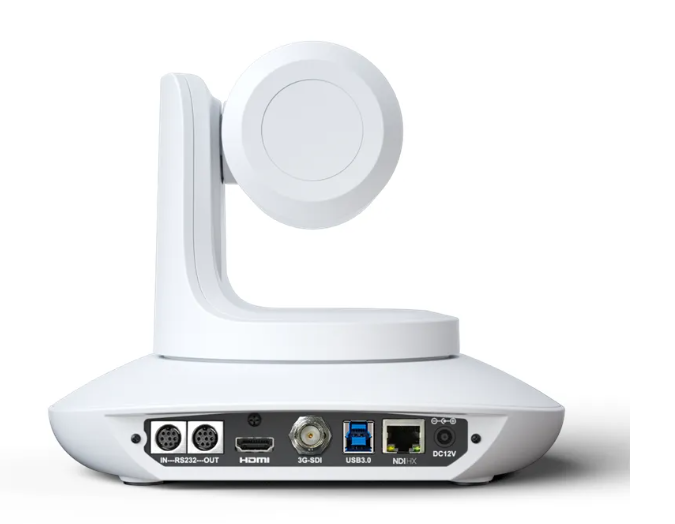

NDI HX and Simultaneous Outputs
NDI HX reduces bandwidth requirements while simultaneous HDMI, 3G-SDI, and USB 3.0 outputs provide flexible integration.
Precise Zoom and Tally
Optical zoom matches the selected version. Smooth PTZ motion, PoE+, and tally support efficient live production.
Full HD in Challenging Light
The image processor and 1/2.8-inch sensor maintain a sharp, usable image in less-than-ideal lighting.
12× or 20× Optical Zoom
Available versions provide a wider 12× option for smaller spaces or 20× zoom for longer shooting distances.
Integrated Tally Light
The tally light works with NDI to show which camera is live or prepared for the next shot.
Protocols: NDI® HX, SRT, HTTP, RTSP, RTMP, DHCP, ONVIF, VISCA over IP/TCP/UDP, Pelco P/D, RTP Multicast and HTML
Control: RS-232, RS-485, IP and USB
Other: tally, PoE+, daisy chain
PTZ and general
Pan: −170° to +170°, 0.1°–120°/s
Tilt: −30° to +90°, 0.1°–80°/s
Presets: 10 remote, 128 serial; 0.1° accuracy
Power: DC 12V or PoE+ (IEEE 802.3at)
Dimensions: 220 × 190 × 173mm
Weight: 1.35kg
Colour: white
WE RECOMMEND
The Telycam Drive+ N 20X white is a professional PTZ camera with NDI HX support and 20x optical zoom, ideal for demanding installations in AV environments. To fully utilize its potential, we recommend accessories for precise remote control, stable wall or ceiling mounting, and high-quality hybrid cabling for long-distance signal transmission.
Control and Monitoring - Professional controllers and remote controls for precise positioning and management of PTZ cameras.
