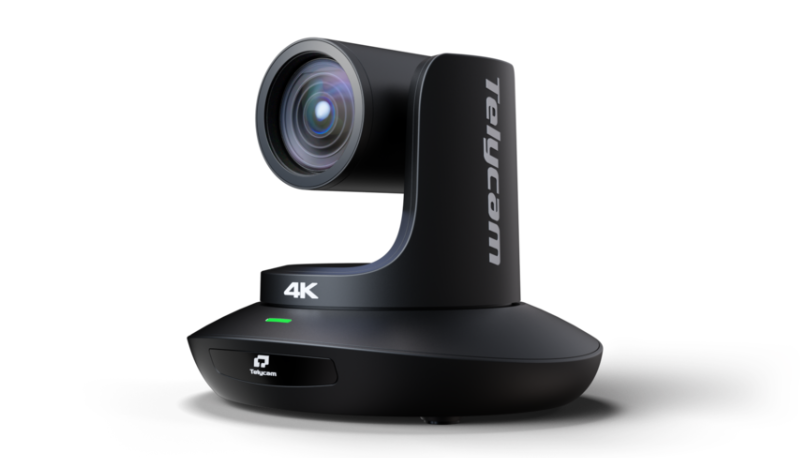

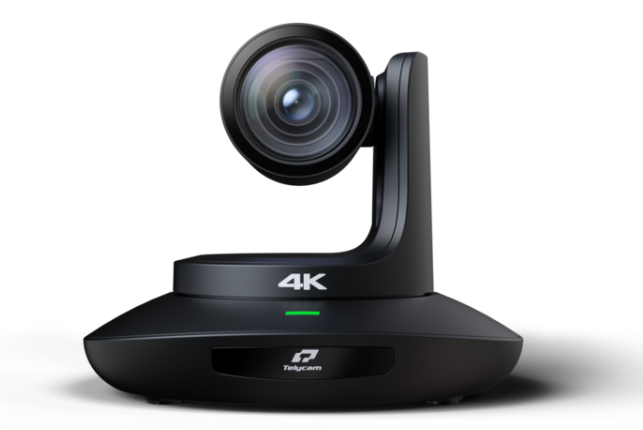

Telycam Vision+ 4KN 12X black is a professional 4K60 PTZ camera for live production, streaming, education, corporate studios and virtual production. It combines a wide 80.5° field of view, 12× optical zoom, NDI® HX3, HDMI 2.0, 3G-SDI and USB-C outputs with native AI auto-tracking, FreeD, tally and PoE+.
Telycam Vision+ 4KN 12X black is a professional 4K60 PTZ camera for live production, streaming, education, corporate studios and virtual production. It combines a wide 80.5° field of view, 12× optical zoom, NDI® HX3, HDMI 2.0, 3G-SDI and USB-C outputs with native AI auto-tracking, FreeD, tally and PoE+.
Telycam Vision+ 4KN 12X black is a professional 4K60 PTZ camera for live production, streaming, education, corporate studios and virtual production. It combines a wide 80.5° field of view, 12× optical zoom, NDI® HX3, HDMI 2.0, 3G-SDI and USB-C outputs with native AI auto-tracking, FreeD, tally and PoE+.
Key features
UHD 4K video at up to 60/59.94 fps via NDI® HX3 and HDMI 2.0
12× optical zoom with an 80.5°–7.6° horizontal viewing angle
Native AI-based automatic subject tracking
FreeD PTZF data for AR/VR and virtual production
NDI® HX3, SRT, RTMP, RTSP, ONVIF, WebRTC and other professional IP protocols
3G-SDI up to 1080p60 and USB-C up to 4K30
PoE+, tally, 3.5mm audio input and RS-232/RS-485 control
SSDP camera discovery and Iris cloud integration on supported newer units
Detailed 4K60 imaging
A 1/2.8-inch 9MP UHD CMOS sensor and advanced image processing deliver clean, detailed and lifelike video at up to 4K60/59.94, including demanding low-light productions.
Flexible production outputs
NDI® HX3 and HDMI 2.0 can output 4K60 simultaneously. 3G-SDI supports Level A and B signals up to 1080p60/59.94, while USB-C offers convenient UVC video up to 4K30. USB and NDI output cannot be used simultaneously.
FreeD for virtual production
FreeD sends precise pan, tilt, zoom and focus data directly to compatible tracking and virtual-set systems. Camera movement and virtual graphics therefore remain accurately synchronized for AR/VR productions.
Native AI auto-tracking
Integrated AI tracking follows the presenter automatically and keeps the subject framed without requiring a dedicated camera operator. This is useful for lectures, worship, corporate presentations, live events and studio production.
Wide-angle 12× optical zoom
The 3.4–40.3mm F1.8–3.6 lens provides 12× optical zoom. Its 80.5° wide horizontal field of view covers small rooms and group shots, while the 7.6° telephoto end reaches distant subjects with fast, accurate autofocus.
Clear tally indication
Integrated tally lights make it immediately clear which camera is live or in preview, improving communication between presenters, operators and the production team.
Audio embedded at the camera
A stereo 3.5mm line input allows sound to be embedded directly into the outgoing video or IP stream, reducing cabling and simplifying synchronized production workflows.
Fast setup with SSDP and Iris
SSDP makes the camera easy to discover on the local network without manually searching for its IP address. Units shipped after 1 January 2026 support Telycam Iris integration for browser-based remote PTZ control, tracking, framing and centralized management.
Minimum illumination: 0.5 lux (50 IRE, max AGC, 1/30, F1.8)
S/N ratio: ≥50dB
Image controls: auto/manual white balance, exposure, focus, iris and shutter; image flip and mirroring
IP streaming
Encoding: H.264/H.265
Bitrate: VBR/CBR, 1024–122800Kbps
Ethernet: Gigabit
Protocols: NDI® HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP (TCP/UDP), VISCA, PELCO P/D, SSDP, FreeD, NTP, RTP Multicast and WebRTC
Pan and tilt
Pan range: −176° to +176°
Tilt range: −30° to +90°
Pan speed: 0.1°–120°/s
Tilt speed: 0.1°–80°/s
Presets: 10 via remote, 256 via serial control; 0.1° accuracy

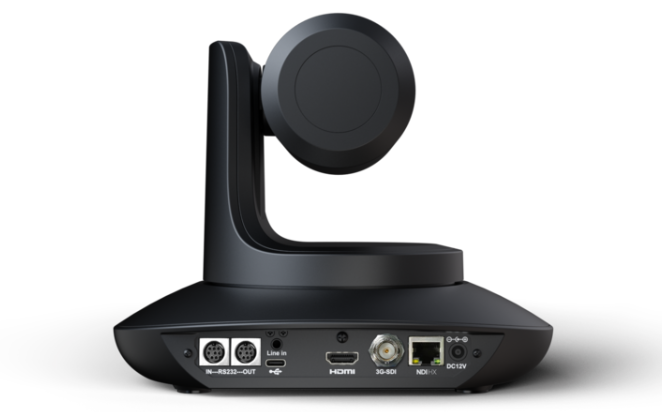

Connections and general
Video: NDI® HX3, HDMI 2.0, 3G-SDI, USB-C
Control: RS-232/RS-485, NDI® HX3 and IP
Audio: stereo 3.5mm line input
Power: DC 12V or PoE+ (IEEE 802.3at)
Other: tally, daisy chain
Operating temperature: −10 to 50°C
Operating humidity: ≤80%
Dimensions: 220 × 190 × 173mm
Net weight: 1.5kg
Colour: black
WE RECOMMEND
The Telycam Vision+ 4KN is a high-end PTZ camera with 4K60 and NDI HX3 support, requiring precise control and a stable installation for professional results. The accessories listed below include dedicated controllers, mounting kits for various installation types, and certified cabling for reliable signal transmission.
Control Panels and Remote Controls - Products for precise remote control of PTZ camera movement and parameters.
