Sennheiser TCC M S-B ceiling microphone, black

  • Free transport
SKU: TCC M-S-B

The Sennheiser TeamConnect Ceiling Medium S-B is a ceiling microphone array for mid-sized meeting rooms and classrooms, covering up to 50 m². Automatic dynamic beamforming with 15 condenser capsules follows the talker around the room, audio is output via Dante and analogue, and power comes over PoE. The S-B kit comes in black…

More information

3 519 € with VAT 2 908.26 € without VAT
Add to Compare Price history
Availability
on request
SKU:
TCC M-S-B
Add to Compare Price history

Sennheiser TCC M TeamConnect Ceiling Medium

3 519 €without VAT 2 908.26 €

Sennheiser TCC M F-B ceiling microphone, black

3 519 €without VAT 2 908.26 €

Sennheiser TCC M S-W ceiling microphone, white

3 519 €without VAT 2 908.26 €
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

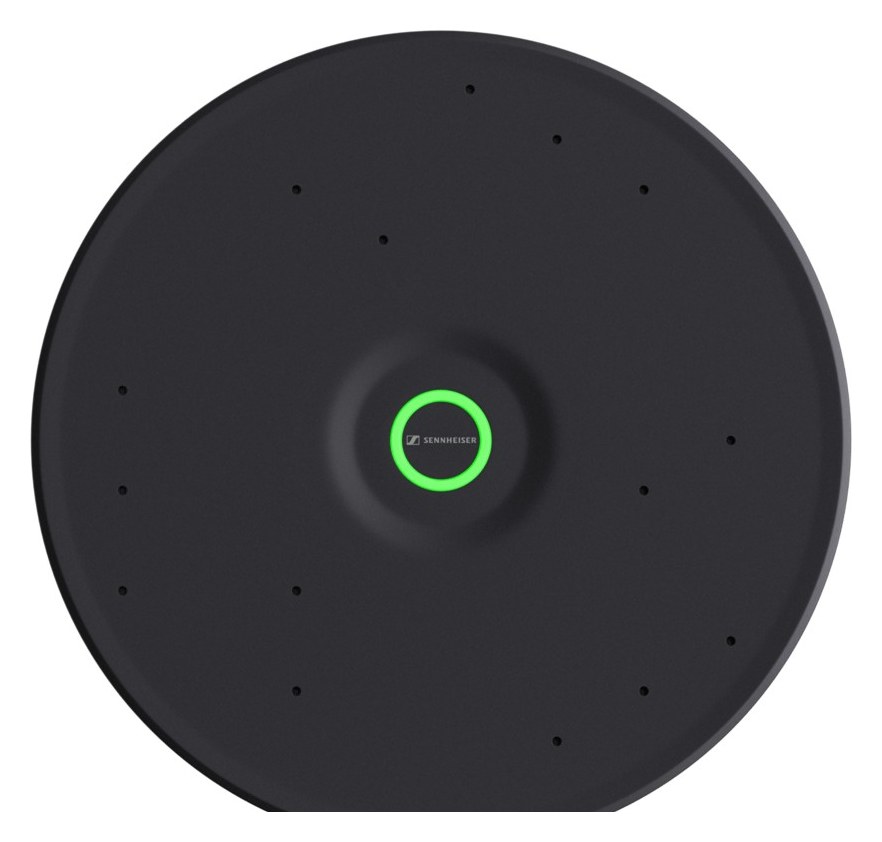

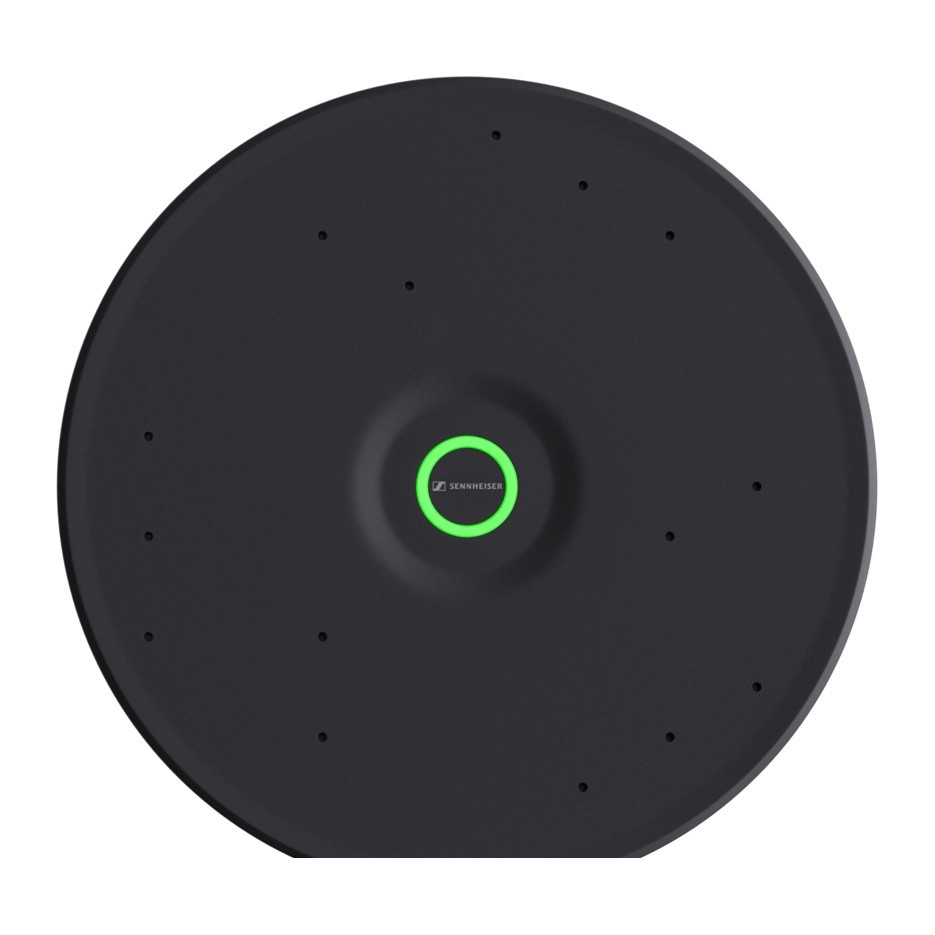

The Sennheiser TeamConnect Ceiling Medium S-B is a ceiling microphone array for mid-sized meeting rooms and classrooms, covering up to 50 m². Automatic dynamic beamforming with 15 condenser capsules follows the talker around the room, audio is output via Dante and analogue, and power comes over PoE. The S-B kit comes in black with a design housing for surface or suspended mounting.

Clear voice from the whole room

A ceiling microphone that needs no table microphones and no cables across the table. The array follows whoever is speaking and sends intelligible speech to the call and the recording.

15 capsulesup to 50 m²Dante + analoguePoEØ 407 mmMicrosoft Teams

Surface or suspended mounting

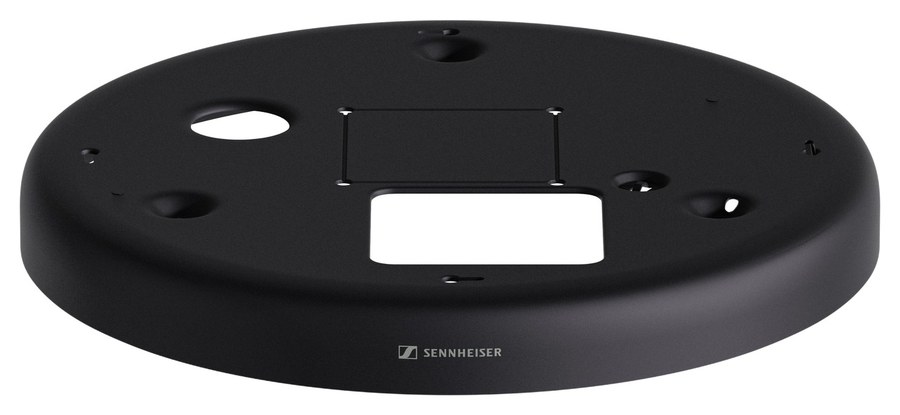

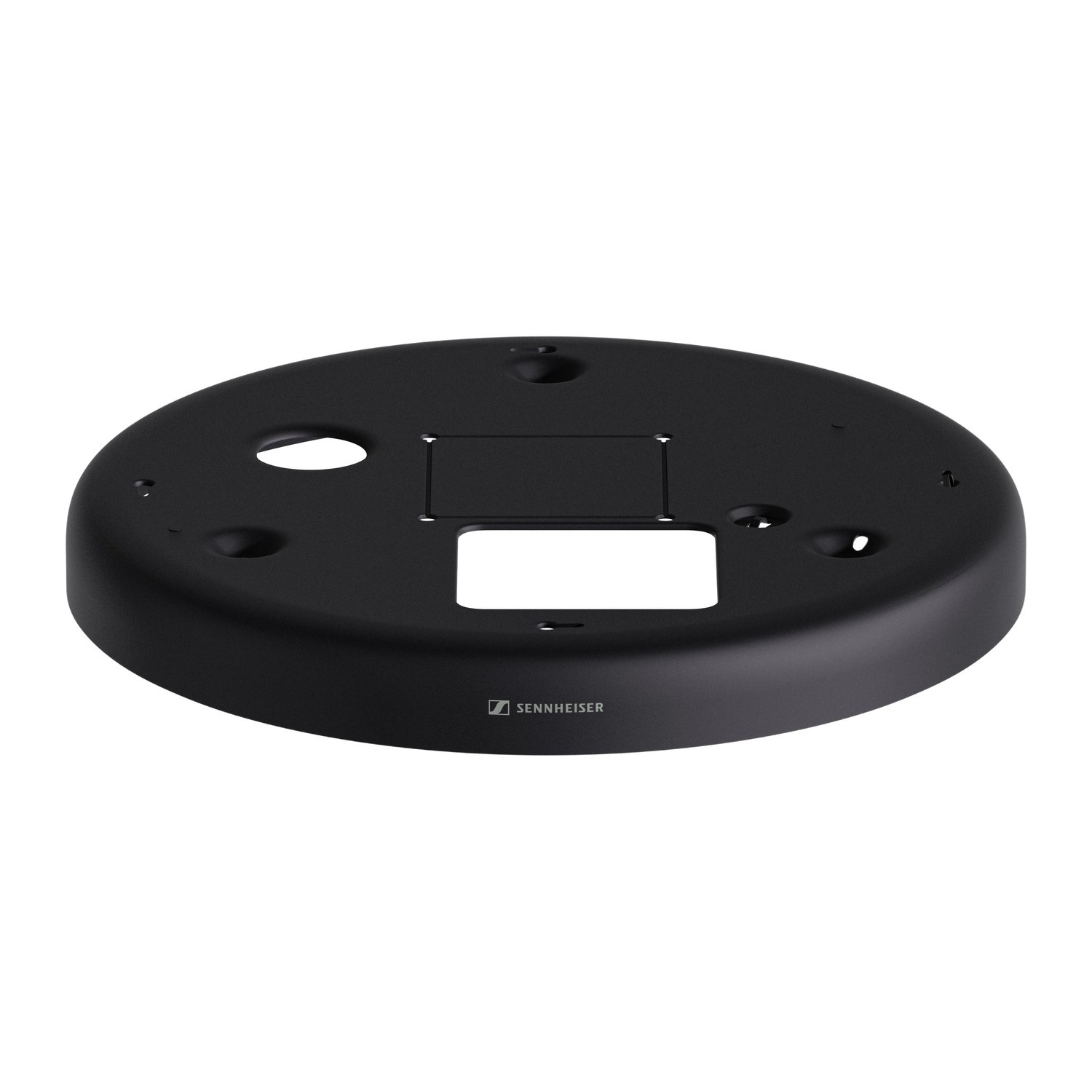

The S-B kit includes a black front plate and a design housing for mounting directly below the ceiling. For high rooms the box also contains a suspension kit and a safety rope, letting the microphone hang up to 5 m below the ceiling.

One cable is enough

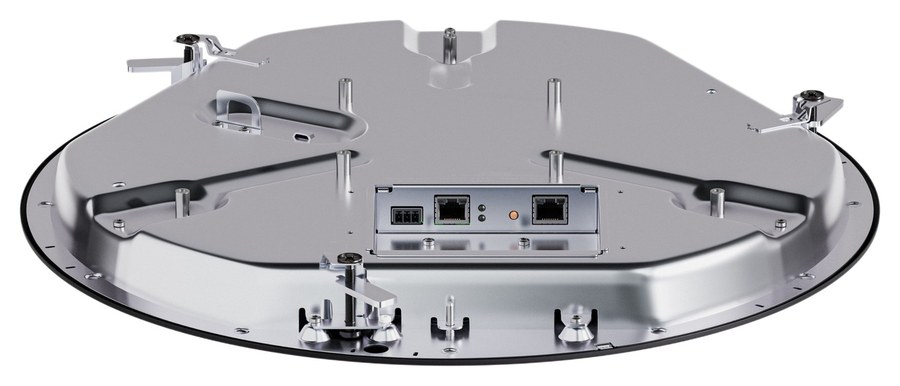

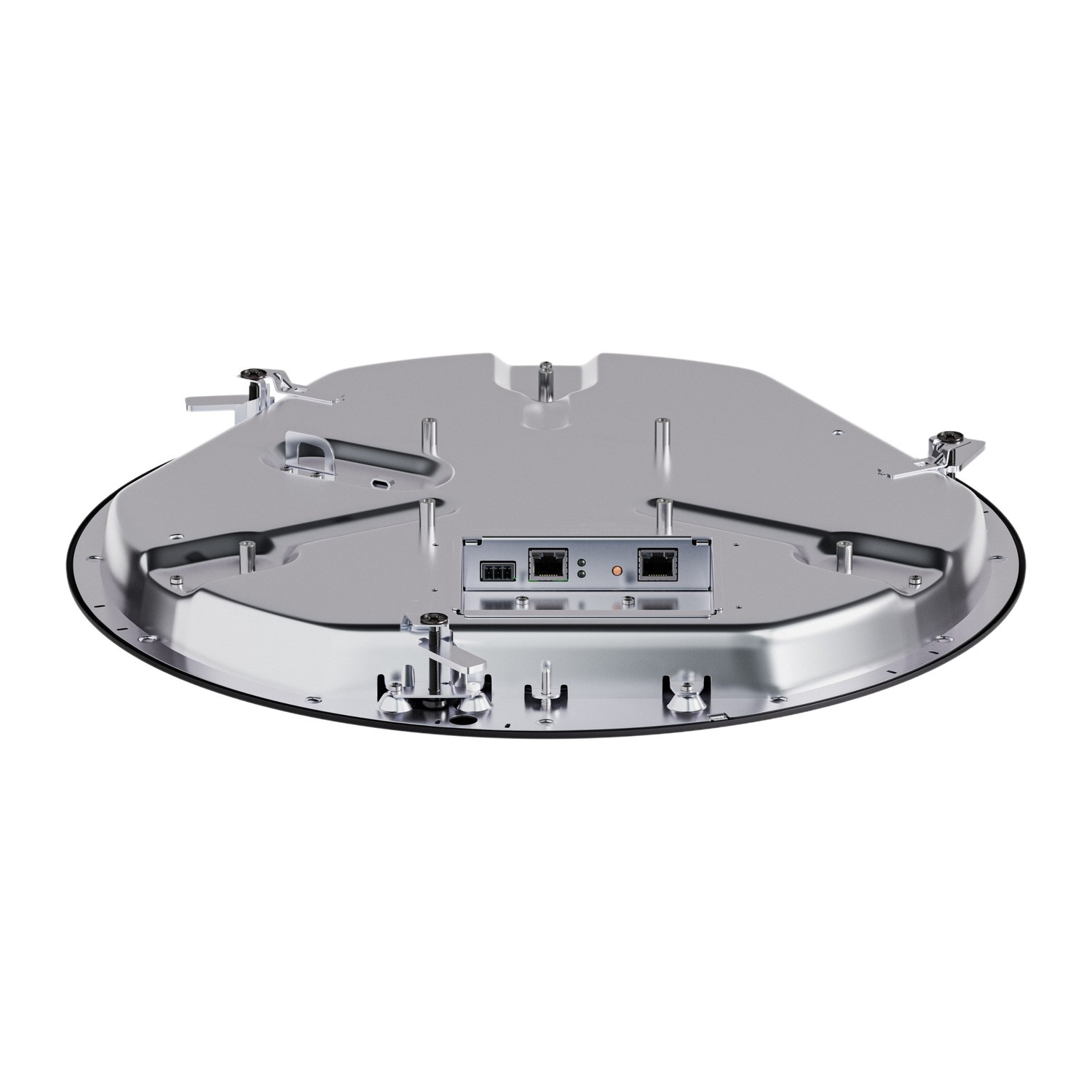

The PoE IN/CTRL socket carries power, control and Dante audio. The second PoE OUT socket daisy-chains up to three microphones or separates the Dante network.

Beamforming that follows the talker

Patented automatic dynamic beamforming locks onto the talker and follows them around the room. The talker position is shown live in Sennheiser Control Cockpit and can be used to steer cameras.

TruVoicelift

The talker’s voice can be reinforced through the room loudspeakers so it is heard clearly even in the back rows.

Zones and priority

Exclusion zones suppress sound from areas where nobody speaks, and a priority zone favours, for example, a lectern.

Secure network

IEEE 802.1X, TLS 1.2 and the encrypted SSCv2 API. The microphone is password protected from the factory and audio stays muted until it is initialised in Control Cockpit.

Paintable housing

The metal front plate and back housing can be painted to match the interior. The microphone is certified for Microsoft Teams.

PACKAGE CONTENT

  • TCC M conferencing microphone
  • front plate, black
  • design housing, black
  • Chicago plenum connection box cover plate
  • drilling templates
  • Phoenix connector
  • safety rope
  • suspension kit

SPECIFICATIONS

  • Model: TeamConnect Ceiling Medium S-B (art. no. 700295)
  • Type: ceiling microphone array with automatic dynamic beamforming
  • Transducers: 15 pre-polarised condenser capsules
  • Coverage: up to 50 m²
  • Frequency response: 100–16,000 Hz
  • Sensitivity: 0 dBV/Pa (1,020 mV/Pa)
  • Max. sound pressure level: 98 dB SPL
  • Signal-to-noise ratio: 77 dB(A)
  • Equivalent noise level: 17 dB(A)
  • Dynamic range: 81 dB(A)
  • Audio outputs: Dante (RJ-45), analogue 3-pin terminal (fits Phoenix MCVW 1.5-3-ST-3.81)
  • Network and control: RJ-45 PoE IN/CTRL, RJ-45 PoE OUT for daisy chaining (up to 3 microphones)
  • Power supply: PoE IEEE 802.3af Class 3, IEEE 802.3at Class 4 when daisy-chained
  • Power consumption: approx. 8 W
  • Security: IEEE 802.1X, TLS 1.2, encrypted SSCv2 API
  • Software: Sennheiser Control Cockpit
  • Mounting: surface directly below the ceiling or suspended (up to 5 m)
  • Colour: black
  • Dimensions: Ø 407 × 46 mm
  • Weight: max. 4.9 kg
  • Operating temperature: 0 to 40 °C
  • Storage temperature: −10 to 60 °C
  • Relative humidity: 20–95%, non-condensing
  • Safety: IEC/EN 62368-1 (including UL 2043 plenum testing)
Parameters

Parameters

Manufacturer: Sennheiser
Category: Microphones

Main parameters

TypeCondenser
Frequency range100x16000Hz
Maximum SPL98dB SPL
Height46mm
ColourBlack
Width407mm
Weight4900g
Depth407mm
