Sennheiser CA 6042 XLR Y-cable

Name: Sennheiser CA 6042 XLR Y-kabel
Brand: Sennheiser
SKU: GA 6042 XLR
Price: 70 EUR
Availability: OutOfStock

SKU: GA 6042 XLR

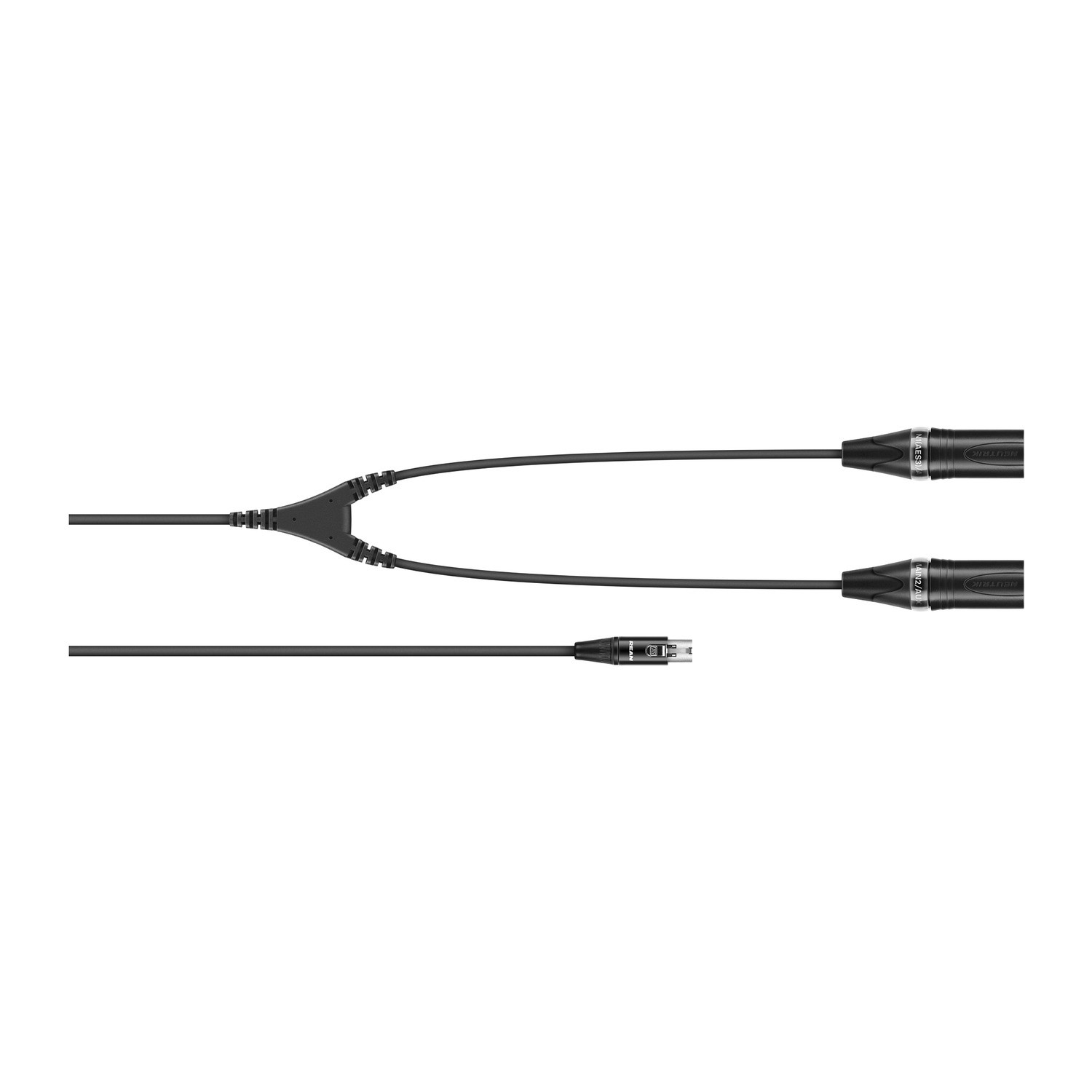

The Sennheiser CA 6042 XLR Y-cable splits the 5-pin mini-XLR output of the EK 6042 receiver into two 3-pin XLR connectors, one per receiving channel. Use it to connect the receiver to a mixer or recorder via the GA 6042 BP backpanel adapter, or to feed the second channel into another audio input of a Sony camera. The receiver end has a female mini-XLR.

More information

70 € with VAT 57.85 € without VAT

Price history

Availability

on request

SKU:
GA 6042 XLR

Price history

DESCRIPTION AND PARAMETERS

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Two channels, two XLR connectors

One mini-XLR connector carries both receiver channels. The Y-cable splits them so that channel 1 goes to the first XLR (MAIN 1 / AUX 1) and channel 2 to the second (MAIN 2 / AUX 2).

Mini-XLR-5 to 2× XLR-3For EK 6042Balanced wiring

The receiver off the camera

With the GA 6042 BP backpanel, the EK 6042 has two mini-XLR outputs: MAIN 1/2 (analogue or digital AES3) and AUX 1/2. To connect both to a mixer, use two CA 6042 XLR Y-cables.

Second channel into a Sony camera

In the slot of a Sony camera, only channel 1 may be passed through. Channel 2 can be fed from the top AUX 1/2 output via this cable into another camera audio input.

Pin assignment

Mini-XLR: pin 1 ground, pins 2/3 channel 1 (+/−), pins 4/5 channel 2 (+/−). XLR: pin 1 ground, pin 2 +, pin 3 −.

PACKAGE CONTENT

CA 6042 XLR Y-cable

SPECIFICATIONS

Type: Y-adapter cable
Connectors: 5-pin mini-XLR (female) → 2× 3-pin XLR
Compatibility: EK 6042 receiver (AES3 MAIN 1/2, AUX 1/2 and top AUX 1/2 outputs)
Mini-XLR pin assignment: pin 1 ground, pin 2 channel 1 +, pin 3 channel 1 −, pin 4 channel 2 +, pin 5 channel 2 −
XLR pin assignment: pin 1 ground, pin 2 +, pin 3 −
Article no.: 506216
