SWIT TD-R210S | 500W Super High load 48V/24V Flexible Stand-mounted Adaptor for dual batterieS, V-m

The SWIT TD-R210S Bi-Voltage Light Stand Power Adapter (V-Mount) is a high-capacity dual-battery power solution designed to run high-power 24V and 48V lighting fixtures using just two V-Mount batteries. Delivering regulated 24V (240W max) or 48V (500W max) outputs, it supports demanding lights such as Skypanel S60/S120 at full output. Built with Neutrik XLR connectors and designed for mounting on 25–45mm light stands, the TD-R210S offers a portable and reliable power solution for professional studio and field productions.

The SWIT TD-R210S 500W Flexible Adapter 48V/24V is a professional dual-voltage power adapter engineered to operate high-power lighting fixtures using two V-Mount batteries. Designed for demanding broadcast, film, and studio environments, it provides regulated 24V or 48V output with strong load capacity in a compact, portable form factor.

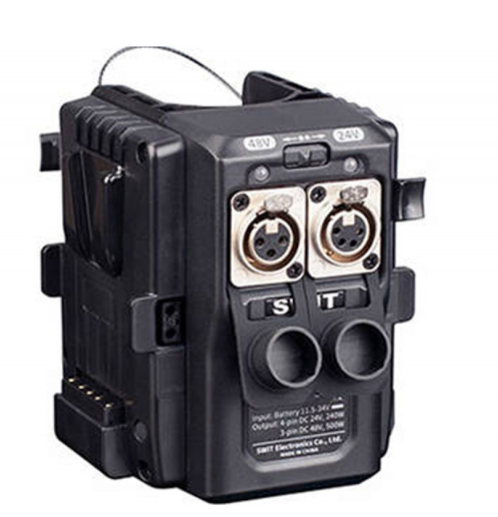

High-power LED fixtures commonly require 24V or 48V input to achieve full brightness. The TD-R210S enables users to power such fixtures without heavy AC power supplies by installing two V-Mount batteries directly onto the unit. It delivers up to 240W via a regulated 24V 4-pin XLR output and up to 500W via a regulated 48V 3-pin XLR output, making it suitable for professional-grade lights including Skypanel S60 and S120 at 100% output.

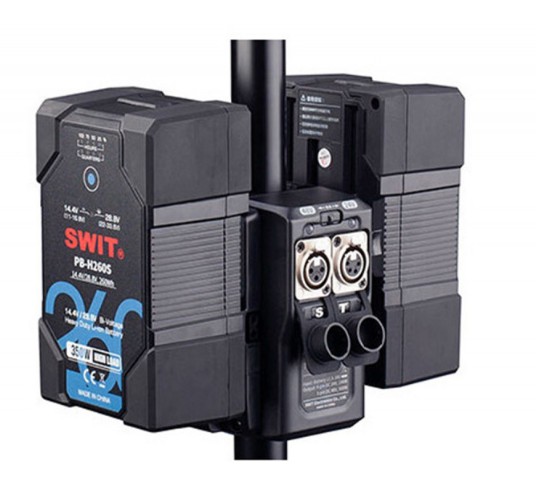

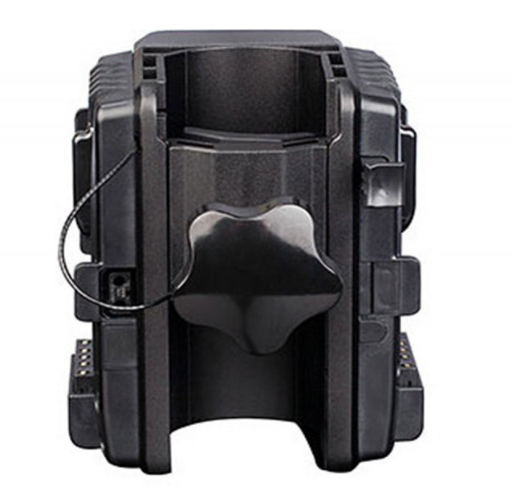

Built for reliability and safety, the adapter features high-quality Neutrik XLR connectors for secure and stable power transmission. The rugged housing is designed for direct mounting onto lighting stands or C-stands with diameters ranging from 25mm to 45mm, ensuring a clean and organized power setup on set.

Portable, efficient, and capable of handling substantial loads, the TD-R210S is an ideal battery-powered solution for high-output lighting systems in studio or on-location productions.

Key Features

• Dual V-Mount battery installation (2× V-Mount batteries)

• Regulated 24V output via 4-pin XLR (240W max)

• Regulated 48V output via 3-pin XLR (500W max)

• Supports high-power LED lights

• Suitable for Skypanel S60/S120 at full output

• High load capacity for demanding fixtures

• Professional Neutrik XLR connectors

• Mounts to 25–45mm light stands or C-stands

• Portable alternative to AC power supplies
