SWIT EC-N200-4K | NDI Codec Camera Adaptor with 4K60p supported

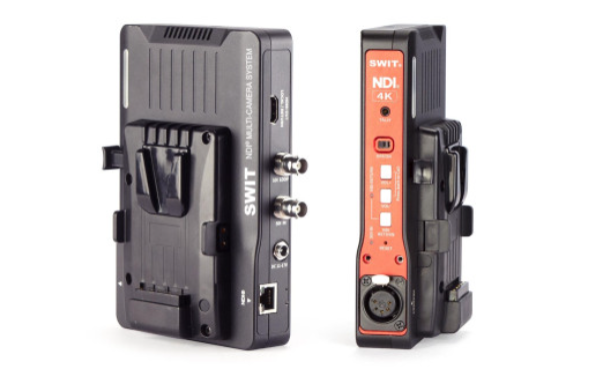

The SWIT EC-N200-4K is a professional 4K60p NDI® codec camera adapter that converts 12G-SDI to high-bandwidth NDI® while simultaneously decoding NDI® to HDMI. Featuring intercom, TALLY, PoE, and V-Mount power options, it is designed for advanced IP-based live production workflows.

The SWIT EC-N200-4K is a powerful and versatile NDI® codec adapter built for modern IP production environments. Designed to integrate seamlessly into live broadcast, remote production, and studio NDI® infrastructures, the unit encodes a 12G-SDI camera signal into high-bandwidth NDI® with full 4K60p support, ensuring ultra-high-quality video transmission over IP networks.

In addition to encoding, the EC-N200-4K can decode an NDI® program return (PGM) feed to HDMI output. This enables camera operators to monitor live program return directly from the device. The adapter also allows switching between local camera video and the return PGM signal, improving flexibility and workflow efficiency in live production scenarios.

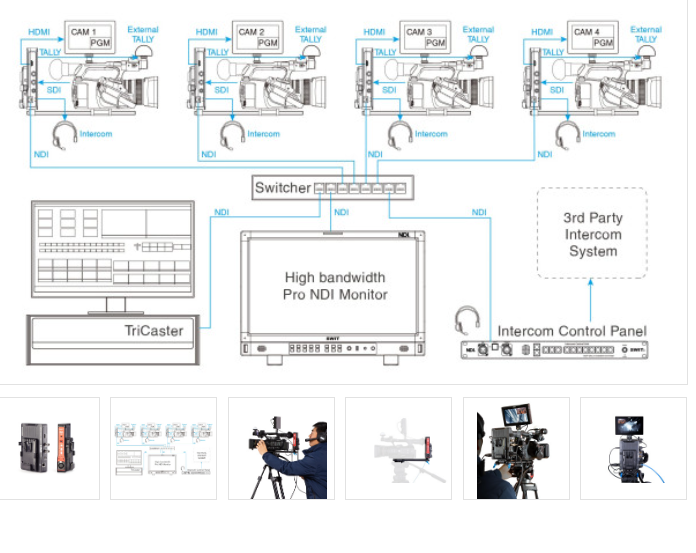

The integrated intercom system connects with the ET-N80 control panel and includes mute, call, and headphone jack functionality for real-time crew communication. Built-in TALLY and support for an external TALLY lamp provide clear on-air status indication.

Powering options are highly flexible, including DC 11–17V input, V-Mount battery power, or PoE (42–57V). A dedicated RJ45 cable clamp secures the network connection to prevent accidental disconnection during operation. For ENG-style camera setups, the device supports mounting via a 15mm rod rail system. Configuration and firmware updates are easily managed through an integrated web server interface.

Key Features

• 4K60p video support

• 12G-SDI to high-bandwidth NDI® encoding

• NDI® program (PGM) decoding to HDMI output

• Switchable local camera / PGM return monitoring

• Integrated intercom (compatible with ET-N80 control panel)

  • Mute function

  • Call function

  • Headphone jack

• Built-in TALLY + external TALLY lamp support

• Multiple power options:

  • DC 11–17V / 1.5A

  • V-Mount input

  • PoE 42–57V / 0.5A

• RJ45 network cable locking clamp

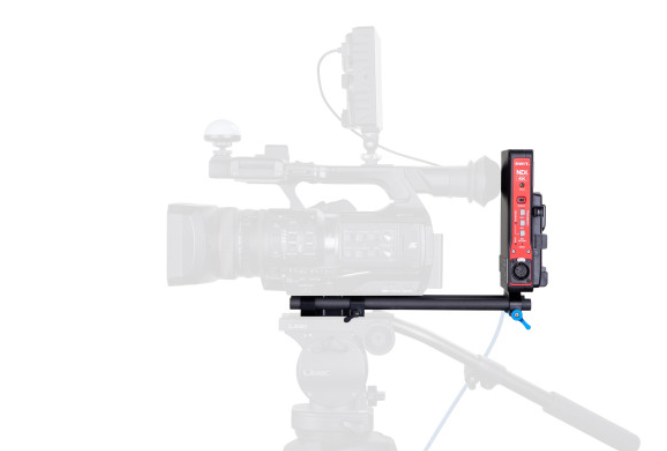

• 15mm rod rail mounting system for ENG cameras

• Web server interface for setup and firmware updates
