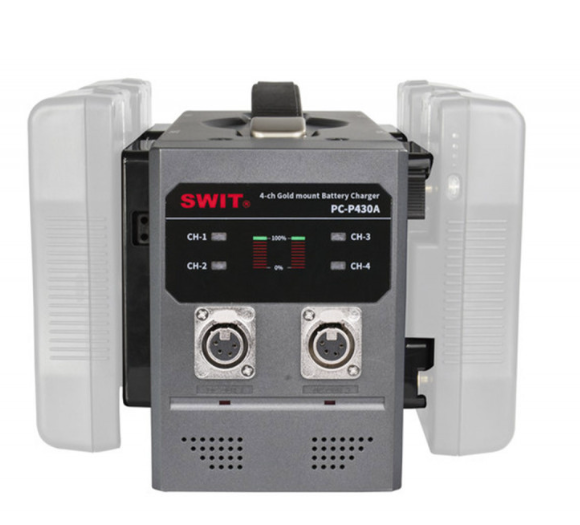

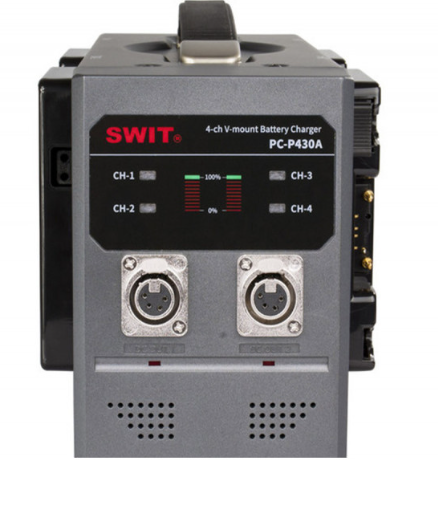

SWIT PC-P430A | 4ch x 3A Fast Simultaneous Charger with 2-XLR DC out, Gold-mount

The SWIT PC-P430A is a professional 4-bay Gold Mount rapid charger designed to charge up to four lithium-ion batteries simultaneously at 16.8V/3A per channel. Featuring dual 4-pin XLR DC outputs (6A/90W), universal 100–240V AC input, and intelligent protection circuitry, it also functions as a reliable AC-to-DC power supply for broadcast and studio equipment.

The SWIT PC-P430A 4CH x 3A Gold Mount Rapid Simultaneous Charger is a high-performance charging solution for professional video and broadcast applications. Designed for Gold Mount lithium-ion batteries, it supports simultaneous charging across all four bays, delivering 16.8V DC at 3A per channel to ensure fast and efficient power replenishment.

Each charging bay features a color LED indicator to clearly display battery charging status. Advanced overcurrent and overcharge protection safeguards battery health by supplying only the required current to each battery.

In addition to battery charging, the PC-P430A includes two 4-pin XLR DC outputs delivering 15V DC at 6A (90W), allowing the unit to function as a standalone AC-to-DC power adapter when batteries are not charging. Its internal power supply supports 100–240V AC, 50/60Hz, making it suitable for worldwide use.

The charger’s compact vertical design with an integrated top handle ensures portability, while its robust construction makes it ideal for studio, field production, and rental house environments. An AC power cord is included.

Key Features

• 4-bay Gold Mount battery charger

• Simultaneous charging at 16.8V DC / 3A per channel

• Dual 4-pin XLR outputs (15V DC, 6A, 90W)

• Universal 100–240V AC input (50/60Hz)

• Color LED charging indicators

• Overcurrent and overcharge protection

• Functions as AC-to-DC power supply

• Compact vertical design with carry handle
