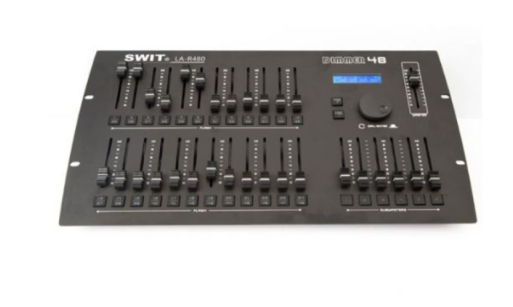

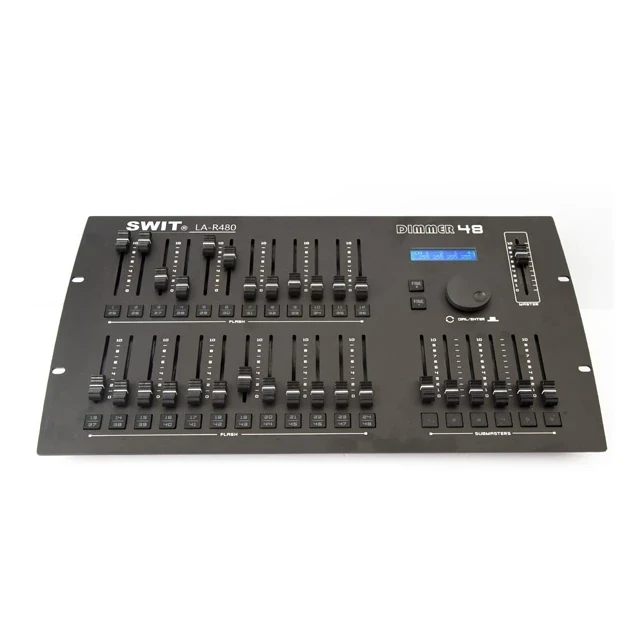

The SWIT LA-R480 is a 48-channel cascaded DMX light console designed for professional stage and studio lighting control. Featuring 24 channel sliders with A/B switches, 6 submaster sliders, and a master slider, it offers precise, flexible control over up to 192 channels when daisy-chained.
The SWIT LA-R480 is a 48-channel cascaded DMX light console designed for professional stage and studio lighting control. Featuring 24 channel sliders with A/B switches, 6 submaster sliders, and a master slider, it offers precise, flexible control over up to 192 channels when daisy-chained.
The SWIT LA-R480 is a versatile and professional DMX512 lighting console built for live events, studios, and theater setups. With 48 controllable channels, 24 sliders with A/B switches, and 6 submaster plus 1 master slider, it allows for detailed lighting control and dynamic effects. The console supports up to 4 serially connected units, enabling control over 192 DMX channels, while an LCD display provides real-time DMX values for each channel. Flash control buttons on each slider allow for quick scene changes, and standard 3-pin DMX connections ensure compatibility with a wide range of fixtures. Robust and compact, the LA-R480 combines professional features with portability, making it ideal for both mobile and permanent lighting setups.
Key Features
48 DMX channels with A/B switch for 24 sliders
6 submaster sliders and 1 master slider
Cascadable up to 4 units for 192 channels
LCD display showing DMX values for each channel
Flash buttons for quick scene control
Standard DMX512 interface with isolator
Channel count: 48
Assistant master sliders: 6
Master slider: 1
DMX connections: 3-pin XLR female ×1, male ×1
Serial connection: up to 4 units (max 192 channels)
Power supply: PowerCON AC 88-256V 50/60Hz (IN ×1, LOOP ×1)
Dimensions: 482 × 265 × 75 mm
Weight: 2.65 kg
