SWIT LA-R240 | 24-Channel Cascadable DMX Light Console

The SWIT LA-R240 is a 24-channel cascaded DMX512 light console for broadcast studios, stage, and event lighting. It features 24 channel sliders, 6 submasters, 1 master slider, LCD display for channel values, and the ability to expand up to 96 channels via serial connection.

The SWIT LA-R240 24-Channel DMX Light Console is a professional lighting controller designed for studio, stage, and event applications. Built as a zero-basis operable DMX512 console, it allows precise control over up to 24 lighting channels with 24 individual sliders, 6 submasters for grouped control, and 1 master slider for overall intensity.

The LCD display shows the exact DMX values of each channel, and FINE +/- buttons allow precise adjustments. Each slider also has dedicated flash control buttons for instant light triggering. For larger setups, up to 4 LA-R240 consoles can be connected in series via RJ45, expanding control to 96 channels, with the first unit acting as master and subsequent units as slaves.

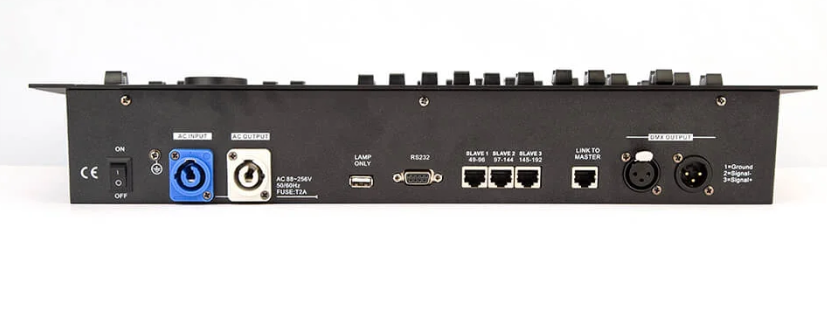

Connectivity includes 3-pin XLR DMX input/output, RS232 remote control, RJ45 serial link, and PowerCON AC 88–256V for input and loop output. Compact and robust, the console measures 482×265×75 mm and weighs 2.65 kg, making it suitable for portable or permanent lighting setups.

Key Features

• 24 DMX channels with individual sliders

• 6 submaster sliders for grouped channel control

• 1 master slider for overall intensity

• LCD display showing precise DMX values

• Flash control buttons for each channel

• Cascadable up to 4 units (96 channels) via RJ45

• DMX input/output: 3-pin XLR male/female

• RS232 remote control support

• PowerCON AC 88–256V input and loop output

• Compact and portable design
