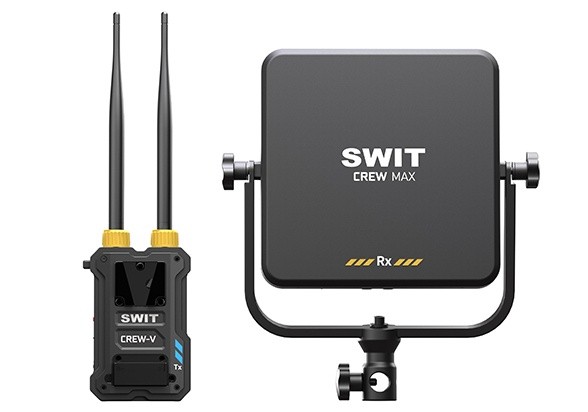

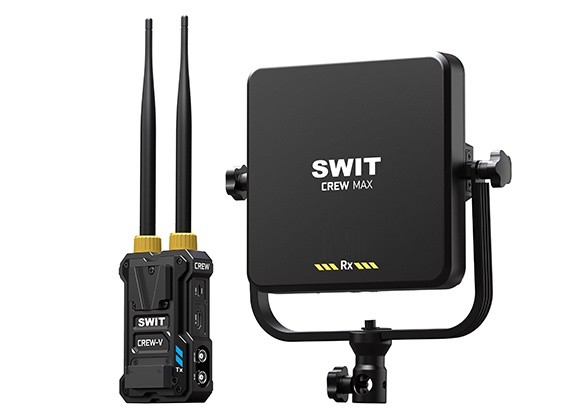

SWIT CREW-V MAX

The SWIT CREW MAX offers ultra-stable, high-quality wireless video transmission up to 3 kilometers (10,000 feet) line-of-sight. Featuring a panel receiver with high gain directional antenna, dual-sided NP-F and V-mount power options, 3G-SDI/HDMI inputs and outputs, USB-C capture, ultra-low 32ms latency, and AES-256 encryption, it is optimized for large-scale professional broadcasts and film productions.

Powerful Long-Range Wireless Video Transmission

The SWIT CREW MAX is engineered to deliver rock-solid HD video transmission for demanding broadcast, film, and event productions requiring extended range and stable signal quality. With an advanced panel receiver housing a high-gain directional antenna, it achieves a remarkable 3km (10,000ft) line-of-sight range, providing enhanced wall-crossing capability in obstructed environments.

Key Features

• Extended 3km Range: Reliable wireless video transmission up to 3 kilometers, ideal for large venues, outdoor shoots, and expansive broadcast setups.

• Advanced KUWI 2.0 RF Technology: Proprietary anti-interference RF technology operating in license-free 5.1-5.9GHz bands ensures highly stable connections even in complex environments.

• Ultra-Low Latency: Consistent 32ms video latency excelling in demanding real-time applications such as wireless follow focus and multi-camera synchronization.

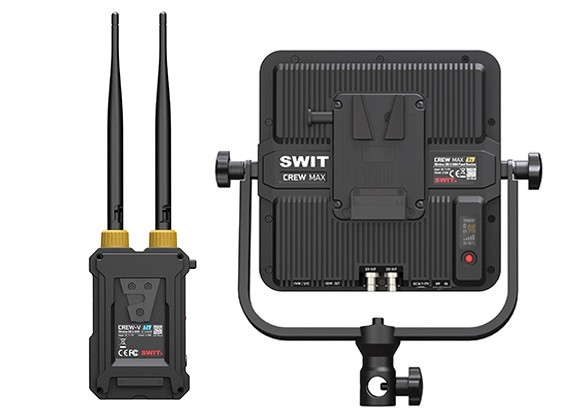

• Flexible Power Options: The transmitter uses NP-F battery plates while the panel receiver uses V-mount batteries; both support DC input via 2-pin LEMO and USB-C power for versatile operation.

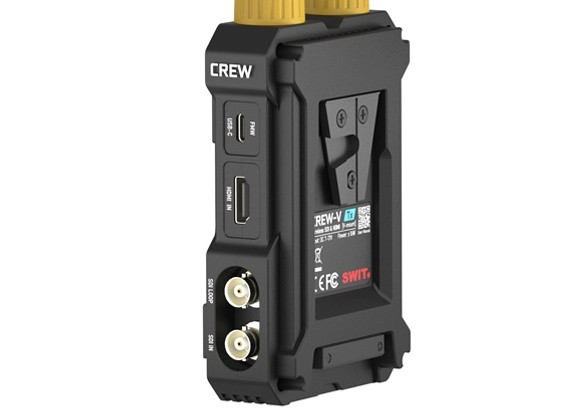

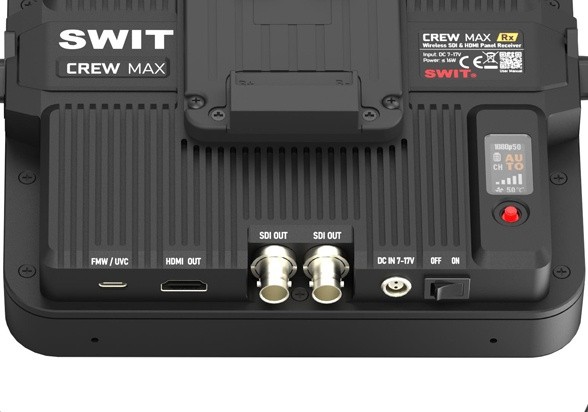

• Comprehensive Connectivity: Transmitter supports 3G-SDI (input & loop out) and HDMI inputs compatible with a wide range of professional ENG and cine cameras. The panel receiver outputs dual 3G-SDI, HDMI, and USB-C video capture simultaneously for flexible monitoring and streaming.

• Multicast Capability: Supports one transmitter to up to four receivers without quality or latency compromise, perfectly suited for collaborative film crews and multi-monitor setups.

• Broadcast-Grade Security: Dual encryption using proprietary KUWI RF and AES-256 to securely protect sensitive footage from unauthorized interception.

• User-Friendly OLED Interface: High-brightness 450nits OLED display with joystick makes configuration, pairing, and system monitoring simple even under direct sunlight.

Additional Features

• Embedded Metadata and Timecode Transmission: Wirelessly transmits SDI-embedded metadata, timecode, and start/stop triggers to streamline on-set data management and post-production workflows.

• H.265 Visually Lossless Encoding: Supports up to 26.8 Mbps bitrate video compression for pristine, cable-comparable image quality.

• Durable Design: Withstands operating temperatures from –10°C to 40°C, making it suitable for diverse shooting conditions, weighing 399g for the transmitter and 1511g for the panel receiver.

Package Contents

• 1 × CREW MAX Transmitter with NP-F battery plate

• 1 × CREW MAX Panel Receiver with V-mount battery plate

• Essential power and connection cables including 2-pin LEMO and USB-C

• Carrying case for organized storage and transport
