SmallRig Cage for Canon EOS R CCC2803

All-metal SmallRig CCC2803 cage tailored to the Canon EOS R. It protects the body and adds 1/4"-20 and ARRI 3/8"-16 threads, a cold shoe and a strap hole, with an Arca-Swiss plate and a flat screwdriver built into the base.

SmallRig Cage for Canon EOS R CCC2803

is a formfitting full cage designed to provide protection and accessory mounts for your camera. The cage secures to the bottom of the camera via a 1/4"-20 screw and features two pins for anti-twisting. It comes with multiple 1/4"-20 and 3/8"-16 threaded holes, ARRI accessory threads, and a cold shoe, allowing mount of accessories. For example, you can mount SmallRig Top Handle 2165 or SmallRig Wooden Side Handle 2093 for hand-held shooting; mount SmallRig Ball Head Magic Arm 2070 or SmallRig Monitor Holder 1842 to attach a monitor. It works with SmallRig Cable Clamp 1822 to protect the HDMI cable and port. If you use the Canon EF-EOS R lens mount adapter, you can use SmallRig BSA2696 to support the mount and relief pressure from the heavy lens. Additionally, the cage features a built-in Arca-Swiss QR plate and a flat screwdriver on the bottom.

Key features

• Aluminum alloy for maximum durability and reliability
• Locks the camera via a 1/4"-20 screw and two anti-twist pins
• 1/4"-20 threaded holes (①⑤⑦) and ARRI 3/8"-16 locating holes (②④⑥)

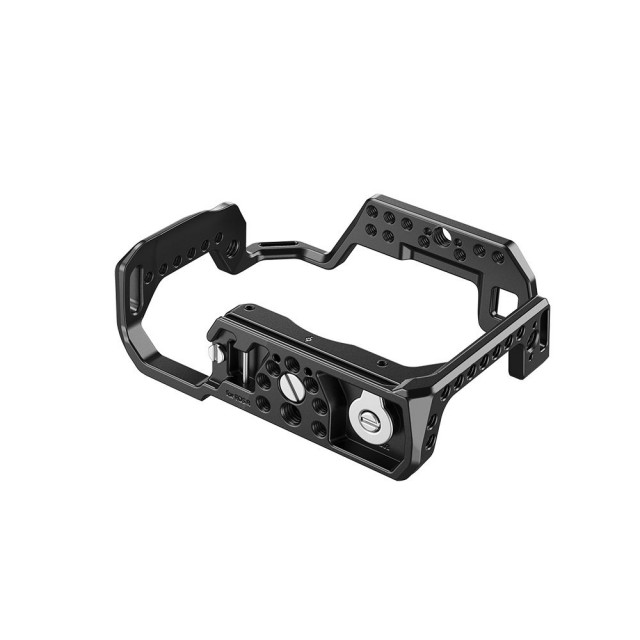

• Built-in Arca-Swiss QR plate (⑧)
• Cold shoe for further accessories (⑨)
• Strap hole (③)
• Flat screwdriver built into the bottom of the cage

Designer: Evans Pan

Installation steps
1. First remove both anti-twist pins from the cage.
2. Put the camera into the cage and tighten the 1/4"-20 screw on the bottom.
3. Finally tighten the anti-twist pins from underneath.

Compatibility
Canon EOS R

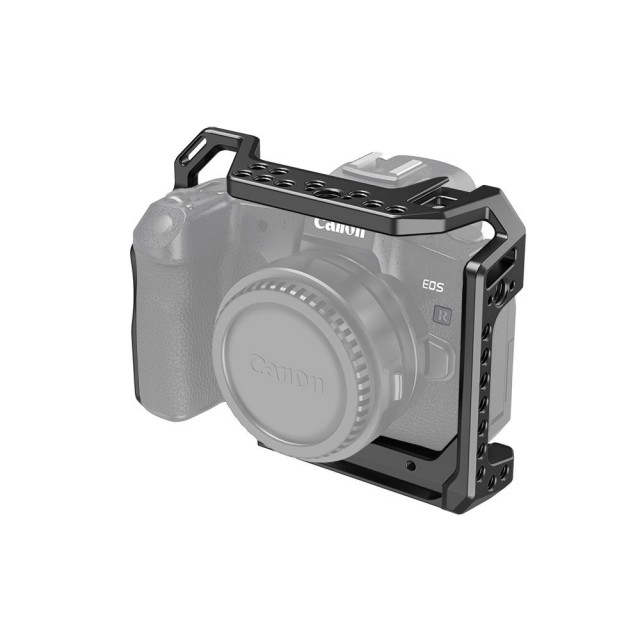

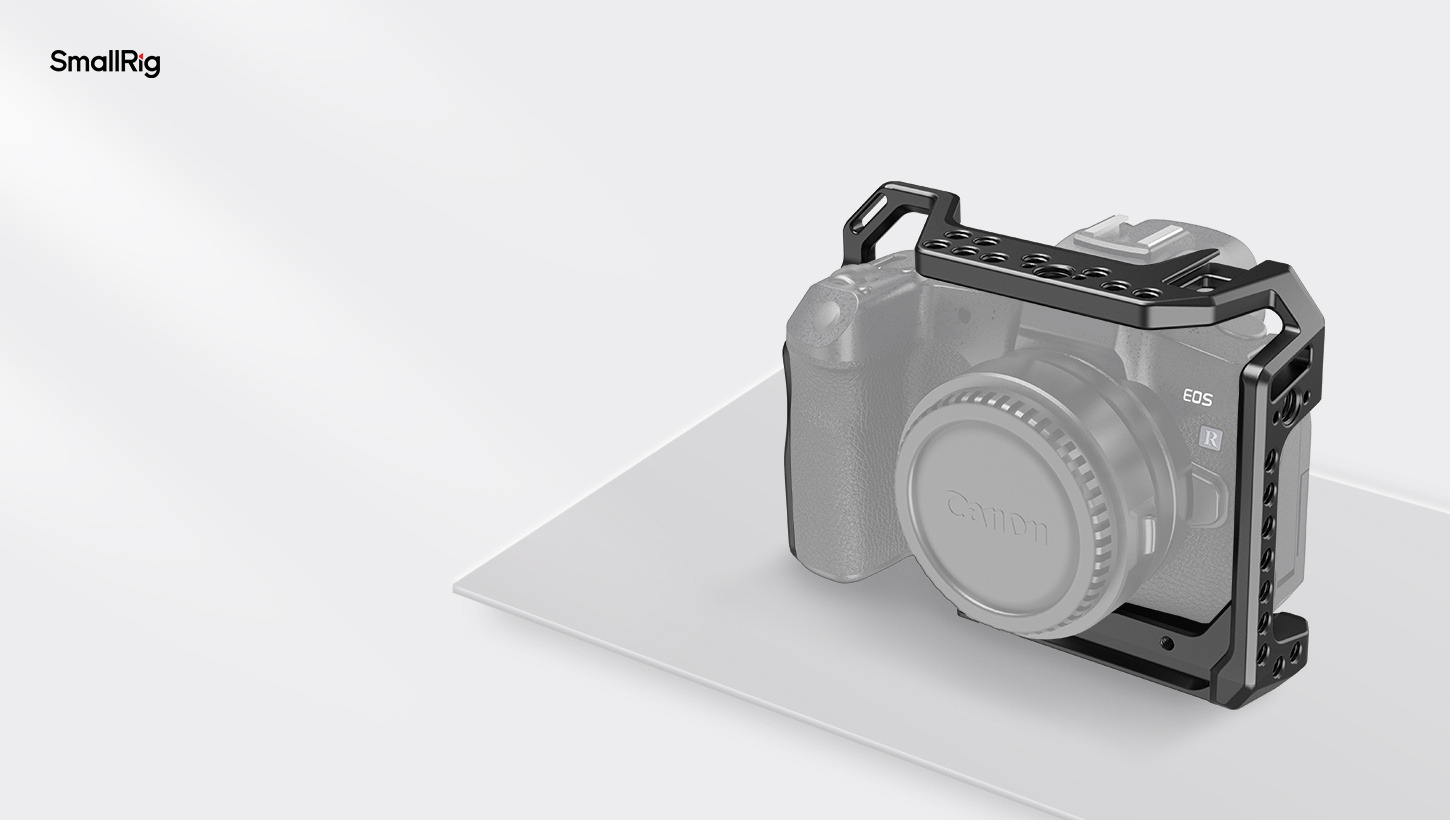

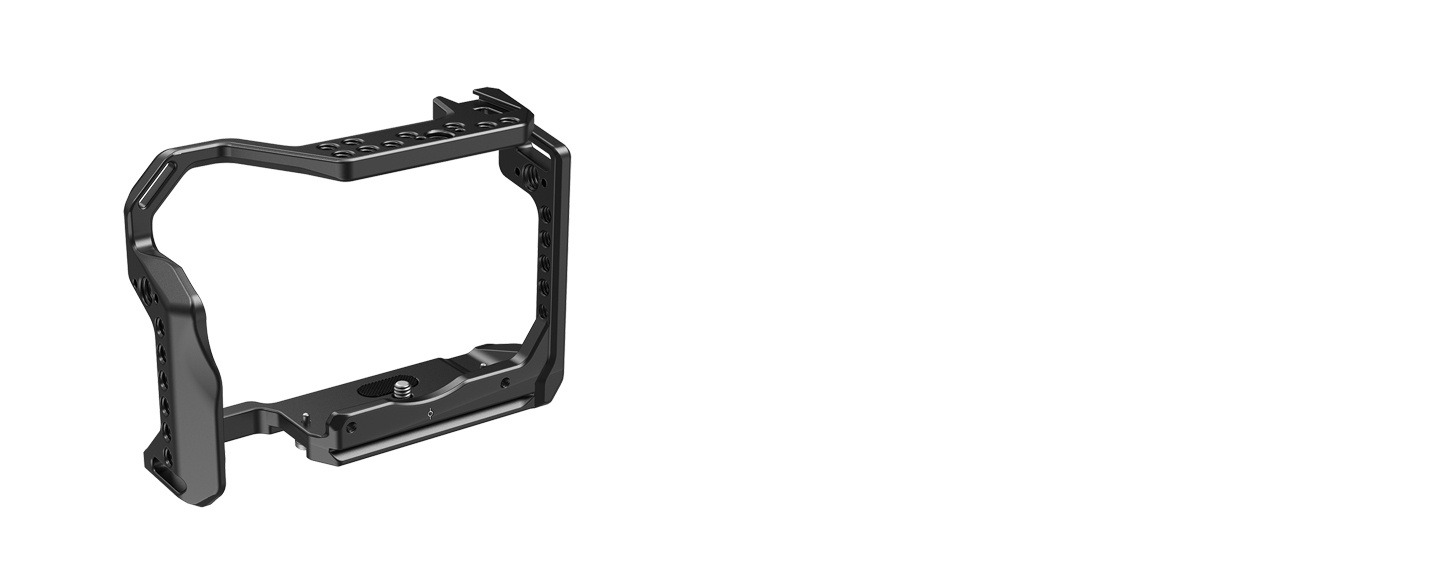

Camera Cage for
Canon EOS R

ID CCC2803

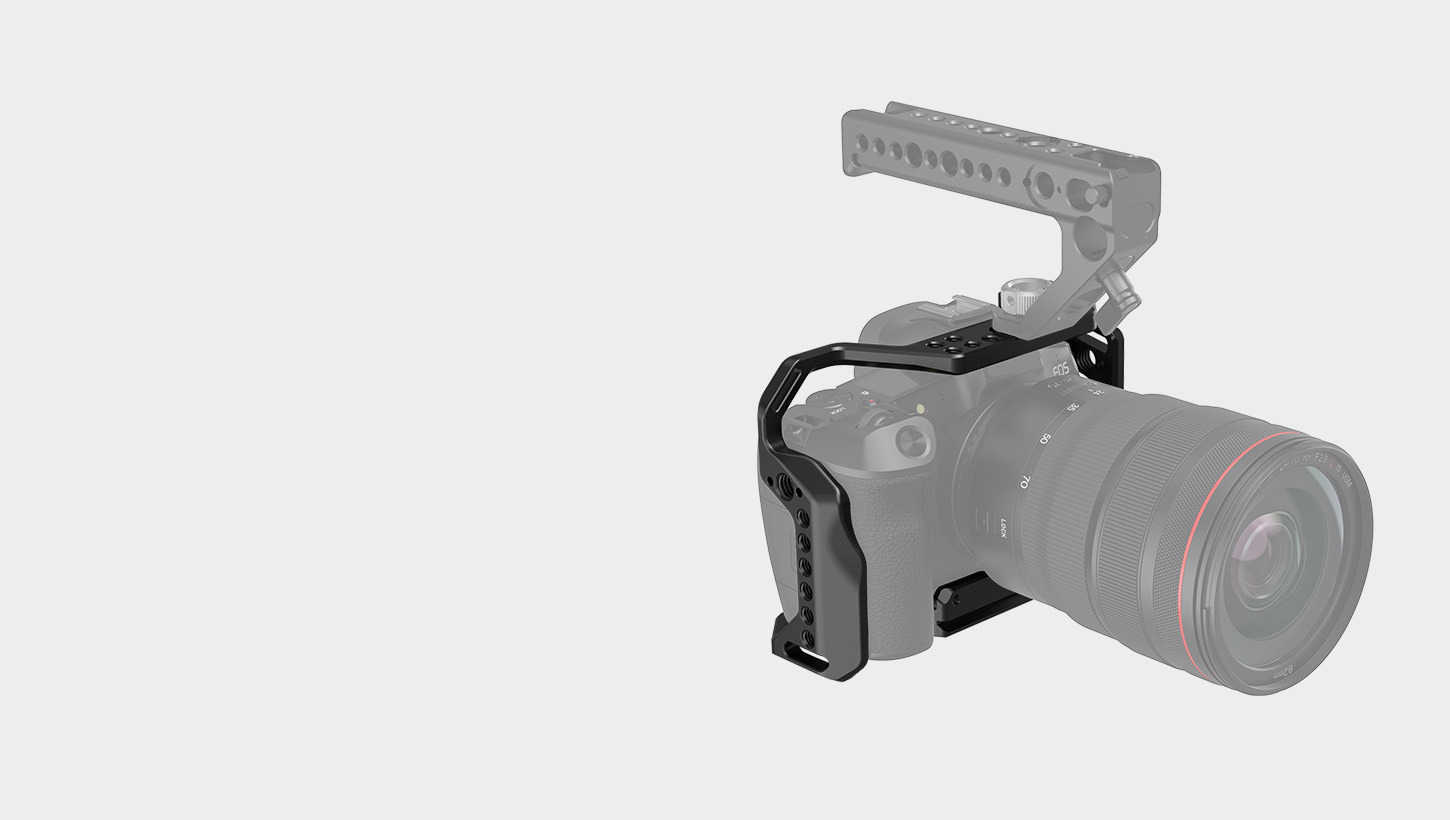

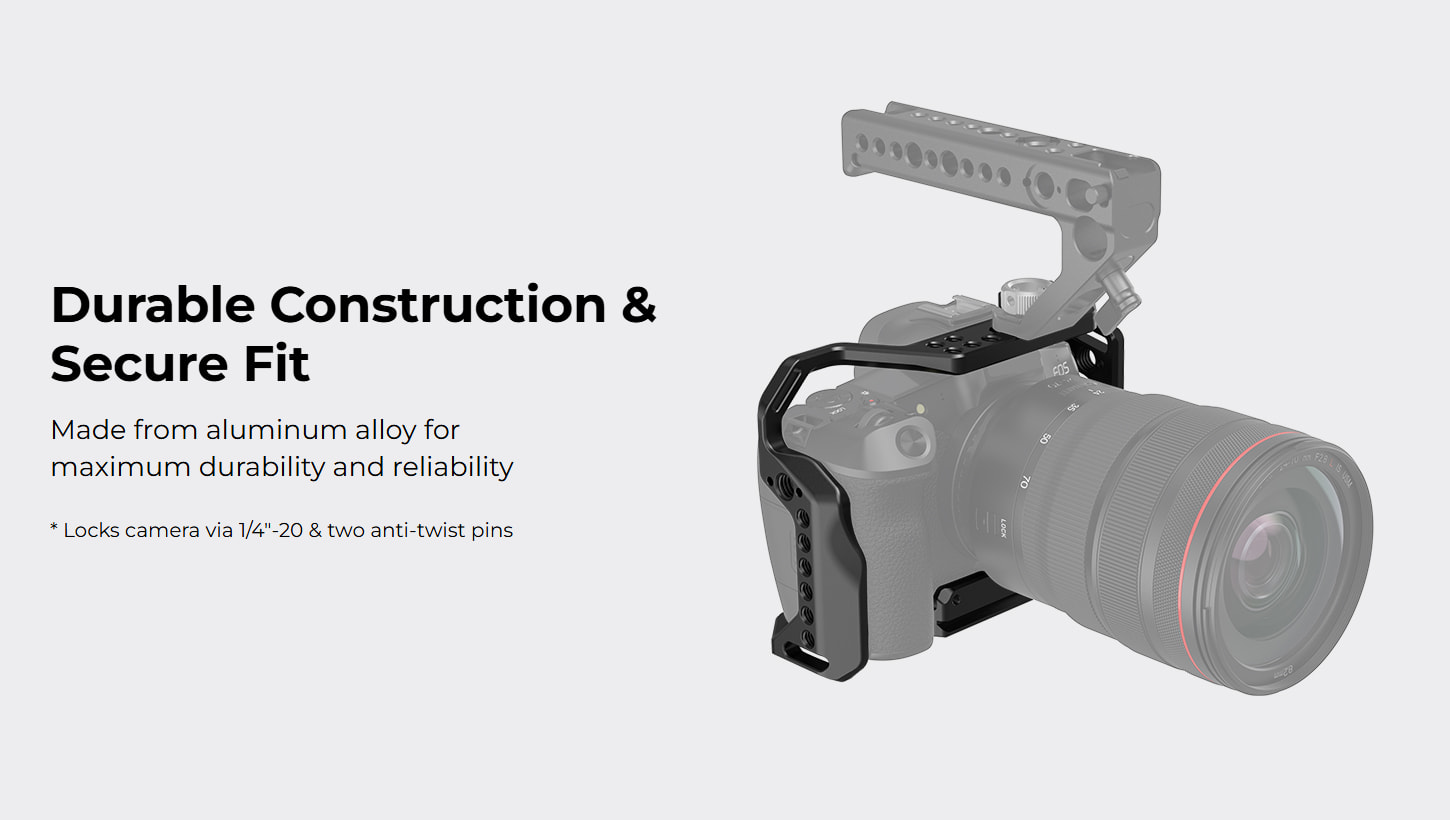

Durable Construction & Secure Fit

Made from aluminum alloy for
maximum durability and reliability

* Locks camera via 1/4"-20 & two anti-twist pins

Flexible for Use in Different Shooting Scenarios

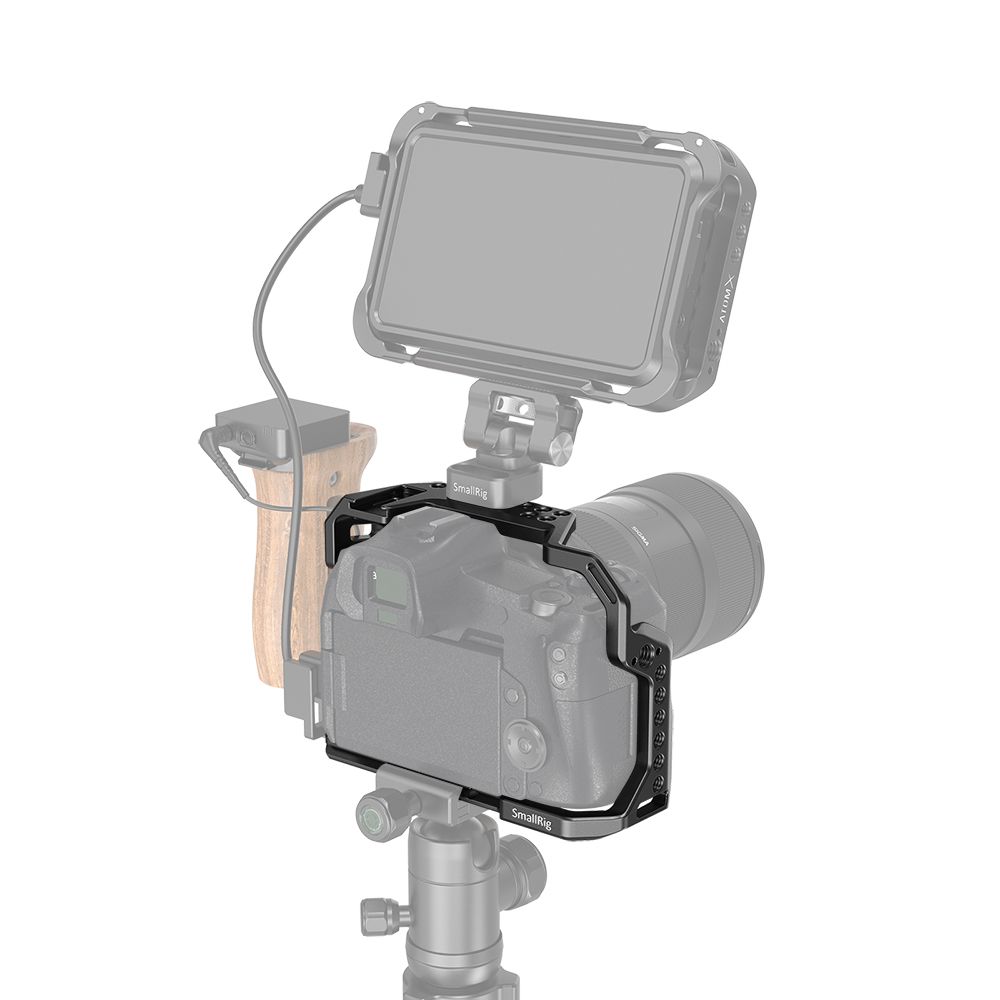

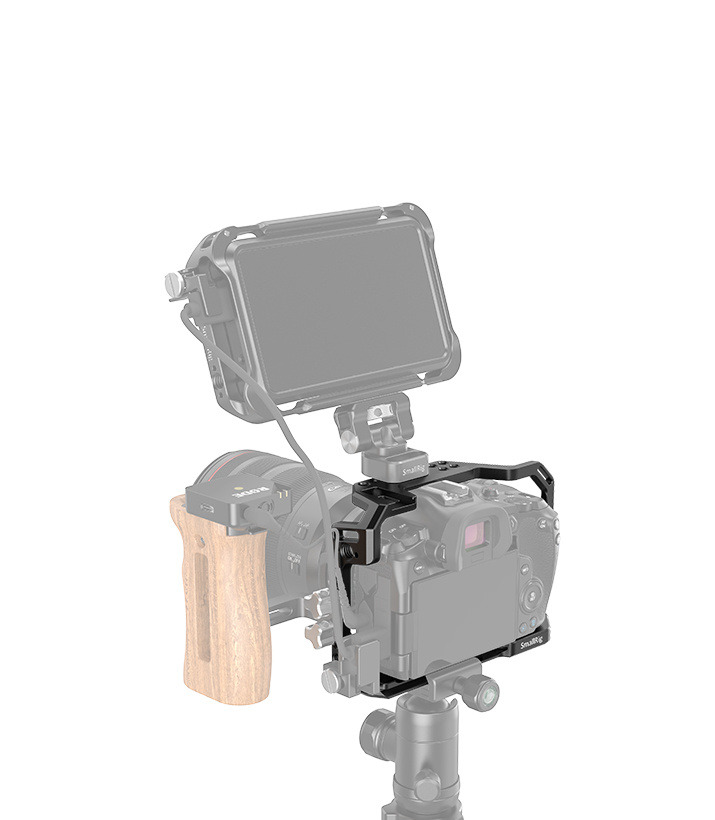

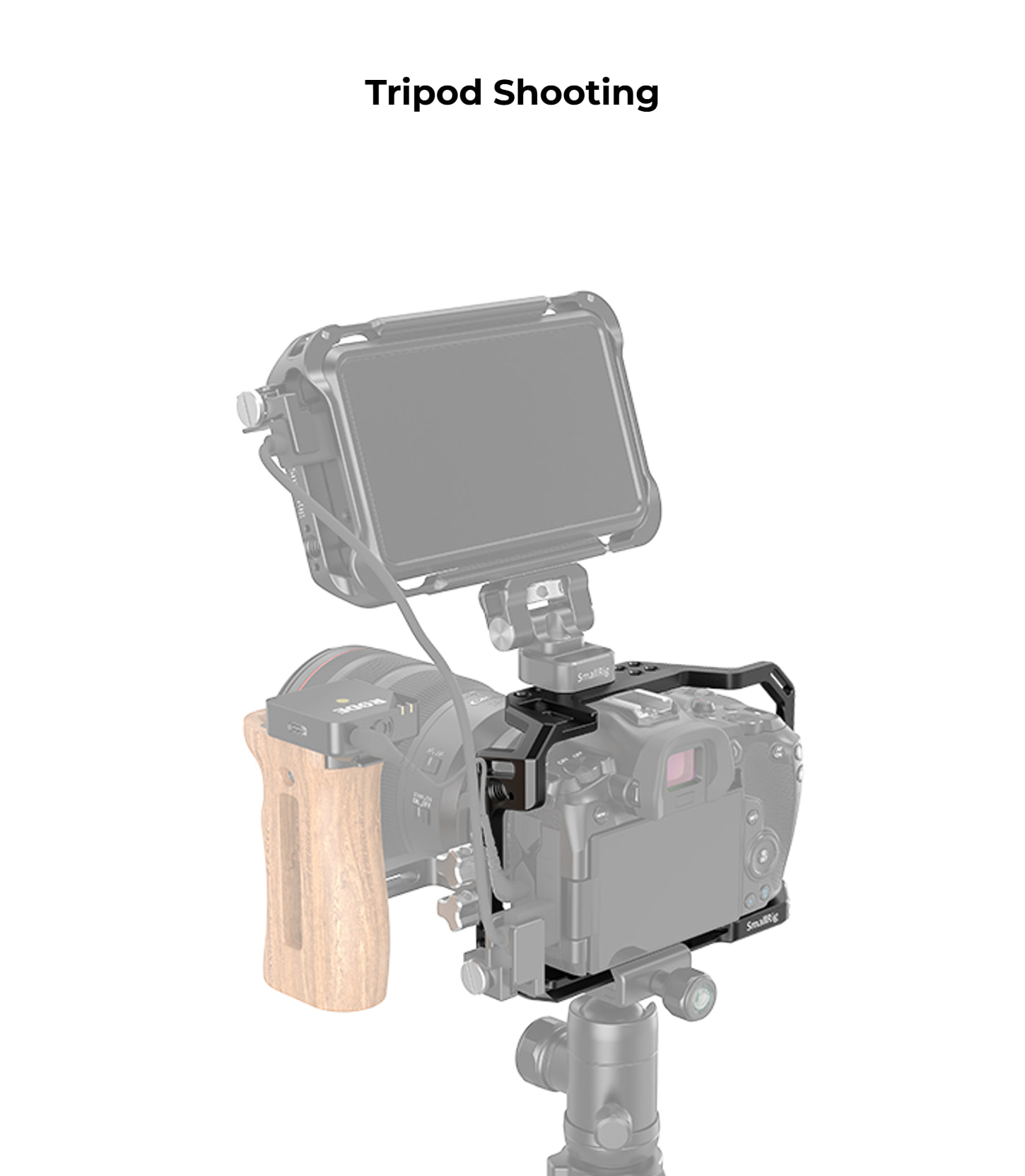

Tripod Shooting

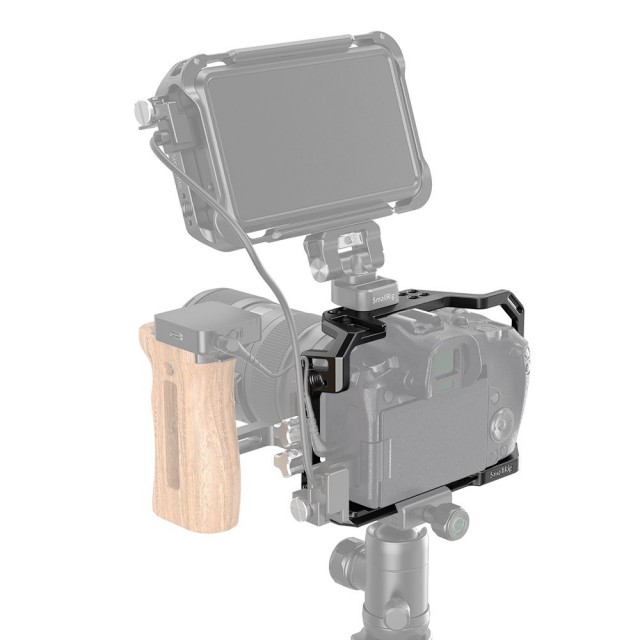

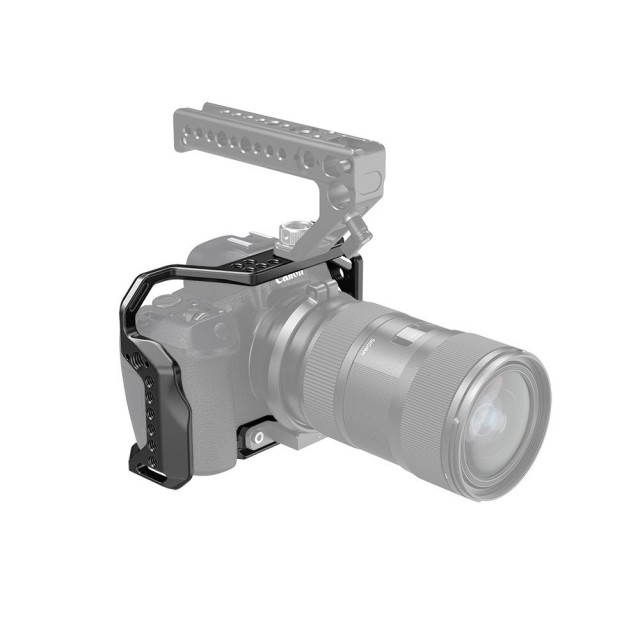

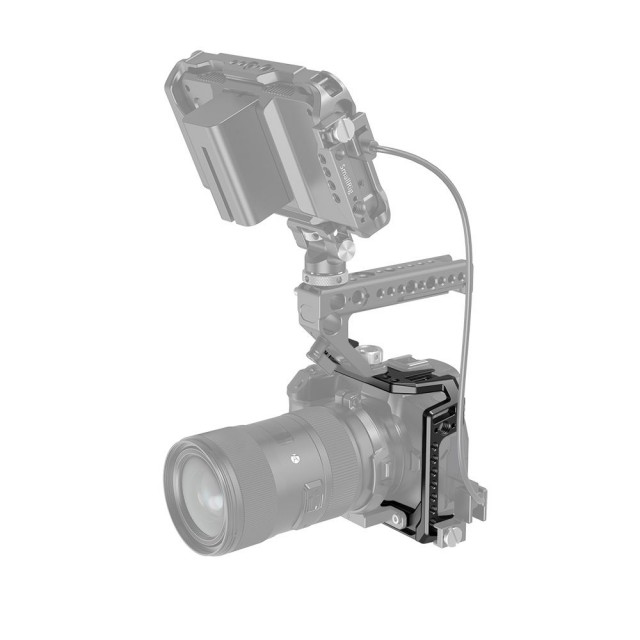

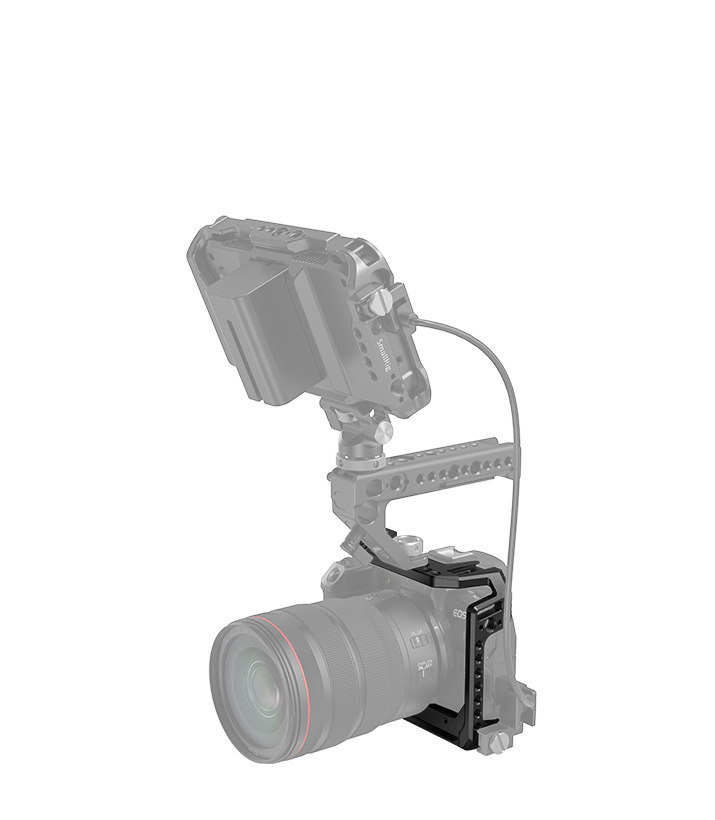

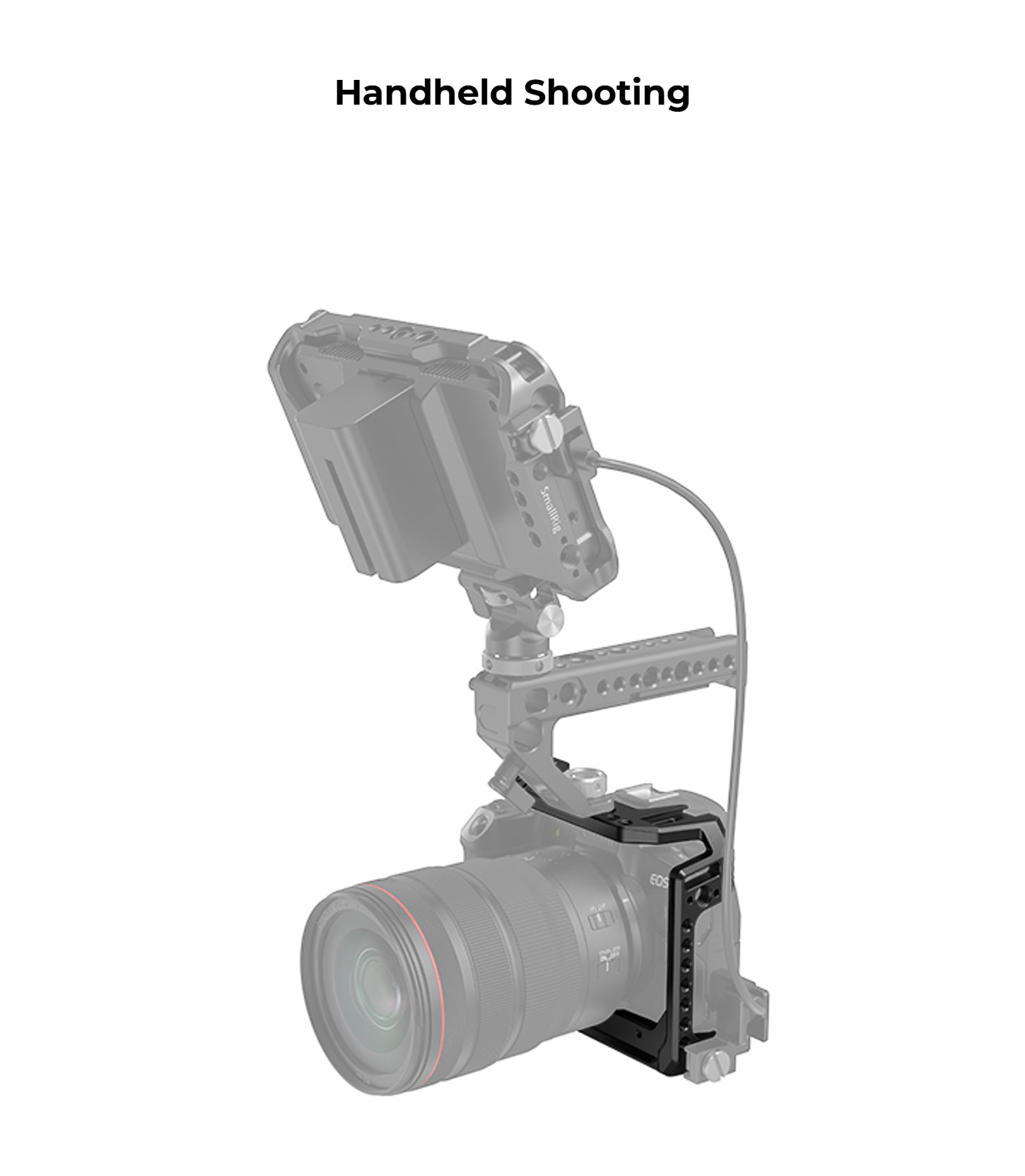

Handheld Shooting

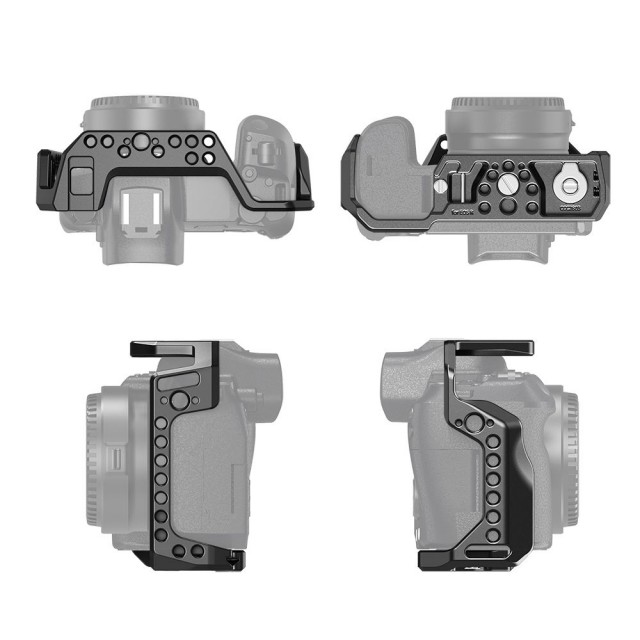

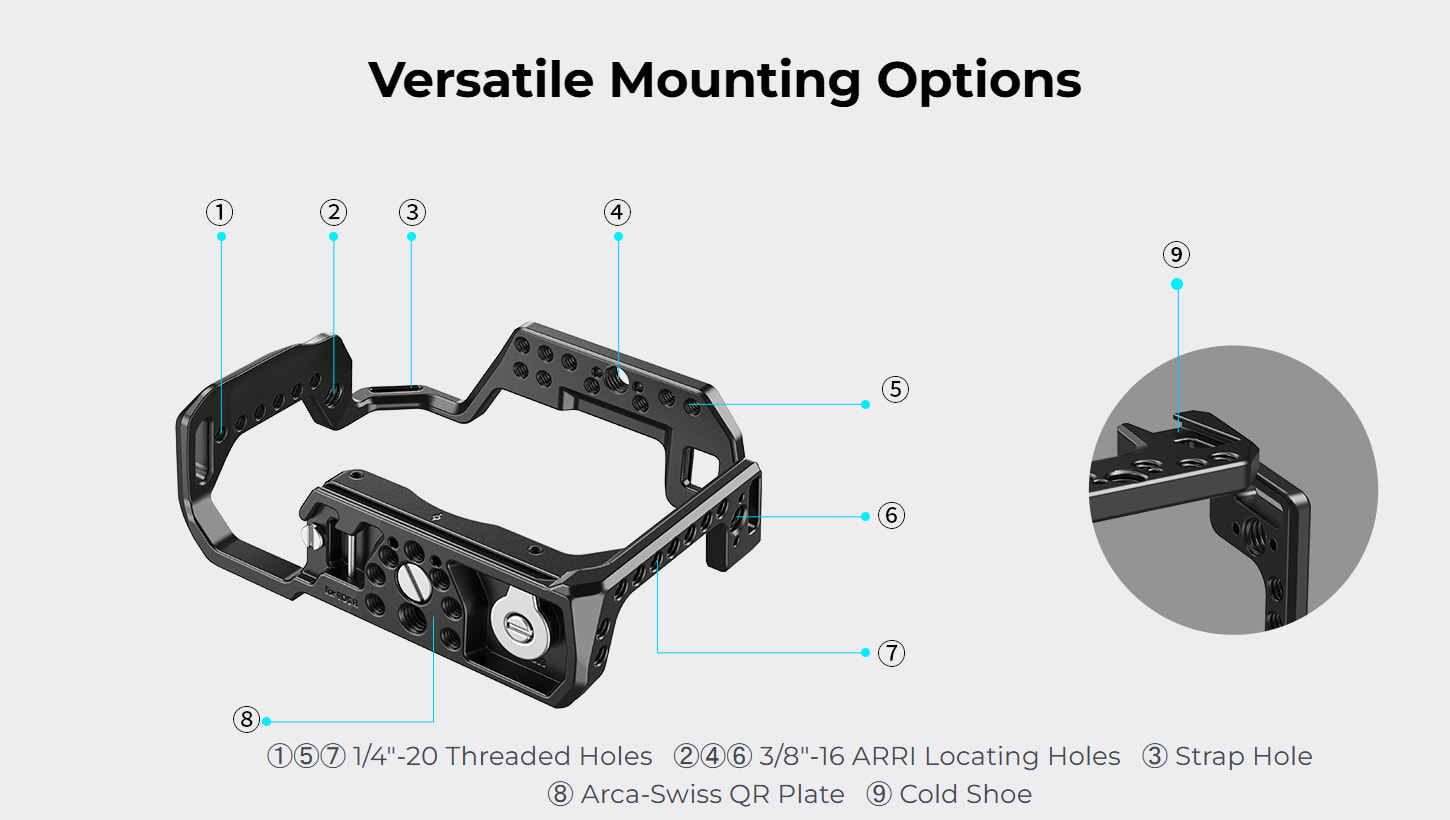

Versatile Mounting Options

①⑤⑦ 1/4" - 20 Threaded Holes
②④⑥ 3/8"-16 ARRI Locating Hole
③ Strap Hole
⑧ Arca Swiss QR Plate
⑨ Cold Shoe
