Sennheiser EM-ewDX2D R1-9

  • Free transport
SKU: EM-ewDX2D R1-9

Sennheiser EW-DX EM 2 Dante R1-9 is a two-channel digital UHF receiver covering 520–607.8 MHz, with Dante, PoE, AES 256 and network management for professional installations and live production.

More information

1 419 € with VAT 1 172.73 € without VAT
Add to Compare Price history
Availability
on request
SKU:
EM-ewDX2D R1-9
Add to Compare Price history

Top accessories for Sennheiser EM-ewDX2D R1-9

Sennheiser ADP UHF

  • -16 %
Promotion: -16%
Sennheiser ADP UHF Passive Directional Antenna for EW-D Wireless Systems (470 to
339.36 €
402.14 €
In stock 2 pcs

Sennheiser ASA-ewD

  • -21 %
Promotion: -21%
The rugged, all-metal Sennheiser EW-D ASA is a 4-way active antenna splitter that
557.91 €
704.36 €
Backordered 3 pcs

Sennheiser SKM-ewDX R1-9 S

Sennheiser EW-DX SKM-S R1-9 is a professional digital UHF handheld transmitter with
499 €
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Sennheiser EW-DX EM 2 Dante R1-9 is a two-channel digital UHF receiver covering 520–607.8 MHz, with Dante, PoE, AES 256 and network management for professional installations and live production.

Two-channel EW-DX receiver with Dante

Two digital channels, network audio and power redundancy

EW-DX EM 2 Dante R1-9 is a professional two-channel half-rack receiver for Evolution Wireless Digital transmitters. It covers 520–607.8 MHz and provides intermodulation-free operation, AES 256 encryption and Dante with PoE.

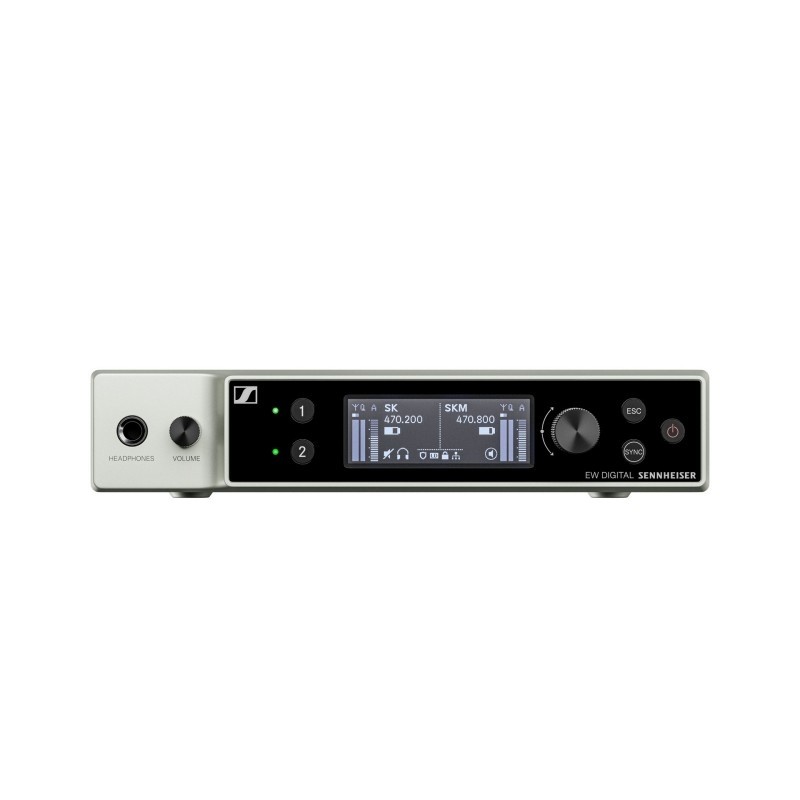

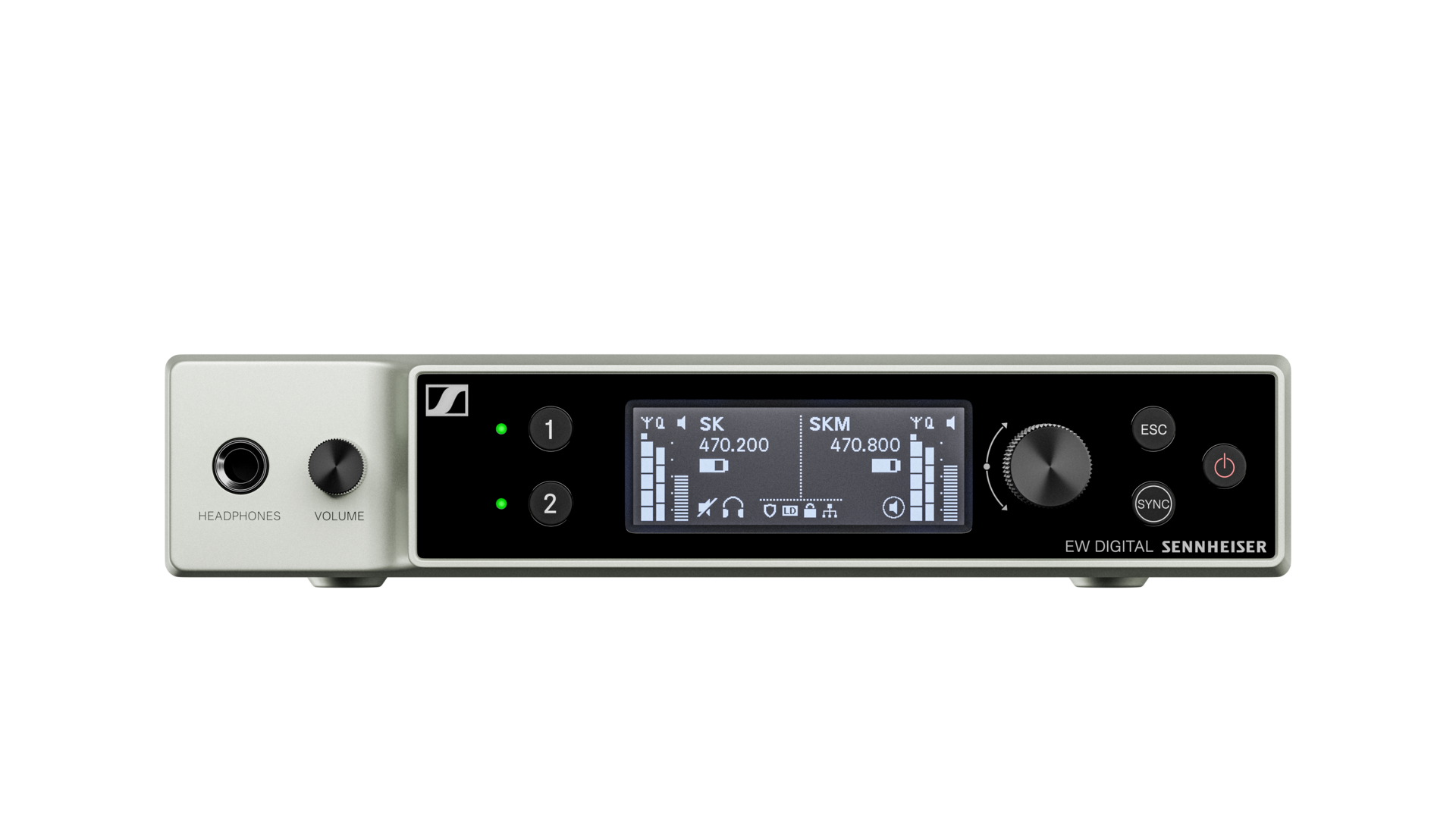

Front panel Sennheiser EW-DX EM 2 Dante R1-9

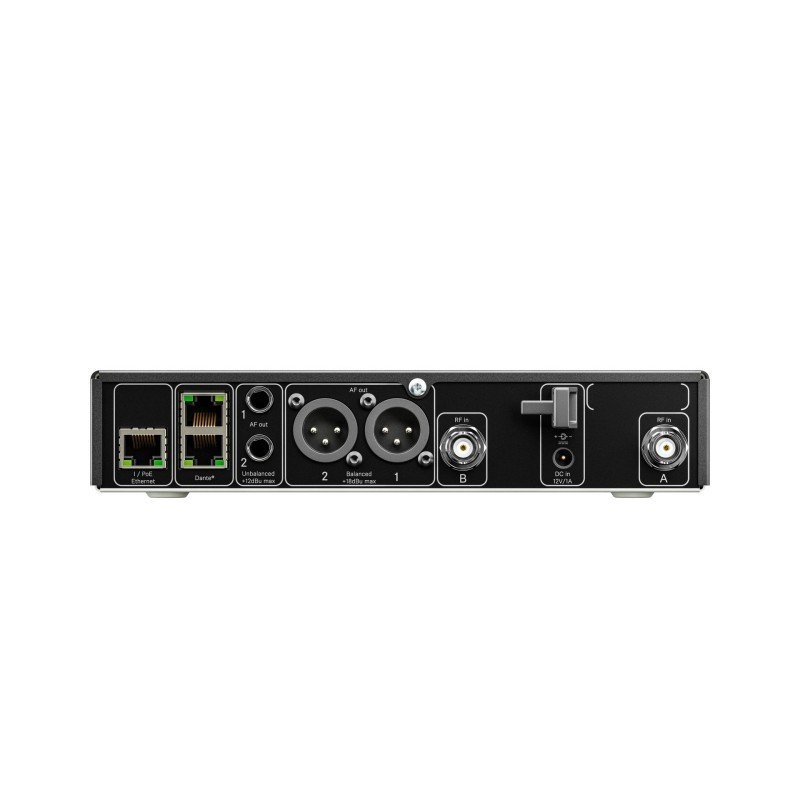

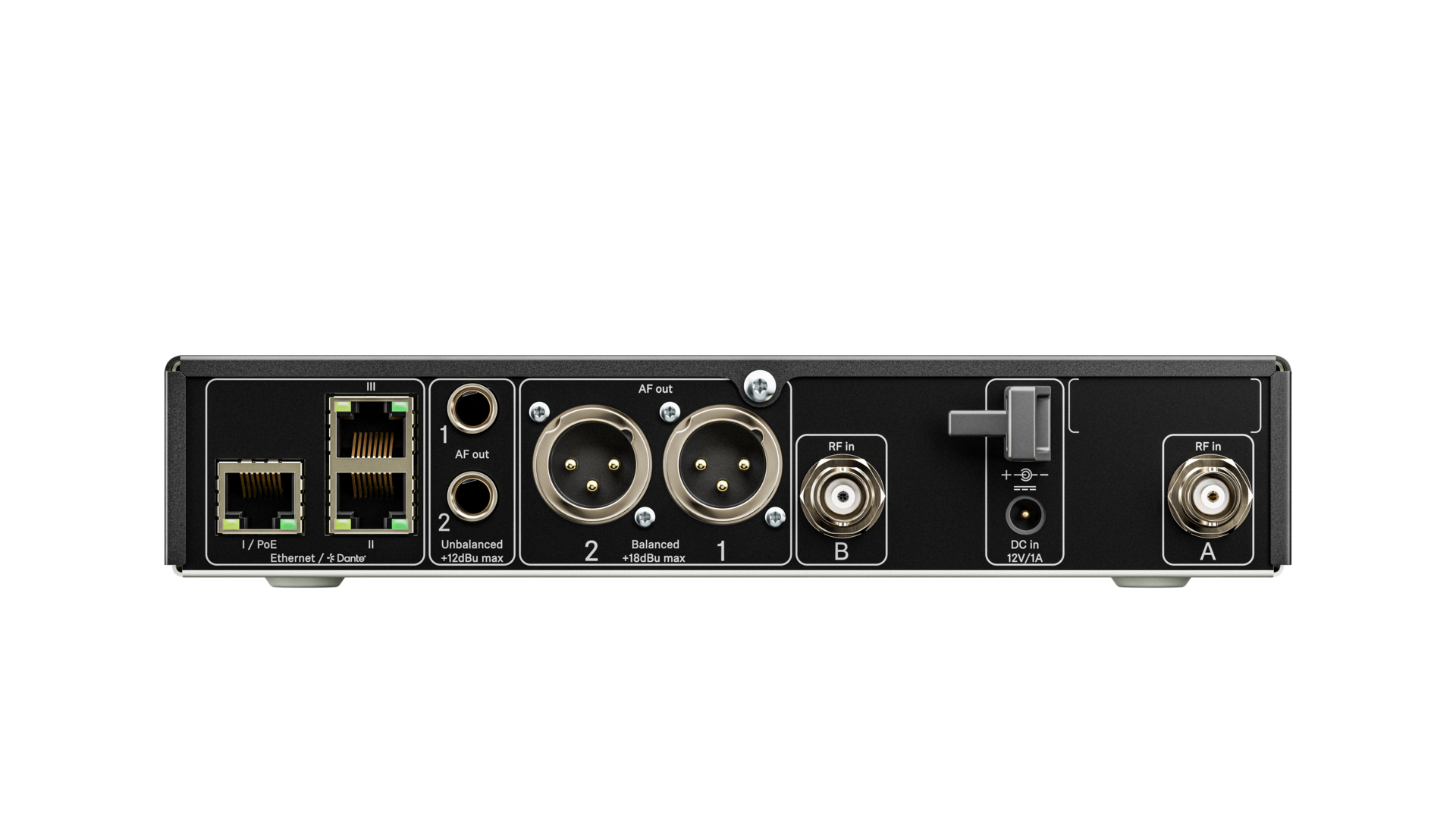

Rear panel Sennheiser EW-DX EM 2 Dante

Ready for networked installations

Network modes can carry control, Dante and PoE on one cable, separate control and Dante networks, or provide redundant Dante connectivity. XLR analogue outputs and a 6.3 mm headphone output complement dual RJ45 ports, BNC antenna inputs and DC power.

SePAC transmission operates with 1.9 ms latency and 134 dB dynamic range. The OLED display and Sennheiser Smart Assist simplify setup and monitoring.

PACKAGE CONTENT

  • 1× receiver EW-DX EM 2 Dante R1-9
  • 2× rod antenna
  • 1× power supply with country adapters
  • 1× rackmount set GA 3
  • 4× rubber feet
  • 1× quick guide
  • 1× safety guide
  • 1× manufacturer declaration sheet

SPECIFICATIONS

  • Channels: 2
  • Frequency range: 520–607.8 MHz
  • Switching bandwidth: up to 88 MHz
  • Audio response: 20 Hz–20 kHz
  • Dynamic range: 134 dB
  • Latency: 1.9 ms
  • Digital audio: Dante
  • Encryption: AES 256
  • Power: 11–13 V DC or PoE 802.3af
  • Power consumption: max. 12 W
  • Analogue outputs: 2× XLR-3
  • Network: 2× RJ45
  • Antennas: 2× BNC
  • Operating temperature: −10 up to +50 °C
Parameters

Parameters

Manufacturer: Sennheiser
Category: Wireless systems

Main parameters

Frequency bandUHF
Number of channels2
Range100m

Other parameters

Frequency range520 - 607,8 MHz
