Sennheiser SKM-ewDX R1-9 S

SKU: SKM-ewDX R1-9 S

Sennheiser EW-DX SKM-S R1-9 is a professional digital UHF handheld transmitter with programmable mute, a 520–607.8 MHz range and an interface for interchangeable Sennheiser and Neumann capsules. The capsule is not included.

More information

499 € with VAT 412.4 € without VAT
Add to Compare Price history
Availability
on request
SKU:
SKM-ewDX R1-9 S
Add to Compare Price history

Top accessories for Sennheiser SKM-ewDX R1-9 S

Sennheiser MMD 935-1 BK

Promotion
Dynamic cardioid microphone capsule for 2000 Series, G4 SKM, and G3 SKM transmitters
200.5 €
200.66 €
In stock 2 pcs

Sennheiser CHG 70N EW-DX system charger

The Sennheiser CHG 70N is a network-enabled charger with two bays, capable of simultaneously
352 €
In stock 2 pcs

Sennheiser L 70 USB charger

  • LAST PIECE
The Sennheiser L 70 USB is a charger for up to two BA 70 batteries — the packs that
60 €
In stock 1 pcs

Sennheiser CHG 70N EW-DX system charger with power supply

  • -11 %
Promotion: -11%
The Sennheiser CHG 70N is a network-enabled charger with two bays, capable of simultaneously
359.08 €
402.14 €
on request

Sennheiser BA 70 rechargeable battery

The Sennheiser BA 70 is a rechargeable lithium-ion battery pack for the EW-D SK /
50 €
on request

Sennheiser MM 445

The MM 445 is a professional grade dynamic supercardioid vocal microphone head designed
409 €
on request

Sennheiser MM 435

The MM 435 is a professional grade dynamic cardioid vocal microphone head designed
409 €
on request

Sennheiser EW-D Charging Set

The Sennheiser EW-D CHARGING SET includes two BA 70 rechargeable batteries, an L
150 €
on request

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Sennheiser EW-DX SKM-S R1-9 is a professional digital UHF handheld transmitter with programmable mute, a 520–607.8 MHz range and an interface for interchangeable Sennheiser and Neumann capsules. The capsule is not included.

EW-DX digital handheld transmitter

A professional transmitter with a capsule chosen for the job

EW-DX SKM-S R1-9 is a rugged handheld transmitter with a programmable mute switch, persistent E-Ink display and standard interface for compatible Sennheiser and Neumann capsules. It is sold without a microphone capsule.

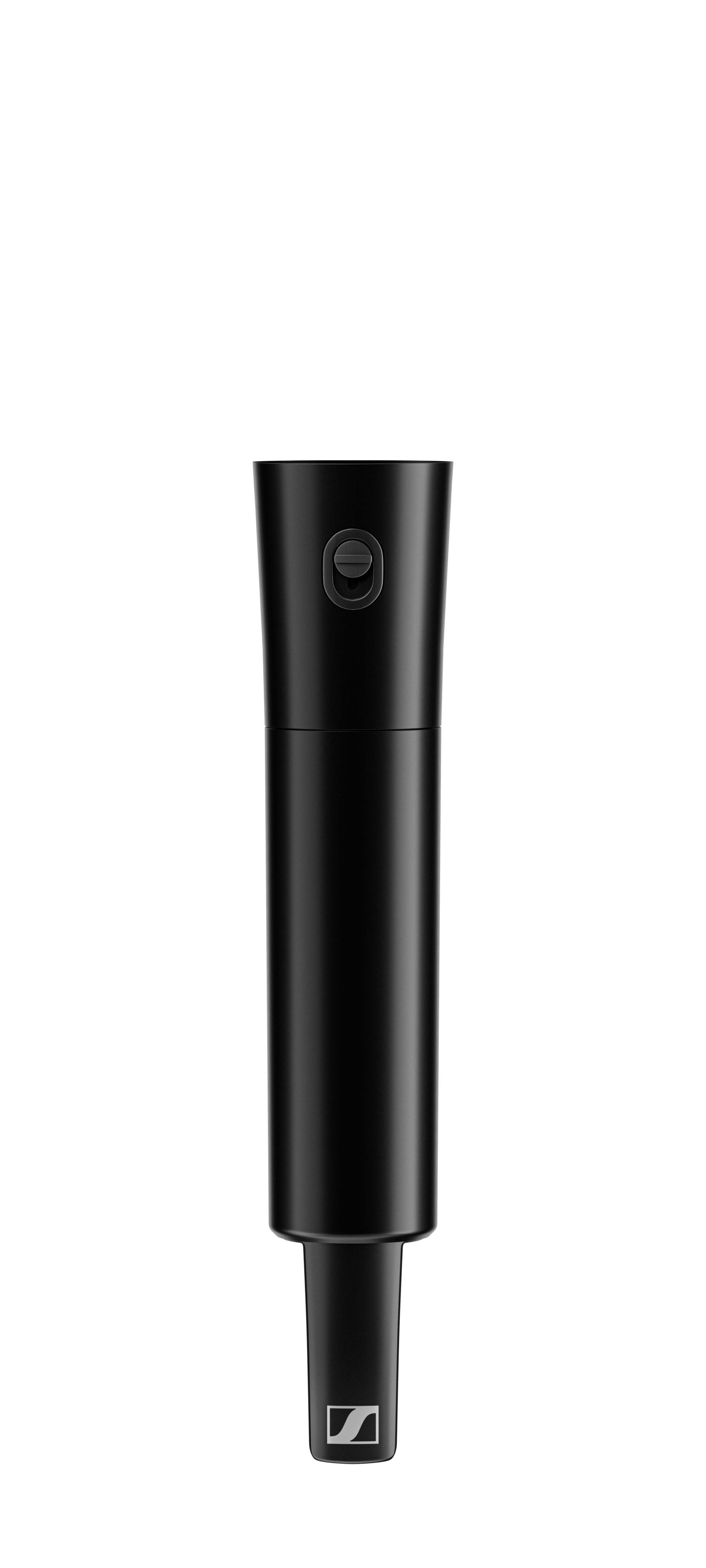

Sennheiser EW-DX SKM-S R1-9 without microphone capsule

Stable digital UHF operation

The R1-9 variant operates from 520 to 607.8 MHz. Fixed 10 mW RF power provides up to 100 m range, while SePAC transmission offers 134 dB dynamic range and 1.9 ms latency. Settings can be controlled on the transmitter or synchronised through the receiver via Bluetooth Low Energy.

Runtime reaches up to 12 hours with a BA 70 rechargeable battery or up to 8 hours with two AA batteries. Charging contacts support in-device charging in a CHG 70N.

Compatible capsules

The standard interface accepts MMD 835-1, MMD 845-1, MMD 935-1, MMD 945-1, MME 865-1, MMK 965-1, MM 435, MM 445 and Neumann KK 204/205 among others. The selected capsule determines pickup pattern and sound.

PACKAGE CONTENT

  • 1× EW-DX SKM-S R1-9 transmitter without capsule
  • 1× microphone clamp MZQ 1
  • 2× batteries AA
  • 1× quick guide
  • 1× safety guide
  • 1× manufacturer declaration sheet

SPECIFICATIONS

  • Frequency range: 520–607.8 MHz
  • RF power: 10 mW ERP
  • Range: up to 100 m
  • Latency: 1.9 ms
  • Dynamic range: 134 dB
  • Audio response: 20 Hz–20 kHz
  • Power: 2× AA or BA 70
  • Runtime: up to 12 h with BA 70
  • Dimensions without capsule: 40 × 200 mm
  • Weight without capsule and batteries: approximately 195 g
  • Operating temperature: −10 up to +55 °C
  • Capsule: not included
Parameters

Parameters

Manufacturer: Sennheiser
Category: Wireless systems

Main parameters

Frequency bandUHF
Range100m

Other parameters

Frequency range520 - 607,8 MHz
