RGBlink MSP 303

The RGBlink MSP 303 is a compact SDI to HDMI video signal converter with one SDI input and one HDMI output. It is compatible with all SMPTE signals (3G/HD/SD-SDI) and carries embedded audio. Its mini size makes it easy to place anywhere, and an optional pair of mounting ears allows installation in an MSP series rack.

The MSP 303 is a miniature converter that turns the signal from a camera or another SDI source into HDMI for an ordinary monitor, TV or projector.

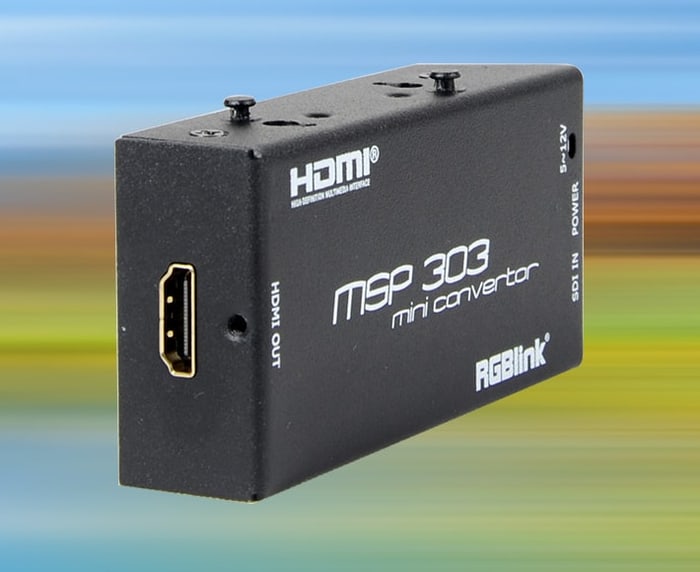

A palm-sized converter

The body measures 98 × 47 × 24 mm and weighs 0.15 kg, so it fits behind a monitor, in a camera bag or in a rack. It runs on 5–12 V DC and has screws on top for optional mounting ears for the MSP rack or a wall.

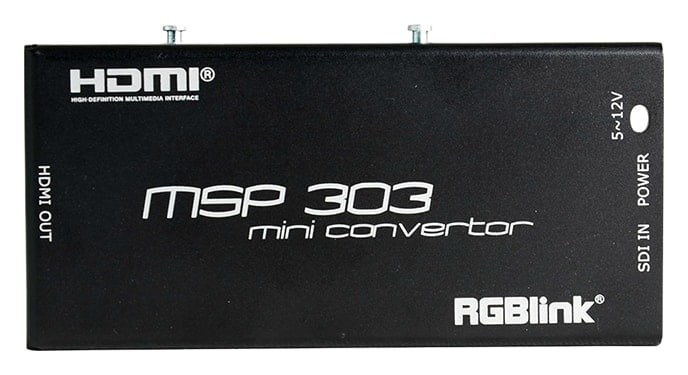

SDI in, HDMI out

One end carries the SDI input (BNC) and power, the other the HDMI output. The converter accepts 3G/HD/SD-SDI signals to SMPTE 425M, 424M, 292M and 259M-C as well as DVB-ASI, and passes embedded audio to HDMI.

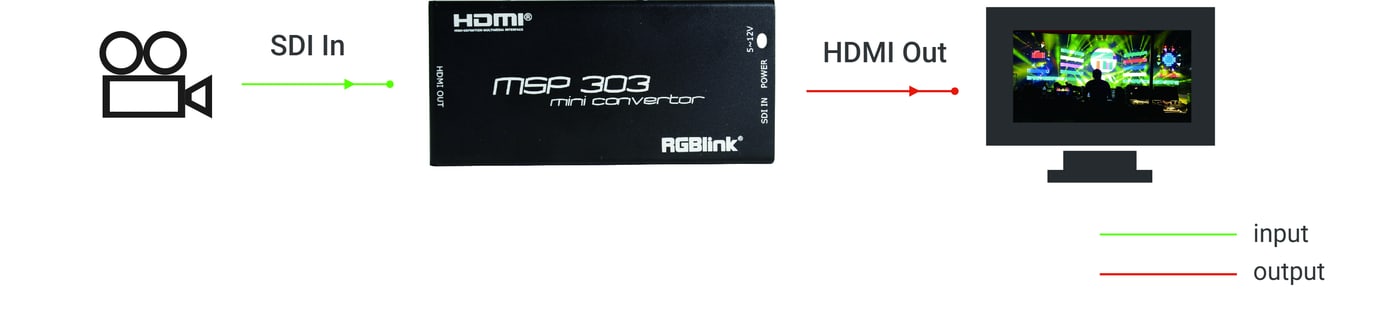

Connection example

A camera on the SDI input, an HDMI monitor on the output.

More information

The MSP 303 converts professional SDI video to HDMI for connection to monitors, projectors and other HDMI devices.

• 1× SDI input, 1× HDMI output
• SDI input support: 480i, 576i, 720p, 1080i, 1080p (23.98–60 fps)
• HDMI output up to 1080p60
• Compatible with all SMPTE 3G/HD/SD-SDI signals
• Embedded audio pass-through
• Mini size, optional rack mounting ears
