RGBlink mini-edge SDI with 2 vue 4K 20X PTZ bundle

The RGBlink mini-edge SDI with 2 vue 4K 20X PTZ bundle is a complete, portable live production solution combining a professional 10-channel video switcher with two AI-enabled PTZ cameras. Designed for broadcast, streaming, education, and events, this bundle delivers powerful HDMI/SDI switching, PTZ control, multi-platform streaming, and video recording.

A set for two-camera productions: the mini-edge SDI switcher handles up to ten sources, two vue 4K PTZ cameras with 20× zoom cover the whole hall as well as a close-up of the speaker, and everything is controlled from one desk. It suits schools, conferences, church services and sports coverage.

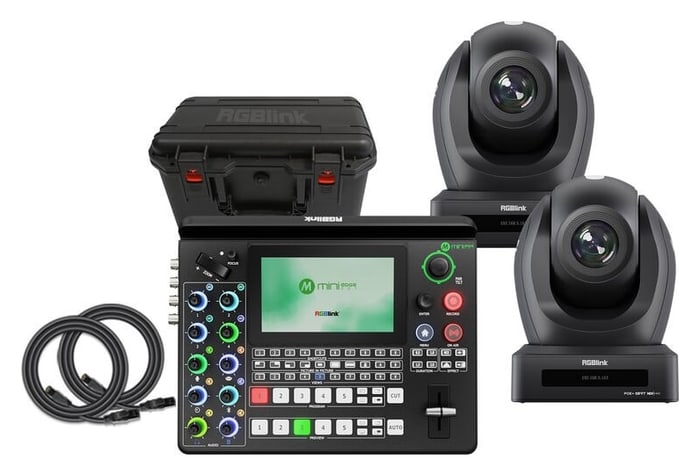

A switcher and two cameras in one set

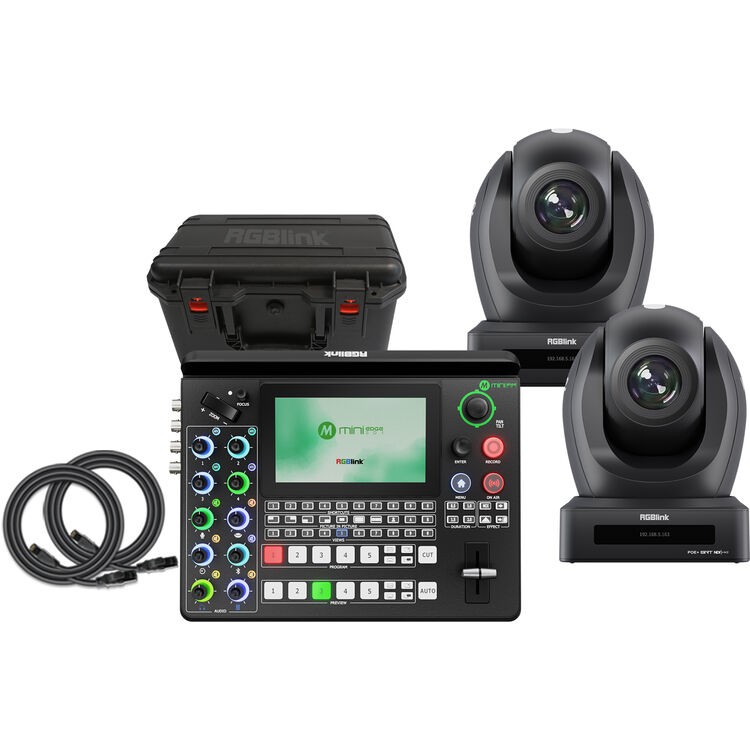

The set combines the RGBlink mini-edge SDI switcher with two RGBlink vue 4K PTZ cameras with 20× optical zoom. The cameras connect to the switcher via HDMI or 3G-SDI, and its joystick pans, tilts, zooms and focuses them over the network. They are powered over PoE+ or from their own adapter.

Ten inputs in one desk

On top of four HDMI 2.0 inputs (up to 4K60), the mini-edge SDI adds four 3G-SDI inputs on BNC, a USB-C input for a UVC camera and bidirectional NDI | HX2 over the network. Buttons 1–4 in the PROGRAM and PREVIEW rows select the HDMI or SDI inputs, button 5 the UVC camera, an NDI source or a file from a USB drive. Two separate HDMI outputs carry the program and the multiview at up to 1080p60. The unit measures 291 × 222.6 × 71.3 mm and is powered over USB-C PD.

Broadcast 3G-SDI inputs

Four 3G-SDI inputs on the side accept 3G/HD/SD-SDI signals up to 1080p60 from cameras, PTZ cameras and other sources. SDI carries the picture over longer cables than HDMI – 3G-SDI reaches up to 100 m (RGBlink laboratory test). The HDMI 2.0 inputs on the rear panel accept up to 4096 × 2160 at 60 Hz; HDMI input 1 supports HDCP 2.2, the other inputs HDCP 1.x.

PTZ camera control

Up to four PTZ cameras are controlled directly from the switcher via VISCA or NDI: the joystick pans and tilts, the ZOOM toggle zooms and the FOCUS knob focuses, with a press switching to autofocus. Pressing the joystick opens the PTZ control screen. When a video layer is selected, the same controls change its size and position.

Streaming, recording and webcam

Over Ethernet the mini-edge SDI streams via RTMP(S) to up to four platforms at once (four platforms need an upload of at least 100 Mb/s), and via RGBlink TAO Cloud to up to 32 platforms. Connected to a computer over USB-C it appears as a UVC webcam for OBS, Zoom or Teams. Recording goes to MP4 on a USB flash drive or an SSD of up to 2 TB, even while streaming. The switcher can also be operated from the web app on a computer, tablet or phone.

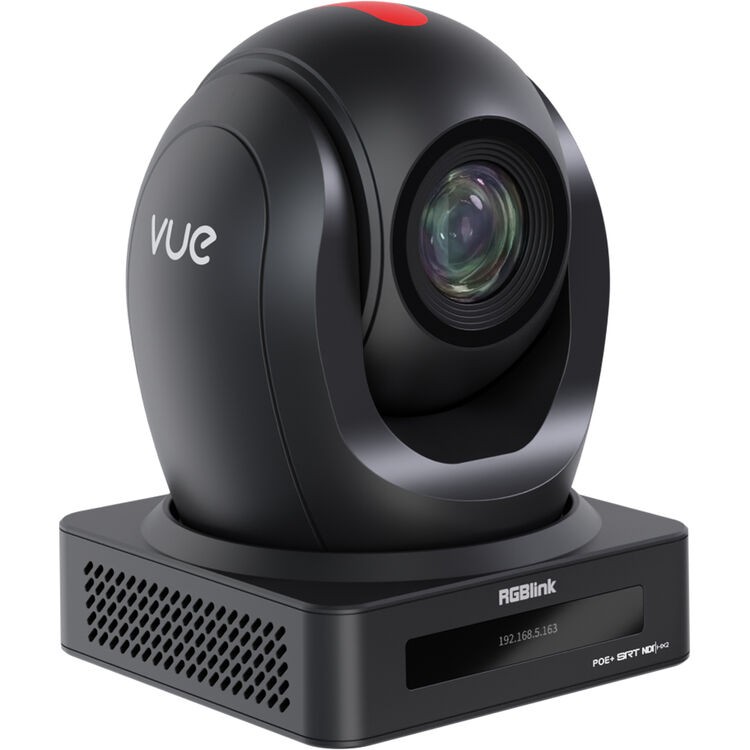

Professional PTZ camera in 4K

The Sony 1/2.8″ 8.42 MP sensor delivers 3840 × 2160 at 30 frames per second. The image processor with 2D and 3D noise reduction keeps the picture clean in dimmer light – the camera works from 0.5 lux – and the wide dynamic range copes with shots where a bright window meets a darker hall.

Lens with 20× optical zoom

Focal length 4.8–96 mm, aperture F1.8–F2.9 and horizontal field of view 60.04°–3.81° – from the whole room down to a close-up of a face. On top of the optical zoom the camera adds 16× digital zoom and focuses automatically, manually or at one press.

TALLY and presenter tracking

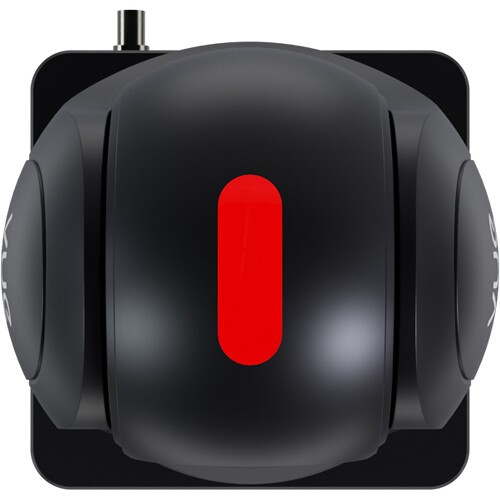

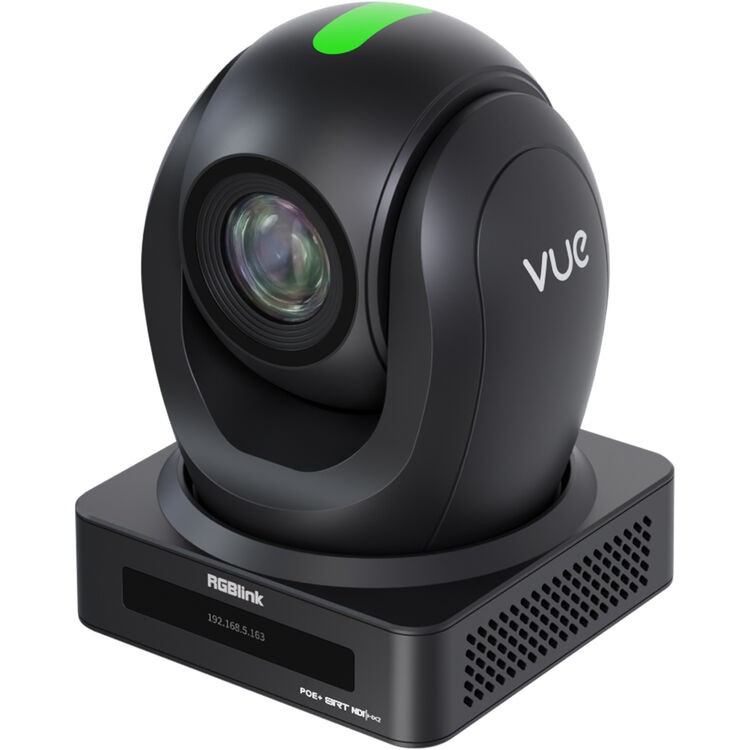

The TALLY indicator on top of the camera is visible through 360° and clearly shows whether the camera is on standby or on air. The camera keeps the presenter's face or figure in shot on its own; tracking can be limited to a chosen zone.

Connections and power

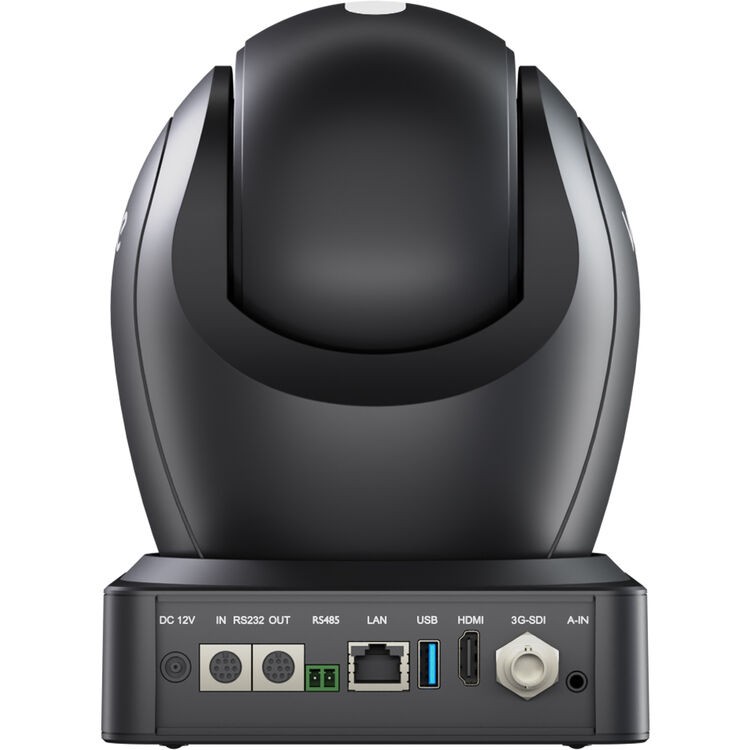

The rear panel has HDMI, 3G-SDI (1080p60 up to 100 m), USB 3.0 with UVC and UAC for video conferencing, gigabit LAN with PoE+, a 3.5 mm line input, RS232 in and loop-through out, and RS485. Over the network the camera streams H.264 or H.265 via RTSP, RTMP and SRT. It is powered over PoE+ or from the supplied 12 V adapter and is controlled with VISCA, Pelco-D, Pelco-P and VISCA over IP.

More information

The RGBlink mini-edge SDI with 2 vue 4K 20X PTZ bundle is an all-in-one production kit engineered for professional live streaming, recording, and broadcast environments requiring reliability, flexibility, and mobility. At its core is the mini-edge SDI 10-channel all-in-one switcher, supporting four HDMI inputs, four 3G-SDI inputs, and Ethernet-based NDI|HX2 sources. The switcher integrates advanced video processing, chroma keying, multilayer compositing, and professional transition effects, all housed in a durable hard case for easy transport.

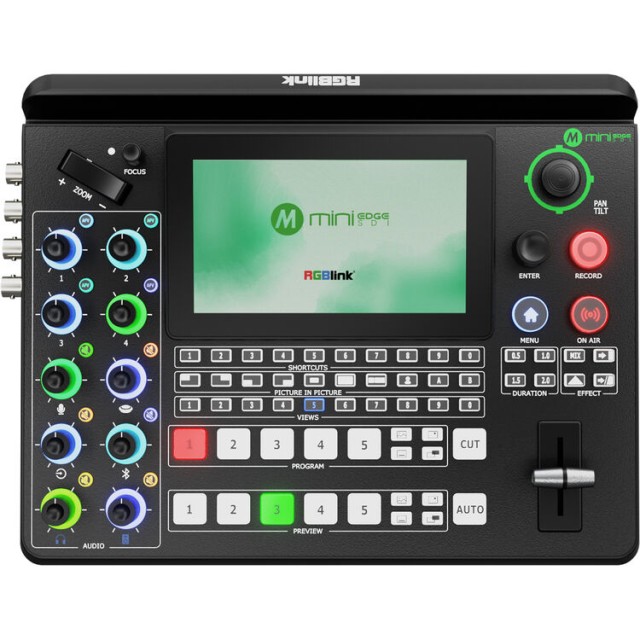

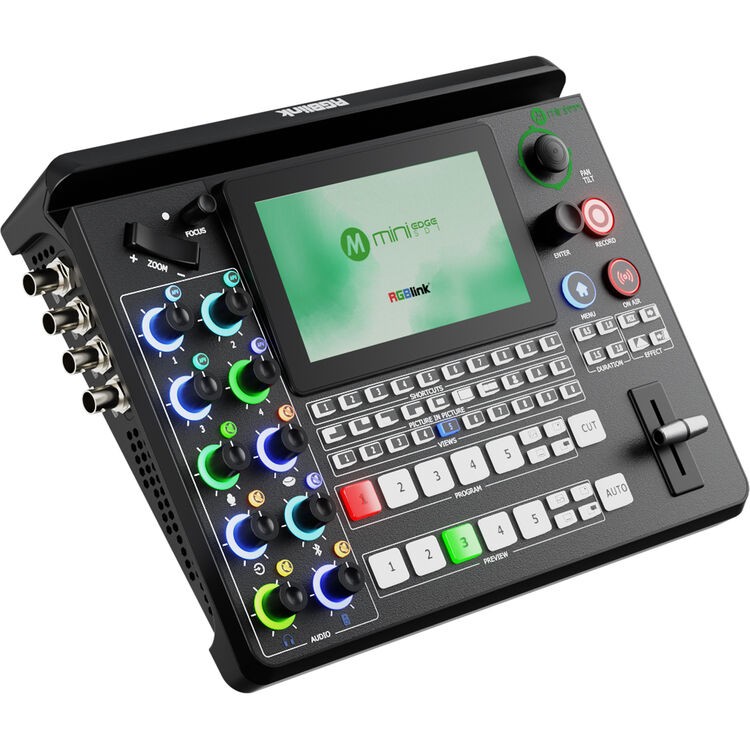

The mini-edge SDI features a built-in 5.5" full-color HD display for real-time monitoring of inputs, preview, and program outputs. Its tactile control surface includes illuminated buttons, knobs, a joystick, and a T-bar fader for fast, precise switching. Integrated PTZ control via VISCA and NDI|HX2 allows direct pan, tilt, zoom, and focus control of up to four cameras directly from the switcher, with joystick-based operation and preset recall.

Included in this bundle are two RGBlink vue PTZ cameras, each equipped with a low-noise 1/2.8" 8.42MP CMOS sensor, advanced autofocus, and a powerful 20x optical zoom. The cameras support HDMI, 3G-SDI, LAN, and USB video outputs, with RTSP and RTMP streaming up to 4K30, AI-based face and human tracking, and a silent precision gimbal for smooth movement. A 360° tally light and front OLED status display enhance live production awareness.

For streaming and recording, the mini-edge SDI supports USB-C UVC output for direct use as a webcam with platforms such as Zoom, Teams, OBS, and vMix, as well as IP and NDI|HX2 streaming. Multi-platform streaming to up to four destinations is supported natively, while RGBlink TAO Cloud enables up to 32 simultaneous streams. USB-C 3.0 recording allows direct recording to external drives up to 2TB, with simultaneous streaming and recording supported. Professional audio features include XLR and 1/4" mic/line inputs with phantom power, embedded HDMI audio, audio delay, AFV switching, and a full audio mixing console.

This bundled system is ideal for education, conferences, houses of worship, sports production, medical applications, and command centers, delivering a turnkey PTZ-based live production workflow with exceptional image quality and control.

Key Features:

• 10-channel mini-edge SDI all-in-one video switcher
• Includes 2 × RGBlink vue 4K PTZ cameras with 20x optical zoom
• 4 × HDMI 2.0 and 4 × 3G-SDI video inputs
• USB-C UVC webcam input and output
• Ethernet IP and NDI|HX2 streaming and control
• Integrated PTZ camera control (VISCA, NDI|HX2)
• Built-in 5.5" full-color HD monitoring display
• Chroma key, multilayer video composition, and logo overlays
• Dynamic overlays, scoreboard, and VFA features
• Up to 16 preset scenes with PTZ position recall
• Simultaneous streaming and USB-C recording
• Advanced H.265 encoding support
• Rugged hard case for portability and protection
