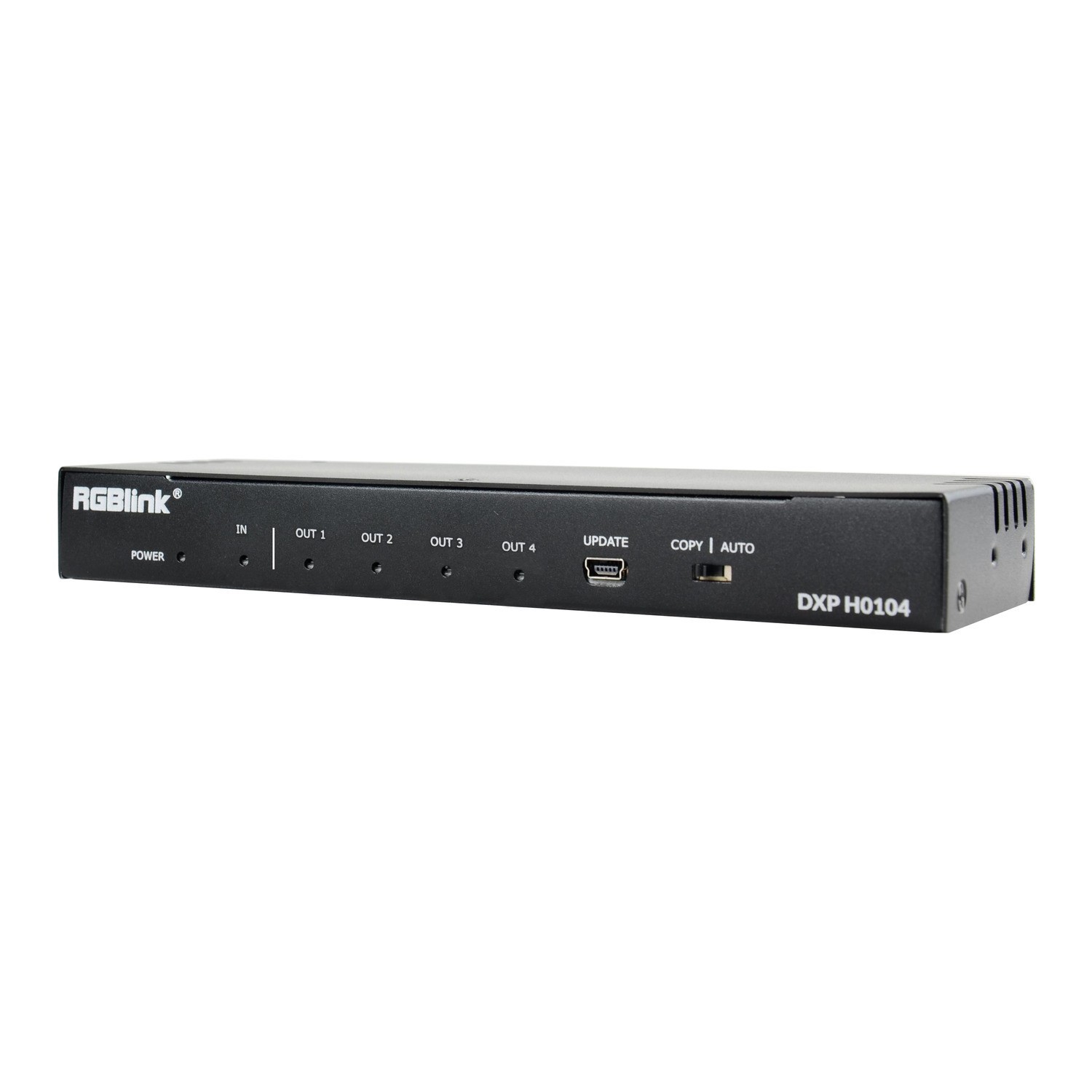

RGBlink DXP H0104

Name: RGBlink DXP H0104
Brand: RGBlink
SKU: 551-0104-01-0
Price: 132 EUR
Availability: OutOfStock

SKU: 551-0104-01-0

The RGBlink DXP H0104 is an HDMI 2.0 distributor that splits one HDMI input into 4 HDMI outputs carrying the same picture – for digital signage, conference rooms, control rooms and multi-display stages. It carries 4K at 60 Hz with HDR and YCbCr 4:4:4, supports HDCP 2.2, and its two EDID modes give every display the optimum image.

More information

132 € with VAT 109.09 € without VAT

Price history

Availability

on request

SKU:
551-0104-01-0

Price history

DESCRIPTION AND PARAMETERS
Alternative 2

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

When 4 outputs are not enough, the distributors can be chained (cascaded) to add more displays. The input accepts SMPTE resolutions from 480i to 2160p60 and VESA from 800 × 600 to 4096 × 2160 at 60 Hz.

Key features

1 HDMI input, 4 HDMI outputs
HDMI 2.0 and HDCP 2.2
Output resolution up to 4096 × 2160 at 60 Hz
HDR, YCbCr 4:4:4, 8/10/12-bit deep colour
Two EDID modes
Cascading for more displays

PACKAGE CONTENT

RGBlink DXP H0104 HDMI distributor – 1×
Power adapter – 1×
User documentation

SPECIFICATIONS

Inputs: 1× HDMI-A
Outputs: 4× HDMI-A
Input resolutions: SMPTE 480i, 576i, 720p50/59.94/60, 1080i50/59.94/60, 1080p50/59.94/60, 2160p60; VESA 800 × 600 – 4096 × 2160 @ 60 Hz
Output resolutions: SMPTE 720p50/60, 1080p50/60, 2160p60; VESA 1024 × 768 – 4096 × 2160 @ 60 Hz
Standards: HDMI 2.0, HDCP 2.2
Colour: HDR, YCbCr 4:4:4, 8/10/12-bit deep colour
EDID: two selectable modes
Cascading: yes, to add more displays
Power: DC 12 V
Operating temperature: 0 to 55 °C
Humidity: 10–95 %
Weight: 0.5 kg
Dimensions: 231 × 98 × 24 mm
Order code: 551-0104-01-0
