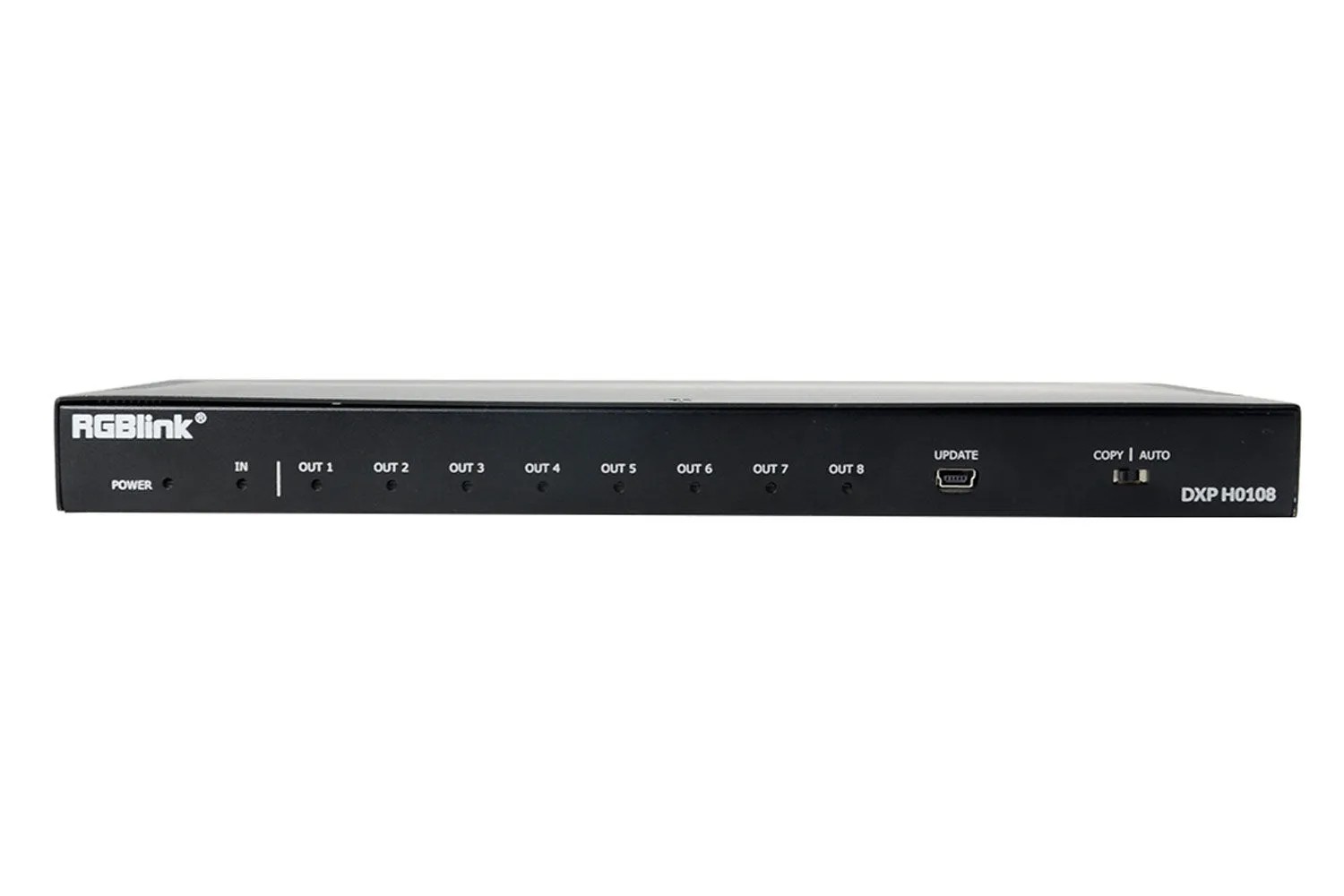

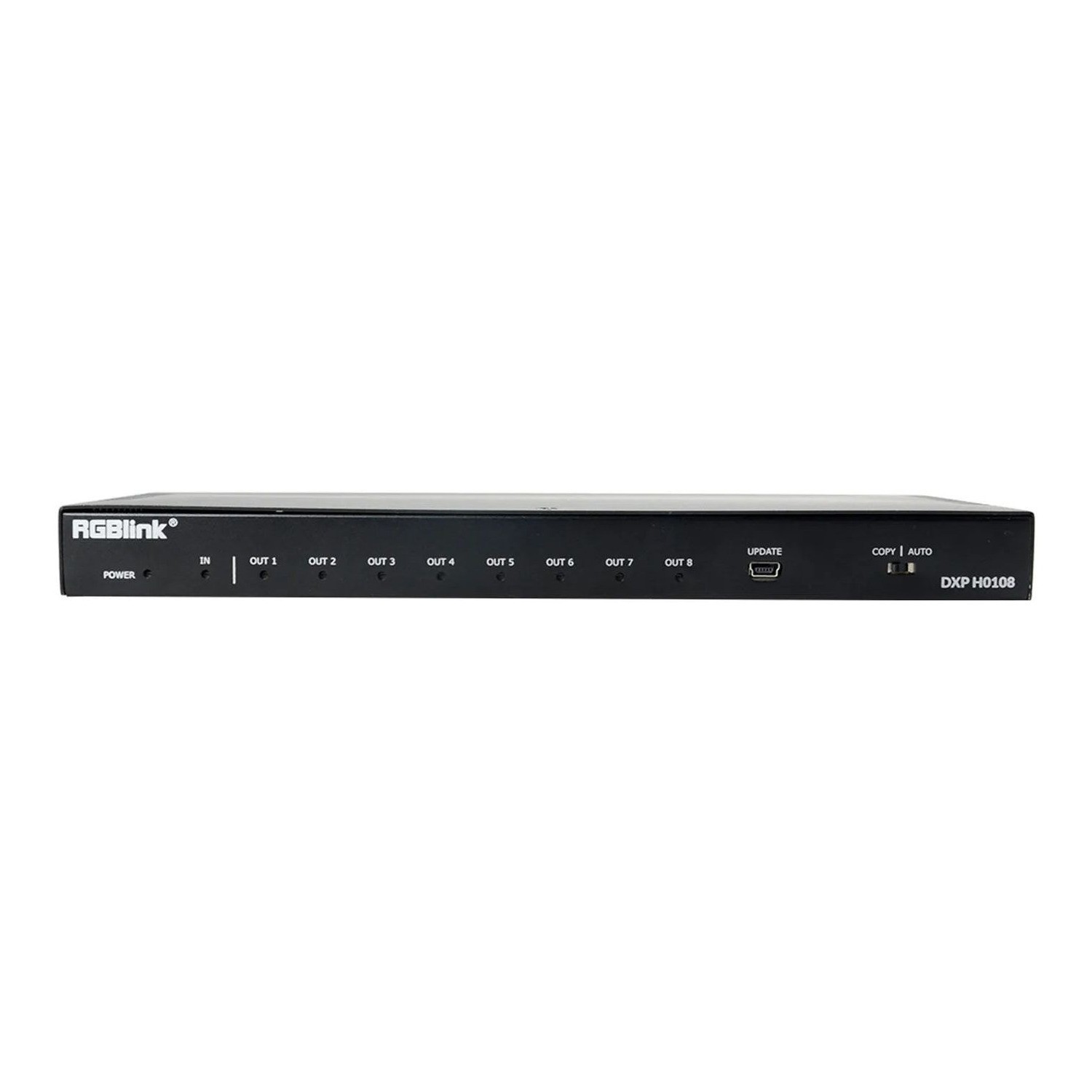

RGBlink DXP H0108

The RGBlink DXP H0108 is a professional HDMI 2.0 video distributor that takes one HDMI input and delivers it simultaneously to eight HDMI outputs. Supporting resolutions up to 4096×2160 at 60 Hz with HDR and HDCP 2.2 compliance, it ensures high-quality, lossless signal distribution for demanding AV applications.

The RGBlink DXP H0108 is designed for reliable 4K signal distribution in professional AV, broadcast, control rooms, digital signage, and live event environments. With full HDMI 2.0 support, it handles HDR video with YCbCr 4:4:4 color sampling and deep color formats up to 36-bit, ensuring exceptional image quality across all connected displays.

Advanced EDID management with two selectable EDID modes allows users to optimize compatibility and image quality depending on system requirements. The unit also supports cascading (serialization), making it easy to expand the number of connected displays without compromising signal integrity.

Key Features:

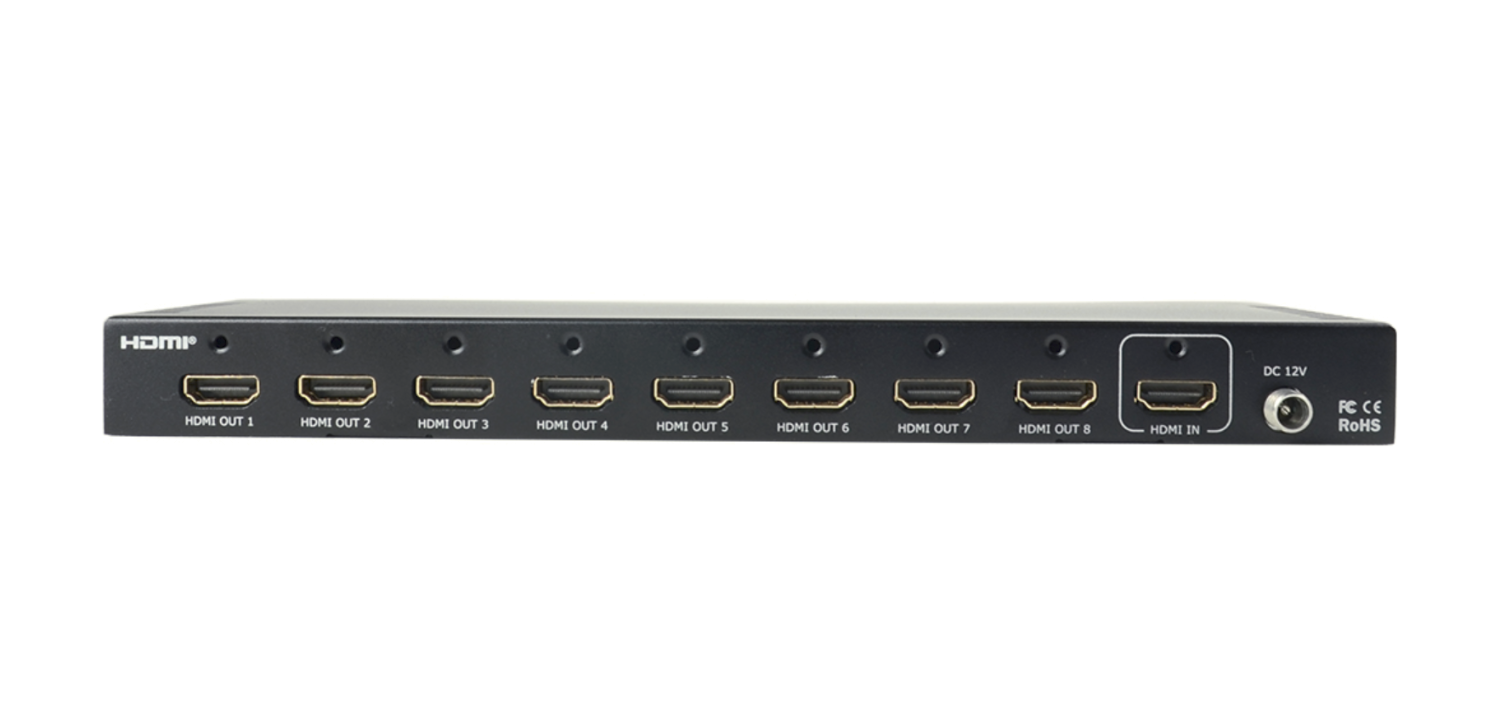

• 1× HDMI input, 8× HDMI outputs
• HDMI 2.0 compliant with HDCP 2.2 support
• Maximum output resolution: up to 4096×2160 @ 60 Hz
• Supports HDR and YCbCr 4:4:4 color space
• Deep color support: 8-bit / 10-bit / 12-bit / 36-bit
• EDID management with two selectable EDID modes
• Cascadable (serializable) design to expand display outputs
• Lossless signal distribution for professional applications
