RED DSMC3 TOUCH 7.0"

The DSMC3 RED® Touch 7.0" LCD offers an HD viewing experience for recording and viewing footage on the V-RAPTOR™ camera system. A 1920 x 1200 resolution display panel with peak brightness…

More information

Special event
3 630 € with VAT 3 000 € without VAT
-+
Availability
E-shop in stock 2 pcs
Praha 2 pcs
SKU:
730-0029
Add to Compare
Product description

Product description

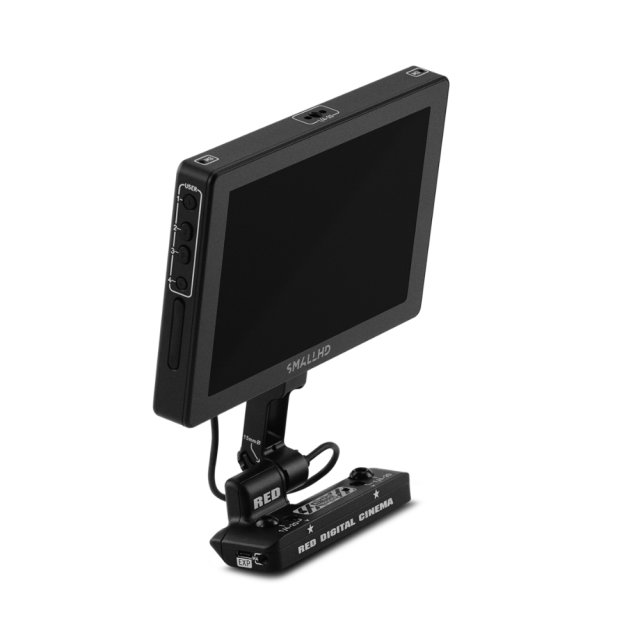

The DSMC3 RED® Touch 7.0" LCD offers an HD viewing experience for recording and viewing footage on the V-RAPTOR™ camera system. A 1920 x 1200 resolution display panel with peak brightness of 1300 nits and high pixel density (at 322 ppi), not only provides the optimal experience when viewing footage, but also features 100% DCI-P31 Color Gamut coverage for tremendous color accuracy. The monitor also features full control over the camera via the new responsive menu system powered by SmallHD PageOS, bringing features like Waveform, Vectorscope, Histogram, False Color, Color Picker, Pixel Zoom & more.

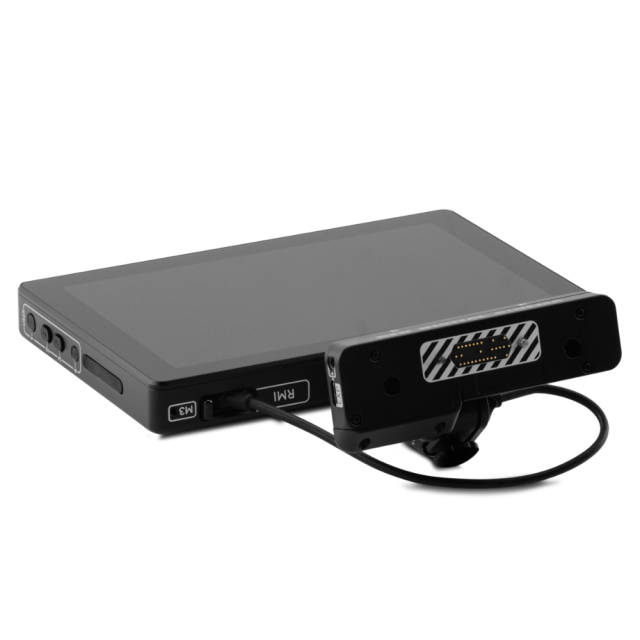

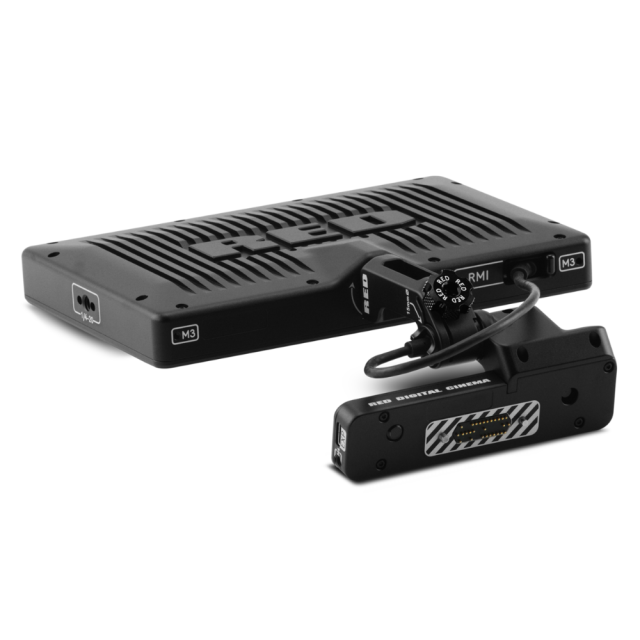

The lightweight display features a removable integrated tilt arm with the capability to rotate 180 degrees for versatile mounting options. It also boasts the latest generation pogo pins to provide power and video to the monitor in addition to the ability to connect via a single-locking USB-C style DSMC3 RMI Cable for video and power. No additional SDI or power cables are needed.

PACKAGE CONTENT

  • 1x RED Monitor Interface
  • 1x Arm
  • 1x DSMC3 RMI Cable

SPECIFICATIONS

  • MONITOR DIMENSIONS    Height: 4.67 in. (118.70 mm)
  • Width: 7.09 in. (180.10 mm)
  • Depth: 1.13 in. (28.80 mm)
  • ARM DIMENSIONS    Height: 1.18 in. (30.00 mm)
  • Width: 2.40 in. (61.00 mm)
  • Depth: .70 in. (17.50 mm)
  • RED MONITOR INTERFACE DIMENSIONS    Height: 1.67 in. (42.50 mm)
  • Width: 4.25 in. (108.00 mm)
  • Depth: 1.51 in. (38.23 mm)
  • WEIGHT    Monitor approximately 1.25 lbs (568.0 g)
  • Arm approximately .07 lbs (30.1 g)
  • RED Monitor Interface approximately .28 lbs (126 g)
  • MATERIAL    Aluminum Alloy
  • RESOLUTION    1920 x 1200
  • PIXEL DENSITY    322 pixels per inch (ppi)
  • REFRESH RATE    60 Hz
  • RESPONSE TIME    25 ms
  • CONTRAST    1250:1
  • BRIGHTNESS    1300 cd/m2
  • COLOR DEPTH    10 bit
  • COLORS    100% DCI-P3[1]
  • VIEWING ANGLE    ± 160° all axes
  • DISPLAY ORIENTATION    Landscape, 180° rotation
  • TOUCH    Projected Capacitive (pCap), multi-touch
  • CAMERA CONNECTION    Power and Communication via RMI cable
  • MOUNTING    15mm Rail
  • HOOD MOUNTING    4x M3 Mounting Points
  • BUTTONS    4 Buttons Function 1,2,3 & 4
  • POWER CONSUMPTION    Max 18.3W
  • OPERATING TEMPERATURE    0°C to 38°C (32°F to 104°F)
  • STORAGE TEMPERATURE    –18°C to 49°C (–0°F to 120°F)
  • OPERATING HUMIDITY    0% to 85%, non-condensing
  • STORAGE HUMIDITY    0% to 85%, non-condensing
  • FIRMWARE REQUIREMENT    Compatible with camera firmware V1.1 or later
Parameters

Parameters

Manufacturer: RED
Category: Accessories
