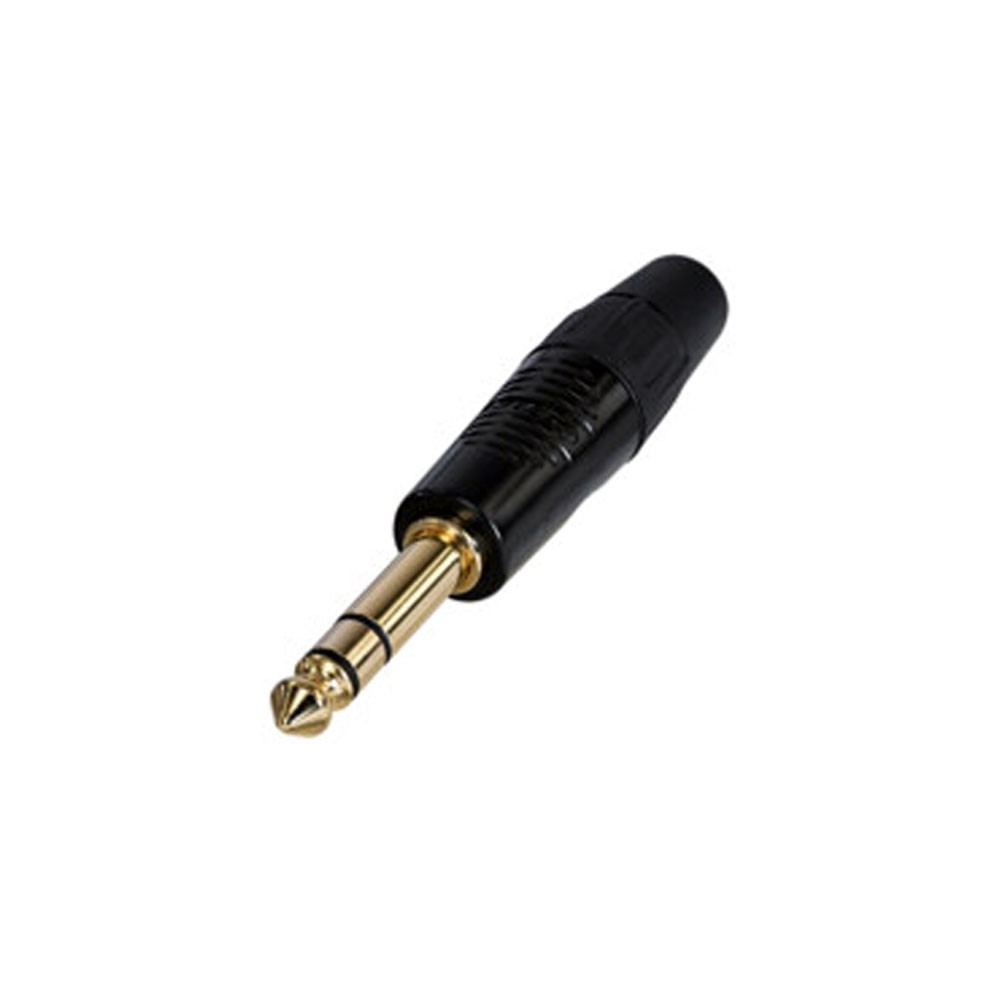

Rean RP3C Stereo 1/4" plug

Rean Stereo 1/4" plug, Black plated housing, gold plated contacts

Technical information

Product
Title - RP3C
Connection Type - Plug
Electrical
Contact rated current - depends on mating connector mΩ
Contact resistance - depends on mating connector mΩ
Dielectric strength - 1 kV dc
Insulation resistance - > 1.5 GΩ
Mechanical
Lifetime - > 1000 mating cycles
Cable O.D. - 4 - 7 mm
Wiring - Solder contacts
Wiresize (max.) - 1.0 mm² / 18 AWG
Material
Boot - PA6+30% GF
Contact - Brass ( CuZn39Pb3)
Contact plating - Nickel / Au
Shell - Zinc alloy
Shell plating - Nickel / Black
Strain relief - POM
Environmental
Temperature range - -20 °C to +70 °C
Flammability - UL 94 HB
Solderability - complies with IEC68-2-20
