Neutrik NJ3FC6-BAG

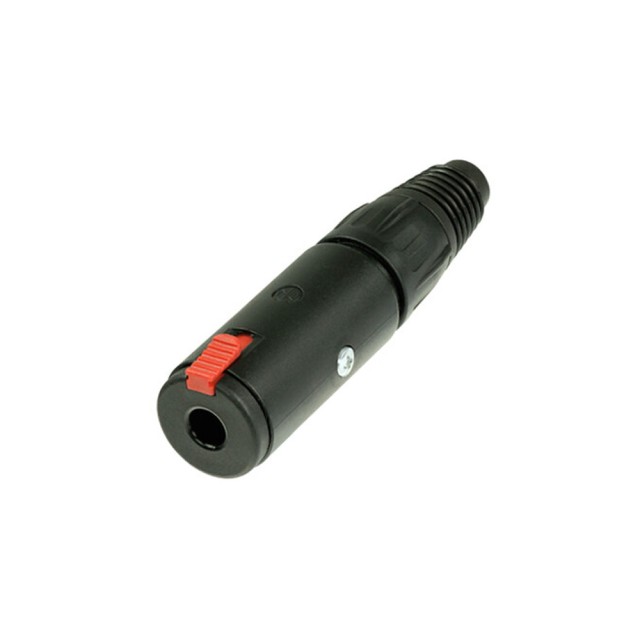

Professional locking 1/4" cable jack for secure in-line connections. Black metal housing, silver contacts, excellent cable protection. The 3 pole phone cable jack in-line version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab.

Features & Benefits

• Securely locking cable jack
• Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
• Metal shell makes it extremely robust and reliable
• Neutrik cable retention and boot as on XLR connectors
• Solder terminals
• Colored boots available in 10 colors for color coding and marking

Technical Information

Product
Title - NJ3FC6-BAG
Connection Type - Jack
Gender - female

Electrical
Contact resistance - < 6 mΩ (initial)
Dielectric strength - 1 kVdc
Insulation resistance - ≥ 1 GΩ @ 500 V dc
Rated current per contact - 10 A

Mechanical
Cable O.D. - 3.5 - 8.0 mm
Insertion force - < 30 N
Withdrawal force - < 20 N
Lifetime - > 10000 mating cycles
Locking force - > 80 N
Wiresize - 1 mm²
Wiresize - 18 AWG
Wiring - Solder contacts
Locking device - Latch lock

Material
Boot - Polyurethan
Contact plating - 2 µm Ag
Contacts - Brass (CuZn37) (Ground)
Insert - Polyamide (PA 6.6 30 % GR)
Shell - Zinc diecast (ZnAl4Cu1)
Shell plating - Black
Strain relief - Polyacetal (POM)

Environmental
Standard compliance - EIA RS 453, IEC 60603-11
Solderability - Complies with IEC 68-2-20
Temperature range - -25 °C to +70 °C
