PTZOptics PT20X4K-PRODUCER-SJOY

PTZOptics Producer 4K bundle: three Move 4K 20X PTZ cameras (grey) with 4K60 video, auto-tracking and NDI HX3, plus a SuperJoy joystick for IP, NDI and serial control. A complete multi-camera setup for studios, churches and events.

The PTZOptics Producer 4K is a ready-made multi-camera production kit: it contains three Move 4K PTZ cameras with 20x optical zoom and a SuperJoy controller. The cameras capture up to 4K at 60 frames per second, track the presenter on their own and connect to your production via NDI HX3, SDI, HDMI, USB and IP. Everything runs on PoE, so a single cable to each device is enough.

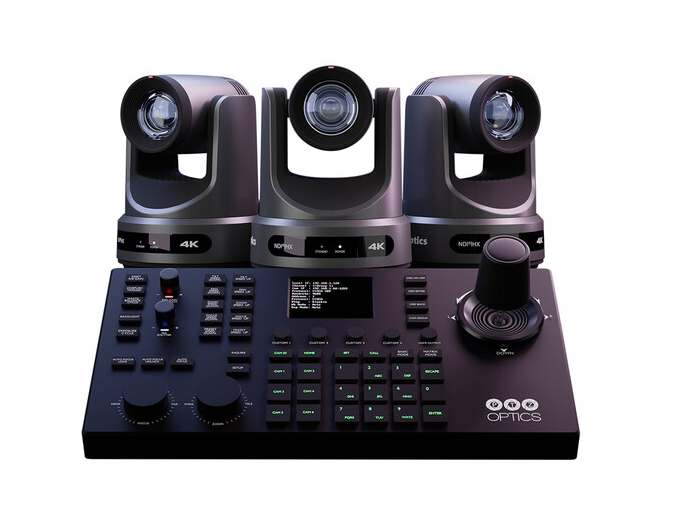

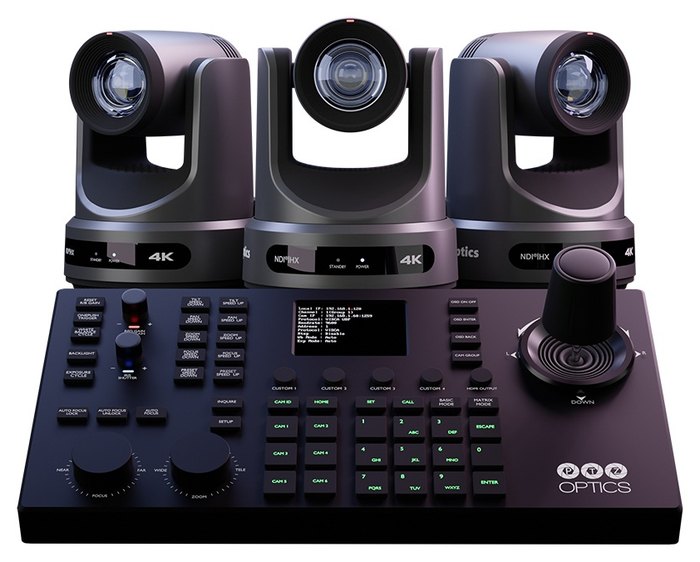

Three cameras and a joystick

Move 4K 20X cameras with auto-tracking and a SuperJoy controller – everything a small team needs for professional multi-camera production.

3x Move 4K 20XSuperJoy controller4K at 60 fps20x optical zoomNDI HX3PoE power

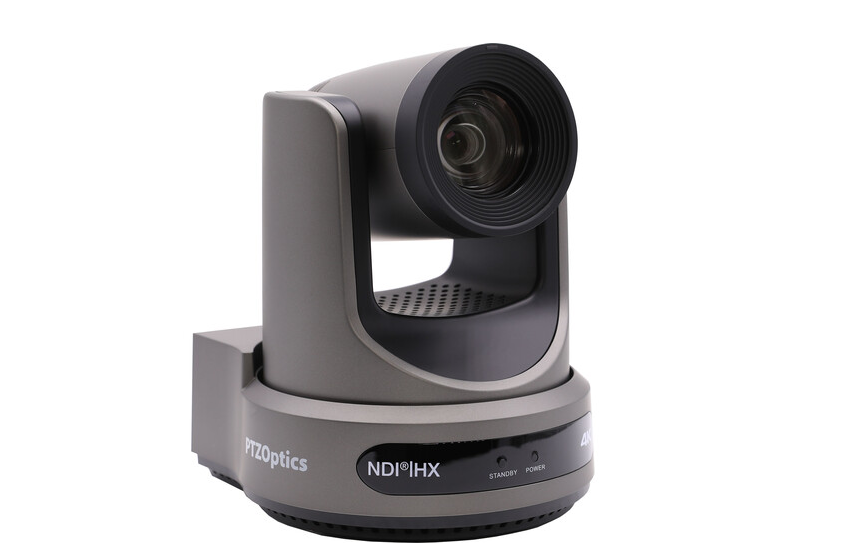

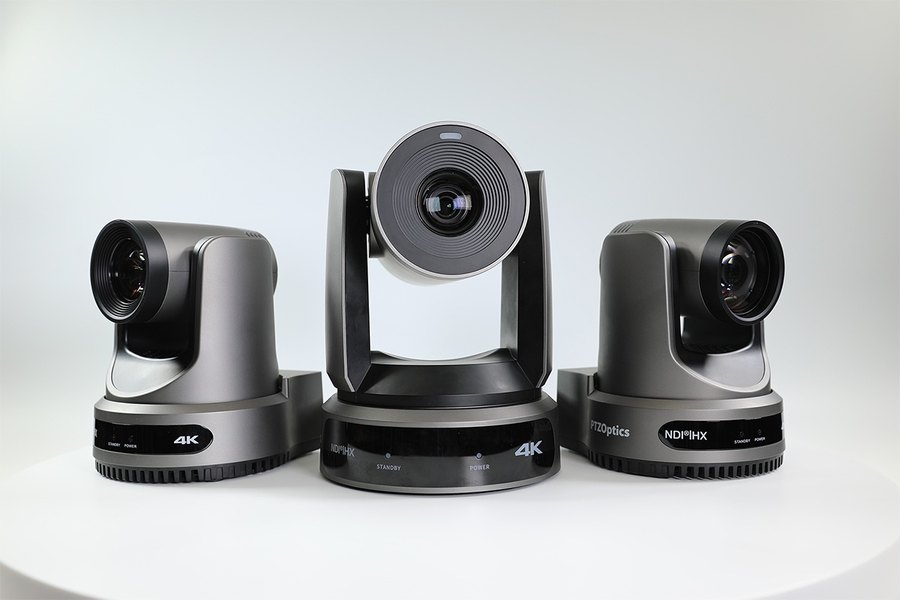

Three Move 4K 20X cameras

Each camera has a 1/1.8" Sony sensor, 20x optical zoom and Presenter-Lock auto-tracking. HDMI 2.0, 3G-SDI, USB and IP outputs with native NDI HX3 run simultaneously.

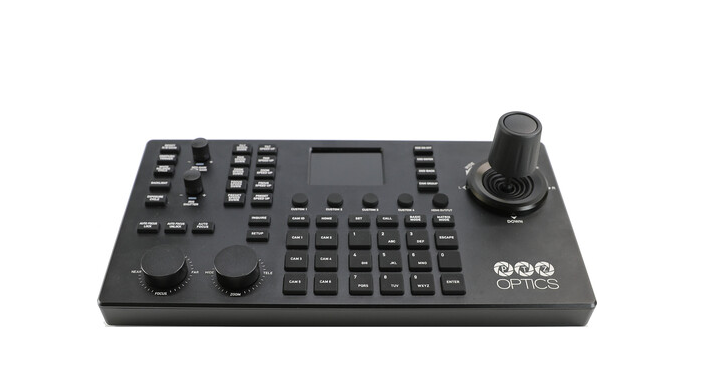

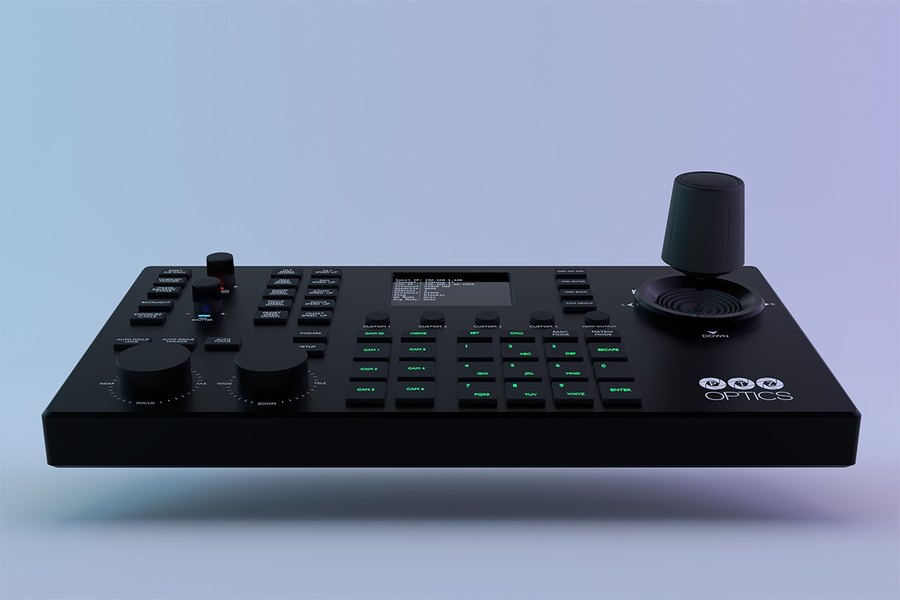

SuperJoy for the whole production

The joystick controls cameras over IP, NDI and serial at the same time. It offers 9 quick presets, 4 SuperPresets for several cameras at once and an HDMI preview output up to 1080p.

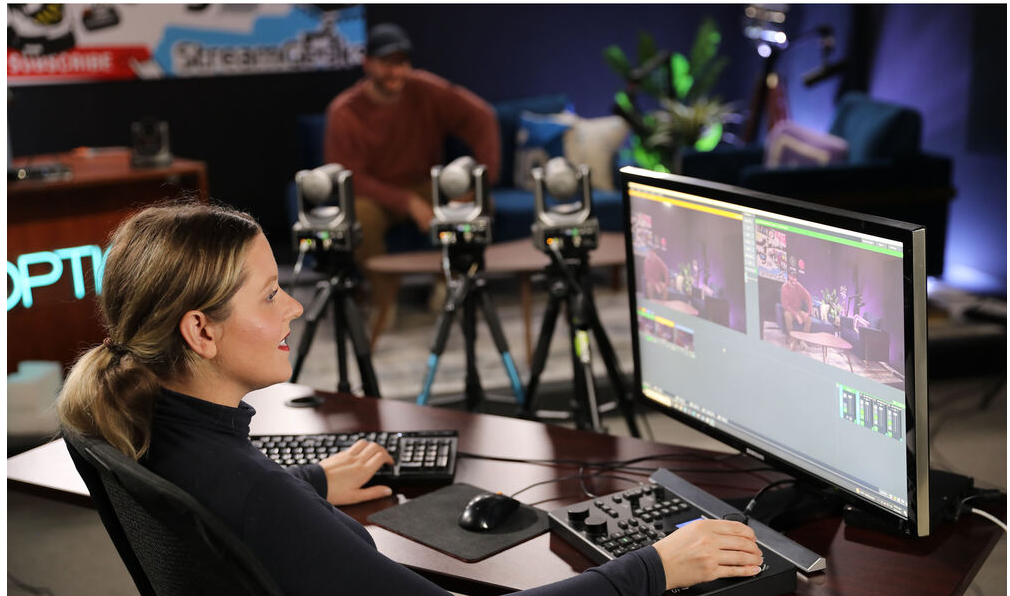

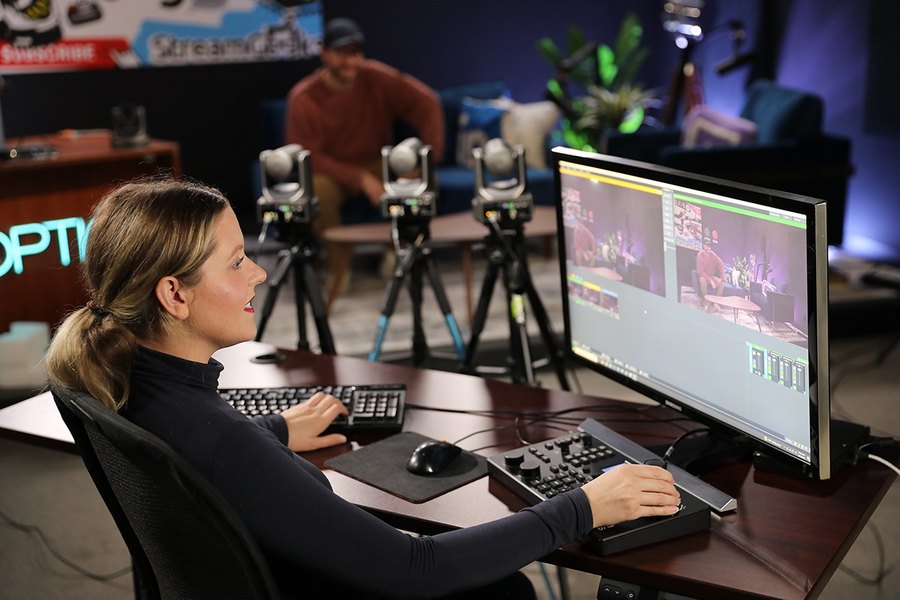

One operator does it all

The cameras keep the presenter in frame on their own, so the operator only recalls presets and switches shots. The kit works with ATEM, vMix, OBS and other production software.

A complete kit instead of a parts list

Cameras and controller are designed to work together, so there is no hunting for compatible parts. Every device runs on PoE, the kit sets up and packs down quickly and suits both mobile production and permanent installation.

Tracking range

The 20X model reliably tracks a person at distances of up to 76 m.

Field of view

Horizontally from 60.7° at the wide end to 3.5° at full telephoto.

255 presets

Each camera stores 255 positions, with ±170° pan and −30° to +90° tilt.

Tally and audio

Built-in tally light and a 3.5 mm line input that embeds audio in every output.

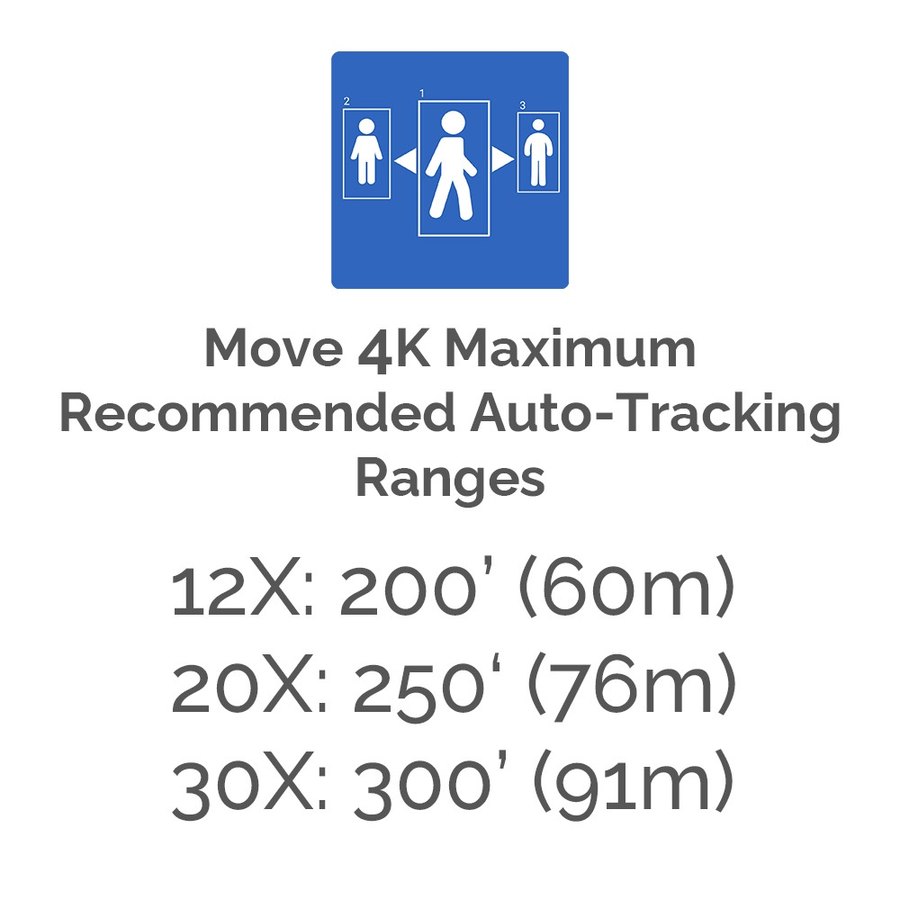

Auto-tracking range. The Move 4K 20X cameras in the kit reliably track a person at distances of up to 76 m.

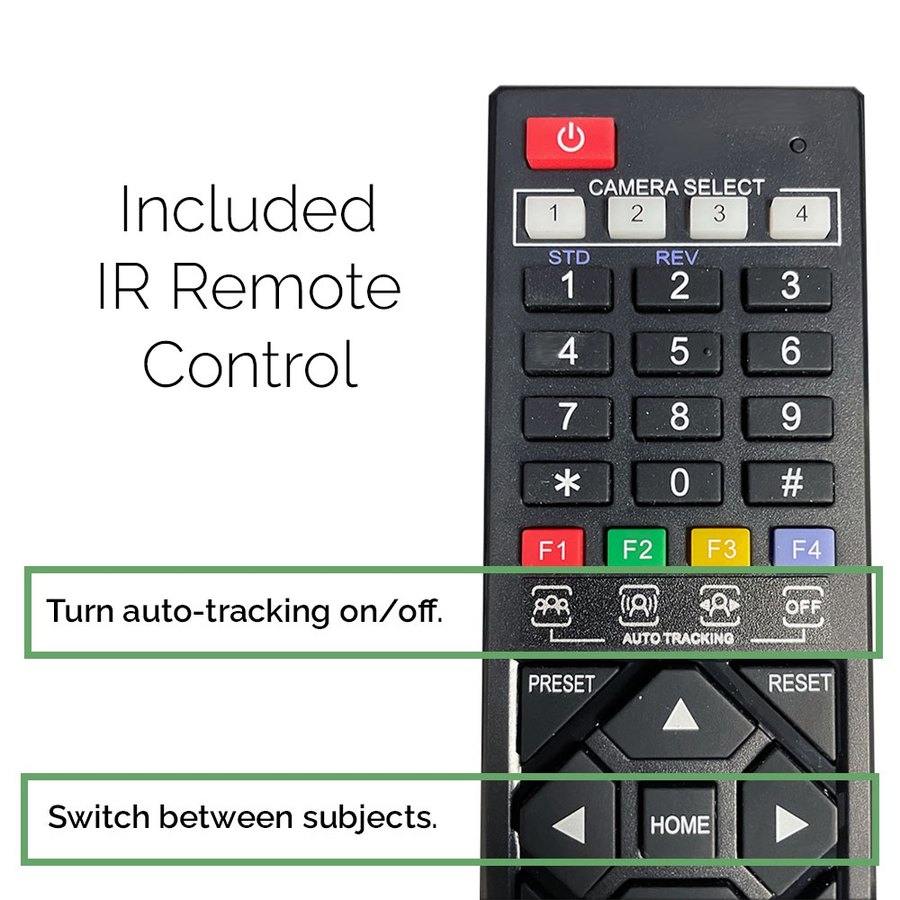

A remote control for each camera. Turn tracking on or off with one button and switch between people in the frame with the arrow keys.

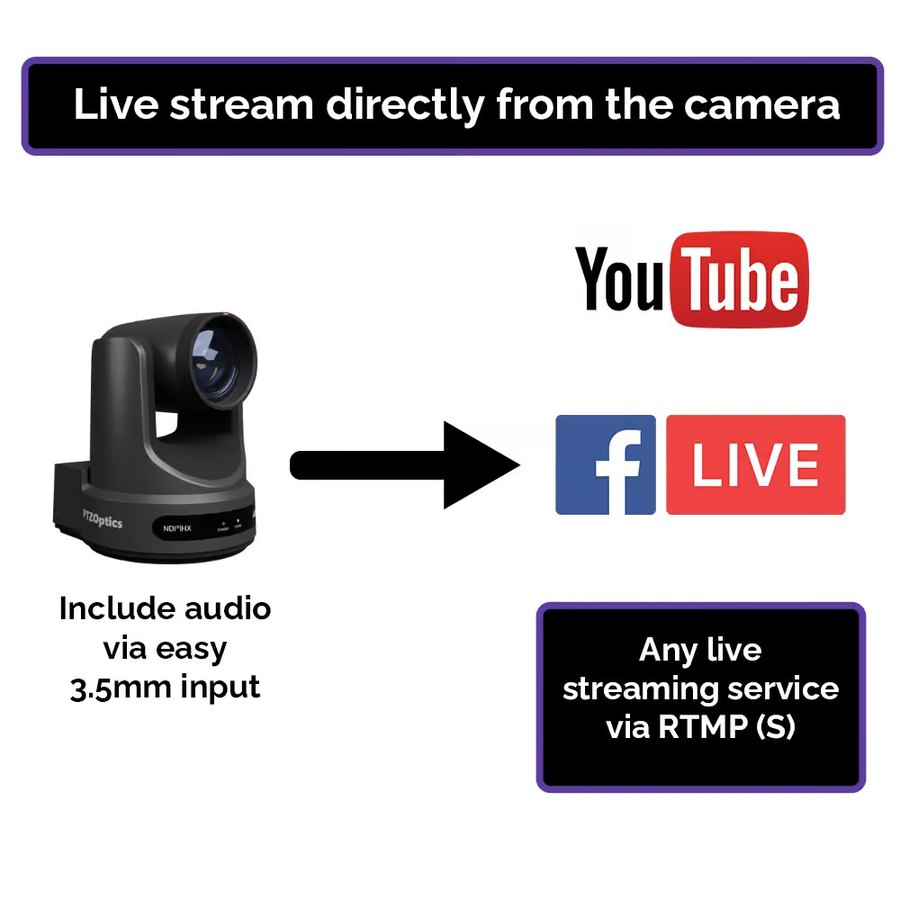

Stream straight from the camera. Broadcast to YouTube, Facebook or any RTMP(S) service without a computer, adding audio via the 3.5 mm input.

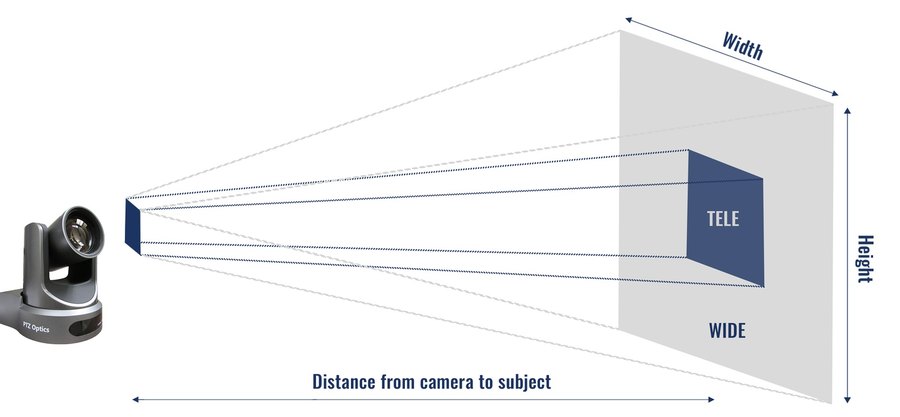

From wide angle to telephoto. Across its full zoom range, the camera covers the entire space as well as the detail at the far end of the hall.
