PTZOptics PT20XSE-PRODUCER-JOY4

PTZOptics Producer SE bundle: three Move SE 20X PTZ cameras (grey) with 1080p60 video, auto-tracking and NDI HX, plus a PT-JOY-G4 joystick for IP and serial control. Affordable multi-camera production for education and churches.

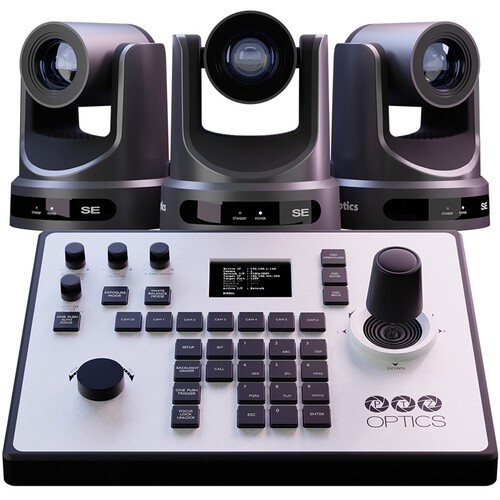

The PTZOptics Producer SE is a ready-made kit for Full HD multi-camera production: it contains three Move SE PTZ cameras with 20x optical zoom and a PT-JOY-G4 controller. The cameras capture 1080p at 60 frames per second, track the presenter on their own and connect to your production via SDI, HDMI, USB and the network with NDI HX. Every device can run on PoE.

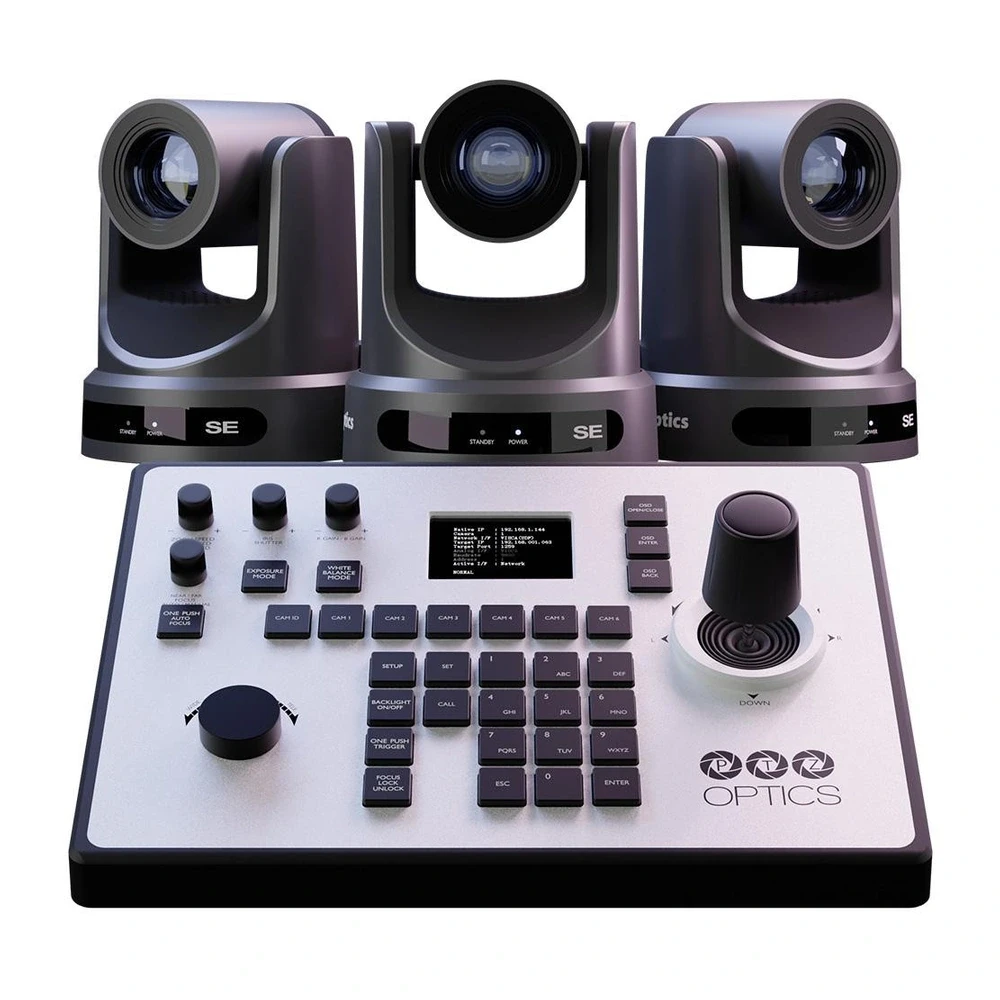

Three cameras and a joystick

Move SE 20X cameras with auto-tracking and a PT-JOY-G4 controller – an affordable route to Full HD multi-camera production.

3x Move SE 20XPT-JOY-G4 controller1080p at 60 fps20x optical zoomNDI HXPoE power

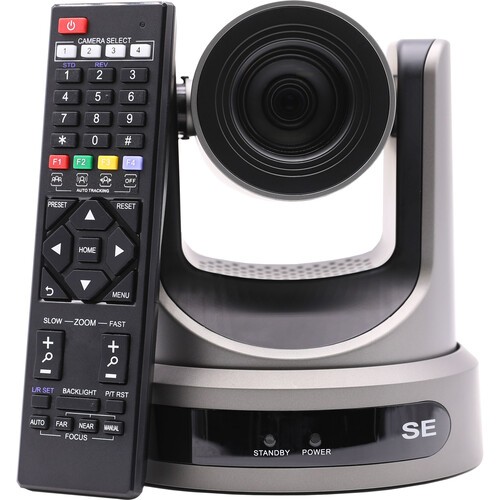

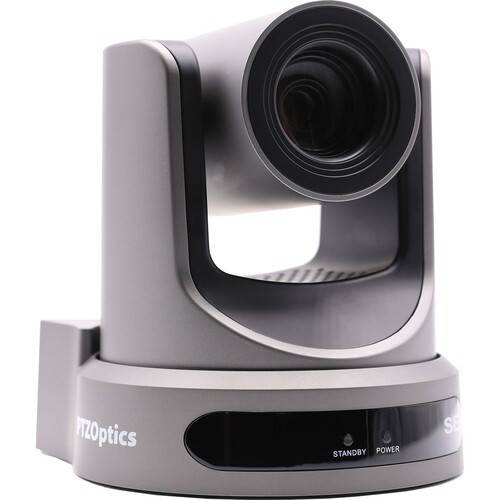

Three Move SE 20X cameras

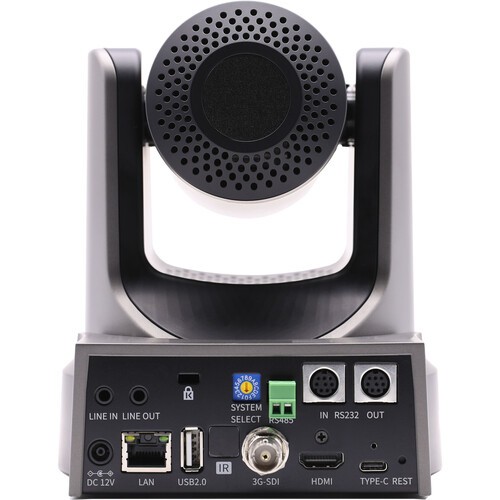

Each camera has a 1/2.8" Sony sensor, 20x optical zoom and auto-tracking of a person at up to 33 m. HDMI, 3G-SDI, USB-C and IP outputs with NDI HX, plus SRT, RTSP and RTMP(S) streams.

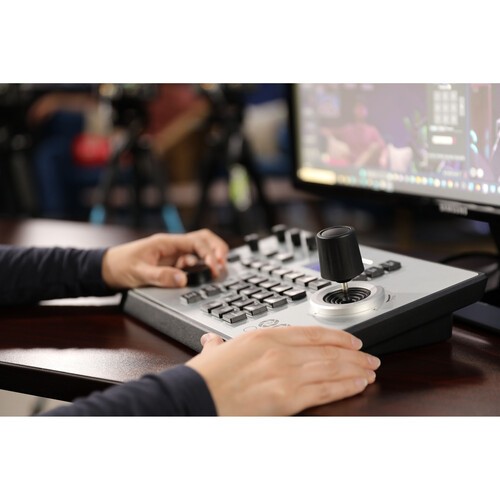

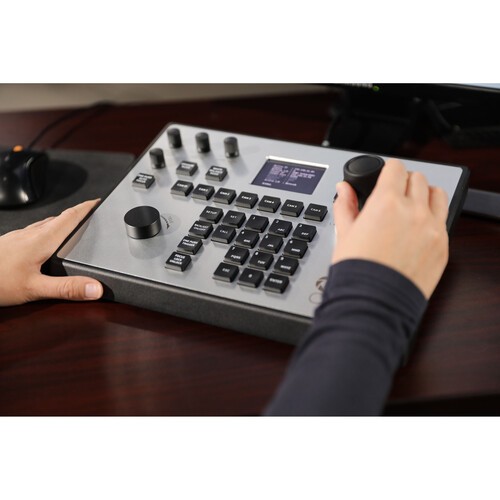

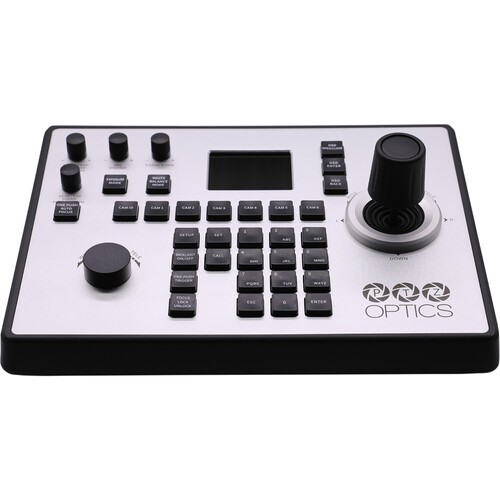

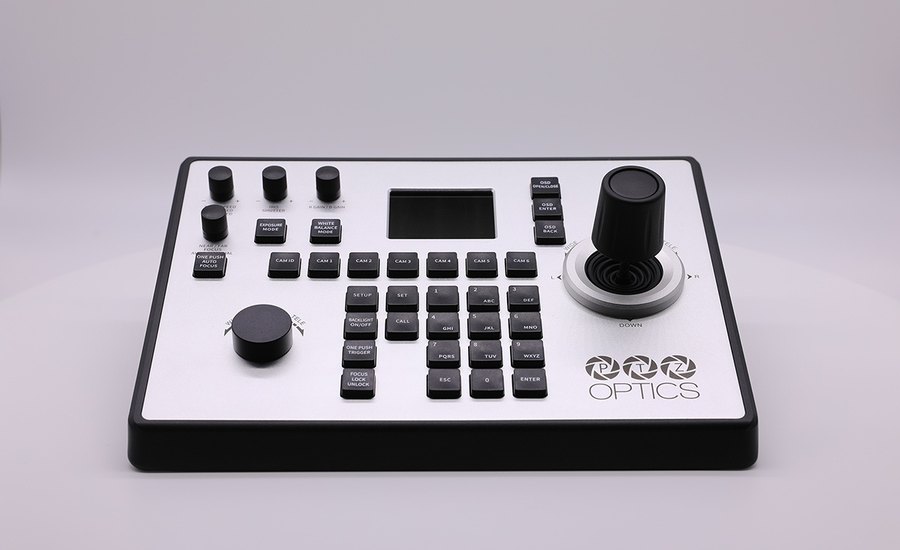

PT-JOY-G4 for precise control

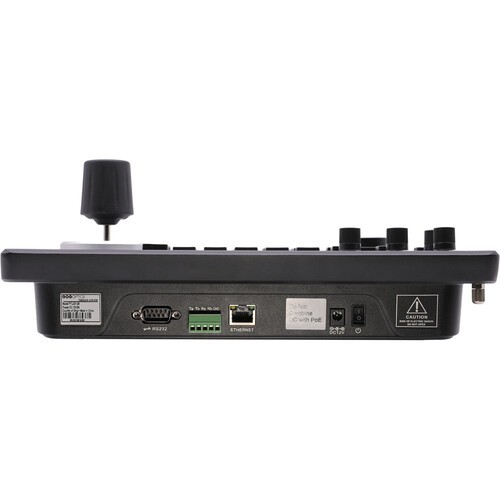

The metal-bodied joystick controls cameras over IP as well as RS-232, RS-422 and RS-485. It has a large LCD screen, dials for focus, exposure and white balance, and 10 custom buttons.

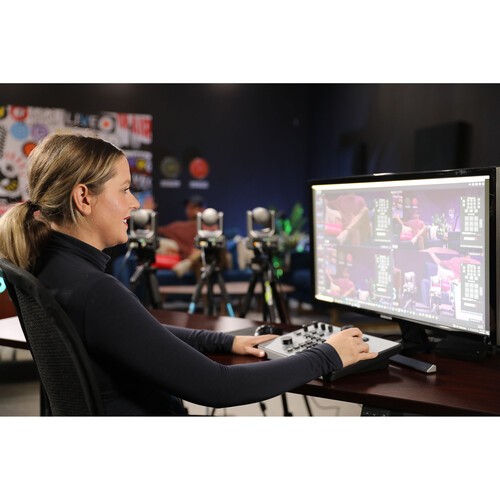

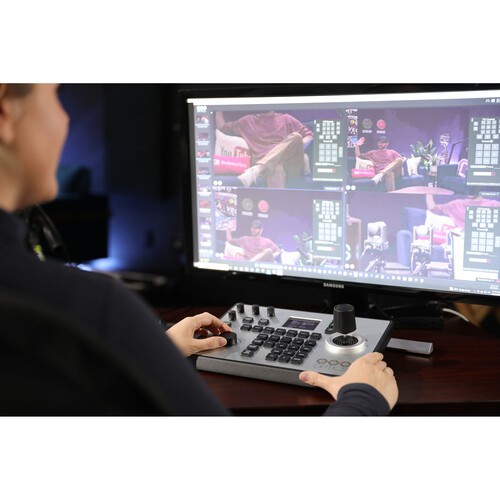

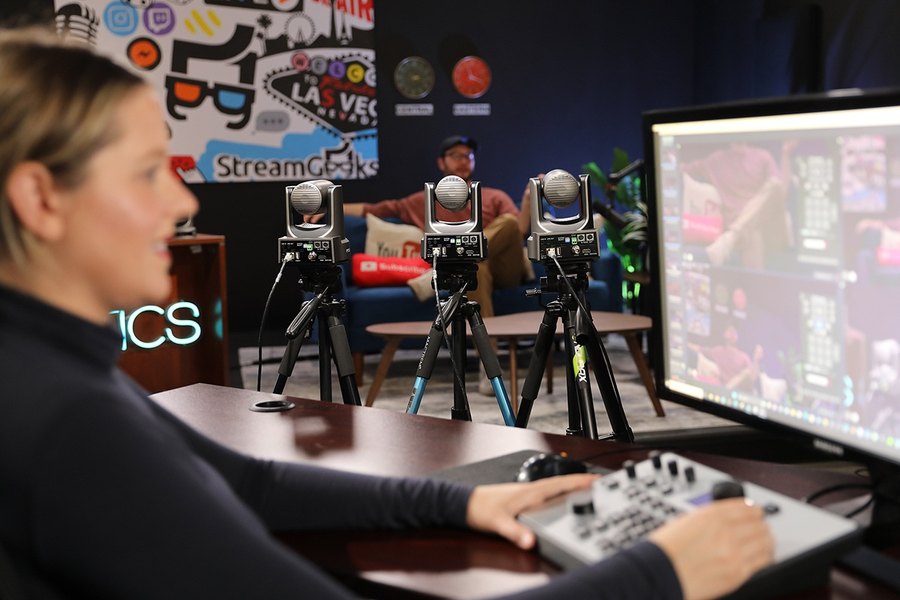

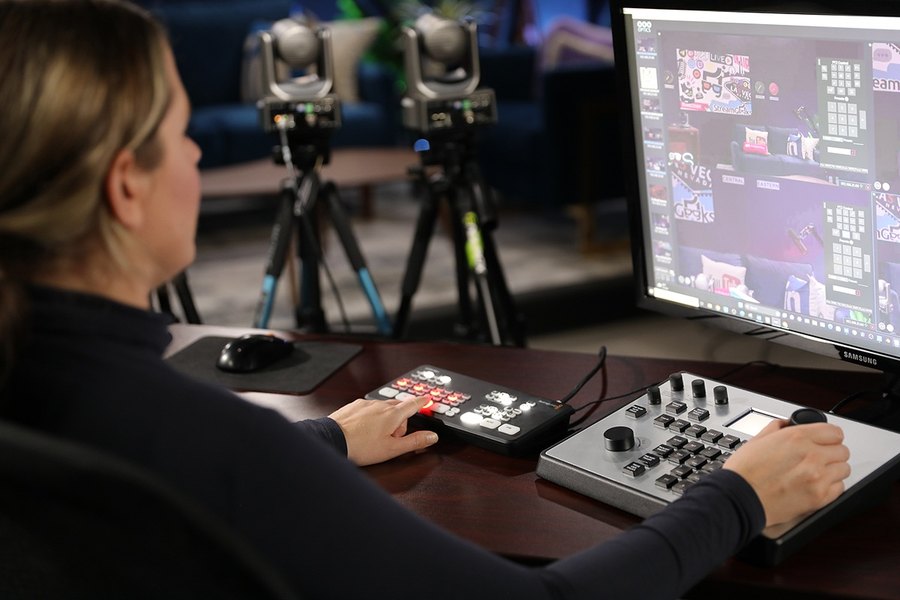

One operator does it all

The cameras keep the presenter in frame on their own, so the operator only recalls presets and switches shots. The kit works with ATEM, vMix, OBS and other production software.

A complete kit at a sensible price

Cameras and controller are designed to work together, so there is no hunting for compatible parts. PoE power keeps cabling simple, and the kit suits both mobile production and permanent installation in a classroom, hall or church.

Tracking range

The 20X model tracks a person at distances of up to 33 m.

Field of view

Horizontally from 60.7° at the wide end to 3.4° at full telephoto.

255 presets

Each camera stores 255 positions, with ±170° pan and −30° to +90° tilt.

Tally and audio

Built-in tally light plus 3.5 mm line-level audio input and output.

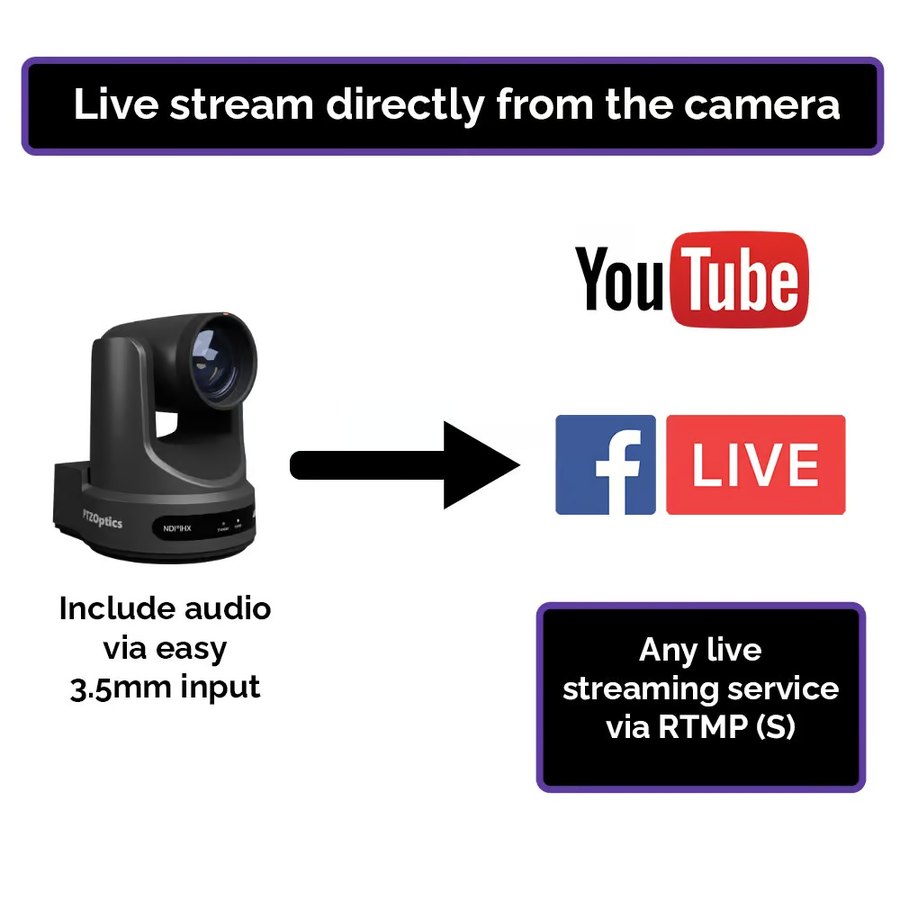

Stream straight from the camera. Broadcast to YouTube, Facebook or any RTMP(S) service without a computer, adding audio via the 3.5 mm input.

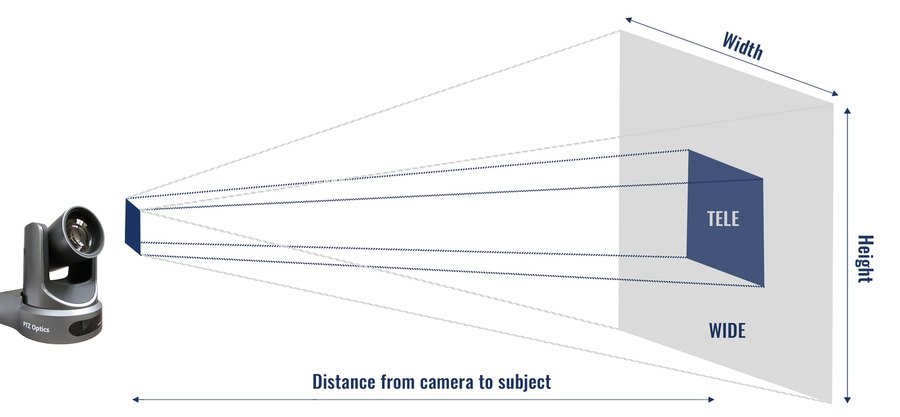

From wide angle to telephoto. Across its full zoom range, the camera covers the entire space as well as the detail at the far end of the hall.
