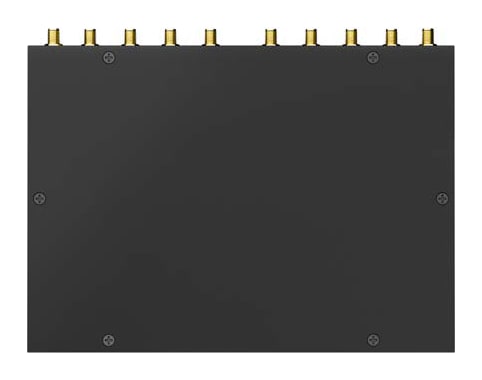

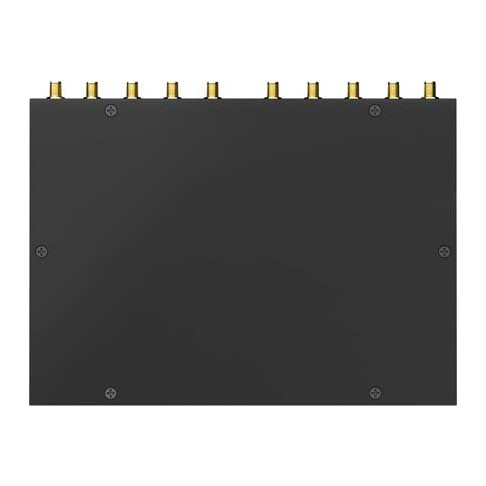

Sennheiser SL PASC 4 passive antenna splitter/combiner

SKU: SL PASC 4

The Sennheiser SL PASC 4 is a passive 4-way true diversity antenna splitter/combiner for SpeechLine Digital Wireless microphones in the 1,880–1,930 MHz range. It distributes the signal of an AWM 2 or AWM 4 remote antenna to up to four SL Rack Receiver DW units, so two antenna cables do the job of eight. The SMA-R cables for…

More information

829 € with VAT 685.12 € without VAT
Add to Compare Price history
Availability
on request
SKU:
SL PASC 4
Add to Compare Price history

Top accessories for Sennheiser SL PASC 4 passive antenna splitter/combiner

Sennheiser CL 10 PP

The Sennheiser Antenna Cable (10 m / 32.8 ft) is a high-quality RF coaxial extension
100 €
on request

Sennheiser CL 20 PP – 20 m antenna cable, 2× RP-SMA

The Sennheiser CL 20 PP is a 20-meter antenna cable for the SpeechLine Digital Wireless
171 €
on request

Sennheiser AWM 2 MK II wall-mount antenna

The Sennheiser AWM 2 MK II is a remote antenna for SpeechLine Digital Wireless microphones
130 €
on request

Sennheiser AWM 4

The Sennheiser AWM 4 is a remote wall-mounted/tripod antenna for SpeechLine Digital
261 €
on request

Sennheiser GA 4 19″ rack mount kit

The Sennheiser GA 4 is a mounting kit for installing the SL Rack Receiver DW of the
56 €
2 pcs in stock at the supplier

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Sennheiser SL PASC 4 is a passive 4-way true diversity antenna splitter/combiner for SpeechLine Digital Wireless microphones in the 1,880–1,930 MHz range. It distributes the signal of an AWM 2 or AWM 4 remote antenna to up to four SL Rack Receiver DW units, so two antenna cables do the job of eight. The SMA-R cables for the receivers are included.

One antenna for four receivers

Fewer cables in the room and in the rack: two inputs from the antenna, eight outputs to the receivers.

1,880–1,930 MHz2 inputs8 outputsSMA-Rpassive

Clear wiring

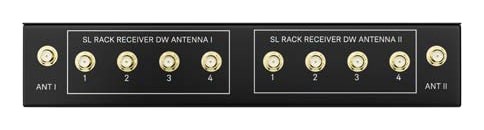

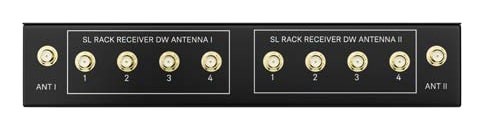

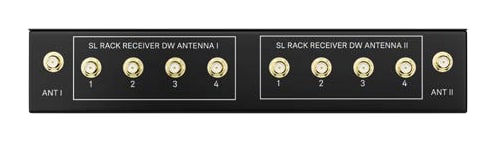

The outputs on the rear panel are labelled for antenna I and antenna II of each of the four receivers, while the ANT I and ANT II inputs lead to the AWM 2 or AWM 4 antenna.

Up to eight links with the AWM 4

An AWM 4 antenna with two SL PASC 4 splitters serves up to eight receivers; four antenna cables then replace sixteen.

26 dB isolation

Port-to-port isolation is at least 26 dB, with a typical insertion loss of −8 dB.

Rack-mount with GA 4

The GA 4 mounting kit fixes the splitter in a 19″ rack, alone or two side by side.

PACKAGE CONTENT

  • Sennheiser SL PASC 4 passive antenna splitter/combiner
  • 8× SMA-R cable (50 cm)
  • quick guide
  • safety guide

SPECIFICATIONS

  • System: SpeechLine Digital Wireless
  • Frequency range: 1,880–1,930 MHz
  • Ports: 2 RF inputs (for AWM 2 / AWM 4), 8 RF outputs (up to 4× SL Rack Receiver DW)
  • Connectors: SMA-R, AC-coupled ports
  • Insertion loss: typ. −8 dB
  • Port-to-port isolation: min. 26 dB
  • Input/output return loss: max. −14 dB
  • Max. RF input power: 1.5 W
  • Dimensions: 210 × 160 × 41 mm
  • Weight: 663 g
  • Operating temperature: −40 to +85 °C
  • Relative humidity: max. 95 % (non-condensing)
  • Manufacturer article no.: 390041

WE RECOMMEND

Recommended for the Sennheiser SL PASC 4 passive antenna splitter/combiner:

Parameters

Parameters

Manufacturer: Sennheiser
Category: Accessories

Main parameters

ColourBlack
CompatibilitySennheiser SpeechLine Digital Wireless
Accessory typeAntenna splitter
Weight663g
