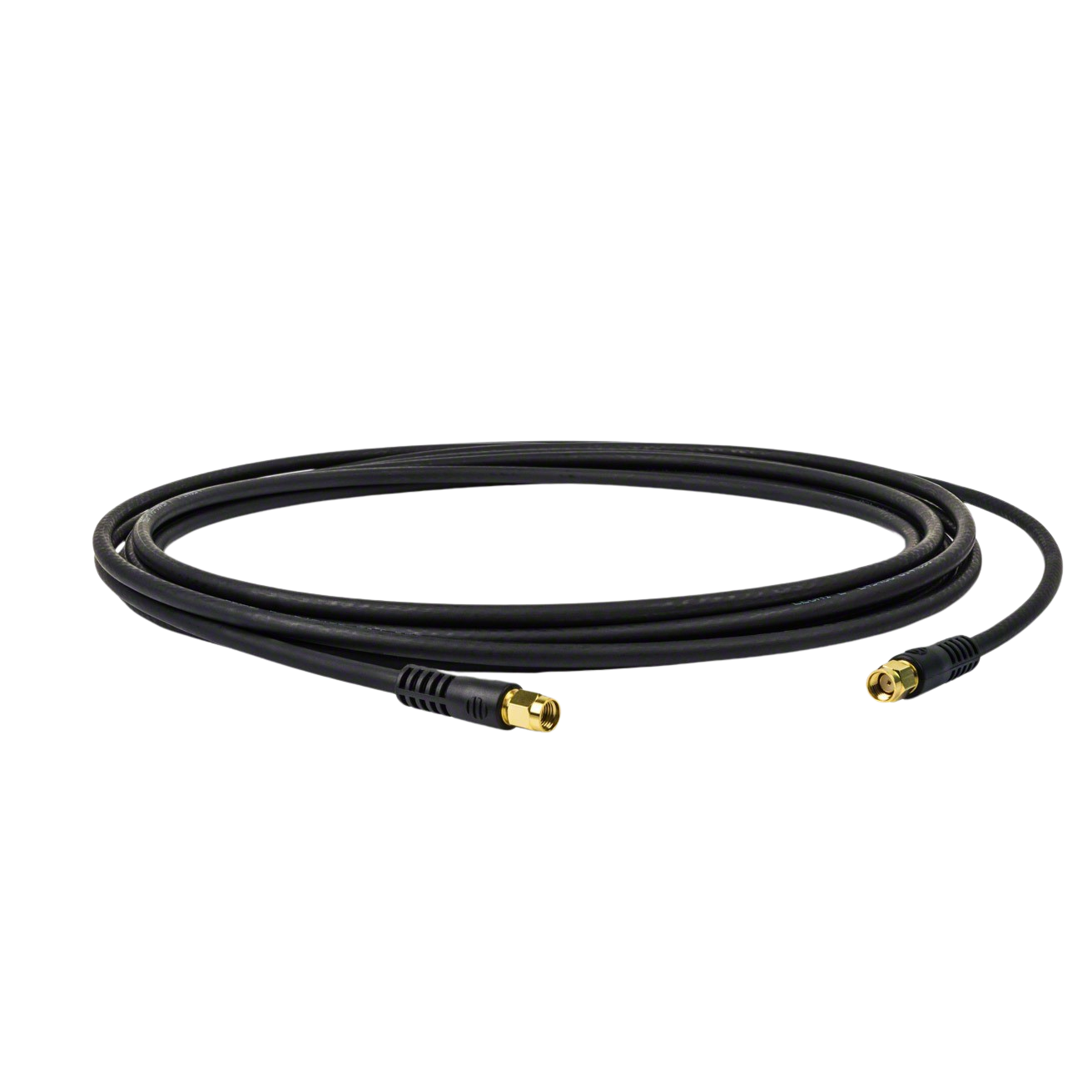

Sennheiser CL 20 PP – anténní kabel 20 m, 2× RP-SMA

SKU: CL 20 PP

The Sennheiser CL 20 PP is a 20-meter antenna cable for the SpeechLine Digital Wireless system. Both ends are equipped with reverse SMA (RP-SMA) connectors, and the cable is used to connect a remote antenna to a compatible receiver or antenna accessory.

More information

171 € with VAT 141.32 € without VAT
Add to Compare Price history
Availability
on request
SKU:
CL 20 PP
Add to Compare Price history

Sennheiser CL 10 PP

100 €without VAT 82.64 €

Sennheiser ACA 3 active antenna combiner

3 829 €without VAT 3 164.46 €
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Sennheiser CL 20 PP is a 20-meter antenna cable for the SpeechLine Digital Wireless system. Both ends are equipped with reverse SMA (RP-SMA) connectors, and the cable is used to connect a remote antenna to a compatible receiver or antenna accessory.

Sennheiser CL 20 PP – 20m anténní kabel

Antenna Cable for SpeechLine Installations

The CL 20 PP extends the antenna run by 20 meters. It uses reverse SMA connectors on both ends and is designed for use with the Sennheiser SpeechLine Digital Wireless system.

  • Length: 20 m
  • 2× reverse SMA (RP-SMA) plugs
  • Attenuation: 10 dB
  • Genuine Sennheiser accessory

PACKAGE CONTENT

Antenna Run Design

The manufacturer specifies an attenuation of 10 dB for the CL 20 PP. When antennas are located at a distance, it is therefore necessary to take the cable length into account and adjust the transmit power setting of a compatible receiver according to the system design.

SPECIFICATIONS

Package Contents and Technical Specifications

Included in the package: 1× CL 20 PP cable.

ModelCL 20 PP
Order Number507428
Length20 m
Connector 1Reverse SMA plug
Connector 2reverse SMA plug
Attenuation10 dB
Weight878 g
Parameters

Parameters

Manufacturer: Sennheiser
Category: Audio cables

Main parameters

Input connectorRP-SMA
Output connectorRP-SMA
Délka kabelu20m
CompatibilitySpeechLine Digital Wireless
