Sennheiser AWM 2 MK II wall-mount antenna

SKU: AWM 2 MK II

The Sennheiser AWM 2 MK II is a remote antenna for SpeechLine Digital Wireless microphones in the 1.9 GHz band. Two white rod antennas in a rugged metal housing mount on a wall or a microphone stand, right where reception is best and the antenna stays nearly invisible. Cables plug straight into the R-SMA sockets on the underside, so the receiver…

More information

130 € with VAT 107.44 € without VAT
Add to Compare Price history
Availability
on request
SKU:
AWM 2 MK II
Add to Compare Price history
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

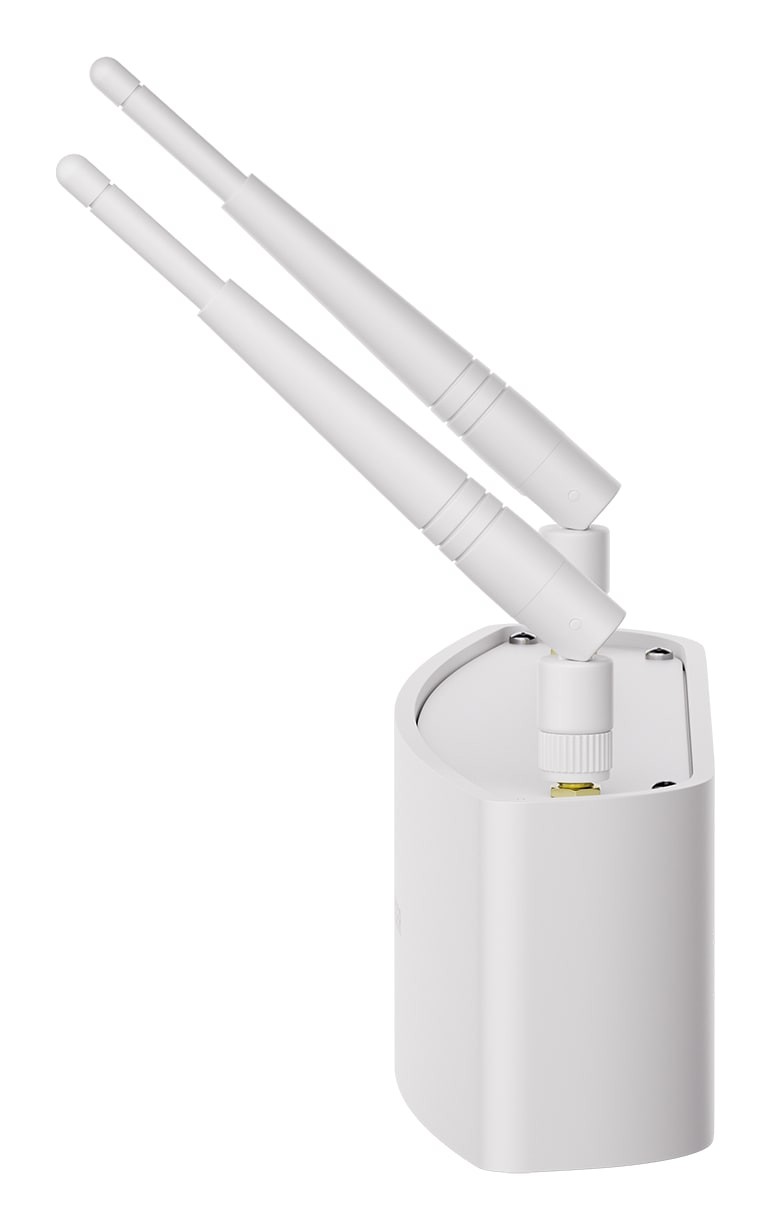

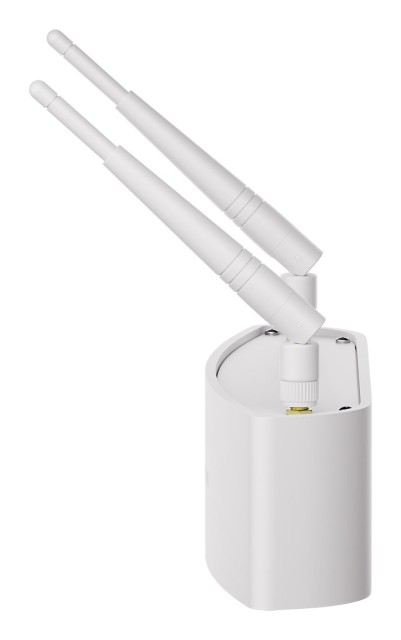

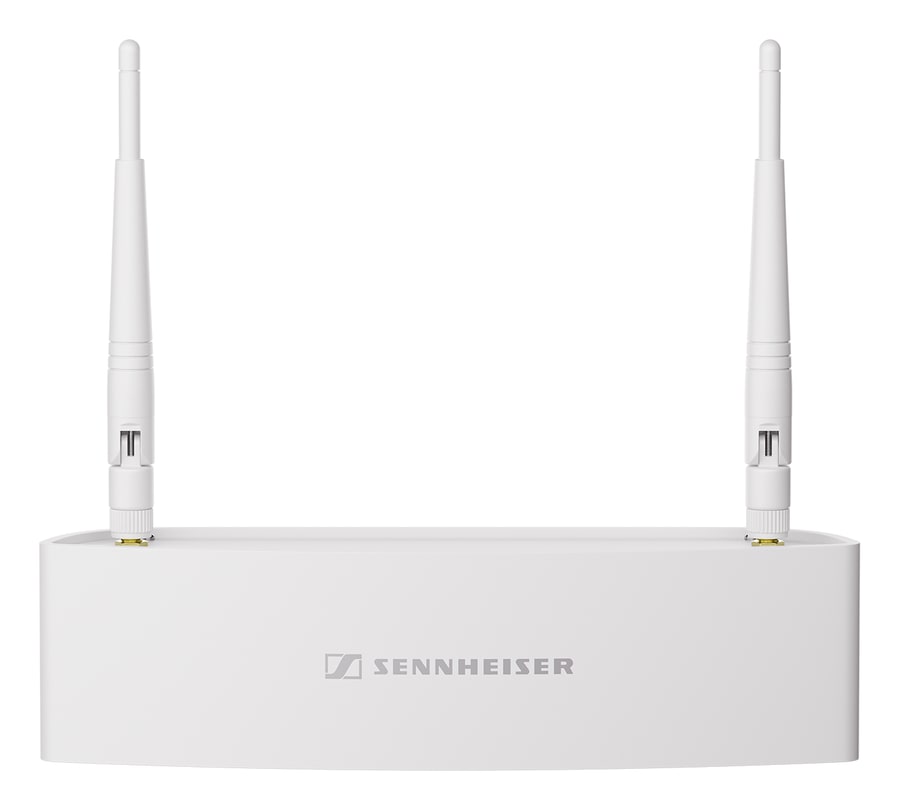

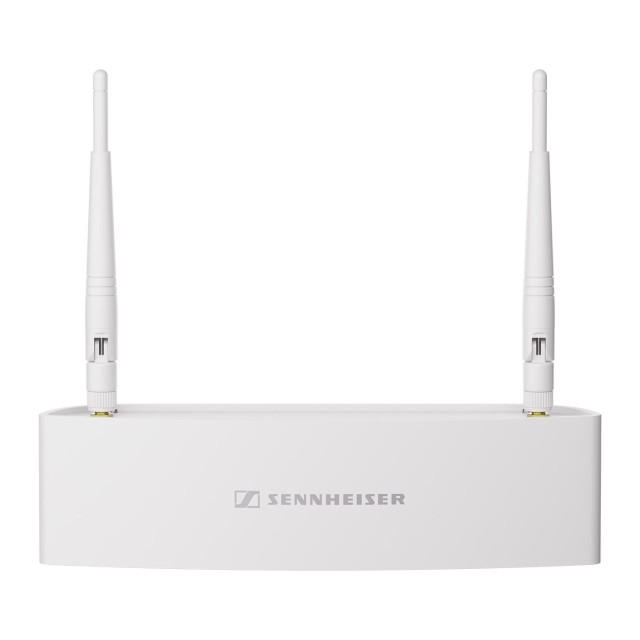

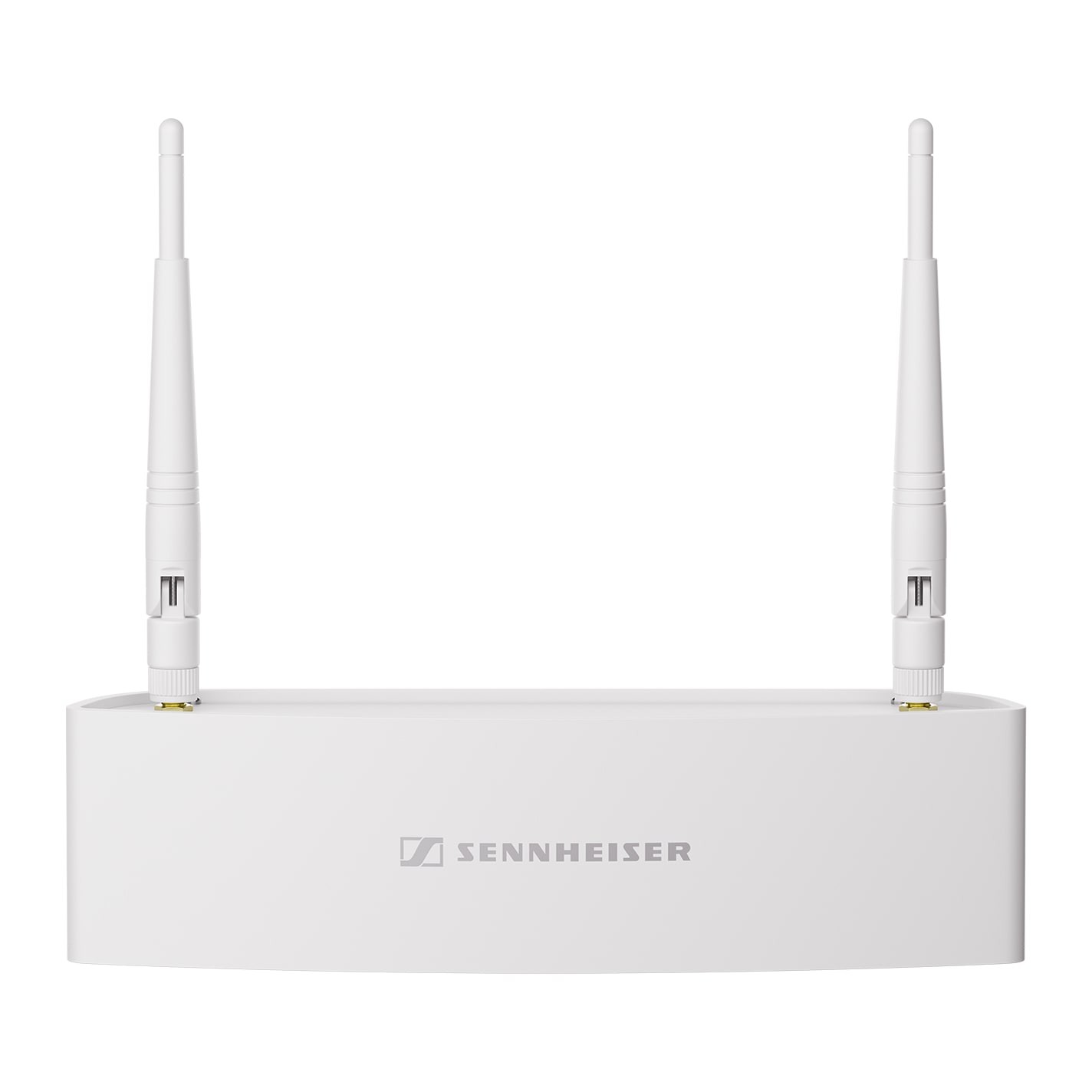

The Sennheiser AWM 2 MK II is a remote antenna for SpeechLine Digital Wireless microphones in the 1.9 GHz band. Two white rod antennas in a rugged metal housing mount on a wall or a microphone stand, right where reception is best and the antenna stays nearly invisible. Cables plug straight into the R-SMA sockets on the underside, so the receiver can stay out of sight.

The antenna where reception is best

The receiver can stay in a rack or cabinet while the antennas go on a wall or stand in the room.

1.9 GHz2 antennasR-SMA3/8″ threadwhite

Wall or stand

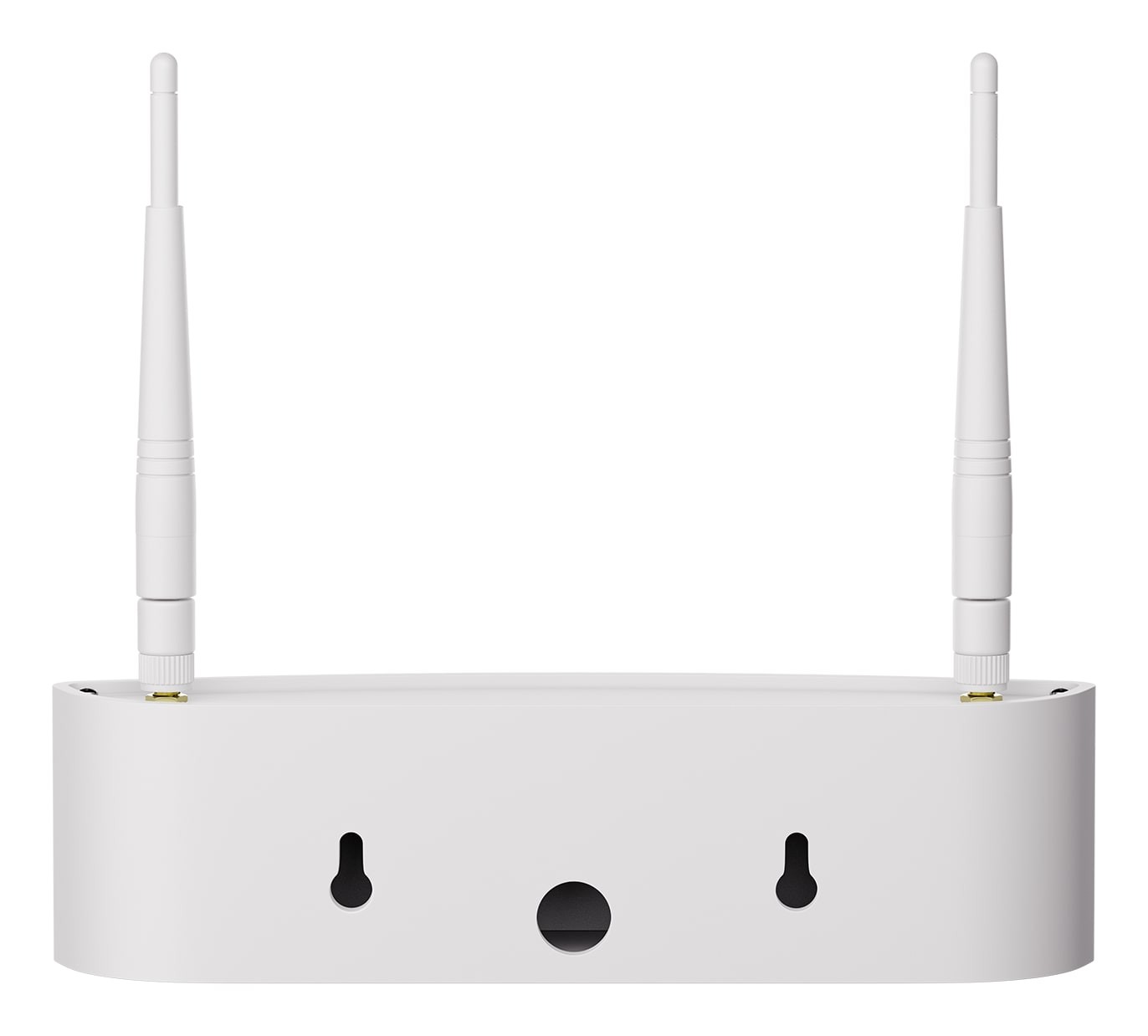

Two 9 mm holes on the back are used for wall mounting, and a 3/8″ internal thread at the bottom fits a microphone stand.

Metal housing

The rugged 225 × 53 × 60 mm metal housing carries two white rod antennas tuned to the 1.9 GHz band.

Up to four receivers on one antenna

With the SL PASC 4 passive splitter, a single AWM 2 MK II serves up to four SL Rack Receiver DW units, and two antenna cables replace eight.

Cables from 1 to 20 m

CL PP antenna cables in 1, 5, 10 and 20 m lengths connect it to the receiver.

Diversity reception

The two antennas connect to the ANT I and ANT II inputs of the receiver for diversity reception of one link.

PACKAGE CONTENT

  • Sennheiser AWM 2 MK II wall-mount antenna (metal housing and 2 rod antennas)
  • wall mount adapter
  • drilling template
  • quick guide
  • safety guide

SPECIFICATIONS

  • System: SpeechLine Digital Wireless
  • Frequency range: 1.9 GHz band
  • Antennas: 2 rod antennas, white
  • Connectors: 2× R-SMA (Link I) on the underside
  • Mounting: 2× 9 mm holes for wall mounting, 3/8″ internal thread for a stand
  • Housing: metal, white
  • Dimensions: 225 × 53 × 60 mm (W × D × H)
  • Manufacturer article no.: 509297
Parameters

Parameters

Manufacturer: Sennheiser
Category: Accessories

Main parameters

MaterialMetal
ColourWhite
CompatibilitySennheiser SpeechLine Digital Wireless
Accessory typeAntenna
