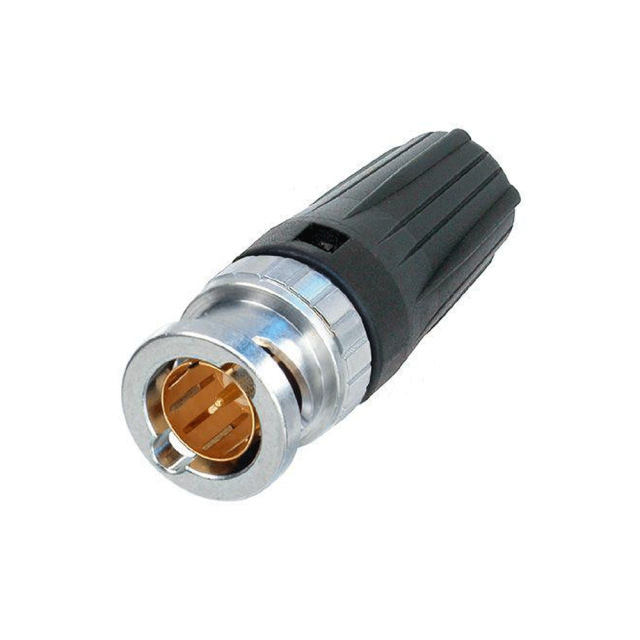

Neutrik NBNC75BWU13 rearTWIST HD BNC connector

The rearTWIST HD BNC 75Ω cable connector

More information

4.02 € 3.96 € with VAT 3.27 € without VAT
-+
Personal pickup within 90 minutes
Shipment day: Today
In stock > 5 pcs
Praha > 5 pcs, Bratislava > 5 pcs

Show all accessories

Product description

Product description

The rearTWIST HD BNC 75Ω cable connector

The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.

Suitable cable:
Draka 1.2L/4.8Dz, Draka 1.2L/4.95AF, Canford SDV-F-HD, Cordial CVM 12-50 HD-FLEX, Cordial CVM 12-50 UHD-Flex, Percon VK770F

Crimp size:
Pin: 1.6 mm (square)
Shield: 7.36 mm (hex)

  • Features & Benefits
    “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
  • Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
  • True 75 Ω design meets the stringent HDTV / DVD requirements
  • Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
  • Snug-fit center pin insert provides tactile feedback
  • Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
  • Excellent cable protection and retention
  • Precise Swiss machined brass parts for outstanding durability
  • Accessories include color coded boots in 10 standard colors, crimp tool and dies

Technical Information

Product

  • Title: NBNC75BWU13
  • Connection Type: BNC 75 Ω
  • Gender: male

Electrical

  • Signal Type: HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
  • Contact resistance: ≤  3 mΩ
  • Contact resistance: ≤  2 mΩ
  • Dielectric strength: 1,5 kVdc
  • Impedance: 75 Ω
  • Insulation resistance: > 5 GΩ
  • Rated voltage: <50
  • VVSWR:

≤ 1.050/>32 dB up to 1 GHz

≤ 1.065/>30 dB up to 2 GHz

≤ 1.100/>26 dB up to 3 Ghz

Mechanical

  • Cable O.D.: 7.3 mm
  • Cable retention: > 30 N (Center)
  • Crimp size: 7,36 Hex crimp (shield)
  • Crimp size (pin): 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
  • Insertion force: < 25 N
  • Lifetime: > 1000 mating cycles
  • Locking device: Bayonett
  • Cable anchoring: Jacket crimping

Material

  • Contacts: Brass: (CuZn35Pb2), 0.2 µm AuCo (Center contact)
  • Insert: PTFE
  • Shell: Brass (CuZn39Pb3)
  • Shell plating: Optalloy®
  • Environmental
  • Temperature range: -30 °C to +85 °C
  • Contact crimpability: Complies with IEC 60803 and IEC 60352-2
Parameters

Parameters

Manufacturer: Neutrik
Category: Video connectors

Main parameters

TypeBNC

Other parameters

VersionOn the cable
VersionCrimp
VersionMale
