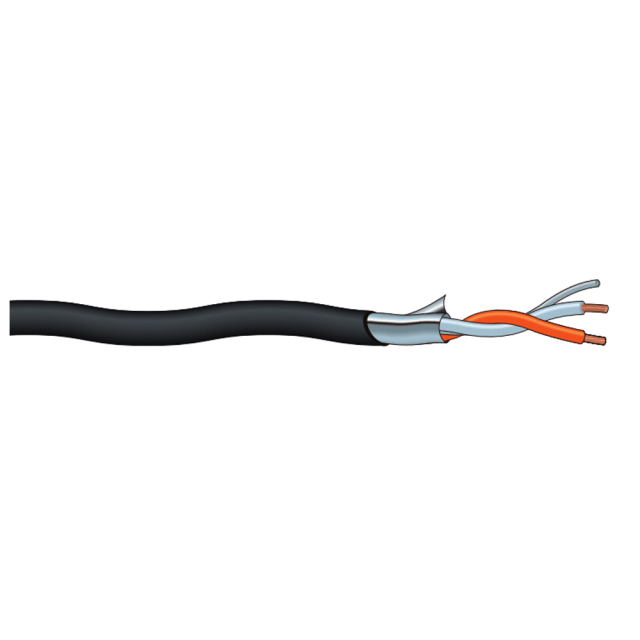

Canare L-2B2AT two-conductor shielded cable

SKU: CNRL2B2AT

Canare's thinnest profile audio hookup wire. Amazingly flexible, with 100% foil shield, drain wire and PVC jacket that strips easily for rapid assembly. Suitable for large cable harness bundles, mixing consoles, tape machines and inner-rack wiring.

More information

0.73 € with VAT 0.6 € without VAT
Add to Compare Price history
Personal pickup: 29. 04. from 09:00
Shipment day: 29. 04.
In stock 370 m
Praha 370 m, Bratislava 304 m
SKU:
CNRL2B2AT
Add to Compare Price history

Top accessories for Canare L-2B2AT two-conductor shielded cable

Neutrik NC3FD-L-1

Neutrik NC3FD-L-1 - 3 pole female receptacle, solder cups, Nickel housing, silver
6.13 €
In stock > 5 pcs

Neutrik NC3FXX

NC3FXX is a 3 pole female cable connector with Nickel housing and silver contacts.
5.22 €
To be sent > 5 pcs

Neutrik NC3MXX

3 pole male cable connector with Nickel housing and silver contacts. The next generation
4.45 €
In stock 4 pcs

Neutrik NC3MD-L-1

Neutrik NC3MD-L-1 - 3 pole male receptacle, solder cups, Nickel housing, silver contacts
5.55 €
In stock > 5 pcs
Product description

Product description

Canare's thinnest profile audio hookup wire. Amazingly flexible, with 100% foil shield, drain wire and PVC jacket that strips easily for rapid assembly. Suitable for large cable harness bundles, mixing consoles, tape machines and inner-rack wiring.

  • Microphones.
  • Permanent Installations.
  • Audio Patch Cords.
  • PA Systems.
  • Post Production Suites.
  • Recording Studios.
  • 100% Foil Shield Coverage w/Drain Wire.
  • Built in Dupont® Kevlar 29 and Drain Wire.
  • Cross Linked PE Insulation.
  • Reduced Handling Noise.
  • Rejects EMI and RFI.
MECHANICAL SPECIFICATIONS
Model Std.
Lng.

ft.
(m)		 Wt
Std.
Lng.
lbs
(kgs)		 Nom.
O.D.

in.
(mm)		 Jacket
Nom.
Thick.
in.
(mm)		 Brittle
Point

F°
(C°)		 No.
of
Cond.		 Insul.

Type*
Thick
mil		 Cond-AWG
(Qty./mil)
Cross
Sec.
Area
mil.²		 Pitch
Twist
Quad
in.
(mm)

Shield
Cover-
age
L-2B2AT

656
(200)

1640
(500)

 6 (3)

15(7)		 126
(3.2)		 .012
(0.3)		 -13
(-25)		 2 IPE
12.6		 AC - #25
(16/4.73)
279		 <0.99
(<25)

100%
Alum.
Tape















*Dielectric Strength = 500V AC/1min. Insulation Resistance/3Mft = >1000M ohm.
**Effective AWG of combined twin conductors.

ELECTRICAL PERFORMANCE
Model Cond.
D.C.R.
ohm/1000ft
(ohm/100m)		 Shield
D.C.R.
ohm/1000ft
(ohm/100m)		 Nom.
Cap.
***
pF/m		 Nom.
Cap.
†
pF/m		 Nom.
Imp.
ohm		 Nom.
Atten.
V/1000ft
(V/100m)		 Group
Delay
Time
nS/ft
(nS/m)
L-2B2AT <31.9
(<10.5)		 - 73 120 - - -

***Capacitance between conductors.
†Capacitance between conductors to shield.

Parameters

Parameters

Manufacturer: Canare
Category: Audio cables

Main parameters

Cable typeMicrophone
VersionInstallation
ShieldingBraid / Al foil
ShieldingAl foil + drain wire
Core / ConductorLanko
Cable diameter3.2mm
ColourBlack
