CZ
SK
HU
AT
DE
SI
HR
Nothing in the basket.
- Search
-
Login
-
0
Comparison
Add products to compare, then they will appear here and you can compare parameters.
-
0
0 €
Neutrik NBNC75BFG7 rearTWIST BNC connector
SKU: NBNC75BFG7

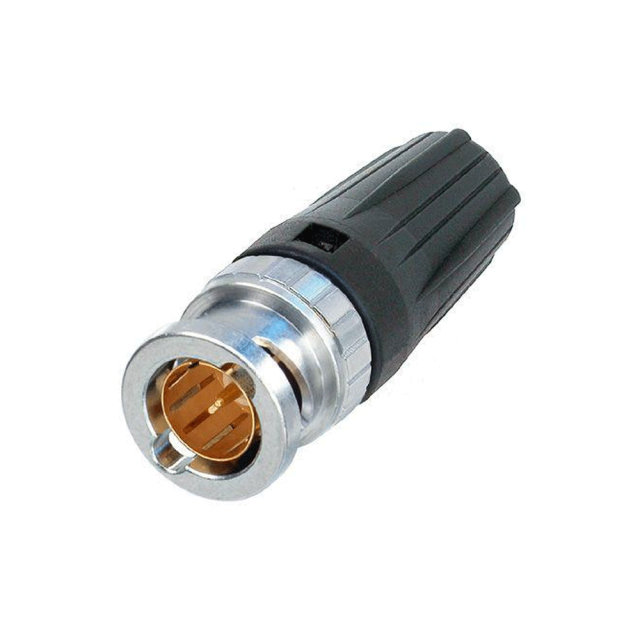

Neutrik NBNC75BFG7 "rearTWIST" HD BNC connector
4 € with VAT
3.31 € without VAT
Personal pickup: 29. 12. from 09:00
Shipment day: 29. 12.
Shipment day: 29. 12.
In stock > 5 pcs
Praha > 5 pcs, Bratislava > 5 pcs
Praha > 5 pcs, Bratislava > 5 pcs
Neutrik NBNC75BTU11 rearTWIST HD BNC konektor
In stock > 5 pcs4 €without VAT 3.31 €
Neutrik NBNC75BYY11 "rearTWIST" HD BNC connector
To be sent > 5 pcs4 €without VAT 3.31 €
Neutrik NBNC75BLP7 rearTWIST HD BNC connector
In stock > 5 pcs4 €without VAT 3.31 €
Neutrik NBNC75BHK7 rearTWIST HD BNC connector
In stock > 5 pcs4 €without VAT 3.31 €
Canare BCP-B25HW
In stock > 5 pcs3.8 €without VAT 3.14 €
Neutrik NBNC75BFG7X rearTWIST UHD 12G-SDI BNC connector
To be sent > 5 pcs5 €without VAT 4.13 €
Neutrik NBNC75BWU13 rearTWIST HD BNC connector
In stock > 5 pcs4 €without VAT 3.31 €
Neutrik NBNC75BJP9
Backordered > 5 pcs4 €without VAT 3.31 €Top accessories for Neutrik NBNC75BFG7 rearTWIST BNC connector
Neutrik BST-BNC-6 BLUE
Neutrik BST-BNC-6 BLUE - Colored boots for rearTWIST BNC cable connectors
0.6 €
In stock > 5 pcs
Neutrik BST-BNC-2 RED
Neutrik BST-BNC-2 RED - Colored boots for rearTWIST BNC cable connectors
0.6 €
In stock > 5 pcs
Canare L-2.5CHWS
75 ohm Coaxial Cable Low Loss Coax For Mobile (Highly-Formed / Formed PE Insulat
2.2 €
In stock 162 m
Neutrik BST-BNC-CY TURQUOISE
Neutrik BST-BNC-CY TURQUOISE - Colored boots for rearTWIST BNC cable connectors
0.6 €
In stock 1 pcs
Neutrik BST-BNC-3 ORANGE
Neutrik BST-BNC-3 ORANGE - Colored boots for rearTWIST BNC cable connectors
0.6 €
In stock 2 pcs
Neutrik BST-BNC-9 WHITE
Neutrik BST-BNC-9 WHITE - Colored boots for rearTWIST BNC cable connectors
0.6 €
In stock 4 pcs
Neutrik BST-BNC-7 VIOLET
Neutrik BST-BNC-7 VIOLET - Colored boots for rearTWIST BNC cable connectors
0.6 €
In stock 2 pcs
Neutrik BST-BNC-5 GREEN
Neutrik BST-BNC-5 GREEN - Colored boots for rearTWIST BNC cable connectors
0.6 €
In stock 4 pcs
Neutrik BST-BNC-1 BROWN
Neutrik BST-BNC-1 BROWN - Colored boots for rearTWIST BNC cable connectors
0.6 €
In stock > 5 pcs
Neutrik BST-BNC-8 GREY
Neutrik BST-BNC-8 GREY - Colored boots for rearTWIST BNC cable connectors
0.6 €
In stock 4 pcs
Product description
Product description
Neutrik NBNC75BFG7 "rearTWIST" HD BNC connector
Suitable cable:
Canare L-2.5CHWS
The rearTWIST HD BNC cable connector offers a true 75Ω design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.
Suitable cable:
Argosy Image 360, Belden 1855ENH, Bryant BD SD01, CAE HD0628LSZH, Canford SDV, Canford SDV-LFH, Canford SDV-X-LFH, Cordial CVI 06-28, Cordial CVI 06-28HD, Cordial CVI 06-28HD-FRNC, Cordial CVI 3-7, Draka 0.6/2.8 AF, Draka 0.6 L/2.8 AF, Extron BNC-5RC, Fuzion SD-1, Klotz V06/28, Klotz VMXx75Y, Kabeltronik HFV 0.6/2.8 AF- FRNC, Kabeltronik MVP 5x 0.6/2.8 AF-FRNC, Nexans HF 75 0,6/2,9 02YS(ST)CH, Percon VK5, Quadtronics CABPGHD70MW-500, Sommer 600-0101M, Sommer 600-0104M, Tesca Supra
Crimp size:
Pin: 1.6 mm (square)
Shield: 5.00 mm (hex)
Features & Benefits
- “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
- Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
- True 75 ? design meets the stringent HDTV / DVD requirements
- Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
- Snug-fit center pin insert provides tactile feedback
- Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
- Excellent cable protection and retention
- Precise Swiss machined brass parts for outstanding durability
- Accessories include color coded boots in 10 standard colors, crimp tool and dies
Technical Information:
Product
- Title: NBNC75BFG7
- Connection Type: BNC 75 Ω
- Gender: male
Electrical
- Contact resistance: ≤ 3 mΩ
- Contact resistance: ≤ 2 mΩ
- Dielectric strength: 1,5 kVdc
- Impedance: 75 Ω
- Insulation resistance: > 5 GΩ
- Rated voltage: <50 V
- VSWR:
≤1.050 / >32 dB up to 1 GHz
≤1.065 / >30 dB up to 2 GHz
≤1.100 / >26 dB up to 3 Ghz
Mechanical
- Cable O.D.: 4.7 mm
- Cable retention: > 30 N (Center)
- Crimp size: 5,00 Hex crimp (shield)
- Crimp size (pin): 1,6 crimp
- Insertion force: < 25 N
- Lifetime: > 1000 mating cycles
- Locking device: Bayonett
- Cable anchoring: Jacket crimping
Material
- Contacts: Brass: (CuZn35Pb2), 0.2 µm AuCo (Center contact)
- Insert: PP
- Shell: Brass (CuZn39Pb3)
- Shell plating: Antraloy
Environmental
- Temperature range: -30 °C to +85 °C
- Contact crimpability: Complies with IEC 60803 and IEC 60352-2
Parameters
Parameters
| Manufacturer: | Neutrik |
| Category: | Video connectors |
Main parameters
| Suitable cable | L-2.5CHWS |
| Suitable cable | Belden 1855EFN |
| Suitable cable | Argosy Image 360 |
| Suitable cable | Canford SDV, SDV-X, SDM |
Other parameters
| Version | On the cable |
| Version | Crimp |
| Version | Male |
ACCESSORIES (11)
ACCESSORIES (11)
Neutrik BST-BNC-6 BLUE
Neutrik BST-BNC-6 BLUE - Colored boots for rearTWIST BNC cable connectors
0.6 €
In stock > 5 pcs
Neutrik BST-BNC-2 RED
Neutrik BST-BNC-2 RED - Colored boots for rearTWIST BNC cable connectors
0.6 €
In stock > 5 pcs
Canare L-2.5CHWS
75 ohm Coaxial Cable Low Loss Coax For Mobile (Highly-Formed / Formed PE Insulat
2.2 €
In stock 162 m
Neutrik BST-BNC-CY TURQUOISE
Neutrik BST-BNC-CY TURQUOISE - Colored boots for rearTWIST BNC cable connectors
0.6 €
In stock 1 pcs
Neutrik BST-BNC-3 ORANGE
Neutrik BST-BNC-3 ORANGE - Colored boots for rearTWIST BNC cable connectors
0.6 €
In stock 2 pcs
Neutrik BST-BNC-9 WHITE
Neutrik BST-BNC-9 WHITE - Colored boots for rearTWIST BNC cable connectors
0.6 €
In stock 4 pcs
Neutrik BST-BNC-7 VIOLET
Neutrik BST-BNC-7 VIOLET - Colored boots for rearTWIST BNC cable connectors
0.6 €
In stock 2 pcs
Neutrik BST-BNC-5 GREEN
Neutrik BST-BNC-5 GREEN - Colored boots for rearTWIST BNC cable connectors
0.6 €
In stock 4 pcs
Neutrik BST-BNC-1 BROWN
Neutrik BST-BNC-1 BROWN - Colored boots for rearTWIST BNC cable connectors
0.6 €
In stock > 5 pcs
Neutrik BST-BNC-8 GREY
Neutrik BST-BNC-8 GREY - Colored boots for rearTWIST BNC cable connectors
0.6 €
In stock 4 pcs
Neutrik BST-BNC-3 YELLOW
Neutrik BST-BNC-4 YELLOW - Colored boots for rearTWIST BNC cable connectors
0.6 €
In stock 5 pcs
- Show all
Neutrik NBNC75BFG7 rearTWIST BNC connector
Neutrik NBNC75BFG7 "rearTWIST" HD BNC connector Suitable cable:Canare L-2.5CHWS4 €In stock > 5 pcs
