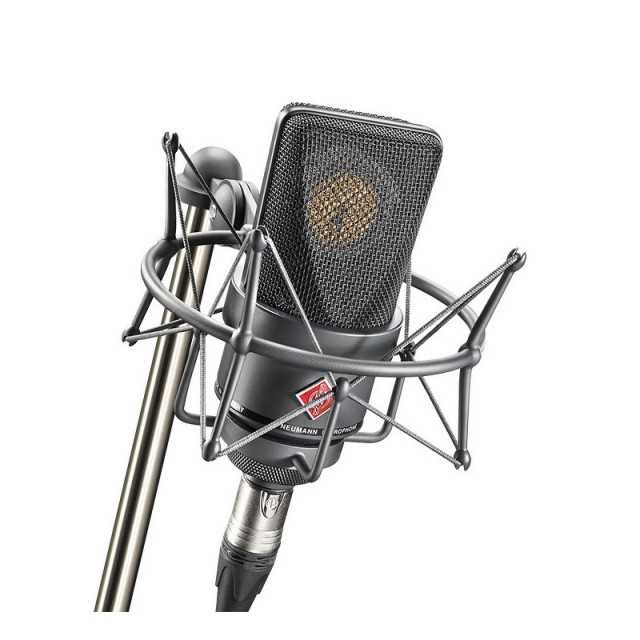

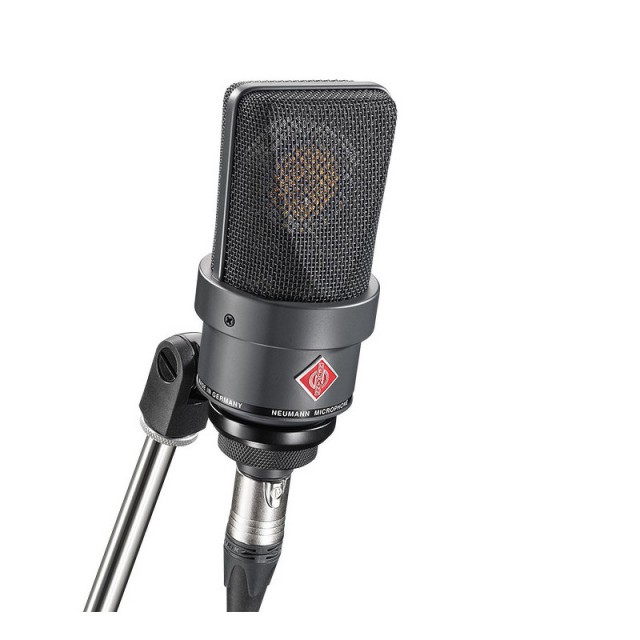

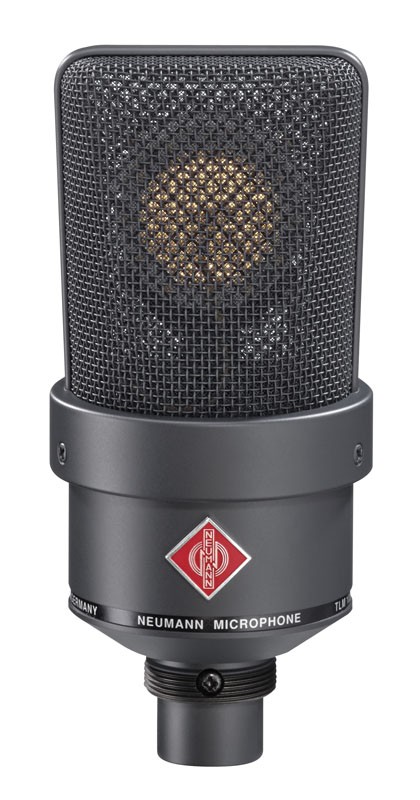

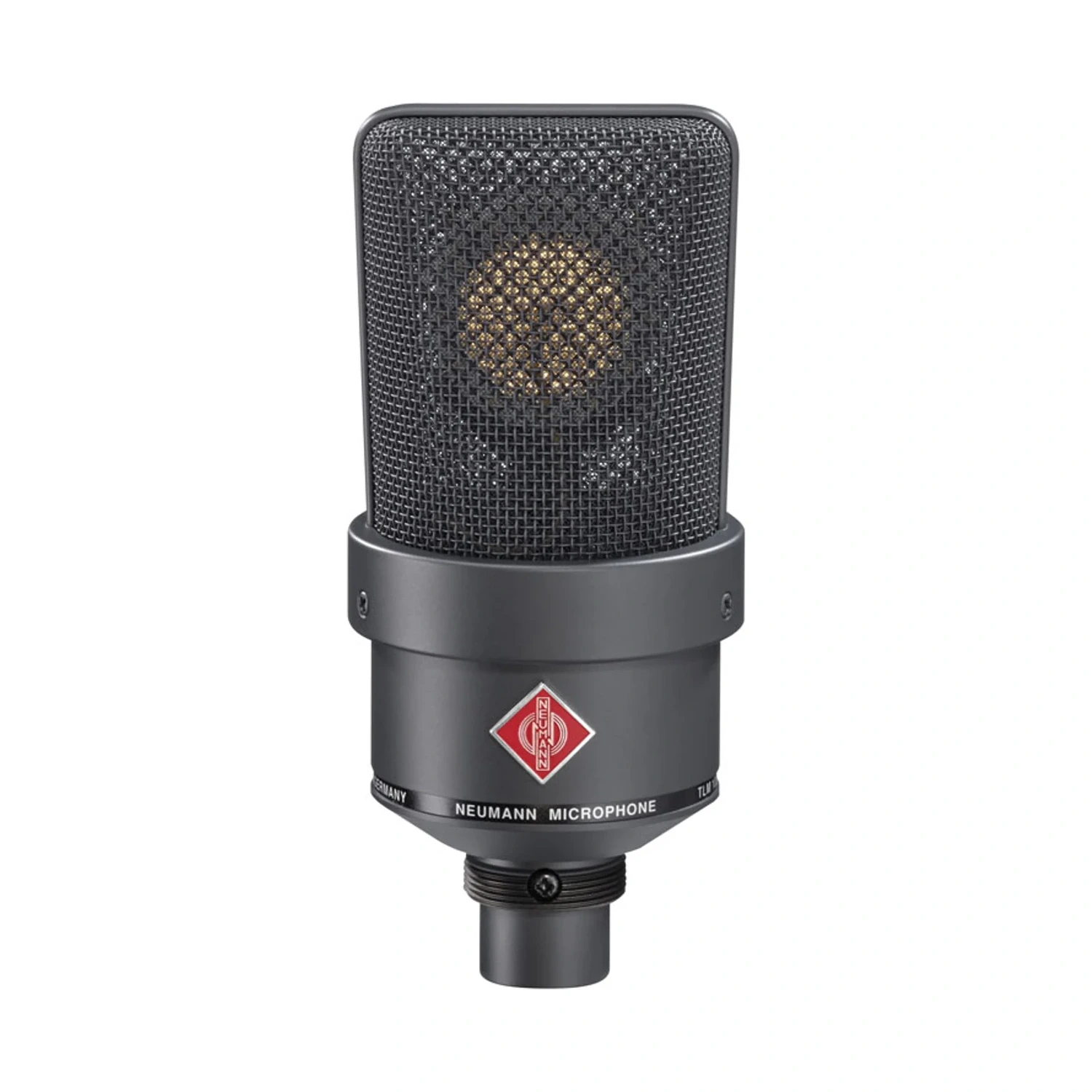

Neumann TLM 103 MT STUDIO

The new standard for home studios and the music industry. The microphone for anyone who, even on a limited budget, doesn't want to compromise on Neumann's uncompromising sound. A cardioid condenser microphone with low noise.

More information

Promotion: 1 280.25 € ends in: 64d: 08h: 13m
1 383.81 € 1 280.25 € with VAT 1 058.06 € without VAT
-+
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock 1 pcs
Praha 1 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The new standard for home studios and the music industry. The microphone for anyone who, even on a limited budget, doesn't want to compromise on Neumann's uncompromising sound. A cardioid condenser microphone with low noise.

The TLM 103 is a large-diaphragm microphone for professional and semi-professional use when maximum quality is required on a limited budget. Utilising design features proven in other Neumann microphones, the TLM 103 achieves unprecedentedly low self-noise at high SPL. The microphone capsule, derived from the U 87, has a cardioid directional characteristic, is acoustically balanced and achieves high attenuation of the rear sound. The K 103 capsule used is based on the K 87 type, known from the U 67 and U 87 microphones. It has a flat frequency curve up to 5 kHz, with a 4 dB lift at this frequency. The abbreviation TLM stands for "transformerless microphone". In this technology, the conventional output transformer is replaced by an electronic circuit, preventing high-frequency interference and other disturbing phenomena. The entire internal structure is flexibly mounted to eliminate noise. The frequency range starts below 20 Hz and therefore even low bass frequencies are picked up by the microphone without colouring the sound. For this reason, it is recommended to use the WS 87 wind protection or the PS 15 / PS 20 pop filter.

Features

  • Large-diaphragm cardioid microphone
  • Pressure-gradient transducer with single diaphragm capsule
  • Transformerless circuitry
  • Exceptionally low noise: 7 dB(A)
  • Suitable for home and professional studios
  • High-quality professional microphone at an affordable price
  • Package includes SG 2 swivel joint and wooden carrying case (basic version)

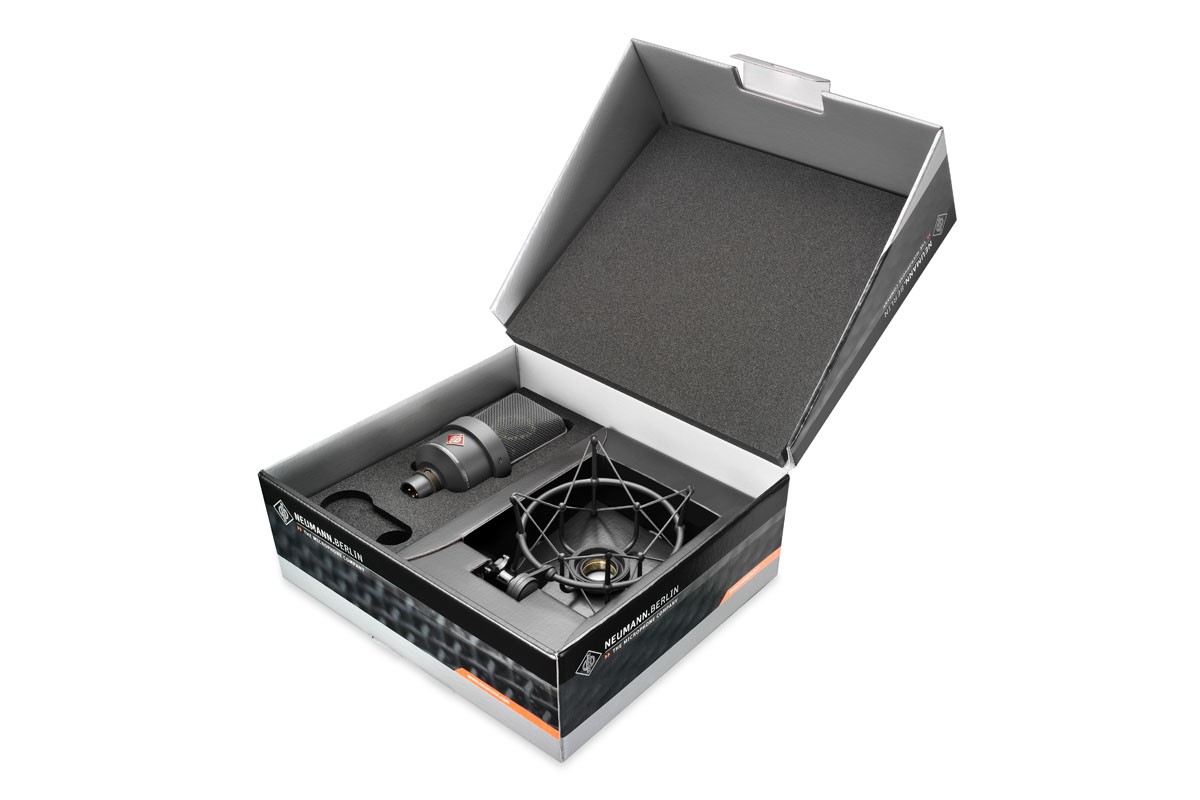

PACKAGE CONTENT

  • Microphone
  • Microphone Shock Mount

SPECIFICATIONS

Name Value
Acoustic system pressure gradient
Directional characteristic cardioid
Frequency range 20 ... 20 000 Hz
Sensitivity at 1 kHz/1 kOhm 23 mV/Pa
Nominal impedance 50 Ohms
Min. load impedance 1 000 Ohms
Noise level according to CCIR 17.5 dB
Noise level according to A 7 dB-A
Signal-to-noise ratio by CCIR (94 dB SPL) 76.5 dB
Signal-to-noise ratio by A (94 dB SPL) 87 dB
Max. sound Pressure Level (SPL) at < 0.5% distortion 138 dB
Max. output voltage 13 dBu
Supply voltage (P48, IEC 61938) 48 V ± 4 V
Supply current (P48, IEC 61938) 3 mA
Connector XLR 3M
Weight 500 g
Diameter 60 mm
Length 132 mm
Parameters

Parameters

Manufacturer: Neumann
Category: Studio Microphones
