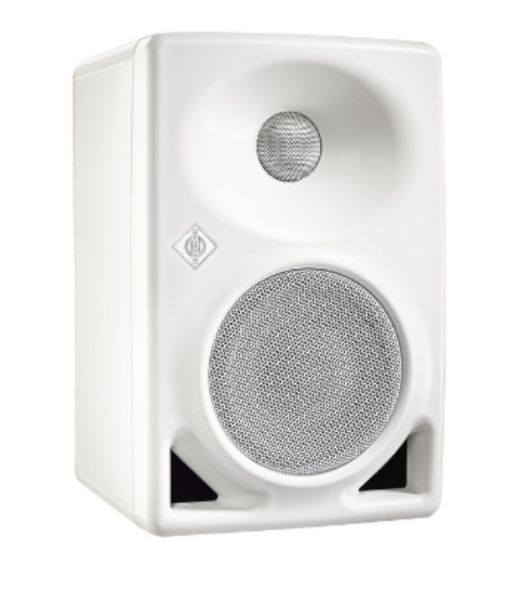

Neumann KH 80 A DSP W

The Neumann KH 80 DSP White is a compact bi-amplified active studio monitor featuring advanced DSP control, MMD™ waveguide technology, and remote tuning via Ethernet. Designed for nearfield monitoring, broadcast, and post-production, it delivers highly accurate imaging, controlled dispersion, and transparent sound reproduction in a small, versatile form factor.

The Neumann KH 80 DSP White is a compact professional 2-way active studio monitor engineered for precision audio reproduction in nearfield and multi-channel monitoring environments. It combines Neumann’s acoustic design expertise with integrated DSP processing, making it highly adaptable for both professional studios and critical listening applications.

At its core, the KH 80 DSP features a high-quality 4-inch long-throw woofer paired with a 1-inch titanium-textile tweeter. This bi-amplified design ensures clean, detailed sound reproduction across the full frequency spectrum. The monitor achieves a wide and controlled sound field thanks to the Mathematically Modelled Dispersion™ (MMD™) waveguide, which provides stable imaging and consistent tonal balance across a broad listening area.

The integrated DSP engine enables advanced control over acoustic parameters, including room compensation, output level adjustment (94–114 dB SPL), and system alignment. Users can remotely adjust settings via Ethernet, making it ideal for modern studio workflows where precise calibration and flexibility are essential. Additional features such as phase-linear crossover design, selectable acoustic compensation switches, and lip-sync delay (0–70 ms) allow fine-tuning for any professional environment.

The KH 80 DSP White is designed for versatility. It can be used as a nearfield stereo monitor, or as part of surround and immersive audio systems as front or rear channels. Its compact design and front-ported bass reflex system allow flexible placement, even in acoustically challenging spaces or near walls.

Built-in protection systems include multi-band limiting, overload protection, and thermal safeguards to ensure consistent performance even under demanding conditions. The symmetrical internal signal design and double shielding reduce interference and eliminate ground loop issues, ensuring clean signal integrity.

With its combination of precision engineering, DSP control, and compact form factor, the KH 80 DSP White is an ideal monitoring solution for music production, broadcast, post-production, mastering, and high-end home studio use.

Key Features

• Compact 2-way bi-amplified active studio monitor
• 4-inch long-throw woofer for accurate low/mid response
• 1-inch titanium-textile tweeter for detailed highs
• Mathematically Modelled Dispersion™ (MMD™) waveguide
• Integrated DSP with remote Ethernet control
• Adjustable output level (94–114 dB SPL)
• Phase-linear crossover with bypass function
• Lip-sync delay adjustment (0–70 ms)
• Front-firing bass reflex ports for flexible placement
• Wide horizontal dispersion with controlled vertical directivity
• Electronic protection and multi-band limiters
• Fully symmetrical internal signal path
• Double shielding to reduce interference
• Compatible with multi-channel and immersive setups
