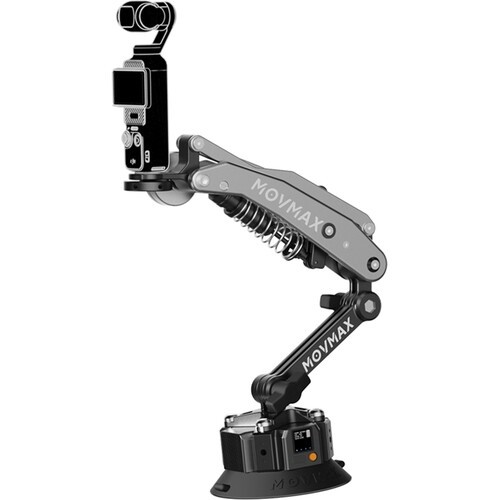

Movmax Blade Arm Solar Electronic Suction Cup Kit

Blade Arm damping arm kit with a 4.5″ solar electronic suction cup for shooting from a car with DJI Osmo Pocket, Insta360 X4/X5 or GoPro HERO12/13. The cup checks its vacuum 1200 times a second and holds up to 40 kg perpendicular.

The kit pairs the hydraulically damped Blade Arm with a smart solar suction cup. It attaches at the press of a button, checks the air pressure up to 1200 times a second and tops itself up when it drops below 80%. The 1100 mAh battery charges from the sun or USB-C, so the cup lasts a whole shooting day.

An arm that watches its own suction

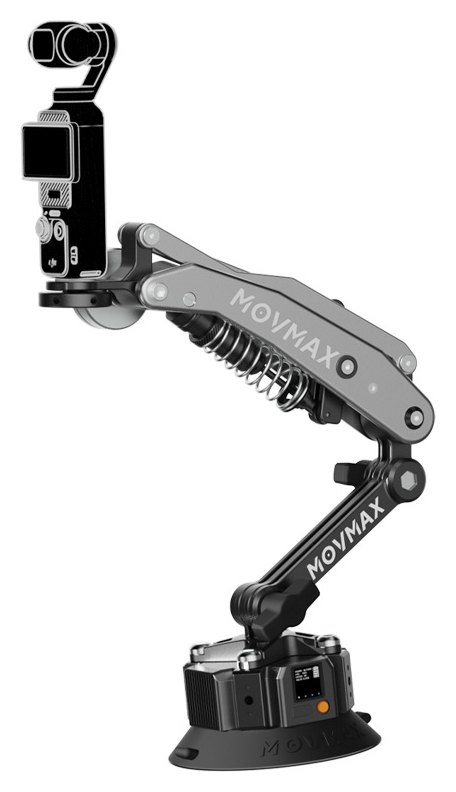

Hydraulically damped Blade Arm on a solar electronic suction cup for Pocket, action and 360° cameras – 150 to 500 g payload.

150–500 g payload4.5″ suction cupSolar charging1200 checks/sUnder 35 dB

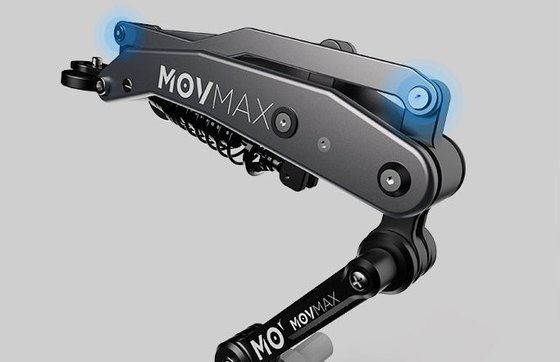

N2 hydraulic arm

An adjustable hydraulic spring absorbs the vertical shocks of a moving car. The clutch cross shaft is more than 10 times as stable as a ball joint.

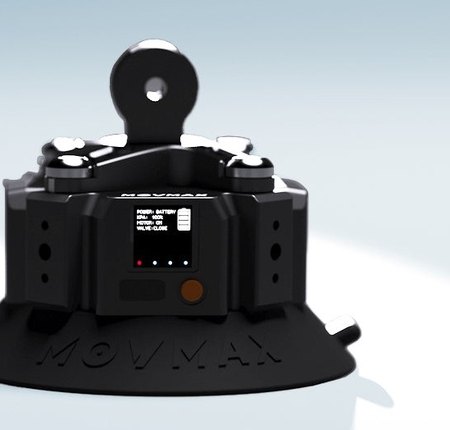

A cup that watches itself

The electronics check the pressure 1200 times a second and top up automatically below 80%. The LCD shows valve, battery and vacuum status.

Holds on curved bodywork

The round 4.5″ cup seals around its full circumference, even on curved paint. It holds up to 40 kg perpendicular and 10 kg parallel to the surface.

Power for the whole day

Three solar panels recharge the built-in battery even while in use. Fully charged, it manages over 500 attachments and lasts more than 150 hours without light, with USB-C as a backup.

Quiet suction

Operating noise under 35 dB does not disturb on-set sound recording.

One-button control

One press attaches, a double press releases the cup within a second.

Rugged build

Aluminium, rubber and silicone, works from −20 to 60 °C.

Counterweights included

Steel 100 g and 50 g counterweights balance the arm to your camera.

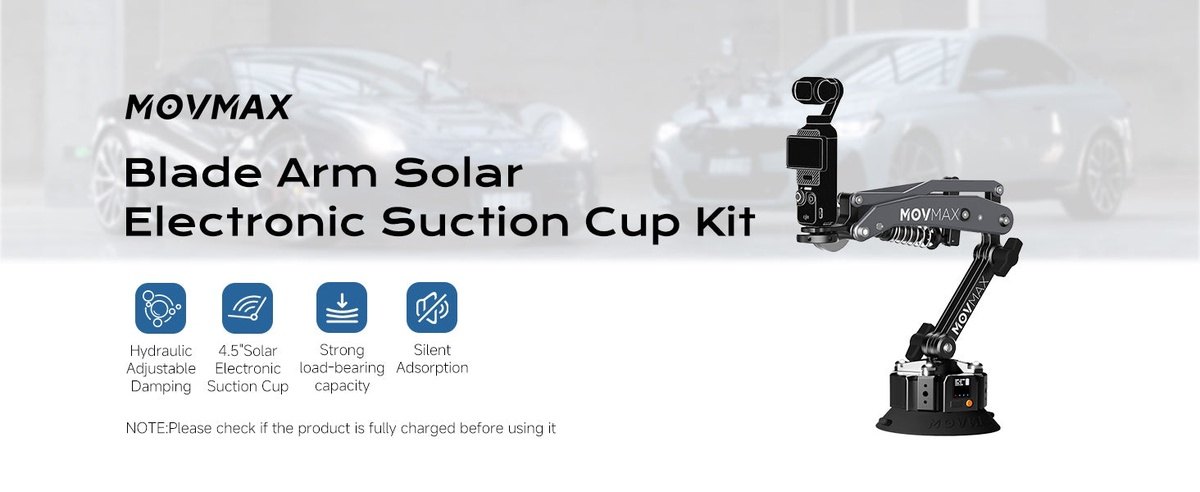

Blade Arm with a solar suction cup. The kit combines adjustable hydraulic damping, a 4.5″ solar electronic suction cup, high load capacity and quiet suction. Fully charge the cup before use.

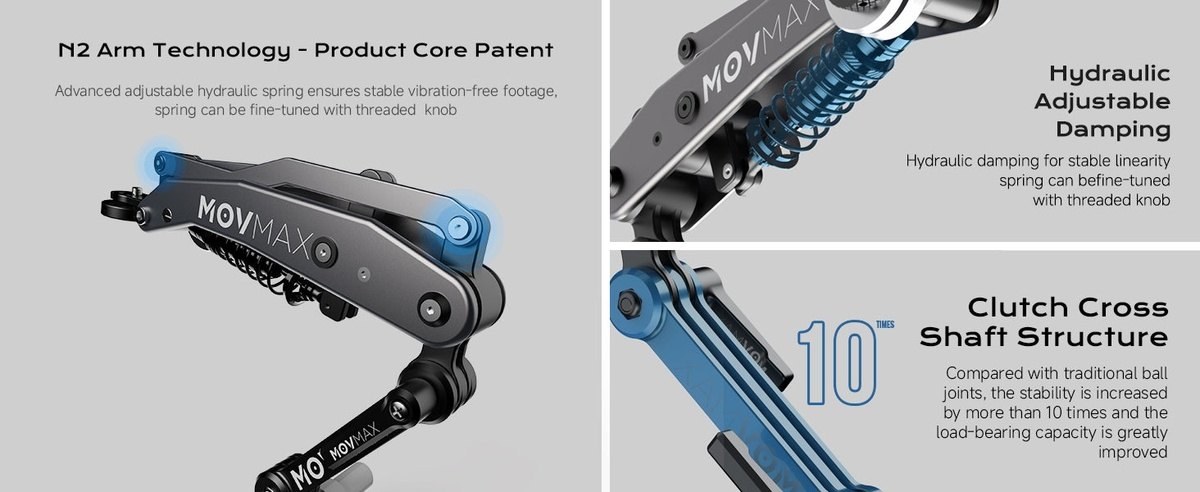

Patented N2 Arm technology. A hydraulic spring fine-tuned with a threaded knob damps vibration, and the clutch cross shaft is more than 10 times as stable as a ball joint.

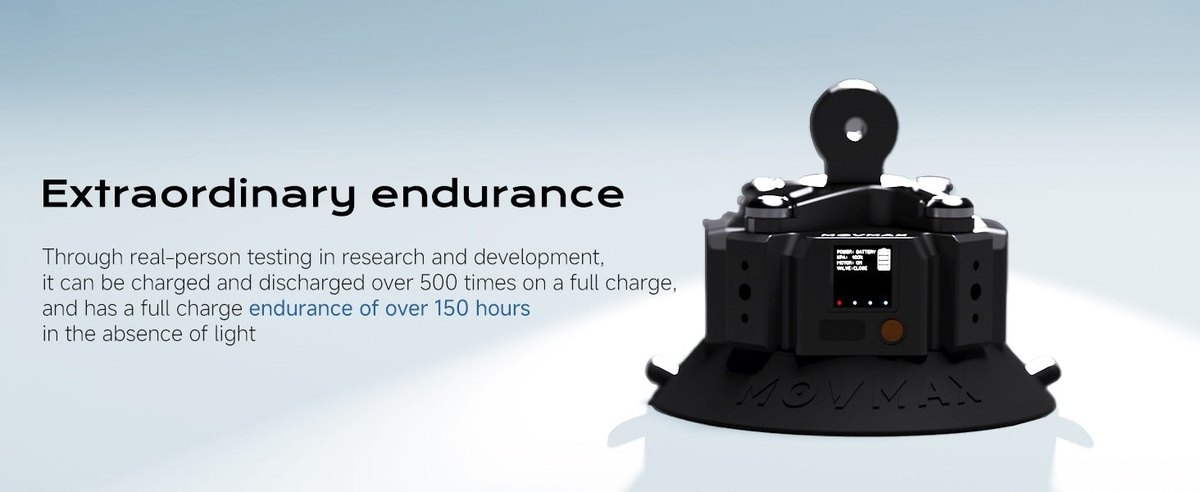

Extraordinary endurance. One charge is good for over 500 attachments, and a full battery lasts more than 150 hours without light.

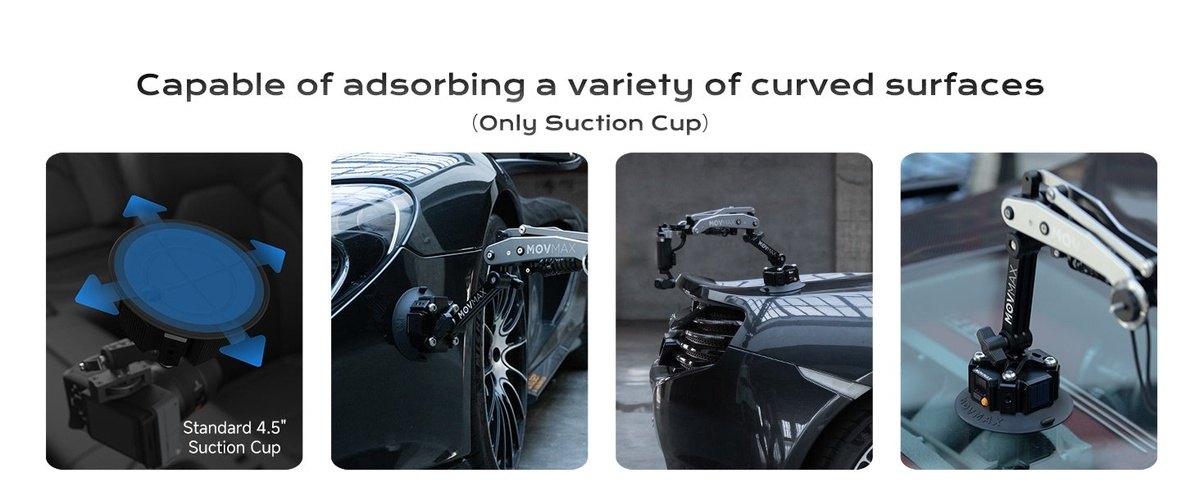

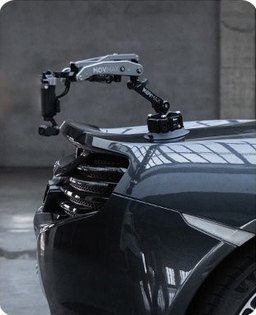

Holds on curved surfaces. The standard round 4.5″ cup attaches to the bonnet, doors, rear of the car or the windscreen.

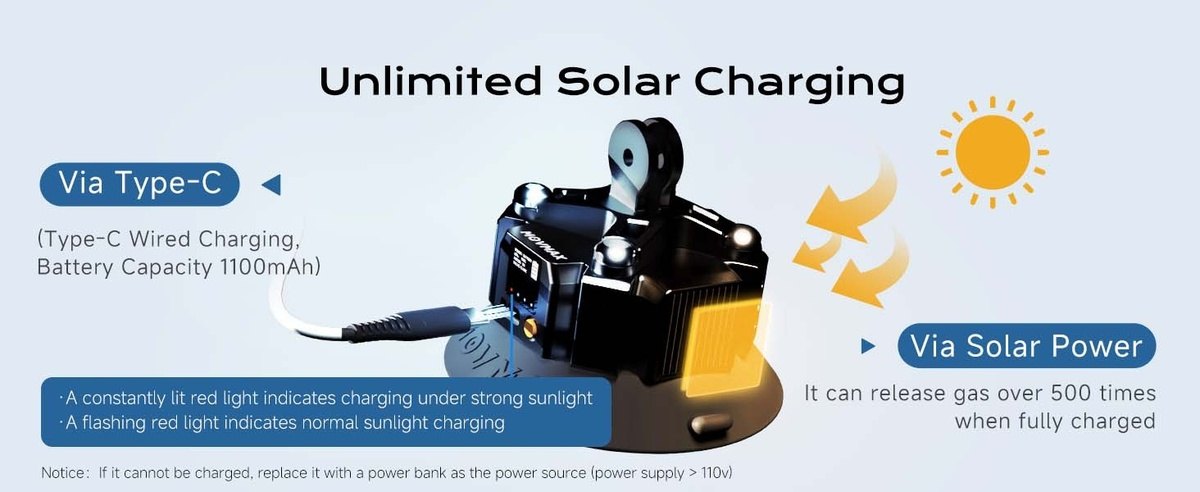

Unlimited solar charging. The 1100 mAh battery charges from the sun or a USB-C cable. The red light stays on when charging in strong sun and flashes in normal sunlight.

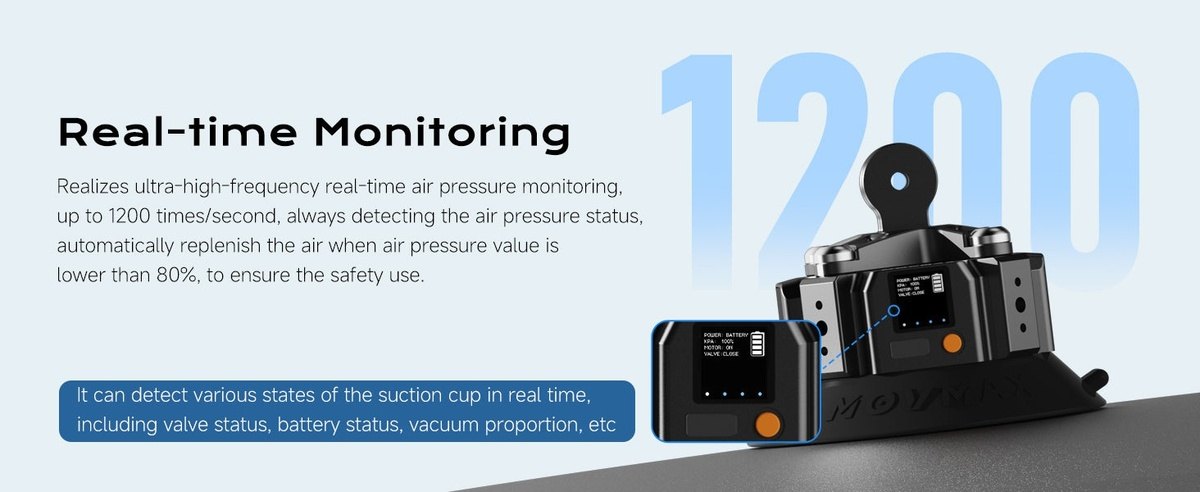

Real-time pressure monitoring. The cup measures pressure up to 1200 times a second, tops up automatically below 80% and shows valve, battery and vacuum status on its display.

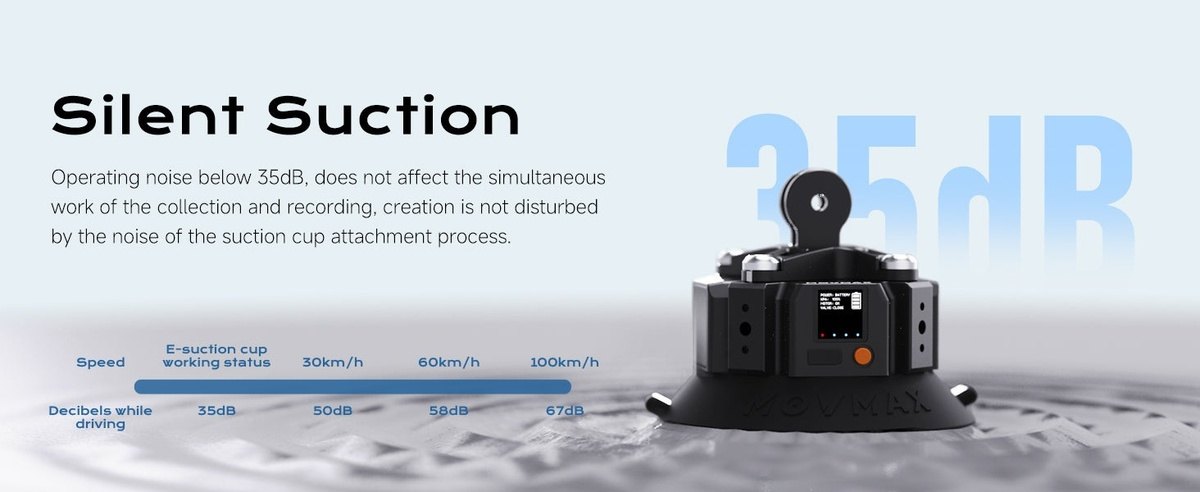

Quiet suction. Attaching produces under 35 dB, so it will not spoil your recording. While driving, noise rises with speed.

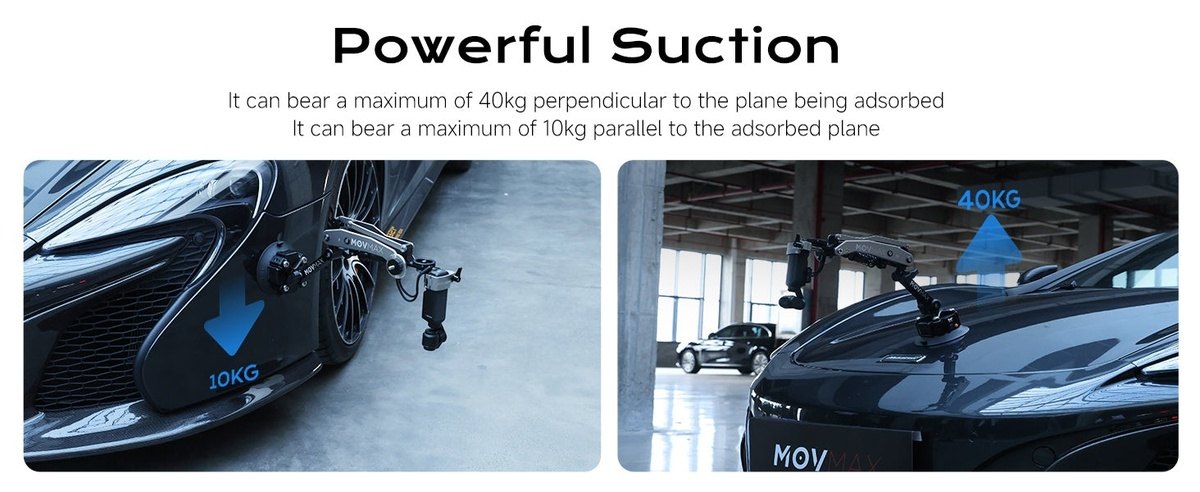

Powerful suction. The cup holds up to 40 kg perpendicular to the surface and up to 10 kg parallel to it.

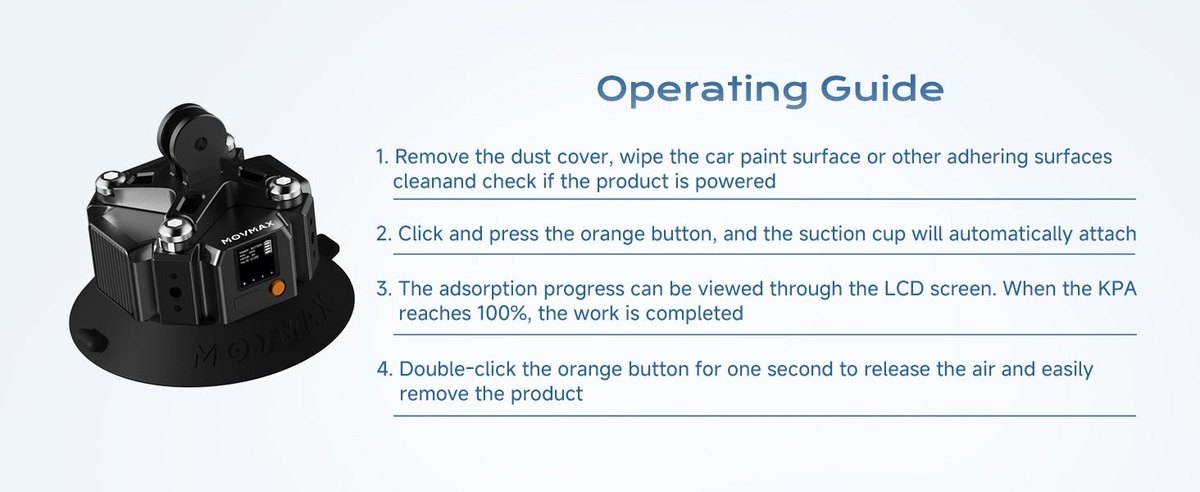

How to use the cup. Clean the surface, press the button to attach, wait for 100% on the display and double-press to release again.

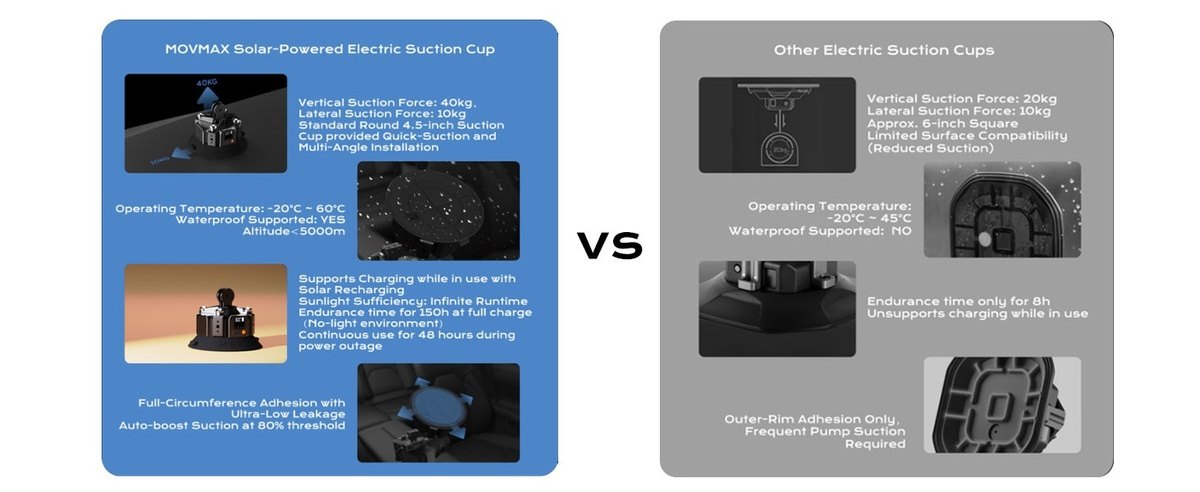

Compared with ordinary cups. Against other electric suction cups it holds twice the perpendicular force, works up to 60 °C, is waterproof and charges while in use.

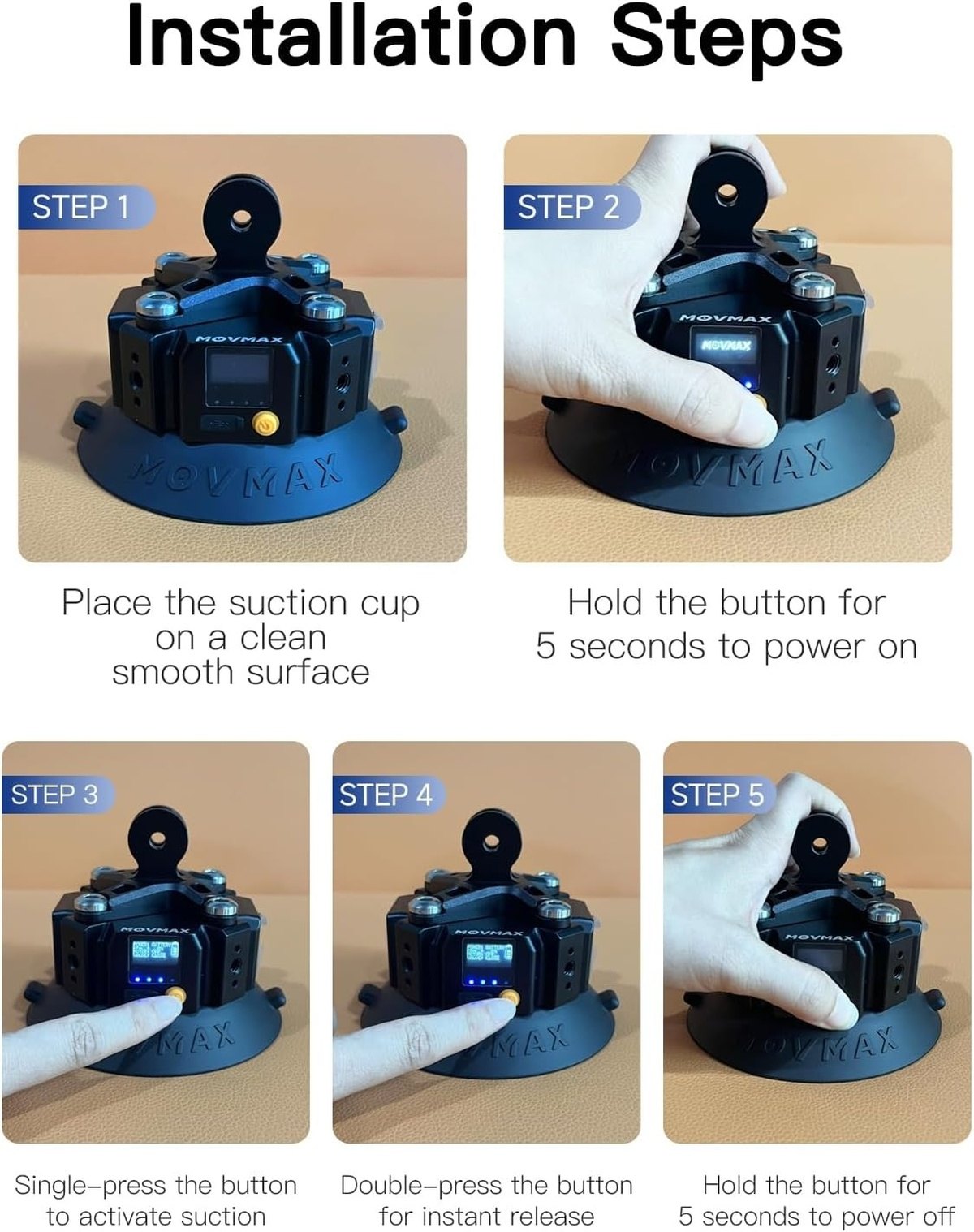

Installation in five steps. Place the cup on a clean smooth surface, hold the button to power on, press to attach, double-press to release and hold to power off.

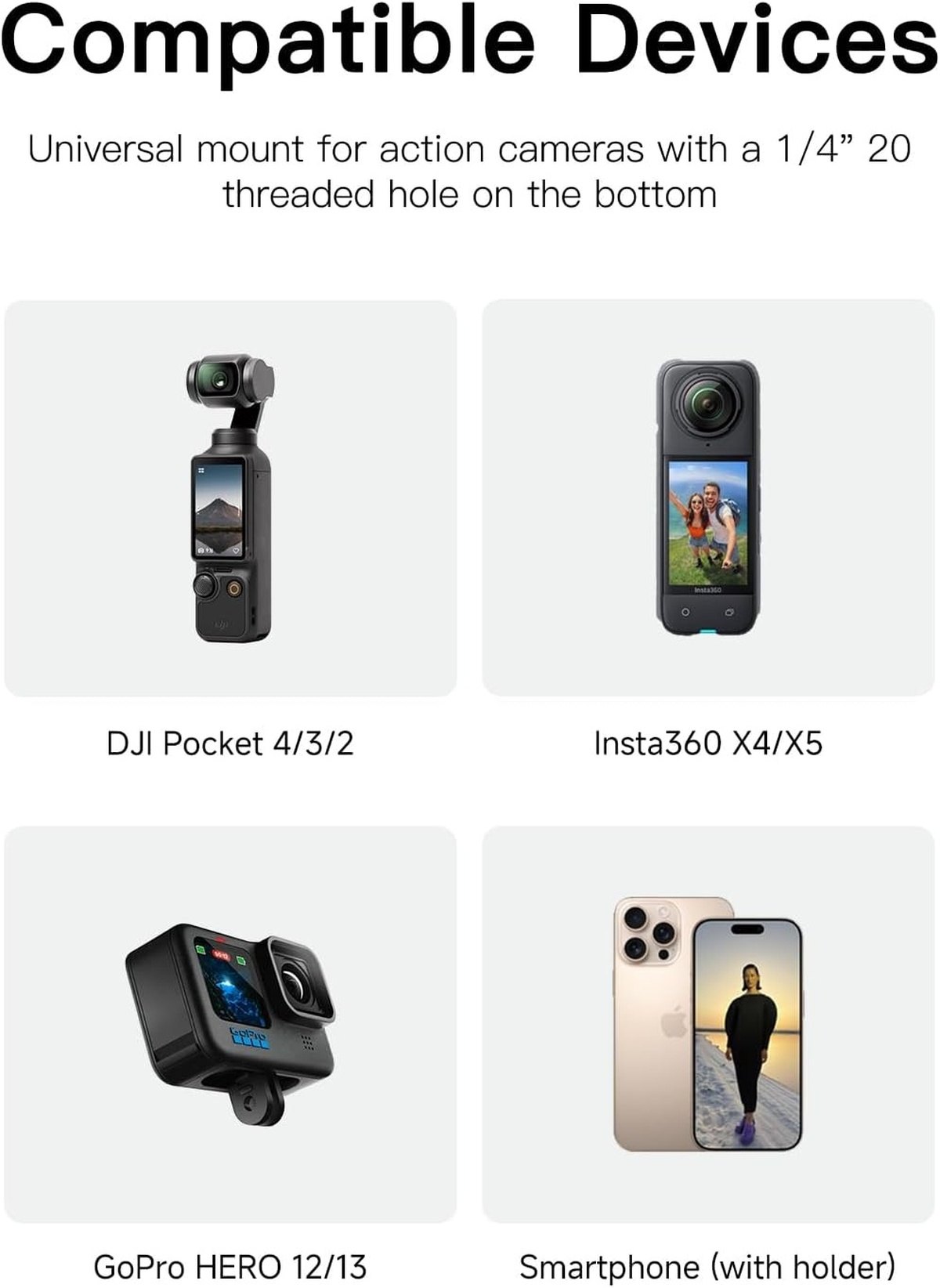

Compatible devices. With its 1/4″-20 thread the arm carries DJI Osmo Pocket 4/3/2, Insta360 X4/X5, GoPro HERO12/13 or a phone in a holder.
