Sennheiser XSW 1-825-E Wireless Vocal Set with e825, 821–832 / 863–865 MHz

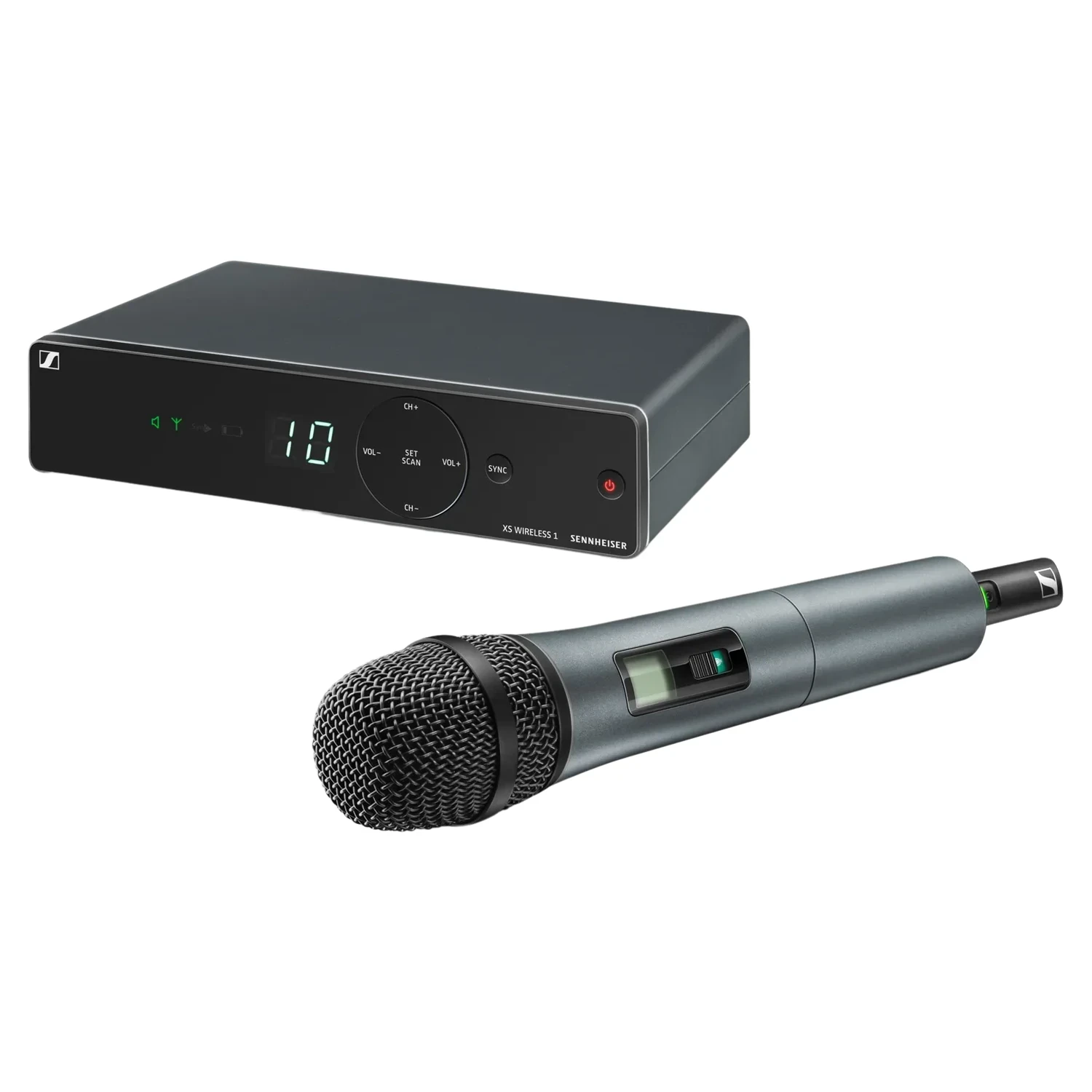

The Sennheiser XSW 1-825-E is a single-channel UHF wireless vocal set for singers, presenters and speakers. Its SKM 825-XSW handheld transmitter uses the dynamic cardioid e825 capsule, while the EM-XSW 1 stationary receiver handles reception and audio output.

• E frequency range: 821–832 MHz and 863–865 MHz
• Up to 10 compatible channels in one frequency range
• Automatic frequency management and receiver-to-transmitter synchronization
• Balanced XLR and unbalanced 6.3 mm jack outputs

WIRELESS AUDIO FOR VOCALS AND SPEECH

EASY-TO-USE UHF VOCAL SET WITH E825

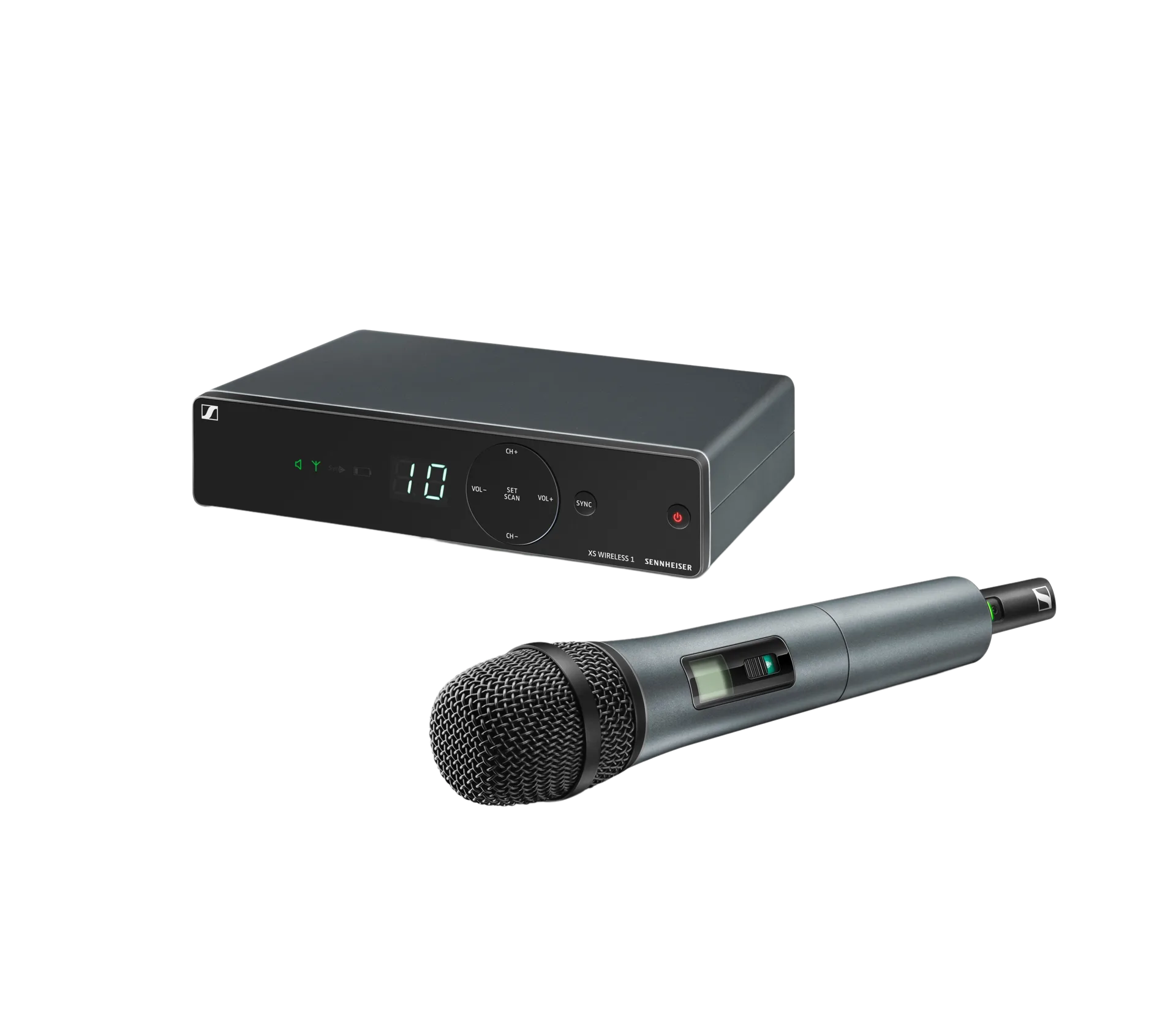

This complete single-channel set combines the SKM 825-XSW handheld transmitter with its dynamic cardioid e825 capsule and the EM-XSW 1 stationary receiver. It suits live vocals, hosting and presentations where quick setup and intelligible voice transmission matter.

QUICK TUNING AND SYNCHRONIZATION

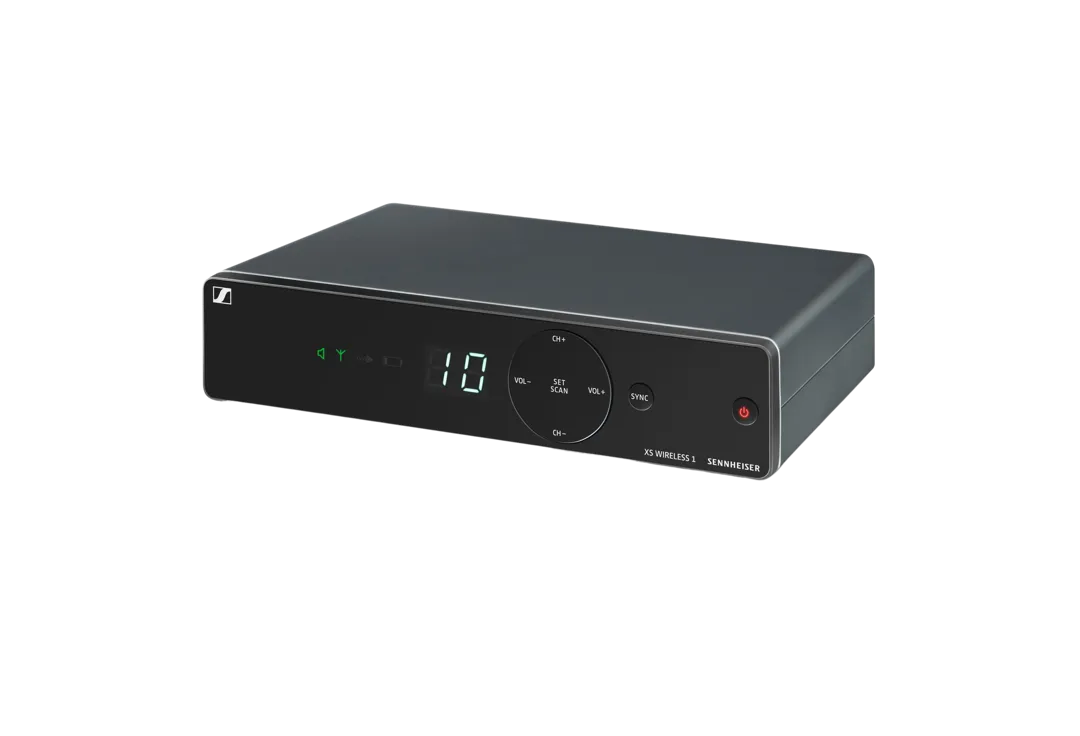

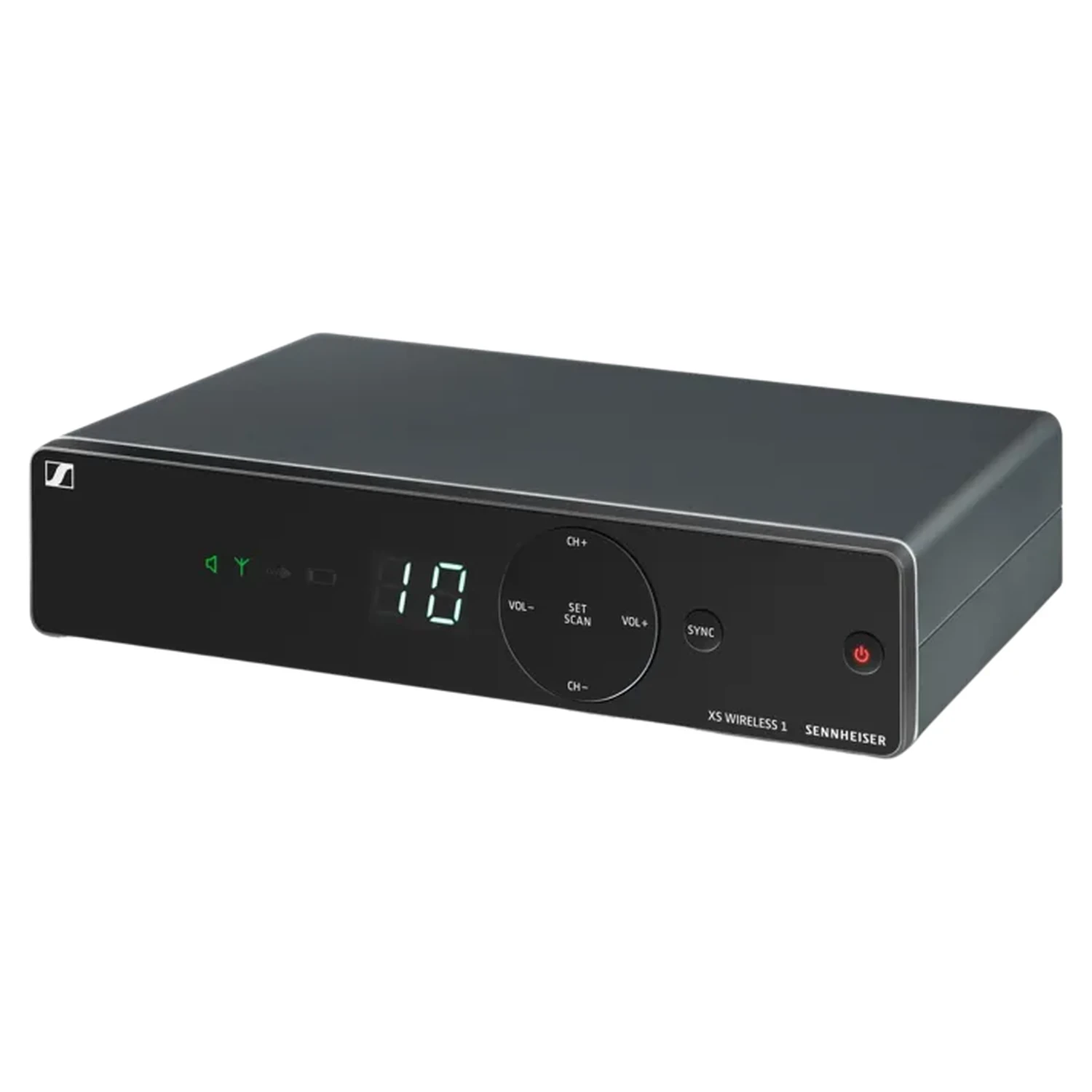

The receiver uses antenna-switching diversity reception. Automatic frequency scanning and synchronization via a remote channel simplify setup; the system supports up to 10 compatible channels in the relevant frequency range.

OUTPUTS FOR A MIXER OR AMPLIFIER

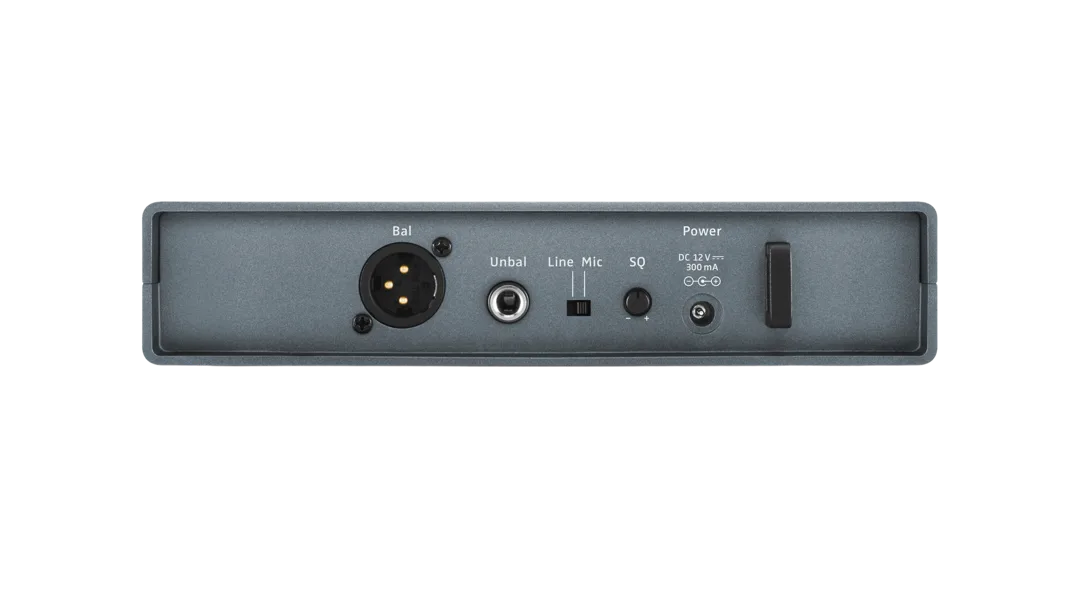

The receiver’s rear panel provides a balanced 3-pin XLR and an unbalanced 6.3 mm jack output. A Mic/Line switch lets you select the level for the connected equipment. Sennheiser recommends using only one of these audio outputs at a time.

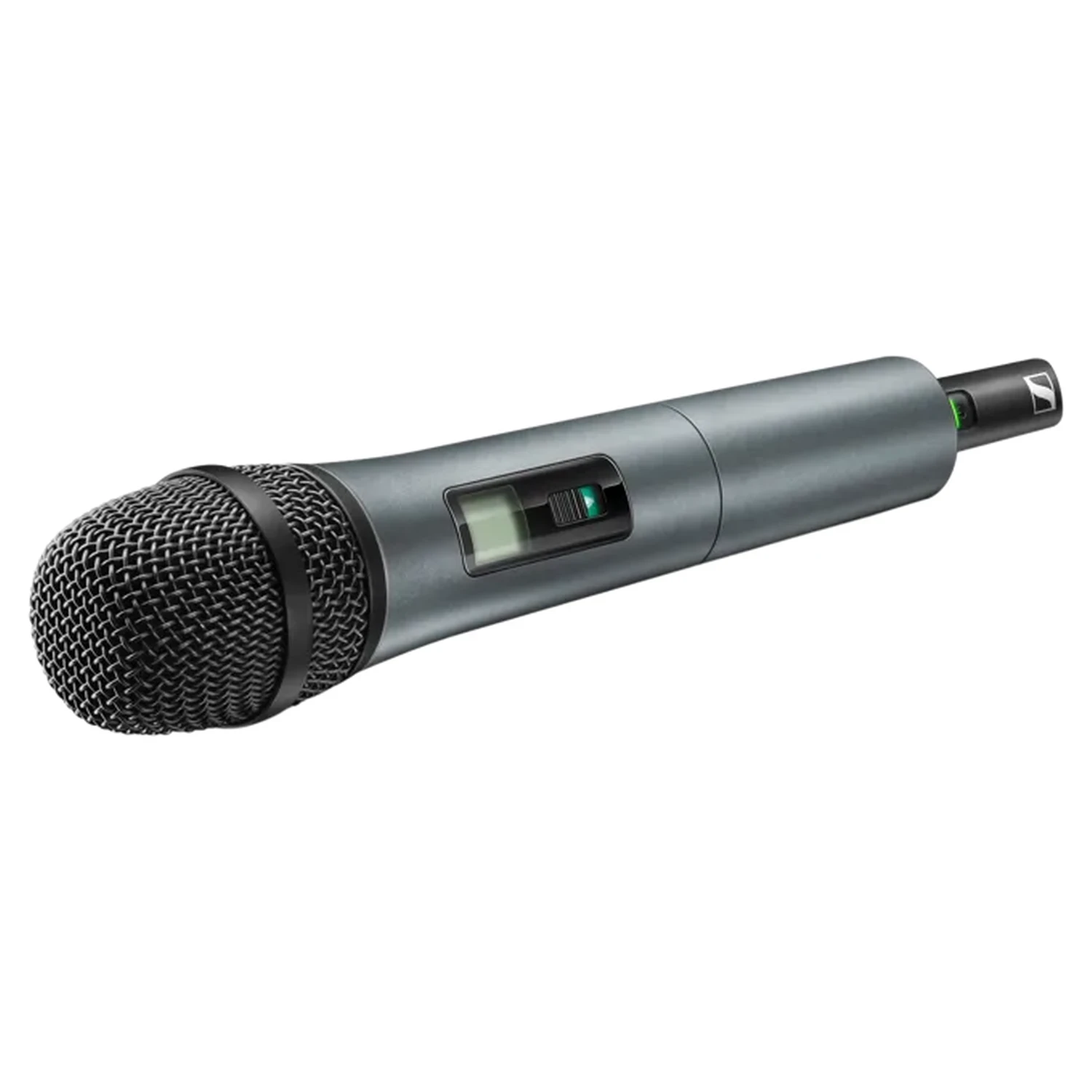

• Cardioid e825
  Dynamic capsule for vocals and presentations.
• Selectable frequencies
  E range: 821–832 MHz and 863–865 MHz; local rules determine the permitted operating conditions.
• Ready to power
  The transmitter uses two AA batteries; the set also includes the receiver’s power supply with country adapters.
