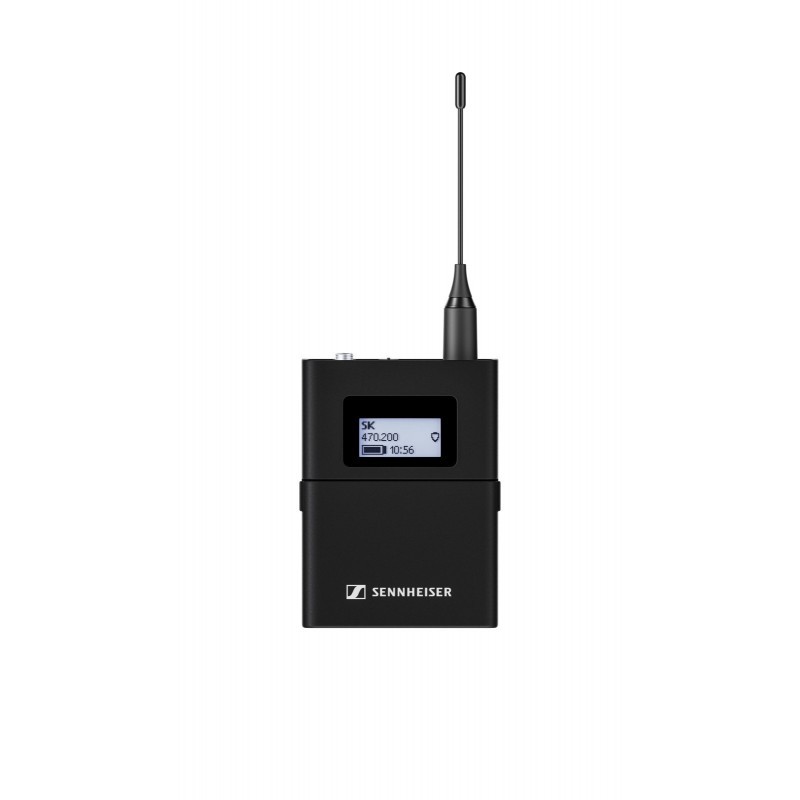

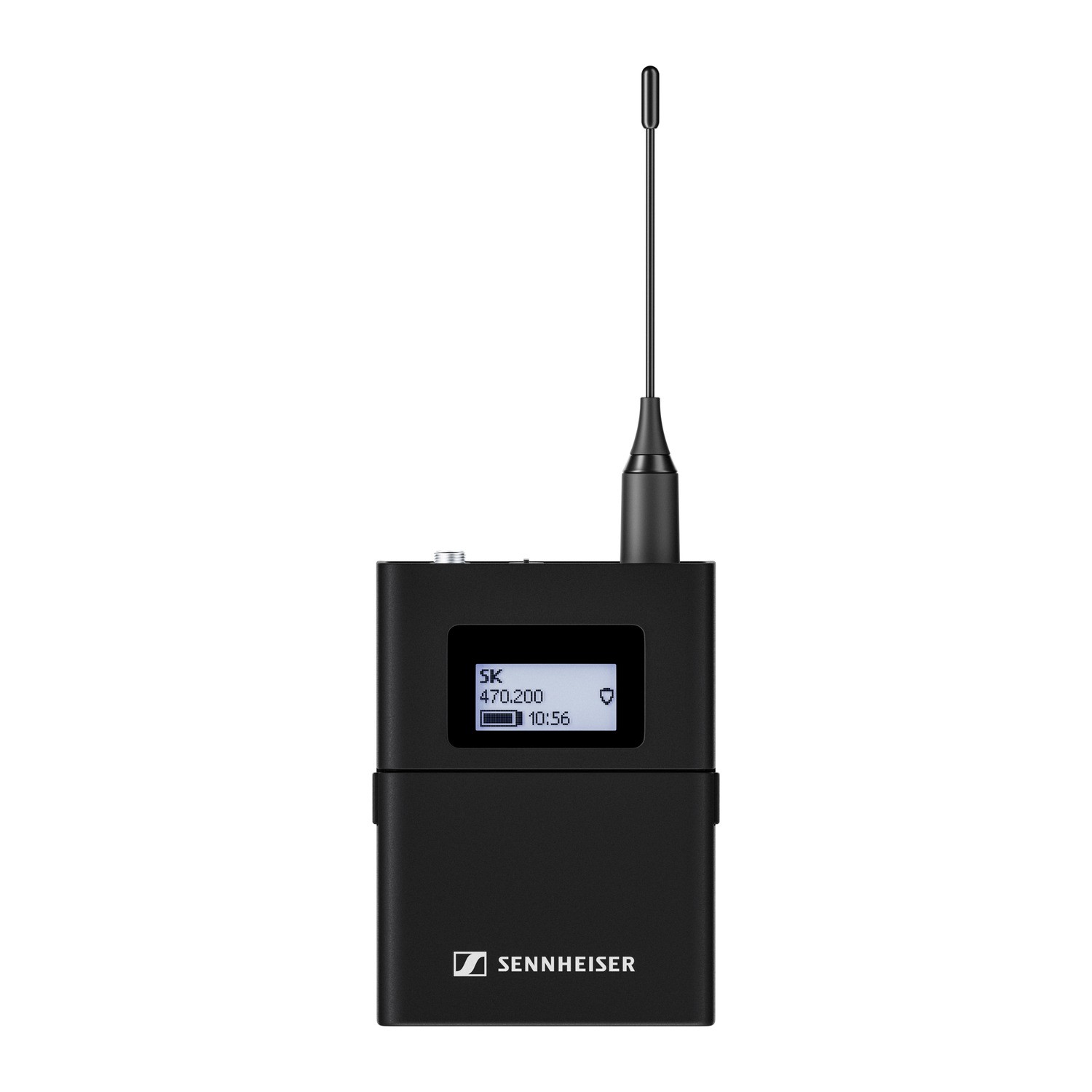

Sennheiser SK ew-DX 520 - 607,8 MHz, jack 3,5-ew

The ew-DX pocket transmitter is equipped with a MUTE switch for short-term microphone muting. On the transmitter with an e-ink display, you can set the bass filter frequency (high-pass) and basic sensitivity settings (trim); all other parameters are set on the receiver or from a mobile phone or tablet in the Smart Assist app. Compatible with ew-D, ew-DX, and ew-DP receivers.

The ew-DX pocket transmitter is equipped with a MUTE switch for short-term microphone muting. On the transmitter with an e-ink display, you can set the bass filter frequency (high-pass) and basic sensitivity settings (trim); all other parameters are set on the receiver or from a mobile phone or tablet in the Smart Assist app. Compatible with ew-D, ew-DX, and ew-DP receivers.

Comes in a version with a 3.5 ew jack or Lemo 3-P connector.

Features

• digital modulation to reduce noise, interference, and static discharges
• UHF band for reliable transmission
• automatic setup option in the Smart Assist app (Android/iOS mobile/tablet)
• remote management option in Wireless Systems Manager and Control Cockpit (PC/Mac)
• remote adjustment of transmitter sensitivity (gain)
• 3520 tunable frequencies for interference-free reception
• 88 MHz bandwidth (9 possible variants)
• up to 148 channels in one band (293 in LD mode)
• 134 dB dynamic range
• 12 hours of operation with BA 70 rechargeable batteries (8 hours with AA batteries)
• easily accessible MUTE switch
• bluetooth® Low Energy control
• Wide range of accessories allows the system to be adapted to any requirements

Package contents

• 1 SK ew-DX transmitter
• 2 AA batteries, 1.5 V
• Instruction manual

Battery life

12 (8) hours

Frequency range

20 - 20,000 Hz

HF frequency range

470 - 550, 520 - 607.8, 614.2 - 693.8, 823.2 - 831.8/863.2 - 864.8, 1785.2 - 1799.8 MHz (bands Q - Y)

Total harmonic distortion (THD)

< -60 dB/1 kHz -3 dBfs

Weight

120 g (without batteries)

Connectors

3.5 EW jack with lock nut or Lemo 3-P

Power

2 x 1.5 V AA / BA 70

Number of transmission frequencies

3520

RF band width

88 MHz

HF transmission power

10 mW + 10 W BLE

Delay

1.9 ms

Modulation

SePAC

Dimensions

63 x 85 x 20 mm (without antenna)

Microphones by type

ew Digital
