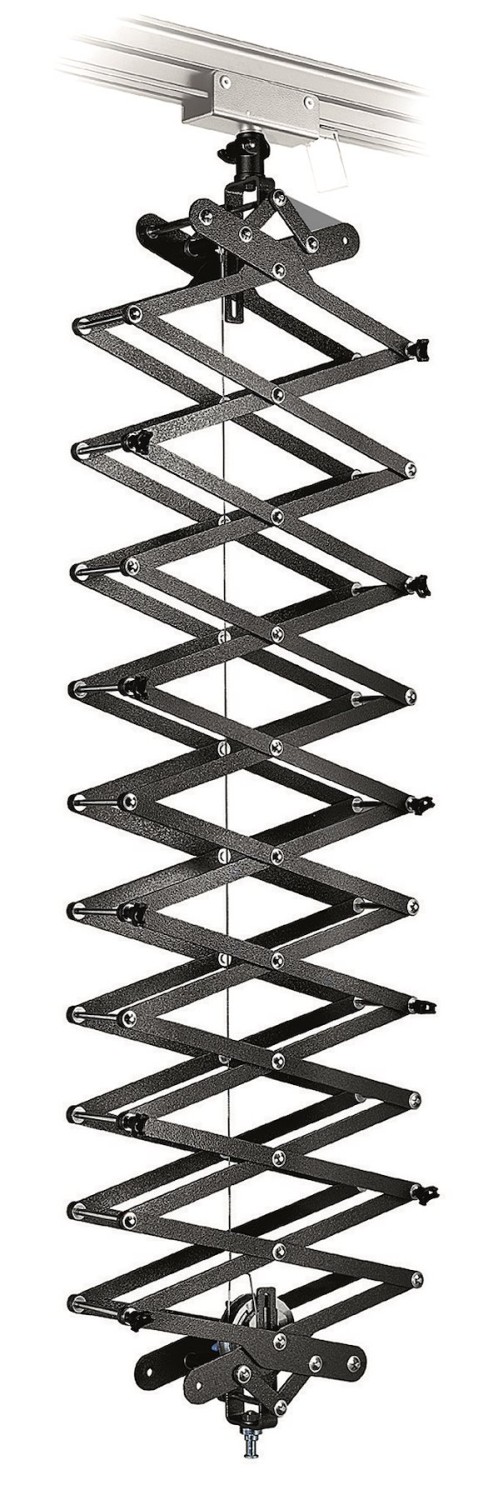

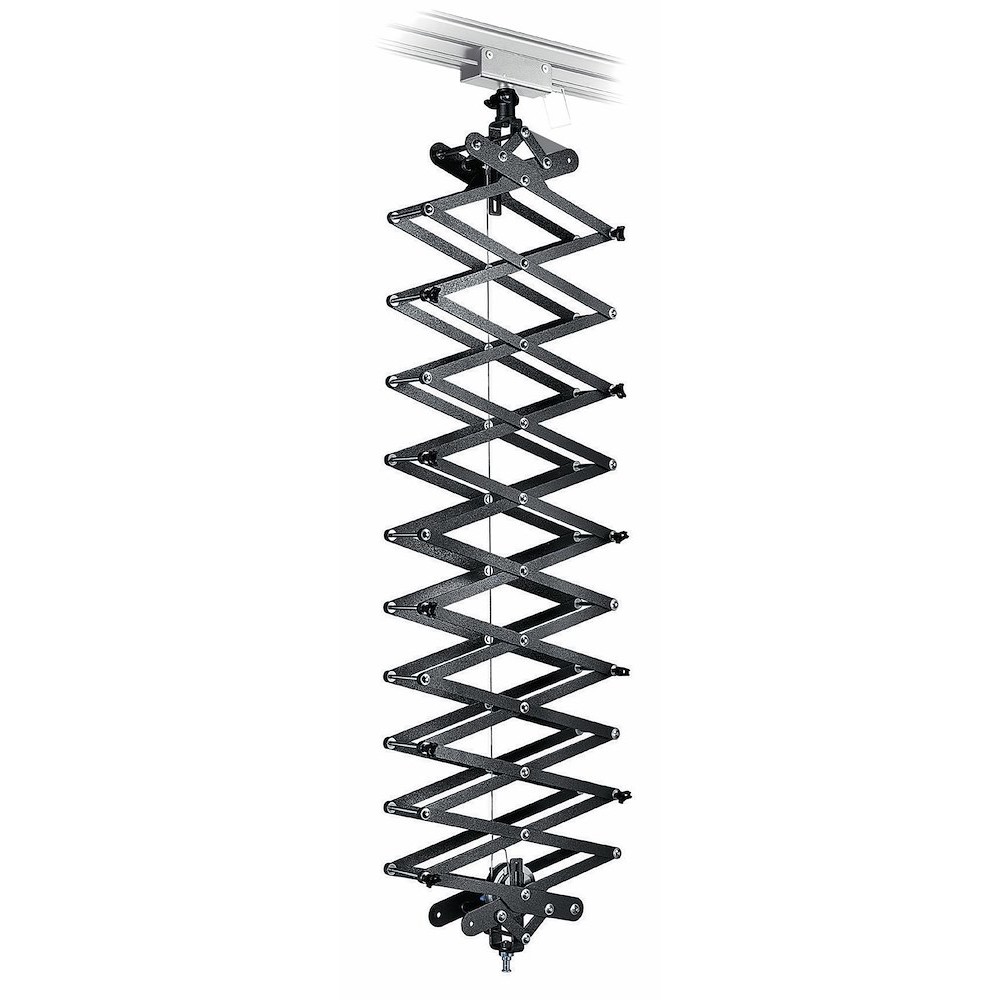

Manfrotto Pantograph Top 4C
SKU: FF3514N86

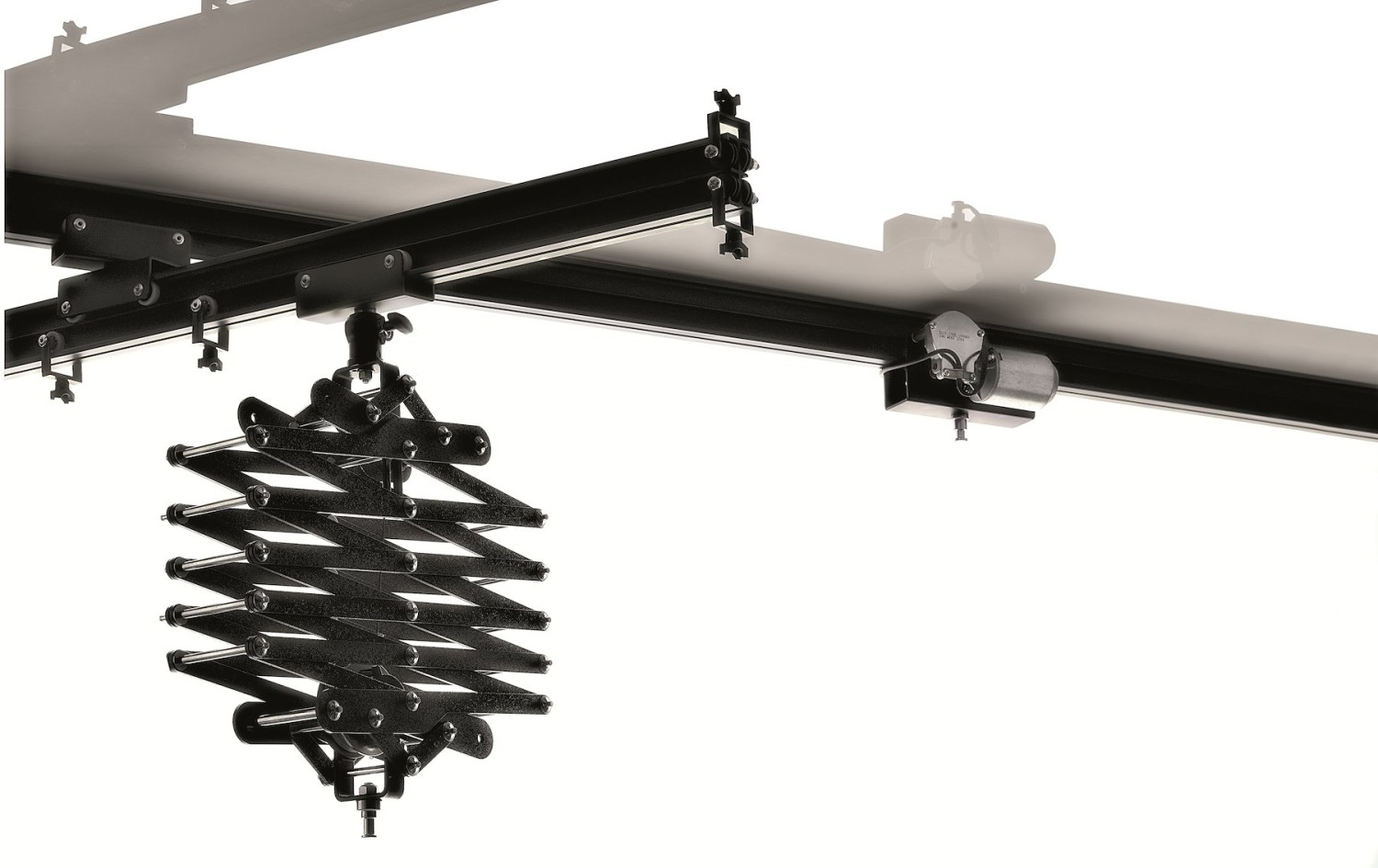

The Manfrotto FF3514N86 Pantograph Top 4C is an aluminum mounting bracket for the Sky Track studio system. It features a 16mm female connector at the top and a 16mm pin at the bottom; its working range is 38–380 cm. The friction-based load capacity is 12 kg; the maximum load capacity is 18 kg only when used with optional springs.
899 € with VAT
742.98 € without VAT
Availability
on request
Top accessories for Manfrotto Pantograph Top 4C
Manfrotto Spring Type 12 Blue
The Manfrotto FF3534 Type 12 Blue Spring is a replacement spring for Manfrotto pantographs,
139 €
on request
Manfrotto Spring Type 4 Blue
The Manfrotto FF3533 (Spring Type 4 Blue) is the official heavy-duty replacement/extension
108 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Manfrotto FF3514N86 Pantograph Top 4C is an aluminum mounting bracket for the Sky Track studio system. It features a 16mm female connector at the top and a 16mm pin at the bottom; its working range is 38–380 cm. The friction-based load capacity is 12 kg; the maximum load capacity is 18 kg only when used with optional springs.
PANTOGRAPH TOP 4C
Aluminum Sky Track element with a 16mm female connector at the top and a 16mm pin at the bottom. Range: 38–380 cm; load capacity: 12 kg.
PACKAGE CONTENT
- Manfrotto FF3514N86 Pantograph Top 4C × 1
SPECIFICATIONS
- Model: FF3514N86
- Material: aluminum
- Top mount: 16 mm female
- Bottom mount: 16 mm male stud
- Range: 38–380 cm
- Friction load capacity: 12 kg
Parameters
Parameters
| Manufacturer: | Manfrotto |
| Category: | Accesories Rigy |
Main parameters
| Mounting type | Baby pin 5/8″ |
| Material | Aluminium alloy |
| Mounting type | 16 mm female socket (5/8″) |
| Load capacity | 18kg |
