Manfrotto Befree Live Aluminium tripod lever, video head

Manfrotto’s Befree Live Lever is a compact travel video tripod kit for hobbyist videographers and vloggers, weighing just 1.75 kg with a 4 kg safety payload, featuring a fluid head for smooth pans and tilts, QPL Travel lever for quick setup, ergonomic leg-angle selector, Easy Link for accessories, and versatile 22°/54°/89° angles—delivering camera…

More information

246 € with VAT 203.31 € without VAT
-+
Availability
Shipment day: 11. 11.
5 pcs in stock at the supplier
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Manfrotto’s Befree Live Lever is a compact travel video tripod kit for hobbyist videographers and vloggers, weighing just 1.75 kg with a 4 kg safety payload, featuring a fluid head for smooth pans and tilts, QPL Travel lever for quick setup, ergonomic leg-angle selector, Easy Link for accessories, and versatile 22°/54°/89° angles—delivering camera support and portability in a 40 cm closed length for on-the-go DSLR, CSC, or camcorder shoots.

Manfrotto MVKBFRL-LIVE

MANFROTTO · MVKBFRL-LIVE

Video support for travel

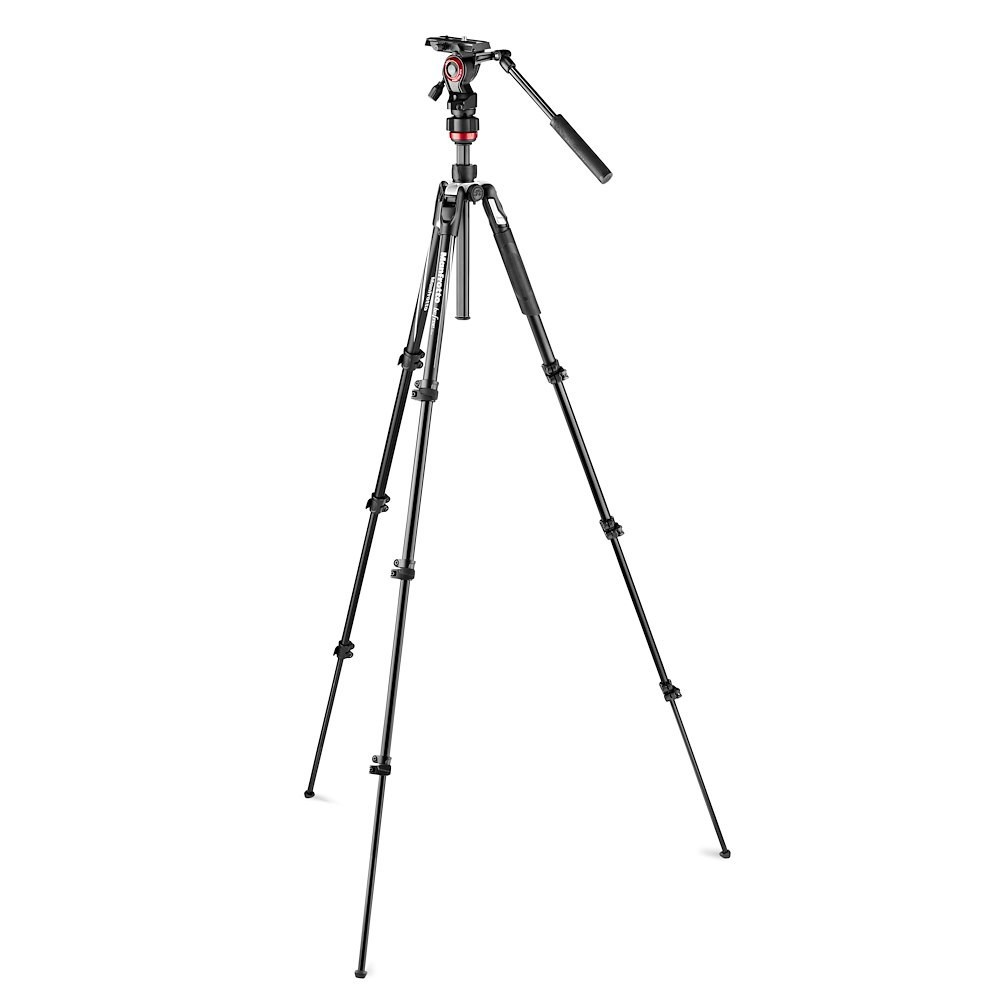

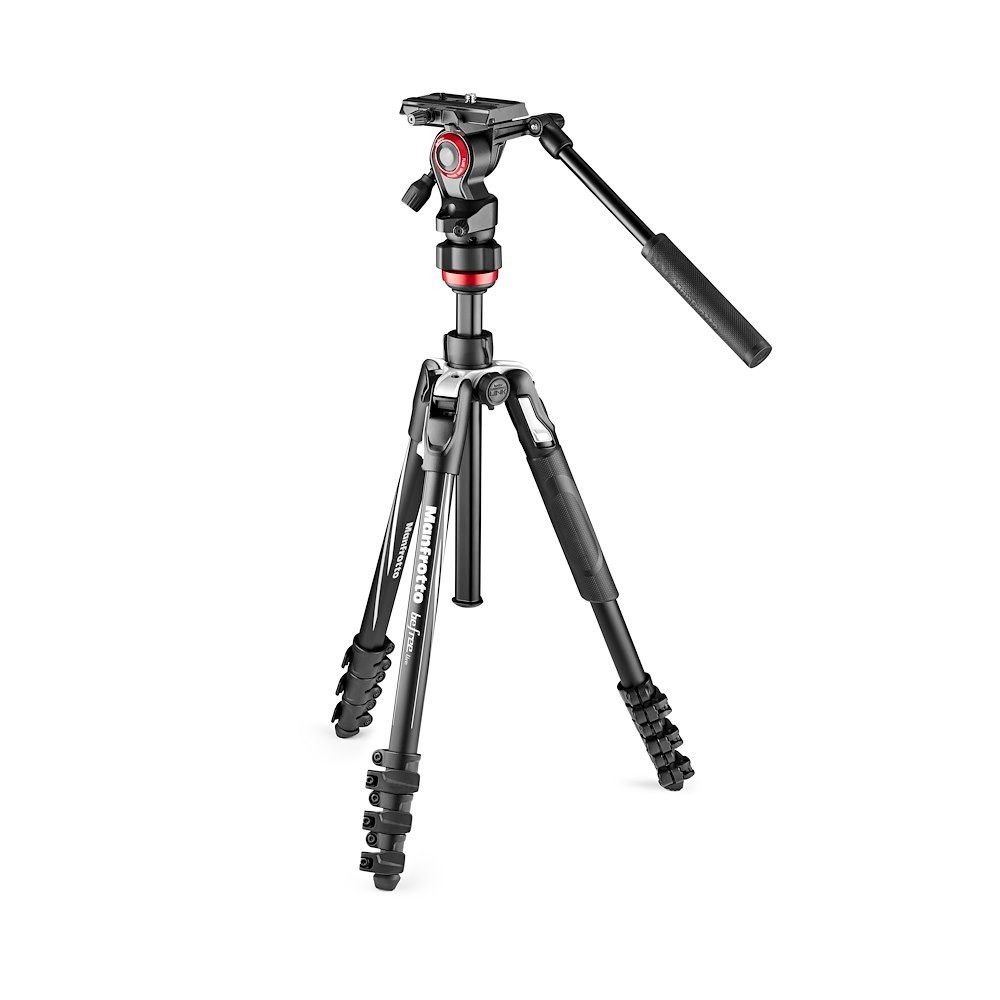

Befree Live pairs a compact aluminium tripod with a fluid video head. The 1.75 kg kit folds to 40 cm, with a certified 4 kg payload for mobile camera setups.

1.75 kg4 kg40 cm folded

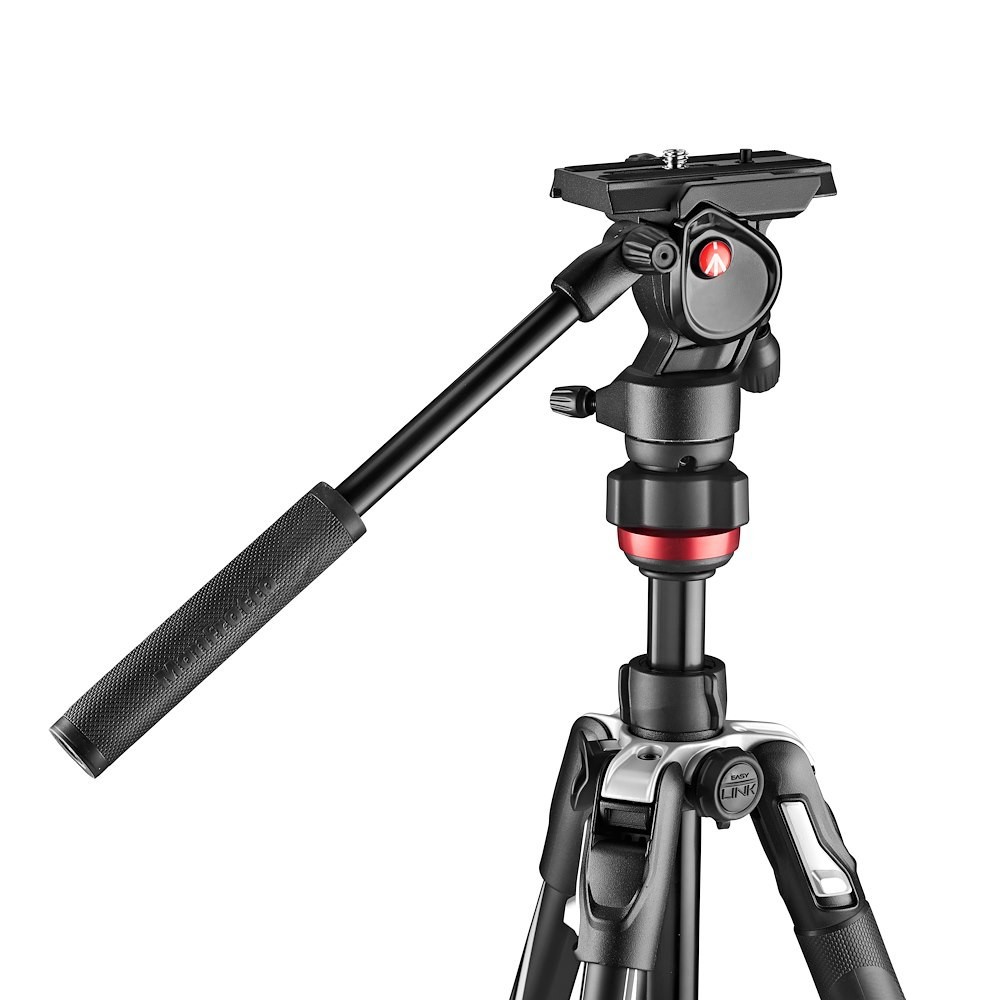

Frame, pan and tilt

The fluid head provides fixed pan and tilt drag with separate movement locks. Slide the 501PL plate to position the camera, then use the supplied pan bar to guide the shot.

Illustrative camera and lens are not included.

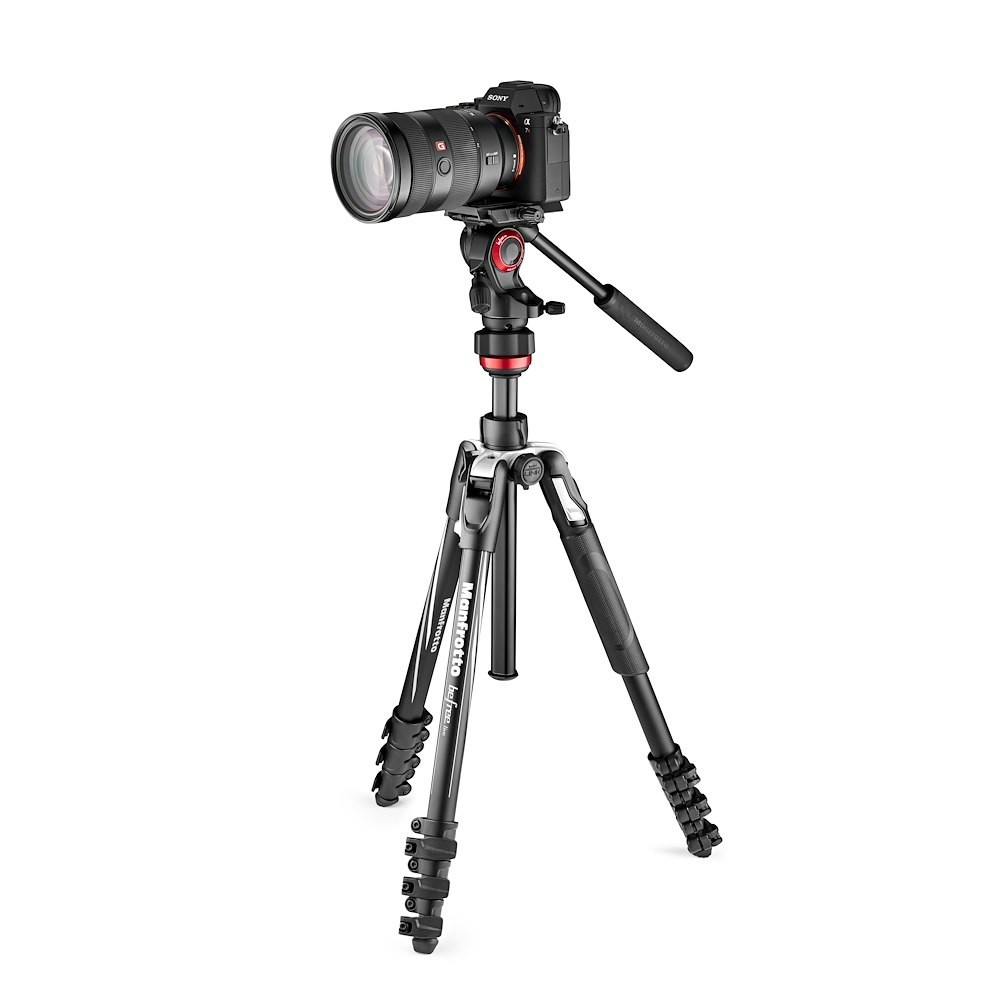

Frame, pan and tilt. Illustrative camera and lens are not included.

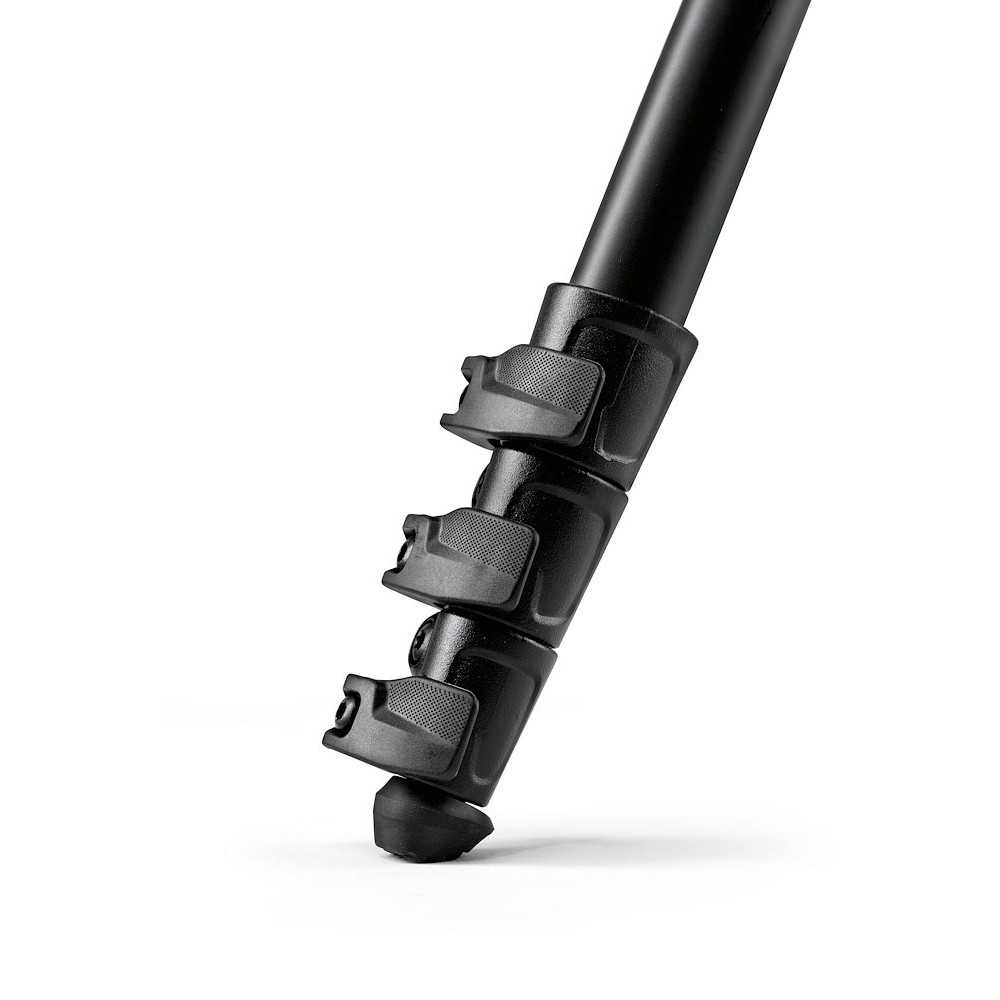

Quick lever setup — QPL Travel

Quick lever setup

QPL Travel lever locks make leg adjustments visible at a glance. Four sections per leg and an ambidextrous angle selector help set the tripod to 22°, 54° or 89°.

A compact location kit

The aluminium support and compact top spider are designed for travelling videographers using suitable DSLR, mirrorless or small camcorder setups within the 4 kg certified payload. The three independently selectable leg angles give flexibility for low viewpoints and uneven ground; check the footing and lock the legs before filming.

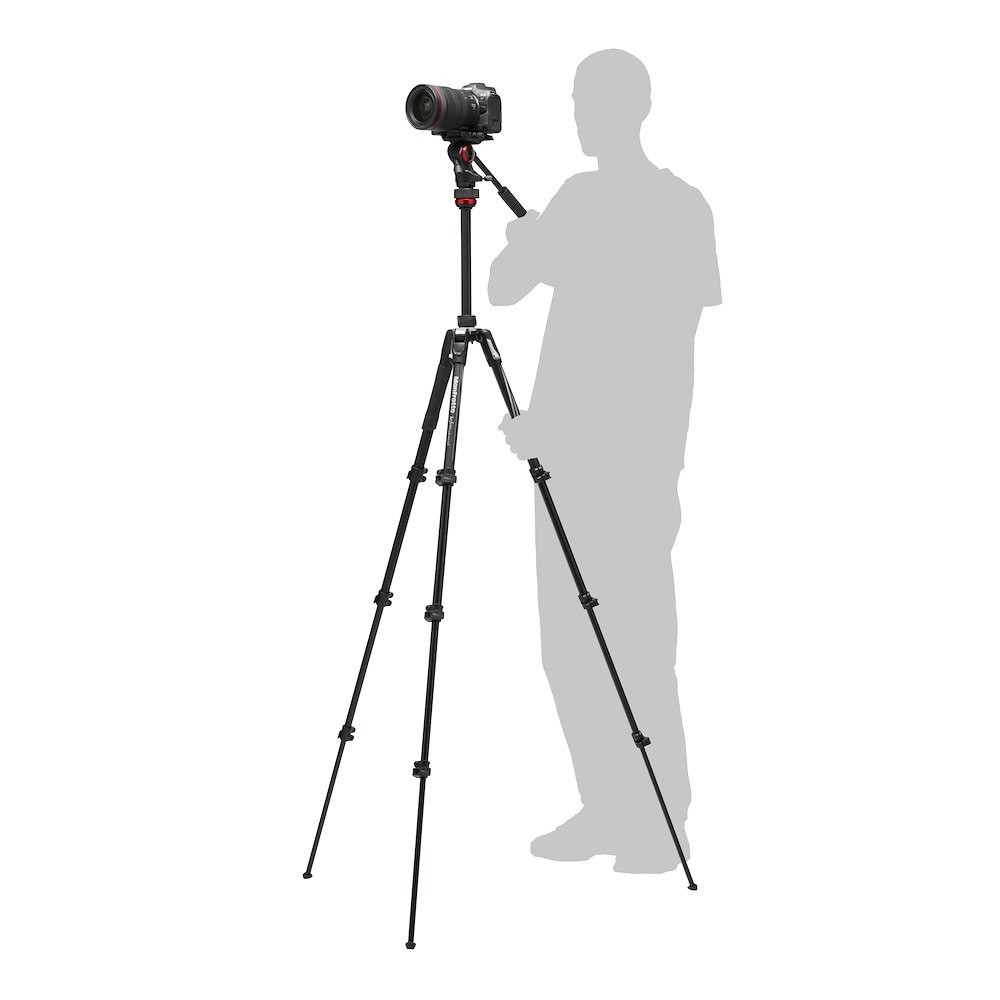

A rapid centre column extends the maximum height to 151 cm, or 130 cm with the column lowered; minimum height and folded length are both 40 cm. The head offers 360° pan and a −90°/+65° tilt range. Its sliding 501PL quick-release plate helps position the camera.

Easy Link accepts compatible accessory arms for lights or reflectors. One bubble level assists alignment. The black/silver kit has single-tube legs with diameters of 12, 15.5, 19 and 22.5 mm, a 40 mm base and upper disc, and a specified operating range of −30 °C to +60 °C. It needs no batteries and includes a carrying bag.

SWIT MUF50 is an alternative with a 5 kg payload and dynamic counterbalance. It weighs 2.23 kg rather than 1.75 kg and folds to 43 cm rather than 40 cm. It uses a different camera plate, not a direct 501PL replacement; compare these tradeoffs and current prices for your setup.

Lensvid’s Photokina 2018 video shows Befree Live Lever in the relevant 01:12–01:43 segment. It also covers other Befree and Sony variants, is not a whole-kit operating tutorial, and quotes historical rather than current prices.

PACKAGE CONTENT

  • Befree Live Lever tripod with MVH400AH fluid head
  • 501PL sliding quick-release camera plate
  • Pan bar

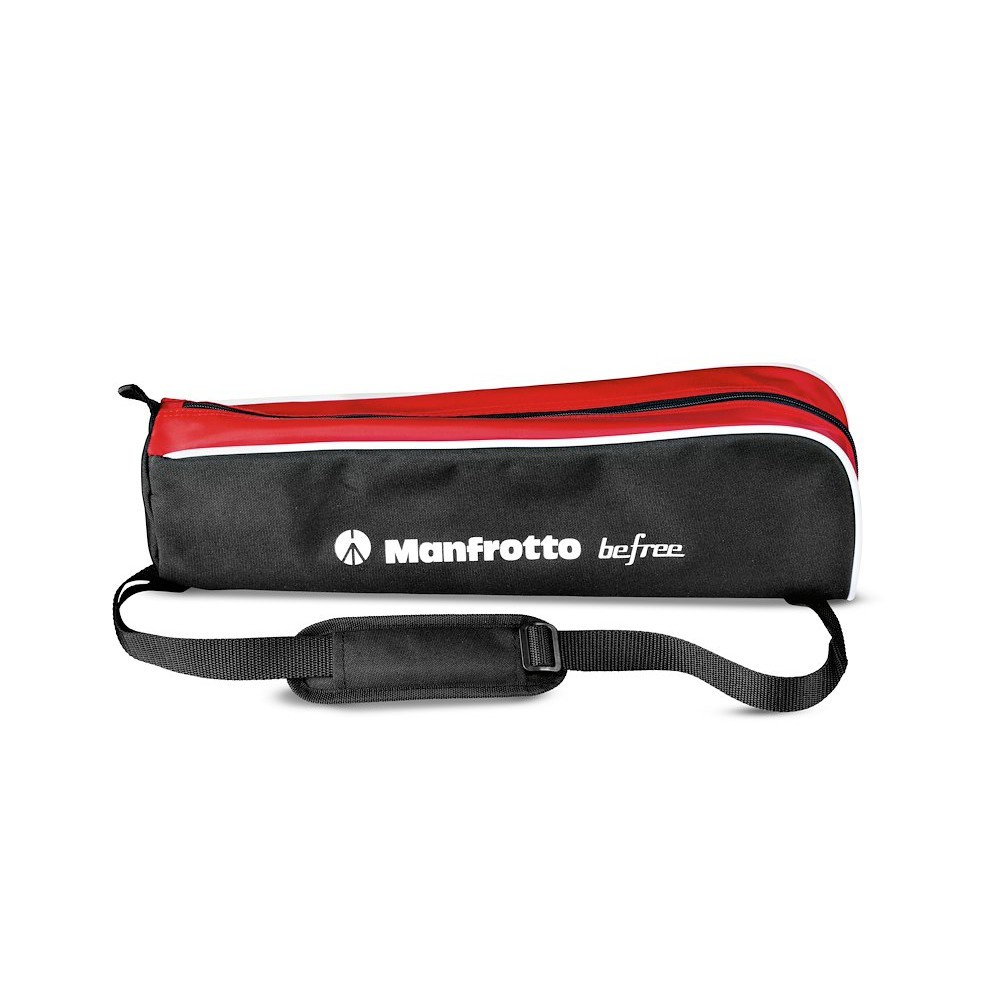

  • Carrying bag

SPECIFICATIONS

  • Weight: 1.75 kg
  • Certified safety payload: 4 kg — UNI/PdR 105:2021
  • Maximum height: 151 cm
  • Minimum height: 40 cm
  • Maximum height, column lowered: 130 cm

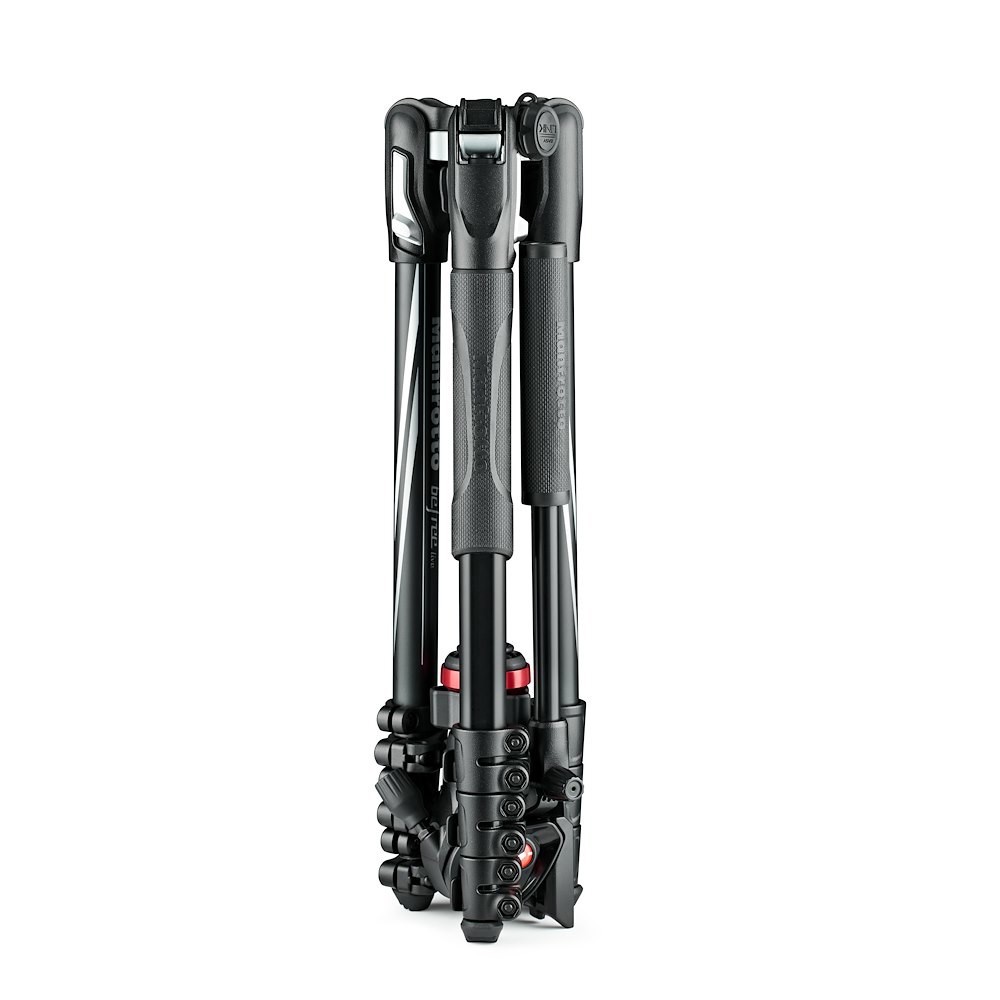

  • Folded length: 40 cm
  • Base diameter: 40 mm
  • Upper disc diameter: 40 mm
  • Leg sections: 4
  • Leg tube diameters: 12 / 15.5 / 19 / 22.5 mm
  • Leg angles: 22° / 54° / 89°
  • Leg locks: QPL Travel / Flip Lock
  • Leg construction: Single tube
  • Centre column: Rapid
  • Material: Aluminium
  • Colour: Black/silver
  • Video head: Fluid video head — MVH400AH
  • Camera attachment: 1/4″ screw + 3/8″ screw
  • Quick-release plate: 501PL — sliding
  • Tilt range: −90° / +65°
  • Pan rotation: 360°
  • Pan drag: Fluid cartridge, fixed drag
  • Tilt drag: Fluid cartridge, fixed drag
  • Pan bar included: Yes
  • Bubble levels: 1
  • Easy Link: Yes
  • Carrying bag included: Yes
  • Operating temperature: −30 °C / +60 °C
  • Battery powered: No
Parameters

Parameters

Manufacturer: Manfrotto
Category: Tripods

Main parameters

Camera mounting screw1/4″
ColourBlack / silver
Country of manufactureItaly
Head materialAluminium
Centre column mechanismRapid
Leg typeSingle
Leg tube diameters12mm · 15.5mm · 19mm · 22.5mm
Leg angles22° · 54° · 89°
Leg lock typeFlip lock (QPL Travel)
Pan drag adjustmentFixed fluid cartridge
Tilt drag adjustmentFixed fluid cartridge
Quick-release plate501PL
Camera mounting screw3/8″
Closed length40cm
Height with centre column down130cm
Leg sections4
Easy Link connectorYes
Product weight1750g
Minimum height40cm
Centre columnYes
Panoramic rotation360°
Quick releaseYes
Pan bar includedYes
Carrying bag includedYes
Operating temperature-30x60°C
Base diameter40mm
Upper disc diameter40mm
Bubble spirit levels1
Tilt range-90x65°
MaterialAluminium
TypeFluid head · Video tripod
Weight1.8kg
Max height151cm
Tripod payload4kg
