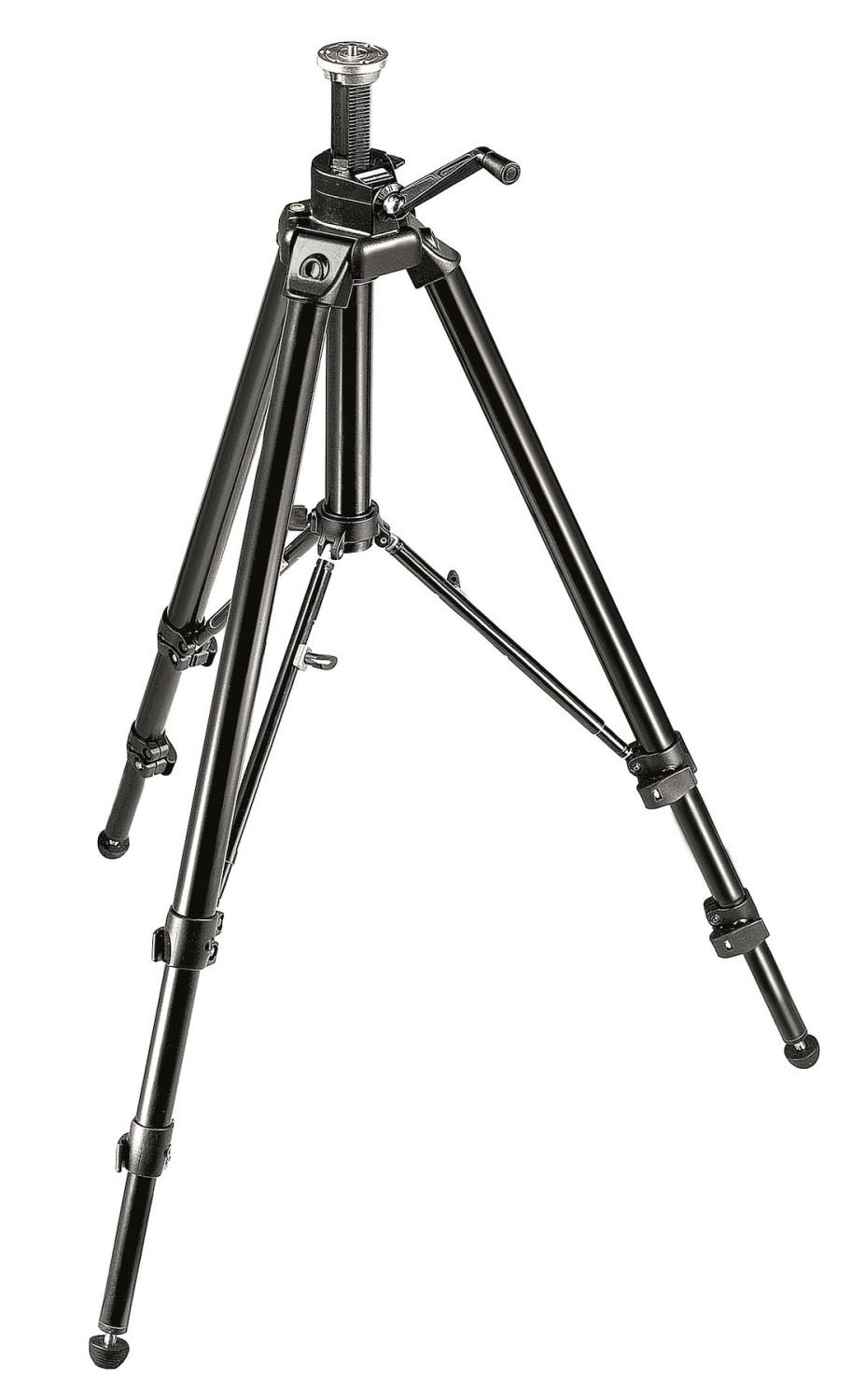

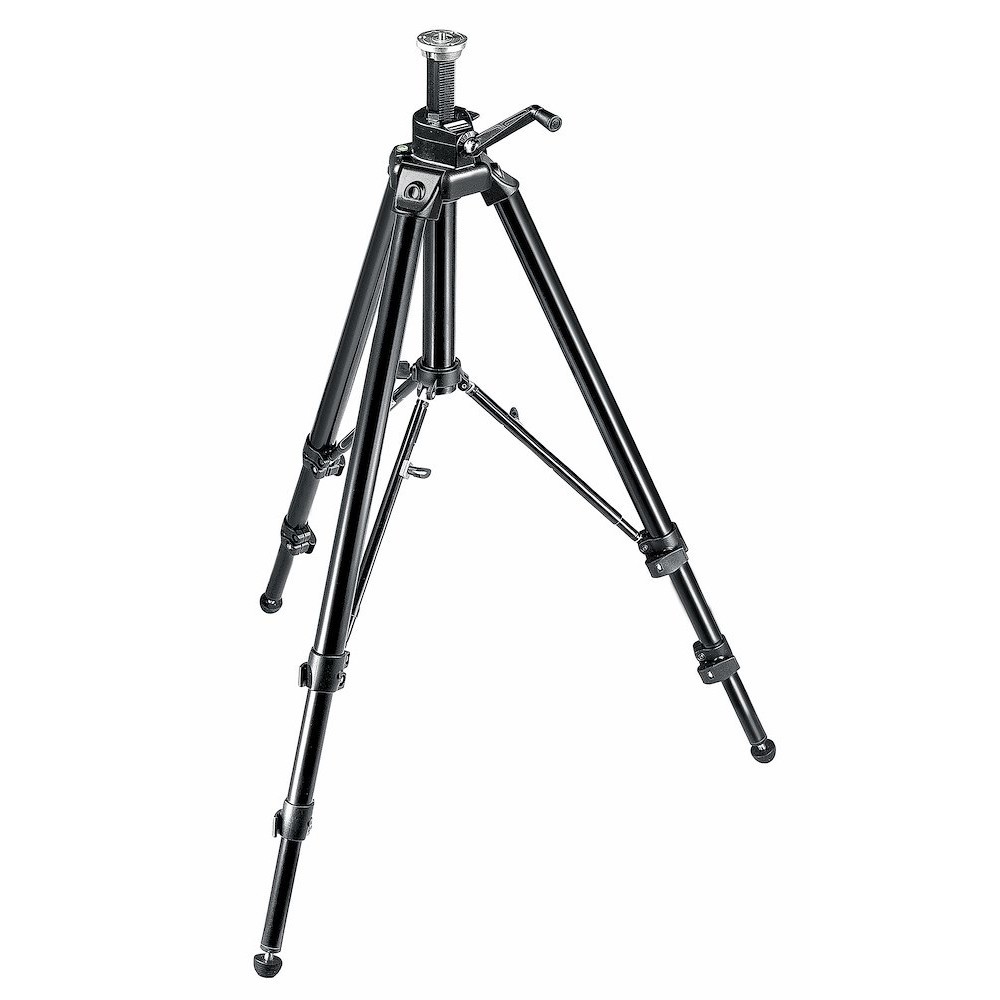

Manfrotto 475B Pro Geared is an aluminium studio tripod for professional photography. Its robust legs, quick-action lever locks and telescopic centre braces make setup straightforward. The braces let you set the legs symmetrically or individually for asymmetric positioning, while the geared centre column provides fine height adjustment.
Manfrotto 475B Pro Geared is an aluminium studio tripod for professional photography. Its robust legs, quick-action lever locks and telescopic centre braces make setup straightforward. The braces let you set the legs symmetrically or individually for asymmetric positioning, while the geared centre column provides fine height adjustment.
MANFROTTO 475B
Height under control

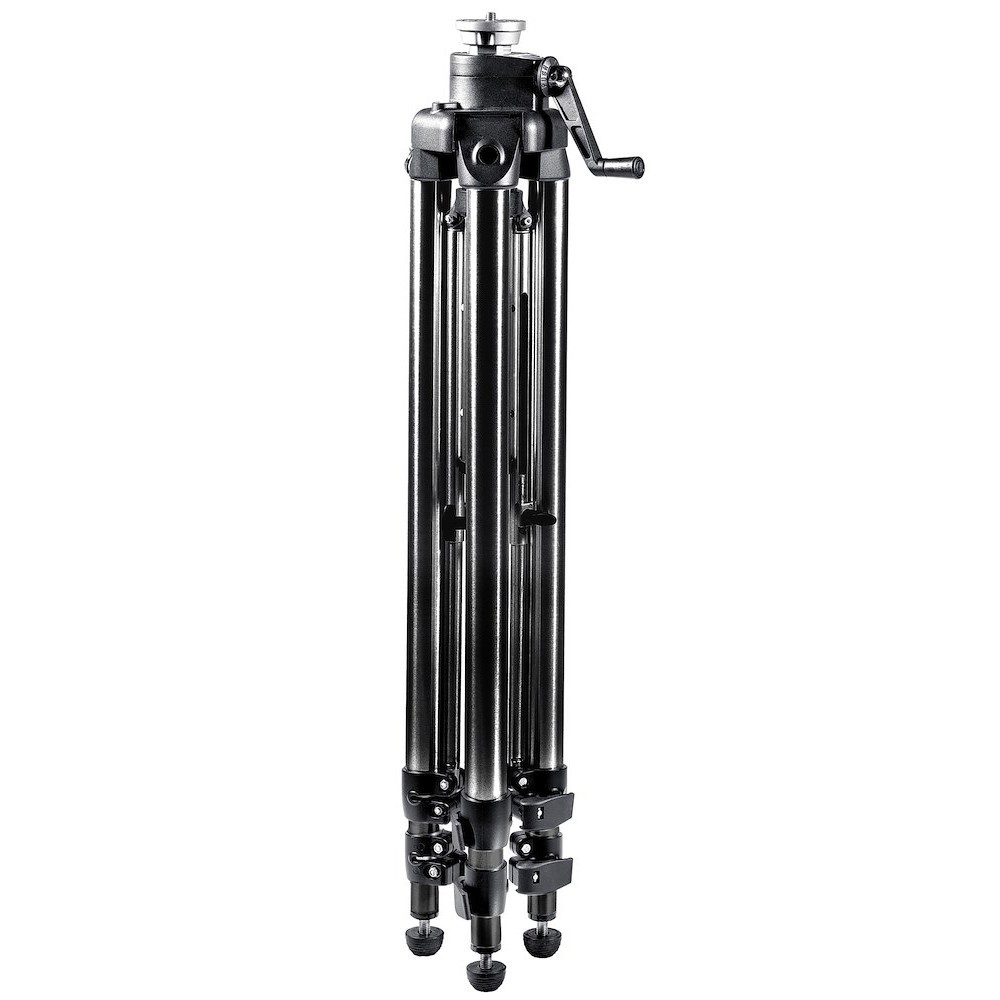

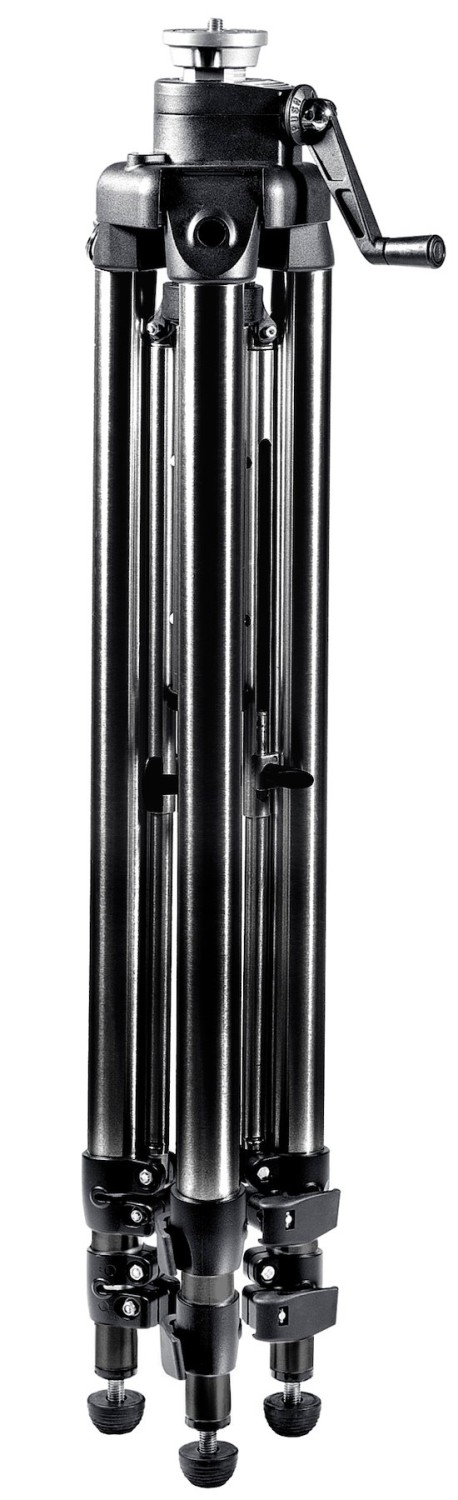

Set a studio camera at up to 188 cm with a geared column and adjustable braces. The bare tripod is rated for 20 kg under UNI/PdR 105:2021 and folds to 80 cm.
20 kg UNI188 cm80 cm
Fine height by crank

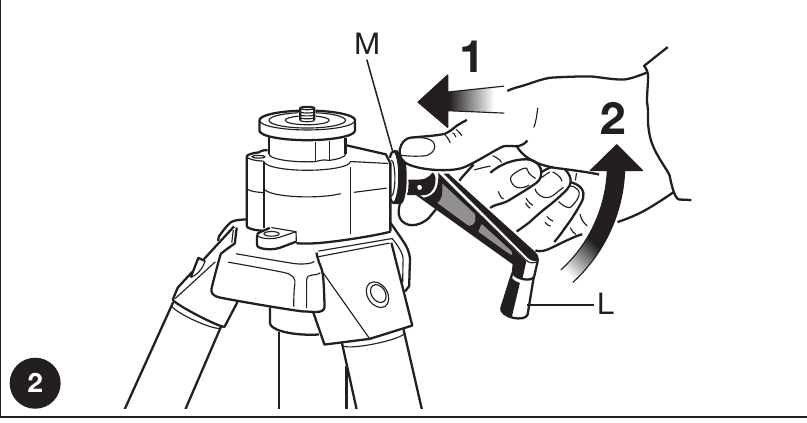

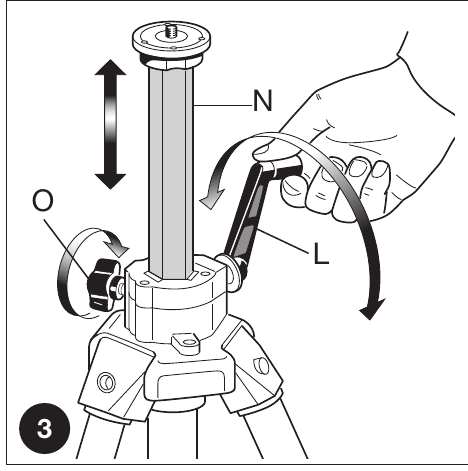

Open crank L using release ring M, release column lock O and turn the crank to adjust column N. A safety ratchet prevents accidental descent; tighten O at the chosen height for maximum stability.
L: crank
M: release ring
N: centre column
O: column lock
Original manufacturer diagrams, Figs. 2 and 3

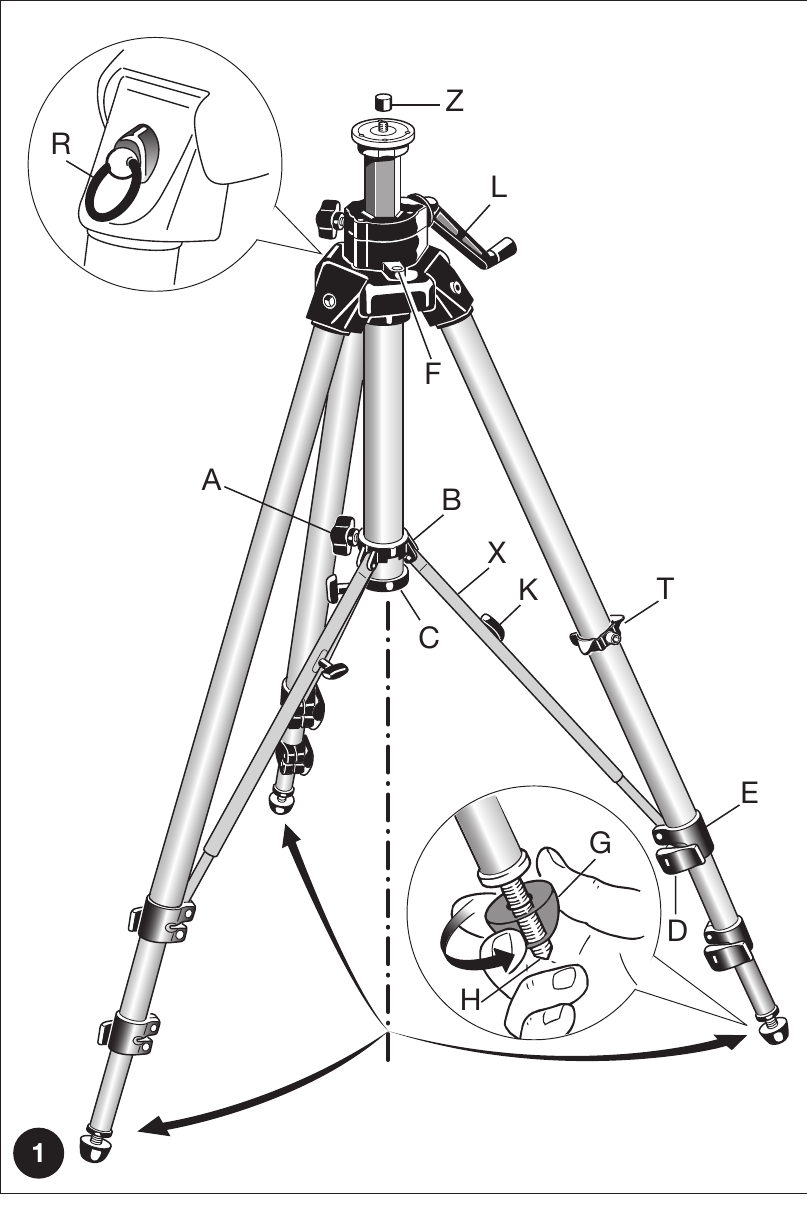

Original manufacturer diagram, Fig. 1
Choose each leg angle
The braces have two preset click-stop positions. Use the same click-stop position on telescopic braces X for equal leg angles, or adjust each brace separately with knobs K for an asymmetric setup.
A: central brace lock
B: spreader ring
C: column stop
X: telescopic braces
K: individual brace locks
F: bubble level
G: rubber feet
H: retractable spikes
D: leg-lock levers
E: locking collars
R: optional strap ring
T: supplied spanner
Prepare the studio setup
Quick-action lever locks extend the three anti-rotation leg sections. The built-in bubble level helps level the tripod before a sequence of images or a panorama. The three-faceted geared column gives controlled fine height adjustment.
Rubber feet G contain retractable metal spikes H: turn the rubber feet clockwise to expose the spikes and anticlockwise to retract them. The rubber feet do not need to be removed. The tripod is made in Italy.
Attach a separately purchased head to the male 3/8″ screw. Tighten the three retaining screws P beneath the head plate without forcing them. The usable load of the assembled system is limited by its weakest component: tripod, head or accessory.
The head, carrying bag and strap are not included. The supplied leg spanner T adjusts lever-lock tension; the TORX T25 tool mentioned for locking-collar maintenance is not included.
For operation, follow the 2022 manufacturer manual. Choose a service diagram matching the revision or serial number. Peter J’s 2013 video demonstrates the 475B controls; its historical claims do not replace current specifications or instructions.
PACKAGE CONTENT
Manfrotto 475B tripod with geared centre column
Supplied leg spanner T
SPECIFICATIONS
Model: 475B
Weight: 4.3 kg
Leg Sections: 3
Maximum Height: 188 cm
Min Height: 43 cm
Closed Length: 80 cm
Maximum Height (with Center Column Down): 162 cm
Bubble Spirit Level (No.): 1
Carrying Bag Included: none
Center Column: geared
Upper Disc Diameter: 60 mm
Top Attachment: Male 3/8″ head-mount screw
Color: Black
Easy Link: No
Leg Type: Single
Leg Lock Type: Flip Lock
Legs Tube Diameter: 35.4, 29.5, 25 mm
Material: Aluminum
Maximum Working Temperature: 60 °C
Minimum Working Temperature: -30 °C
Safety payload: 20 kg (UNI/PdR 105:2021)
Feet: Rubber with retractable metal spikes
Country of manufacture: Italy
Leg-lock tension adjustment: Yes, supplied spanner T
WE RECOMMEND
Choose accessories for your actual setup; a head and bag are not included. Heads, bags and dollies below are alternatives, not a requirement to buy all.
Respect the lowest component limit. The tripod’s certified 20 kg does not increase a head’s camera rating; include all fitted masses when checking a dolly.
