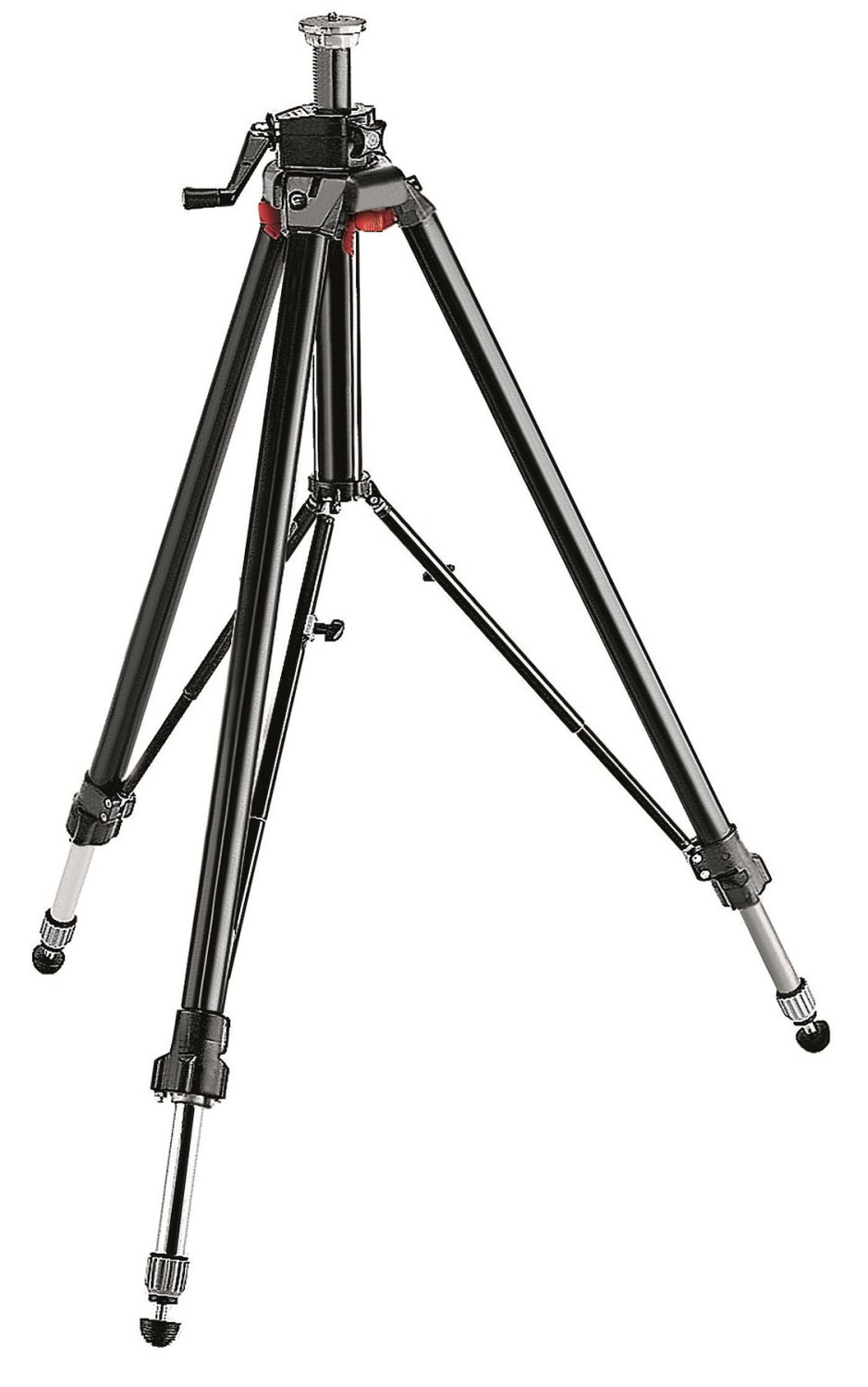

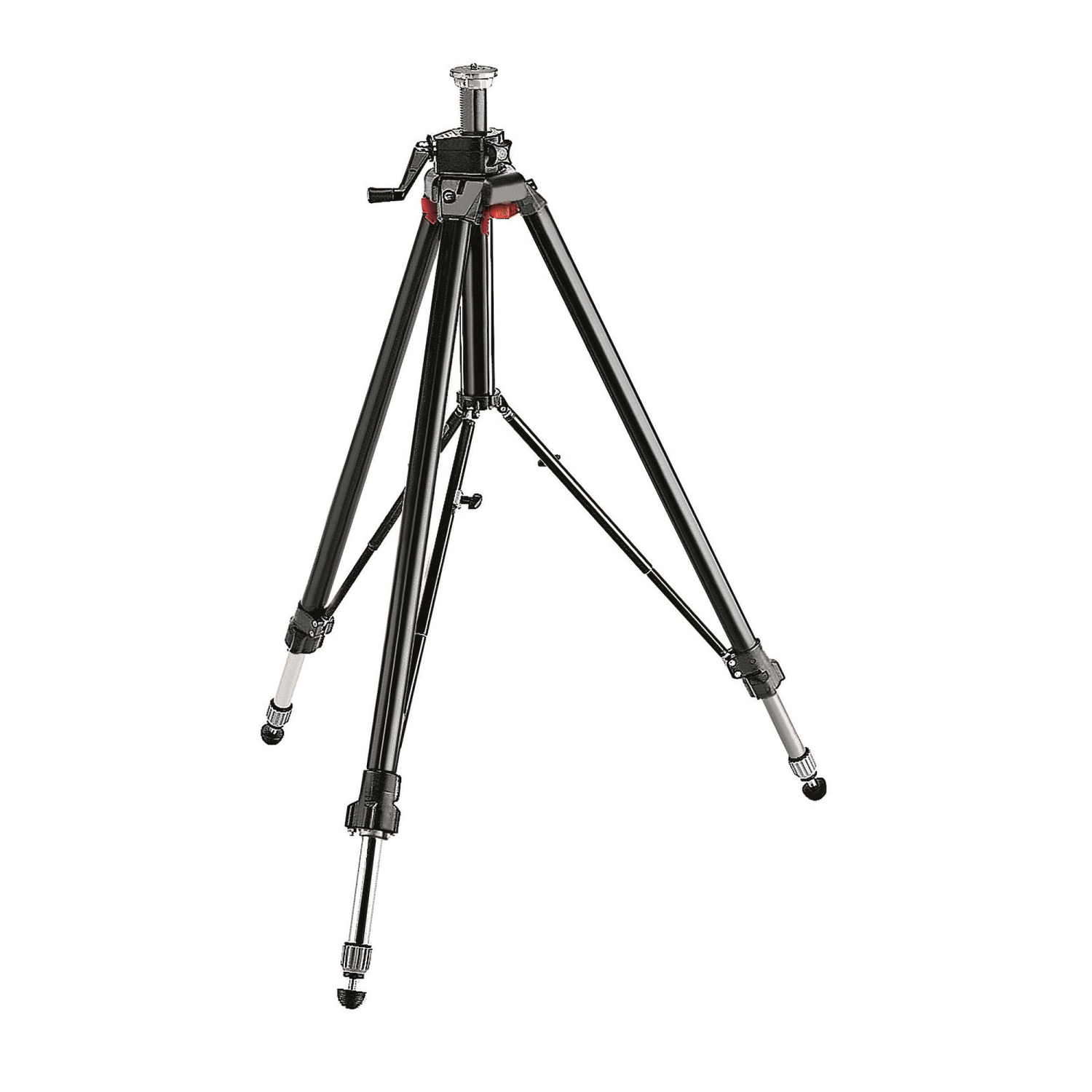

The Manfrotto 058B Triaut Camera Tripod (Black) is a heavy-duty professional studio tripod featuring a patented Triaut system for simultaneous or individual leg release, independent leg angle adjustment with telescopic struts, a geared center column, built-in mid-level spreader for stability, rubber feet with retractable spikes, a bubble spirit…
The Manfrotto 058B Triaut Camera Tripod (Black) is a heavy-duty professional studio tripod featuring a patented Triaut system for simultaneous or individual leg release, independent leg angle adjustment with telescopic struts, a geared center column, built-in mid-level spreader for stability, rubber feet with retractable spikes, a bubble spirit level and a comfortable carrying strap, supporting up to 12kg payload with a maximum height of 217cm.
Manfrotto 058B · Triaut
Studio height, precise control
Aluminium and steel support up to 12 kg, with a maximum height of 217 cm. Triaut speeds leg adjustment; the geared column refines framing. Select a head separately.
12 kg217 cmTriaut
Three legs, one adjustment

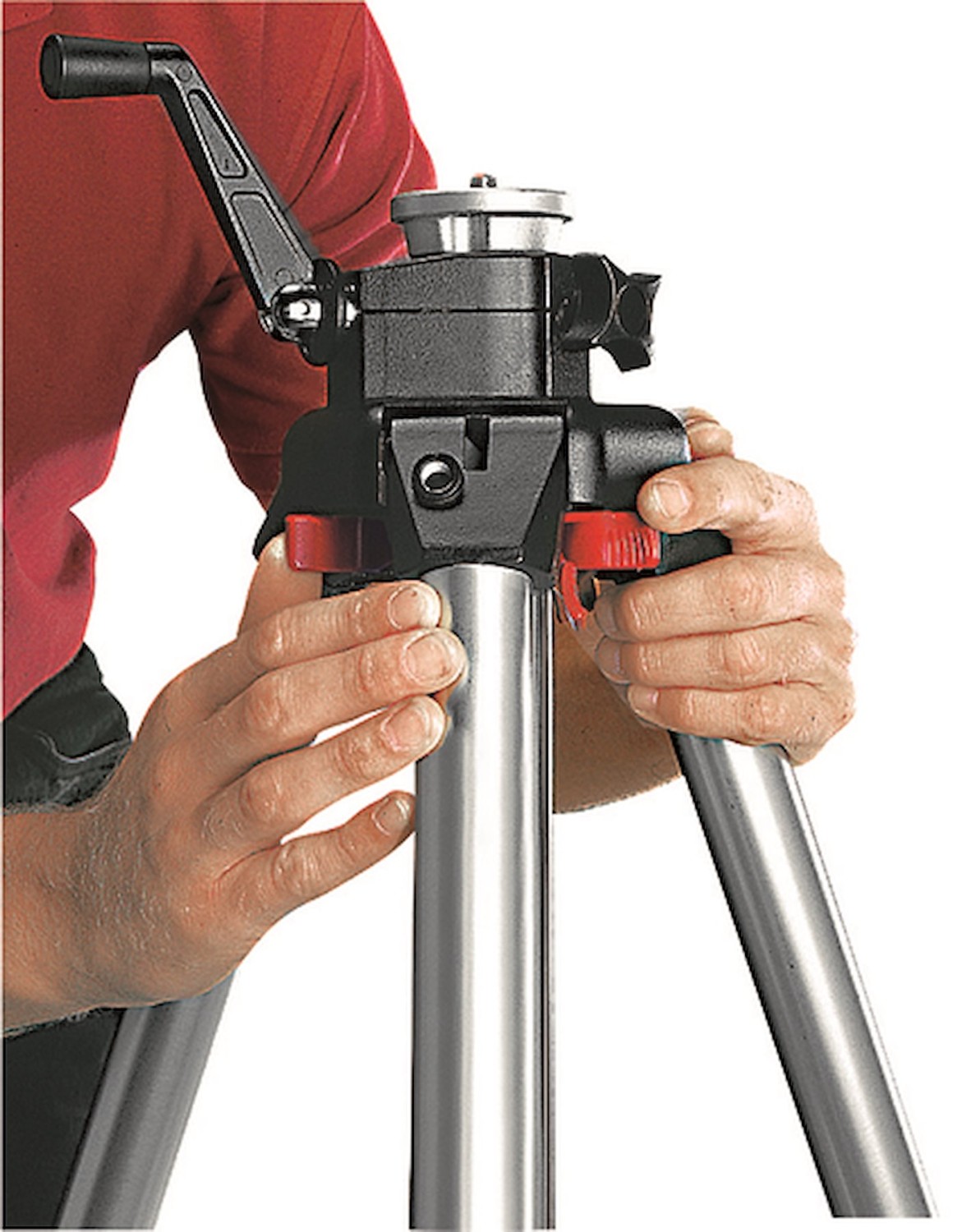

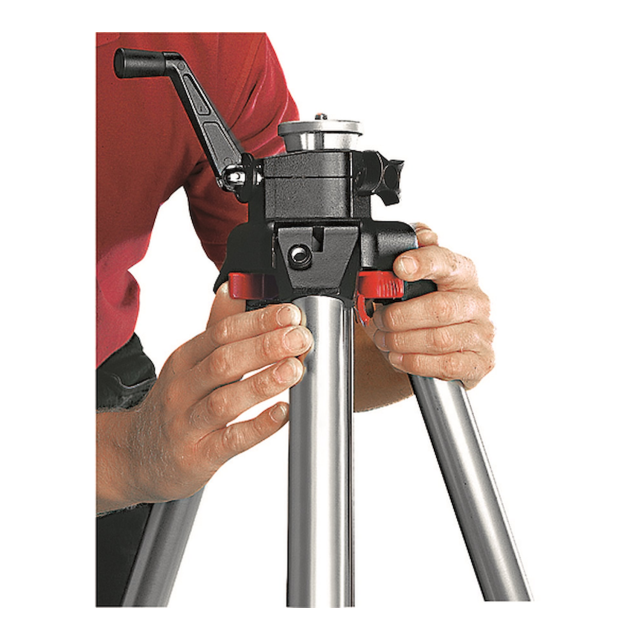

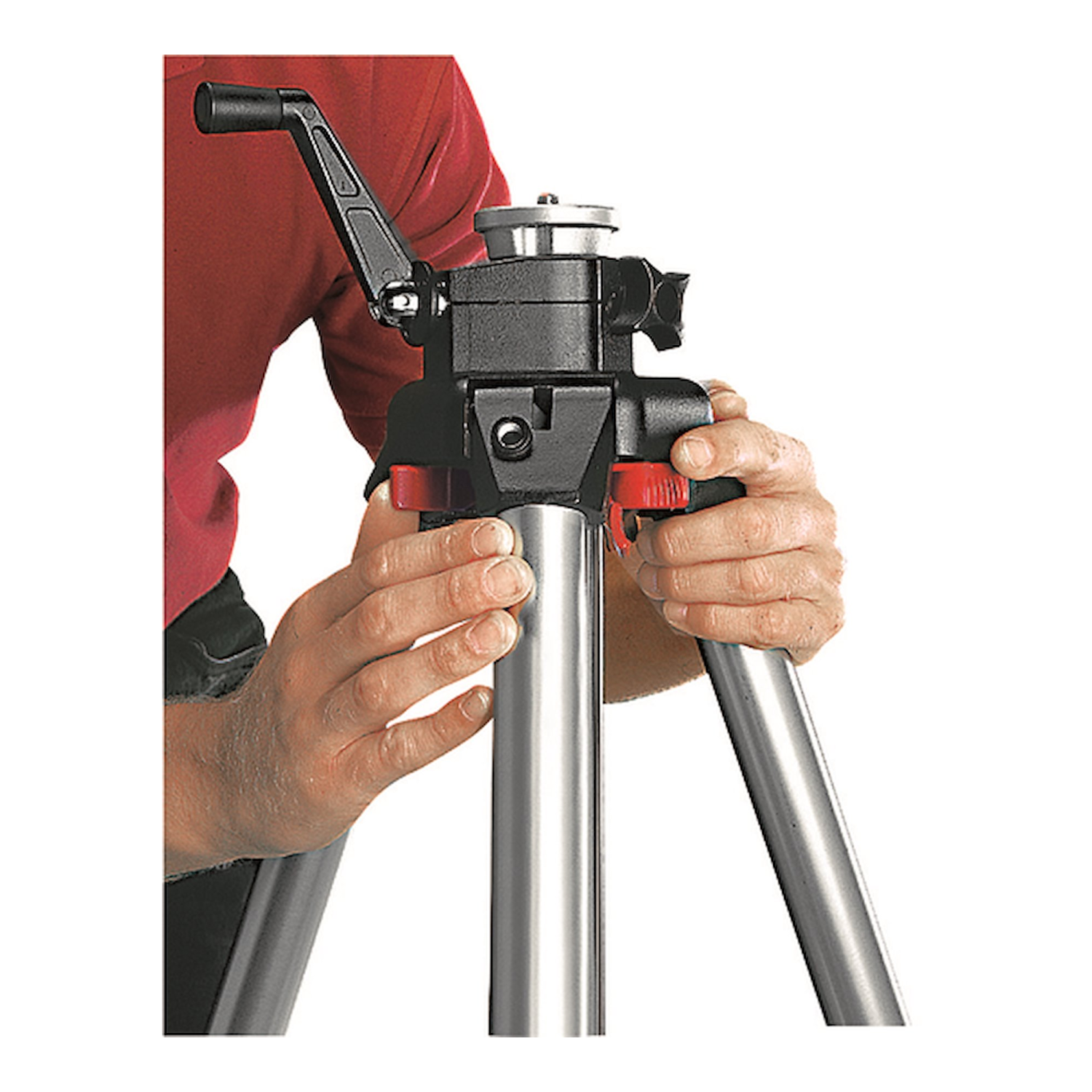

Lift at least two of the three D levers together to release all automatic leg sections; use C for one leg. Release the controls at the required height. Telescopic struts let you set and secure each leg angle independently.
The extra lower T sections of this non-USA 058B extend manually using the E locking rings.
Precise height by crank
Loosen O, turn the L crank to move column N, then retighten O before shooting. The safety ratchet prevents accidental descent; it does not replace the final column lock.
L — crank handle
N — centre column
O — column-lock knob
Original manufacturer diagram, Fig. 5.
Built for studio positioning
Made in Italy, the 058B combines anodised aluminium legs with steel lower extensions. Its mid-level spreader adds torsional rigidity and limits unwanted leg spreading. Rubber feet have retractable metal spikes for outdoor use; the bubble level helps alignment. The supplied 102 strap supports carrying this 6.7 kg tripod.
The upper 3/8″ screw accepts a separately selected head. For low-angle work, the lower 3/8″ Q mounting may be used only with column N fully lowered and locked with O. The setup’s capacity is limited by its weakest component: tripod, head or accessory.
Karl Taylor Visual Education’s 2011 video demonstrates the 058B release and geared column at 02:10–04:29, then moves to a different Neotec tripod. The demonstrated head is not included; historical figures and informal maintenance advice do not replace current specifications or the manufacturer’s manual.
PACKAGE CONTENT
058B Triaut tripod legs — head not included
102 carrying strap — included with this non-USA model
SPECIFICATIONS
Weight: 6.7 kg
Leg Sections: 3
Maximum Height: 217 cm
Maximum Height (with Center Column Down): 191 cm
Minimum Height: 44 cm

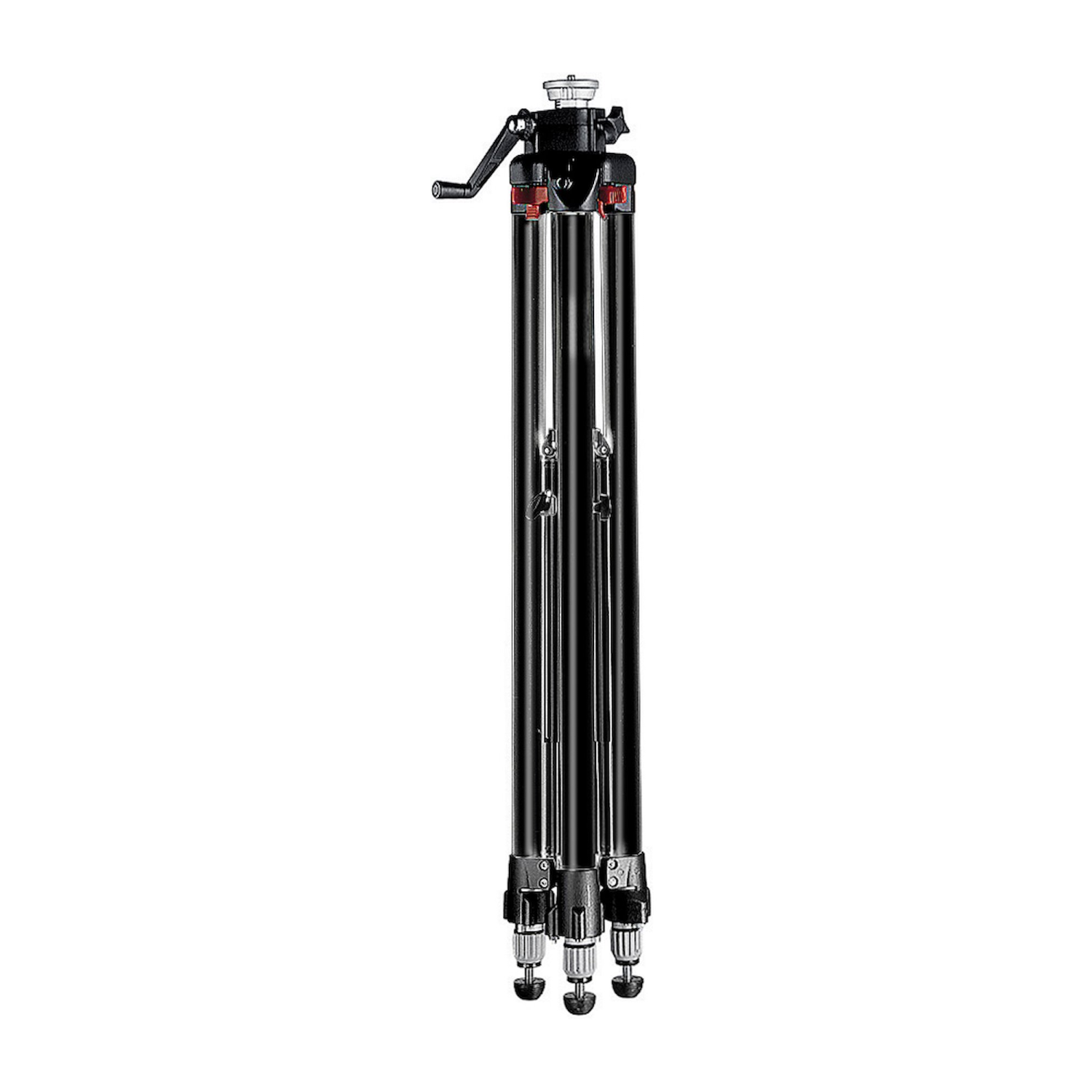

Closed Length: 94 cm
Safety Payload Weight: 12 kg
Bubble Spirit Level: 1
Center Column: Geared, crank-operated
Upper Disc Diameter: 60 mm
Top Attachment: 3/8″ screw
Color: Black
Leg Lock Type: Self Lock / Triaut
Legs Tube Diameter: 35, 25, 20 mm
Material: Aluminium, Steel
Maximum Working Temperature: 60 °C
Minimum Working Temperature: -30 °C
Carrying Bag Included: None
Easy Link: No
WE RECOMMEND
Choose one head to suit your photography or video work, and one dolly if you need movement around the studio. The three heads below mount via a 3/8″ female base; the weakest tripod, head or accessory determines the complete setup’s load limit.
