Manfrotto MVK502AM‑1 Video Tripod with 502 Fluid Head

+2
  • -4 %
SKU: MVK502AM-1

The Manfrotto MVK502AM‑1 is a complete professional video tripod system featuring a 502 fluid head, a 75mm half-ball, an MVT502AM aluminum twin-leg tripod, a fixed center brace, and a padded carrying bag. It offers continuously adjustable pan and tilt resistance, a 4 kg fixed counterweight, a 504PLONG sliding plate, and a working height of 70.5–156 cm for…

More information

Promotion: -4%
583.47 € 558.34 € with VAT 461.44 € without VAT
Add to Compare Price history
Availability
on request
SKU:
MVK502AM-1
Add to Compare Price history

Top accessories for Manfrotto MVK502AM‑1 Video Tripod with 502 Fluid Head

Manfrotto MVAPANBARL Telescopic PVC-Free Pan Bar

  • LAST PIECE
Manfrotto MVAPANBARL is a telescopic pan bar for precise control of compatible video
62 €
In stock 1 pcs

Manfrotto MVAPANBARM Fixed PVC-Free Pan Bar

  • LAST PIECE
Manfrotto MVAPANBARM is a fixed-length, non-telescopic pan bar for selected professional
35 €
In stock 1 pcs

Manfrotto 504PLONG Long Video Plate for 504HD

  • LAST PIECE
The Manfrotto 504PLONG is a 140 mm long aluminium sliding camera plate designed for
52 €
In stock 1 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

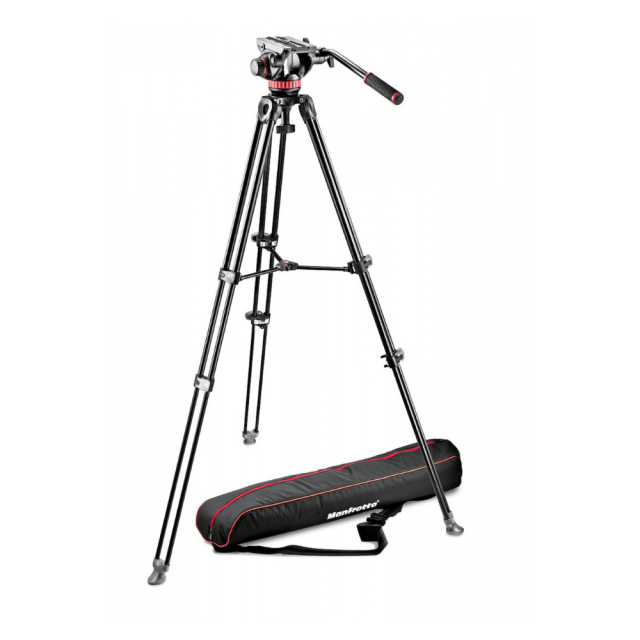

The Manfrotto MVK502AM‑1 is a complete professional video tripod system featuring a 502 fluid head, a 75mm half-ball, an MVT502AM aluminum twin-leg tripod, a fixed center brace, and a padded carrying bag. It offers continuously adjustable pan and tilt resistance, a 4 kg fixed counterweight, a 504PLONG sliding plate, and a working height of 70.5–156 cm for cameras and rigs weighing up to 7 kg.

Manfrotto MVK502AM‑1

A complete fluid system for precise camera movement

The 502 head with an integrated 75mm half-ball and the MVT502AM aluminum double tripod form a versatile setup for interviews, news reports, corporate videos, and studio productions.

70.5–156 cmcamera up to 7 kg4 kg counterbalance3.86 kg
Manfrotto MVK502AM-1 kompletní videostativový systém

Smooth pan and tilt

The fluid resistance for panning and tilting can be continuously adjusted from minimum to maximum depending on the setup and the desired shooting pace.

Quick balancing

The 504PLONG sliding plate simplifies camera mounting and balancing; the fixed 4 kg counterweight helps stabilize the tilt.

Rigid double-tube construction

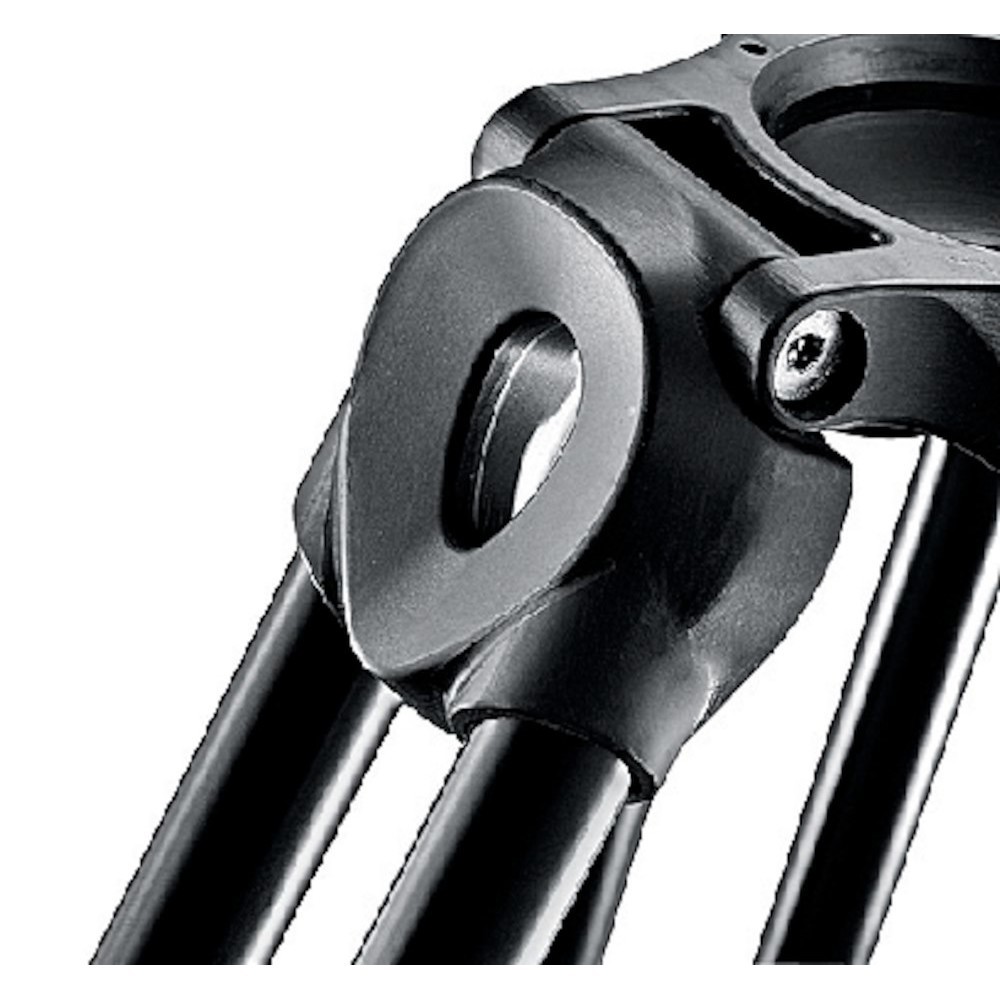

Elliptical aluminum tubes minimize twisting, and a rigid center brace speeds up safe tripod setup.

PACKAGE CONTENT

Fluidní videohlava Manfrotto MVH502A

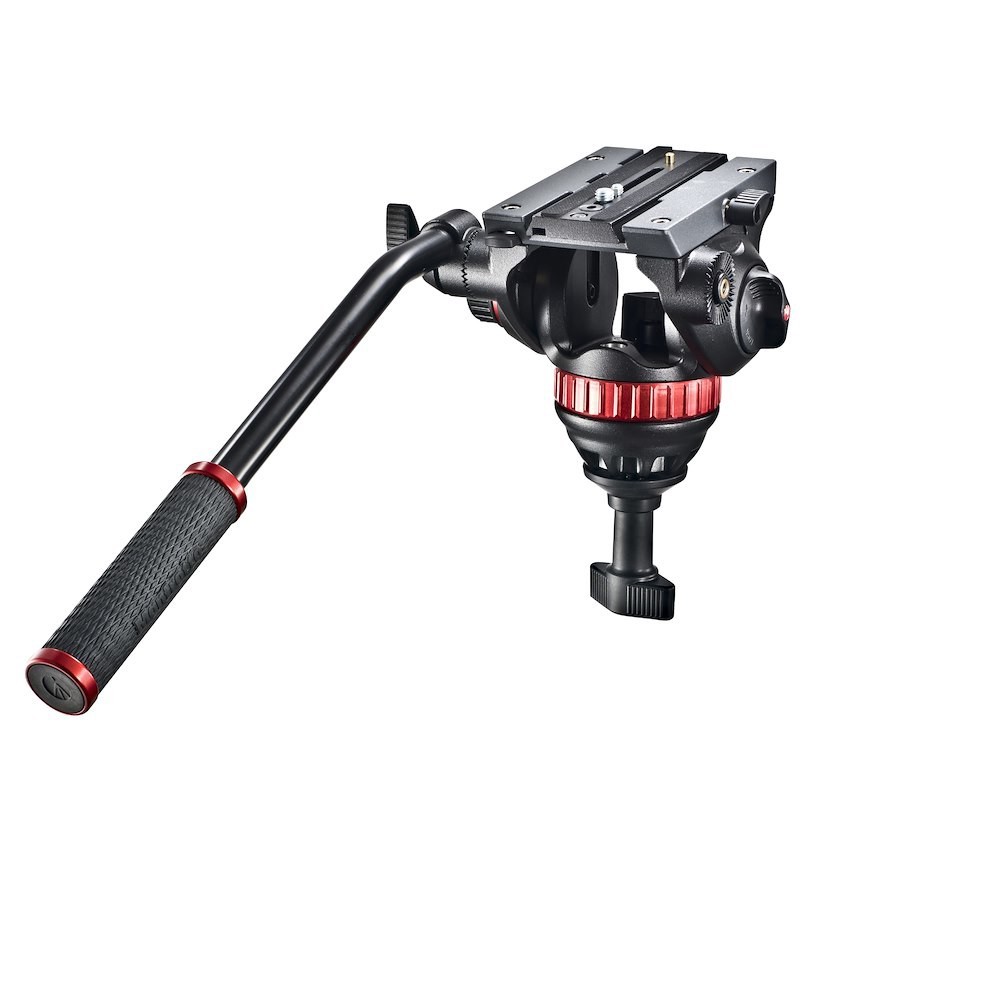

The 502 Head Under Control

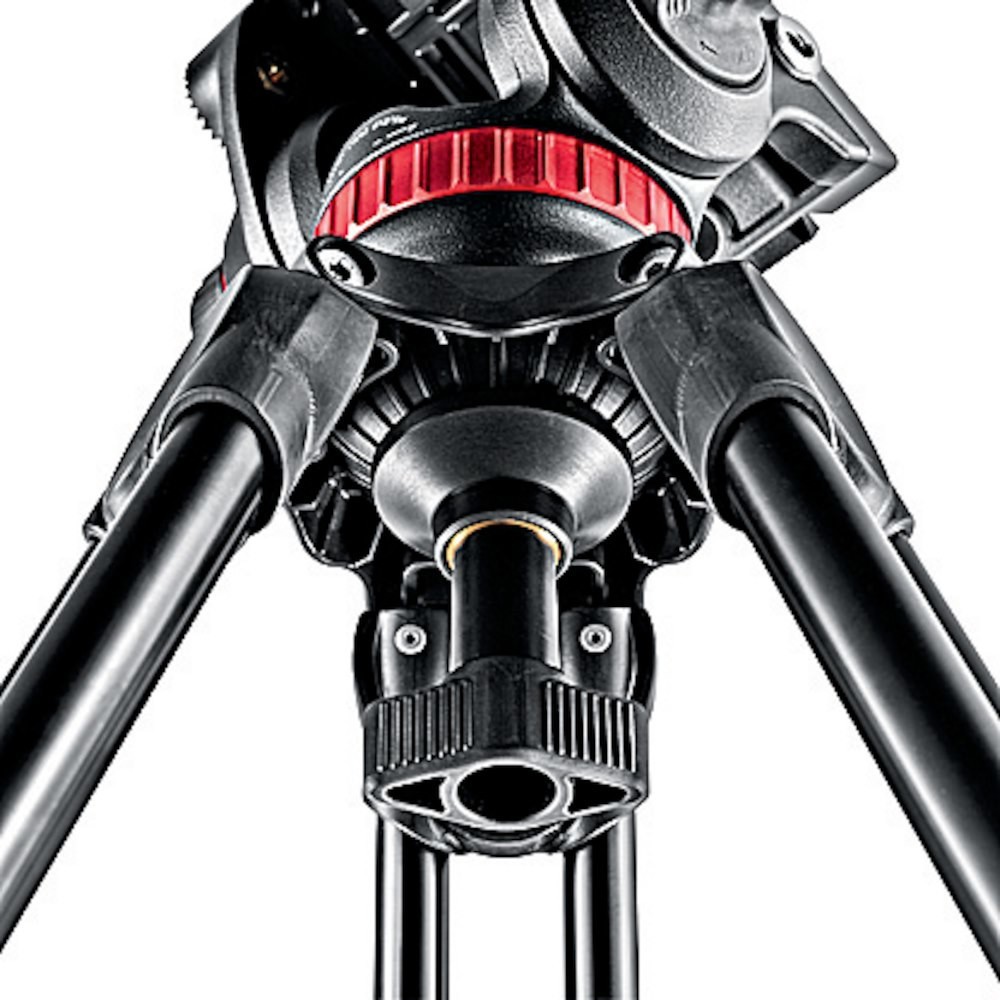

A tilt range of −80° to +90° and 360° panoramic rotation give the cameraman the freedom to track the action and create precise static compositions. The spirit level helps quickly level the 75mm hemispherical head, and Easy Link accepts compatible external accessories.

Important Load Capacity Note

The manufacturer specifies 10 kg as the safe load capacity of the system according to UNI/PdR 105:2021, but the working load capacity of the head for the camera and accessories is 7 kg.

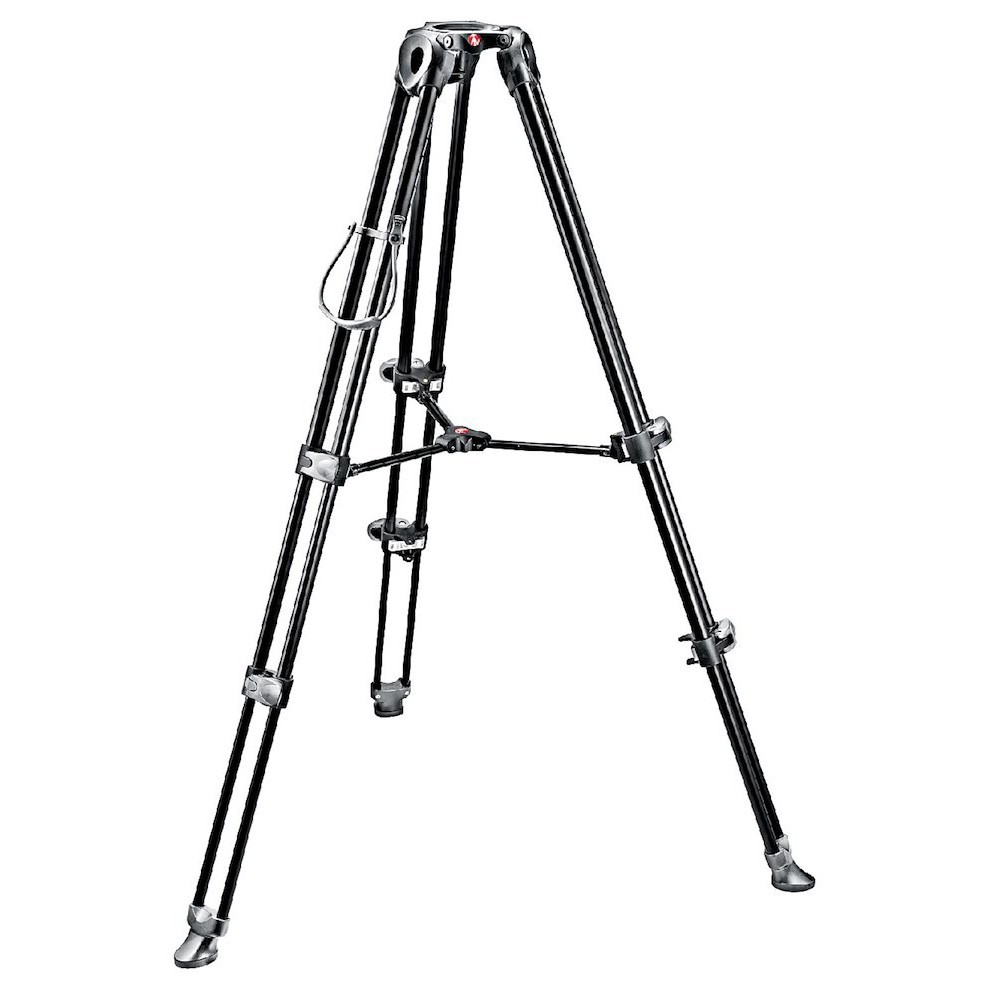

MVT502AM for Quick Setups

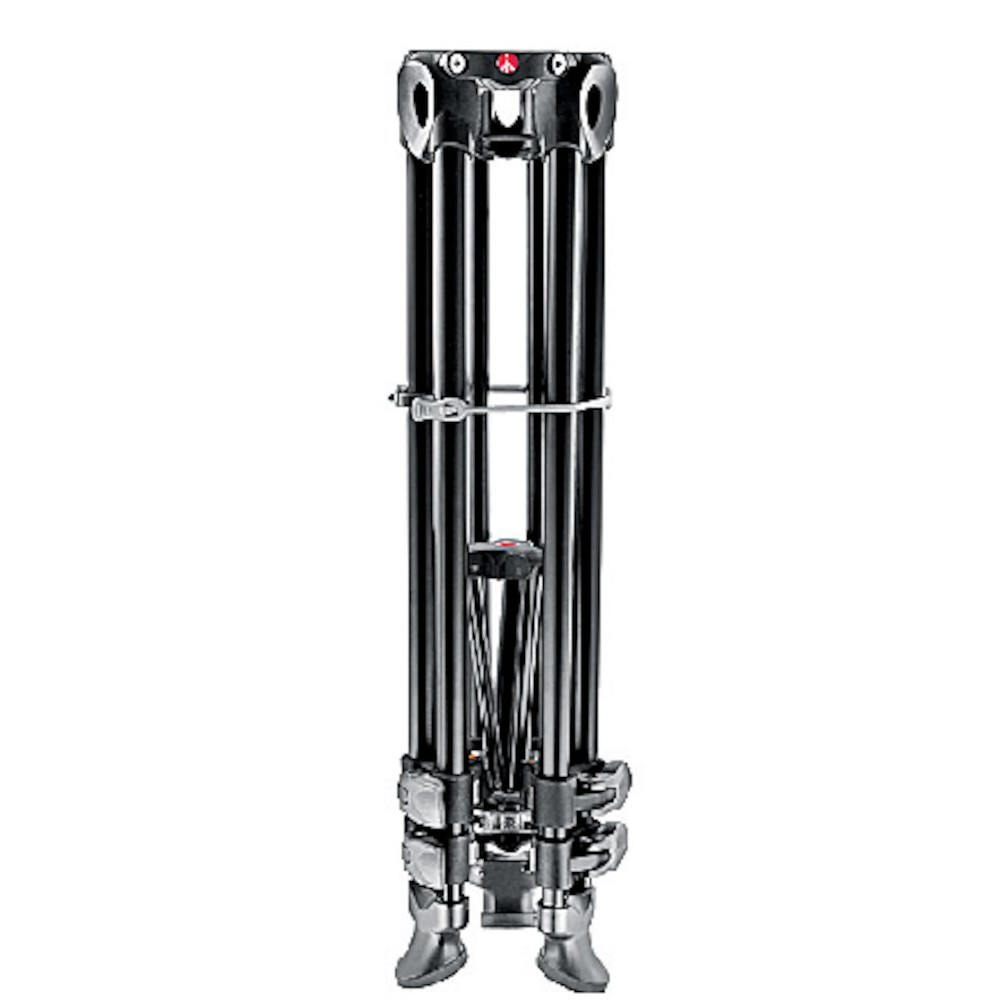

Two telescoping levels, three leg sections, and lever locks allow for quick height adjustments. The system folds down to 75 cm, weighs 3.86 kg, and comes in a padded 110125 carrying case.

Dvojité nohy a zámky stativu Manfrotto MVT502AM

Package Contents

  • Manfrotto MVH502A fluid video head with a 75mm hemispherical ball
  • MVT502AM aluminum double video tripod
  • 504PLONG sliding plate
  • Panoramic handle
  • Fixed center brace
  • 110125 padded carrying case

SPECIFICATIONS

Technical Specifications

Weight3.86 kg
Working height70.5–156 cm
Closed length75 cm
System safety payload10 kg (UNI/PdR 105:2021)
Head working payload7 kg
Counterbalancefixed, 4 kg at 55 mm
Base75 mm half ball
Tilt / pan−80° to +90° / 360°
Plate504PLONG
Legstwin, 3 sections
Tube diameters15.2 / 18.3 / 21.7 mm
Spreaderfixed mid-level
Material / colouraluminium / black
Operating temperature−20 to +60 °C

WE RECOMMEND

The Manfrotto MVK502AM-1 video system combines a 502 Series fluid head with a 75mm half-ball and lightweight aluminum legs with a telescoping design. Thanks to its integrated Easy Link connectors and standard threads, the system is ideal for adding external monitors, arms, and other accessories for professional video production.

Arms and Accessory Mounts - Products that use the Easy Link connector on the 502 head to mount monitors and other equipment.

Tripod plates and quick-release plates - Compatible plates and systems for quickly swapping equipment on a fluid head.

Clamps and Mounting Accessories - Universal clamps for attaching accessories directly to the legs of the MVT502AM tripod.

Adapters and screws - Adapters and reducers for connecting different thread and spigot standards.

Head Accessories - Accessories for more comfortable control and handling of the fluid head.

Parameters

Parameters

Manufacturer: Manfrotto
Category: Tripods

Main parameters

MaterialAluminium
TypeFluid head
Weight3.9kg
Ball Type75
Spacer typeMedium
Max height156cm
Tripod Load capacity7kg
Tirpod Payload7kg
