Lilliput TK2700-NP/C

The Lilliput TK2700-NP/C is a 27-inch metal-bezel monitor with a 1000-nit high-brightness 10-point capacitive touchscreen, featuring HDMI, VGA, and RCA/Composite inputs, anti-glare/anti-fingerprint/UV-resistant coating, glove-capable touch, IP65/NEMA 4 front-panel water and dust resistance, 7H surface hardness, and…

More information

419 € with VAT 346.28 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS

Product description

The Lilliput TK2700-NP/C is a 27-inch metal-bezel monitor with a 1000-nit high-brightness 10-point capacitive touchscreen, featuring HDMI, VGA, and RCA/Composite inputs, anti-glare/anti-fingerprint/UV-resistant coating, glove-capable touch, IP65/NEMA 4 front-panel water and dust resistance, 7H surface hardness, and IK07 impact protection, making it ideal for rugged public-facing installation.

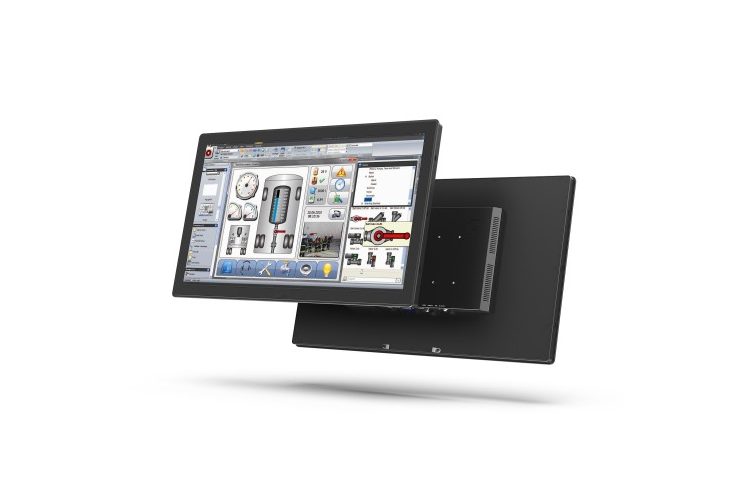

The Lilliput TK2700-NP/C is a 27-inch metal monitor - the largest of the TK range of metal bezel monitors - equipped with a 10-point capacitive touch screen and 1000nits high brightness screen panel. Input choices include HDMI, VGA, and - for more legacy style video feeds - it also supports RCA / Composite input. The panel is produced specifically for this model of monitor, and it features anti-glare coating, anti-fingerprint treatment to resist obscuration from people touching the monitor, and UV resistance for clear outdoor viewing. The physical attributes of the unit are impressive and designed for public facing usage, supporting glove capable touch, an IP65/NEMA 4 water / dust resistant front panel, a 7H hardness rating and IK07 impact resistance rating, making it a solid, rugged monitor.

Key Features

  • 27-inch 1000-nit high-brightness display
  • 10-point capacitive touchscreen with glove support
  • Inputs: HDMI, VGA, RCA/Composite
  • Anti-glare, anti-fingerprint, UV-resistant panel
  • IP65/NEMA 4 front-panel water and dust resistance
  • 7H surface hardness and IK07 impact resistance
  • Metal bezel construction

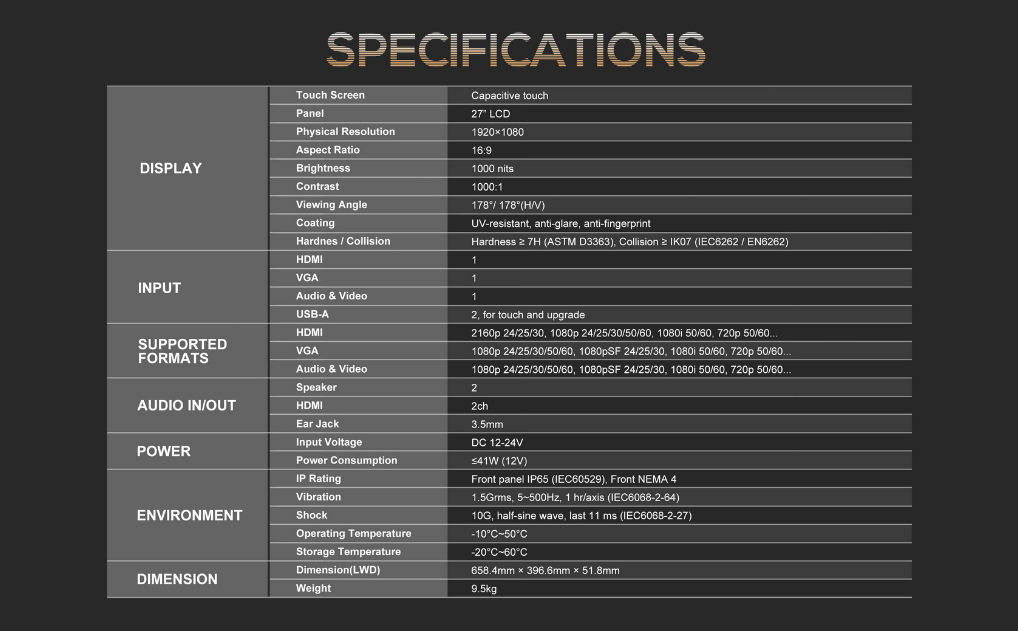

SPECIFICATIONS

DISPLAY

    Touch Screen: Capacitive touch
    Panel: 27" LCD

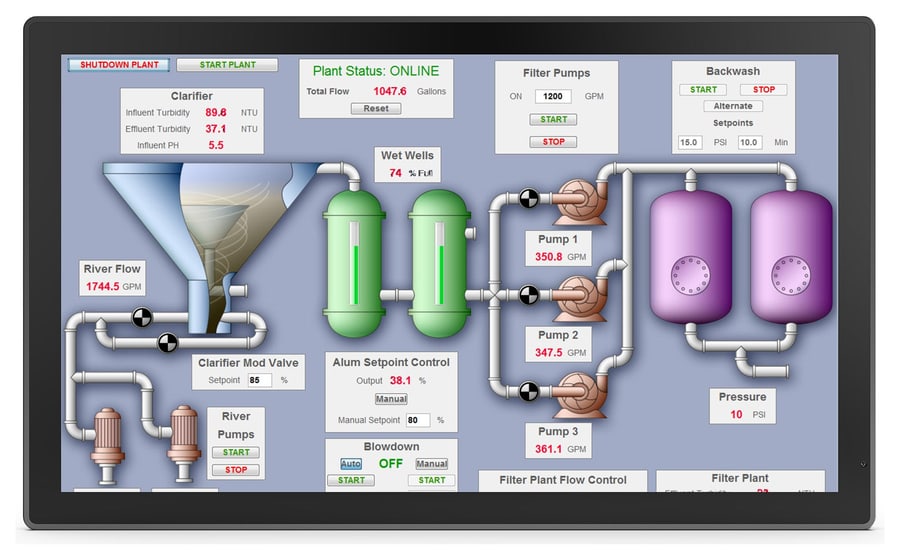

    Physical Resolution: 1920×1080
    Aspect Ratio: 16:9
    Brightness: 1000 nits
    Contrast: 1000:1
    Viewing Angle: 178°/178°(H/V)
    Coating: UV-resistant, anti-glare, anti-fingerprint
    Hardness / Collision: Hardness ≥7H (ASTM D3363), Collision ≥IK07 (IEC6262 / EN6262)

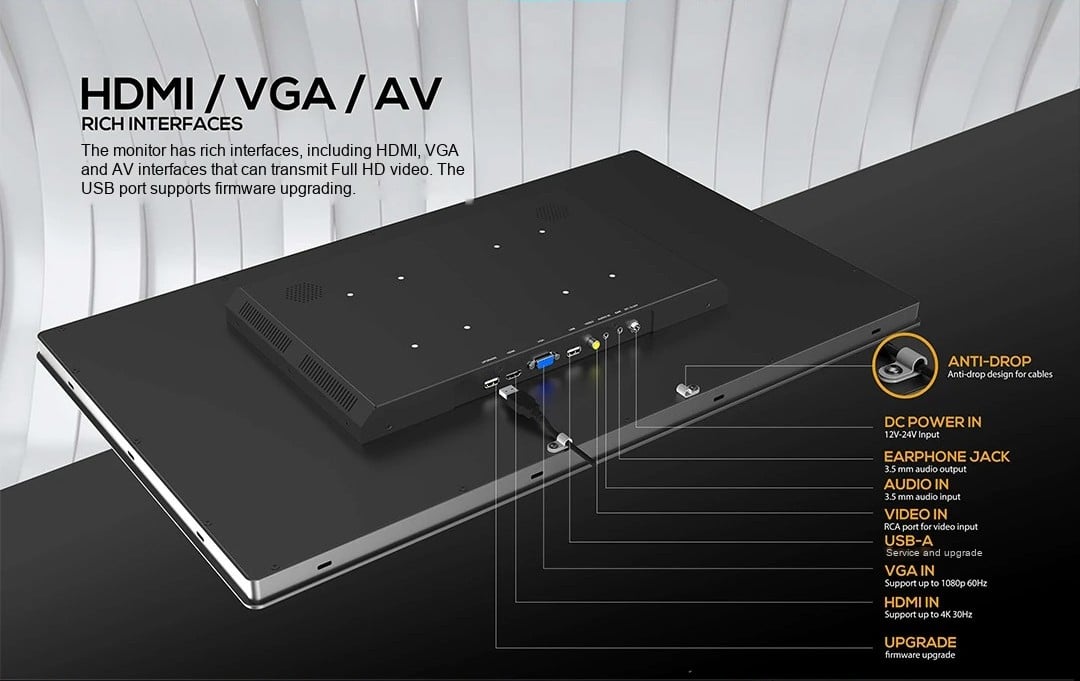

INPUT

    HDMI: 1
    VGA: 1
    Audio & Video: 1
    USB-A: 2, for touch and upgrade

SUPPORTED FORMATS

    HDMI: 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
    VGA: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
    Audio & Video: 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…

AUDIO IN/OUT

    Speaker: 2
    HDMI: 2ch
    Ear Jack: 3.5mm

POWER

    Input Voltage: DC 12-24V
    Power Consumption: ≤41W (12V)

ENVIRONMENT

    IP Rating: Front panel IP65 (IEC60529), Front NEMA 4
    Vibration: 1.5Grms, 5–500Hz, 1 hr/axis (IEC60068-2-64)
    Shock: 10G, half-sine wave, last 11 ms (IEC60068-2-27)
    Operating Temperature: -10°C ~ 50°C
    Storage Temperature: -20°C ~ 60°C

DIMENSION

    Dimension (LWD): 658.4mm × 396.6mm × 51.8mm
    Weight: 9.5kg

Parameters

Parameters

Manufacturer: Lilliput
Category: Studio Monitors

Main parameters

Size27"
Monitor inputsHDMI
Monitor inputsVGA
Luminosity1000cd/m2
Panel resolution1920x1080

Other parameters

Other featuresTouchscreen
