Lilliput PC-1011RL
SKU: PC-1011RL

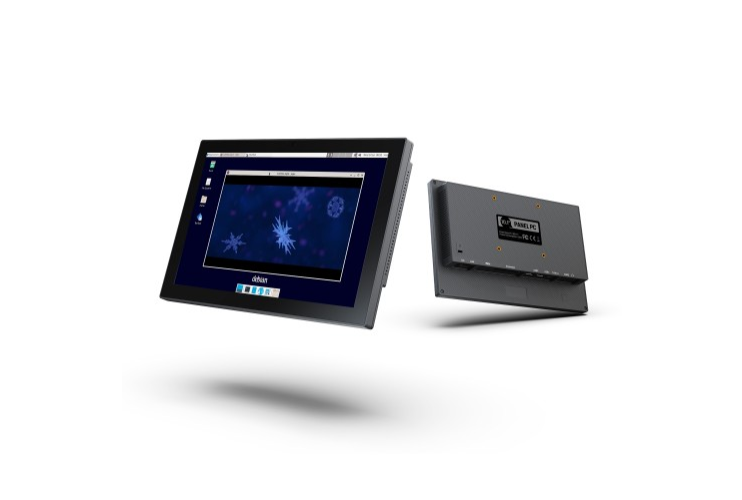

The Lilliput PC-1011RL is a 10.1" industrial panel PC with a 1280 × 800 capacitive touch display and 1000 nits brightness. A quad-core RK3568 running Linux Debian 11, an IP65/NEMA 4 front, 7H glass, DC 9–36 V power via terminal block and LAN, RS232/485/422, CAN, GPIO and USB; Wi-Fi, Bluetooth, 4G and GNSS optional.
419 € with VAT
346.28 € without VAT
Availability
on request
Top accessories for Lilliput PC-1011RL
PremiumCord Patch cable CAT 6a S-FTP BLK, 5m
Premiumcord Patch cable CAT 6a S-FTP, RJ45-RJ45, AWG 26/7 black
5.8 €
In stock 2 pcs
SanDisk Extreme Pro MicroSD 256GB V30 UHS-I
The SanDisk Extreme PRO microSDXC 256GB delivers ultra‑fast performance with read
86 €
To be sent 4 pcs
SmallRig Mount Plate for Monitor VESA for Camera Cart 6257
The SmallRig 6257 VESA kit attaches a production monitor to a camera cart or stand
330 €
Backordered > 5 pcs
Manfrotto TetherGear VESA Monitor Mount
The TetherGear VESA Monitor Mount is the ideal connecting solution for image makers
197 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Lilliput PC-1011RL is a 10.1" industrial panel PC with a 1280 × 800 capacitive touch display and 1000 nits brightness. A quad-core RK3568 running Linux Debian 11, an IP65/NEMA 4 front, 7H glass, DC 9–36 V power via terminal block and LAN, RS232/485/422, CAN, GPIO and USB; Wi-Fi, Bluetooth, 4G and GNSS optional.

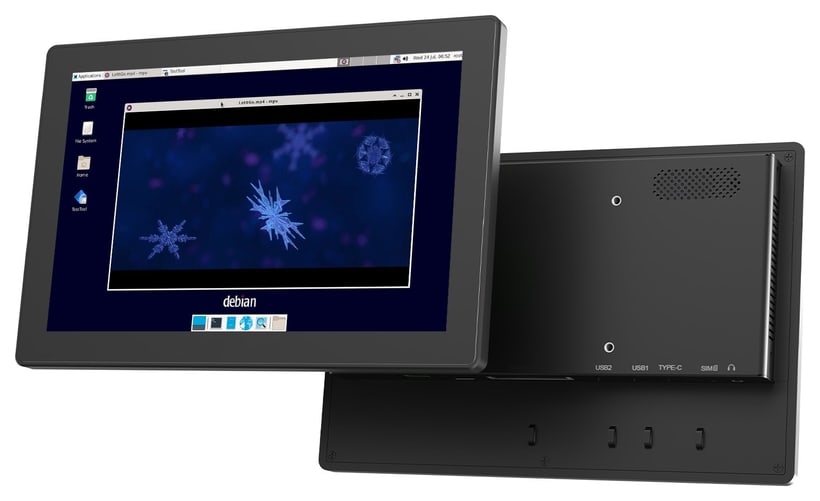

Linux panel PC with 1000 nits
Display, computer and industrial interfaces in one housing with an IP65 front. Build it into a machine panel, kiosk or vehicle and power it directly from 9–36 V.
10.1" 1280 × 8001000 nitsRK3568 · Debian 11DC 9–36 VIP65 / NEMA 4
Industrial interfaces built into the computer
Two RS232, two RS485 and one RS422 serial ports, two CAN 2.0b buses, four GPIO inputs and an ACC input are brought out to the expansion connector. Gigabit LAN with optional PoE/PoE+, a nano SIM slot and microSD up to 1 TB, plus antenna connectors for Wi-Fi, 4G and GPS.
7H glass, IK06
Fully laminated G+G PCAP touch with 86% transmittance.
IP65 / NEMA 4
The front resists dust and water jets.
9–36 V DC
ISO 7637-II compliant, Phoenix terminal.
−10 to 60 °C
Vibration 1.5 Grms and 10 G shock per IEC 60068.

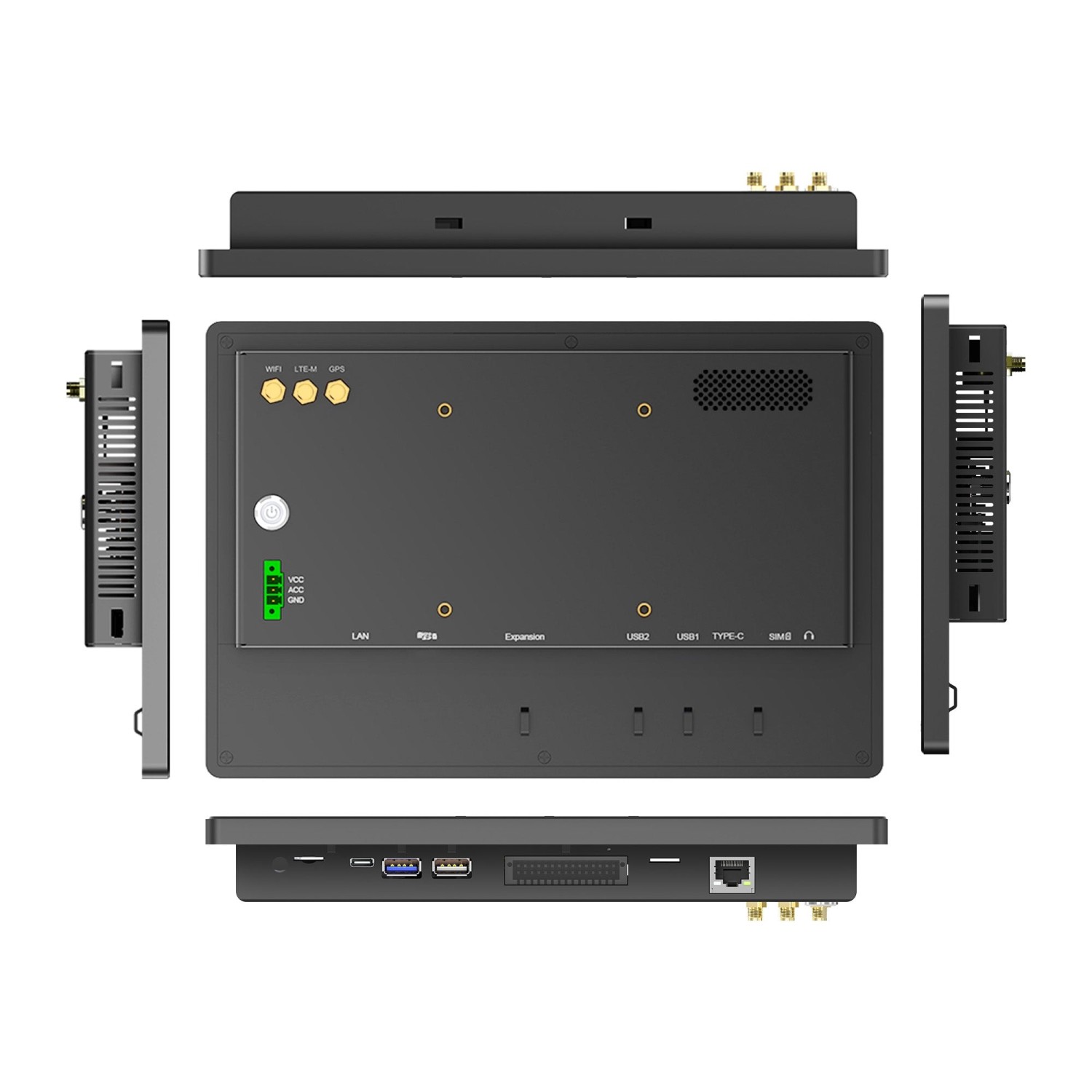

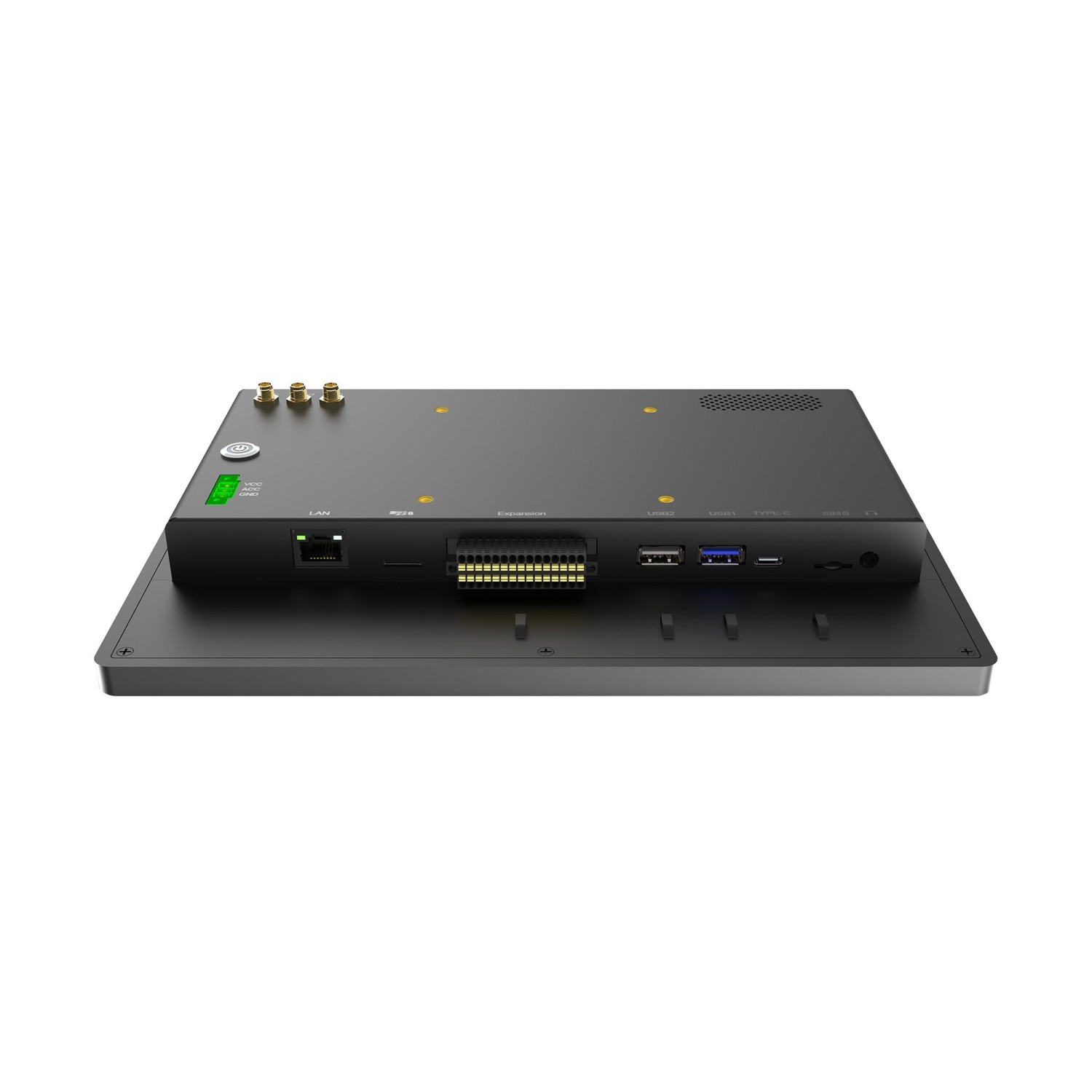

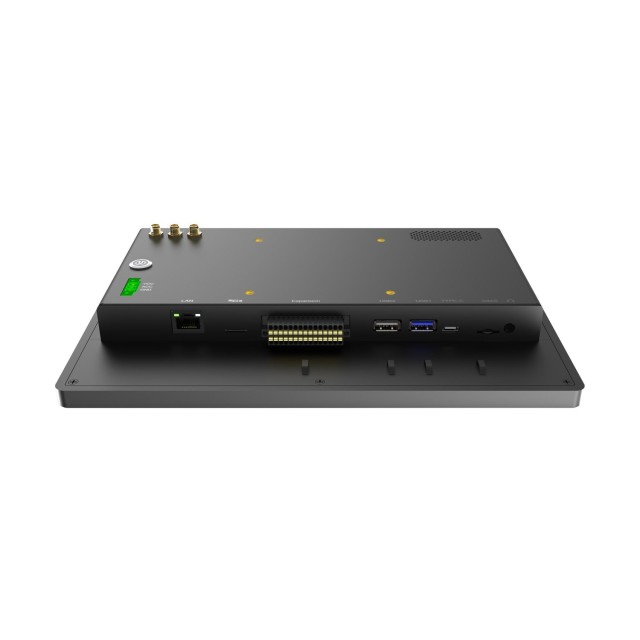

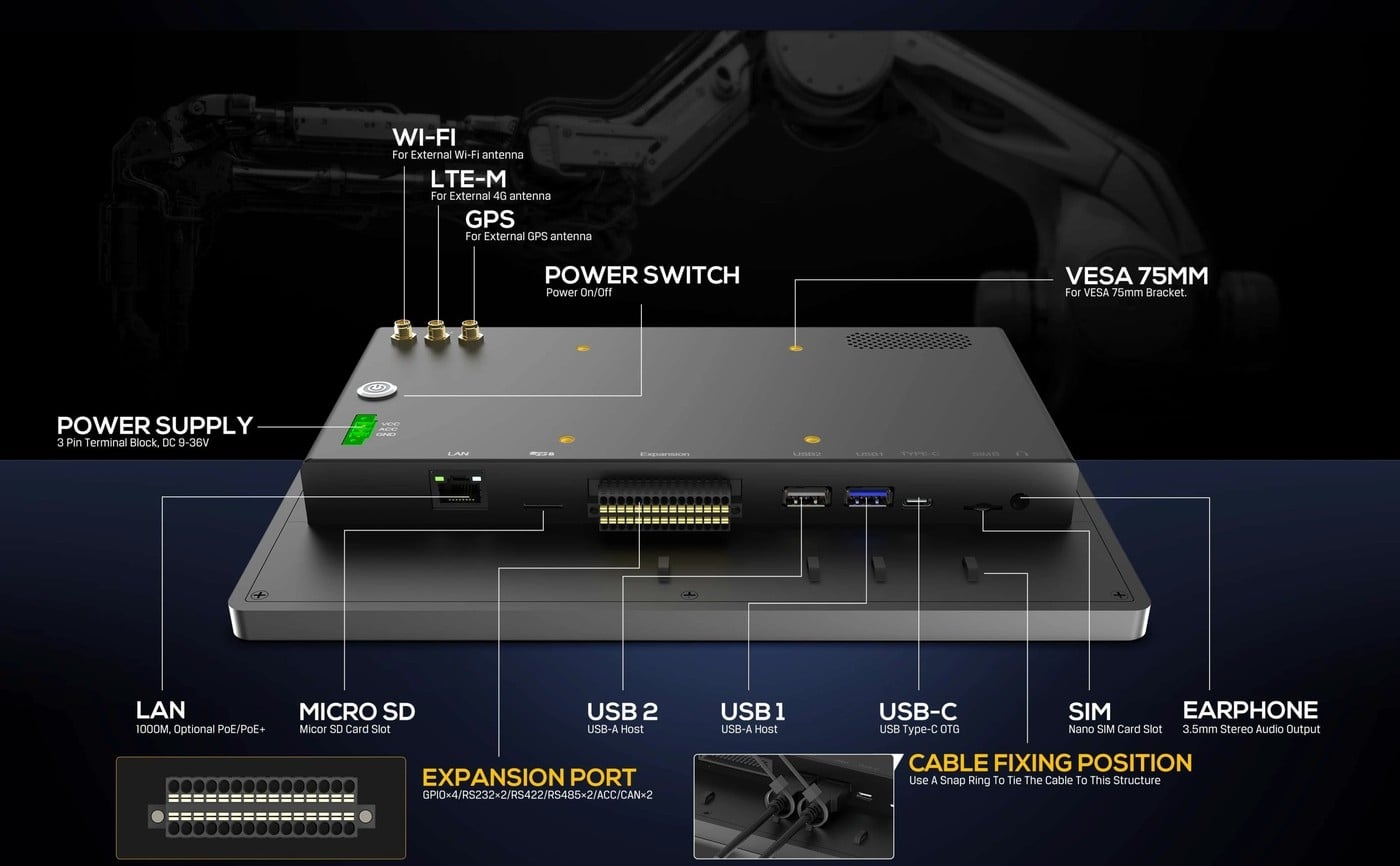

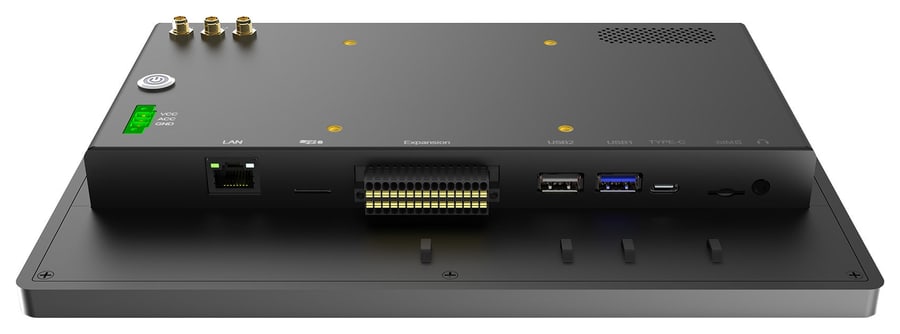

Ports on the bottom edge
LAN, microSD, expansion port, 2× USB-A, USB-C OTG, SIM and headphones; antenna connectors and the power switch on top.

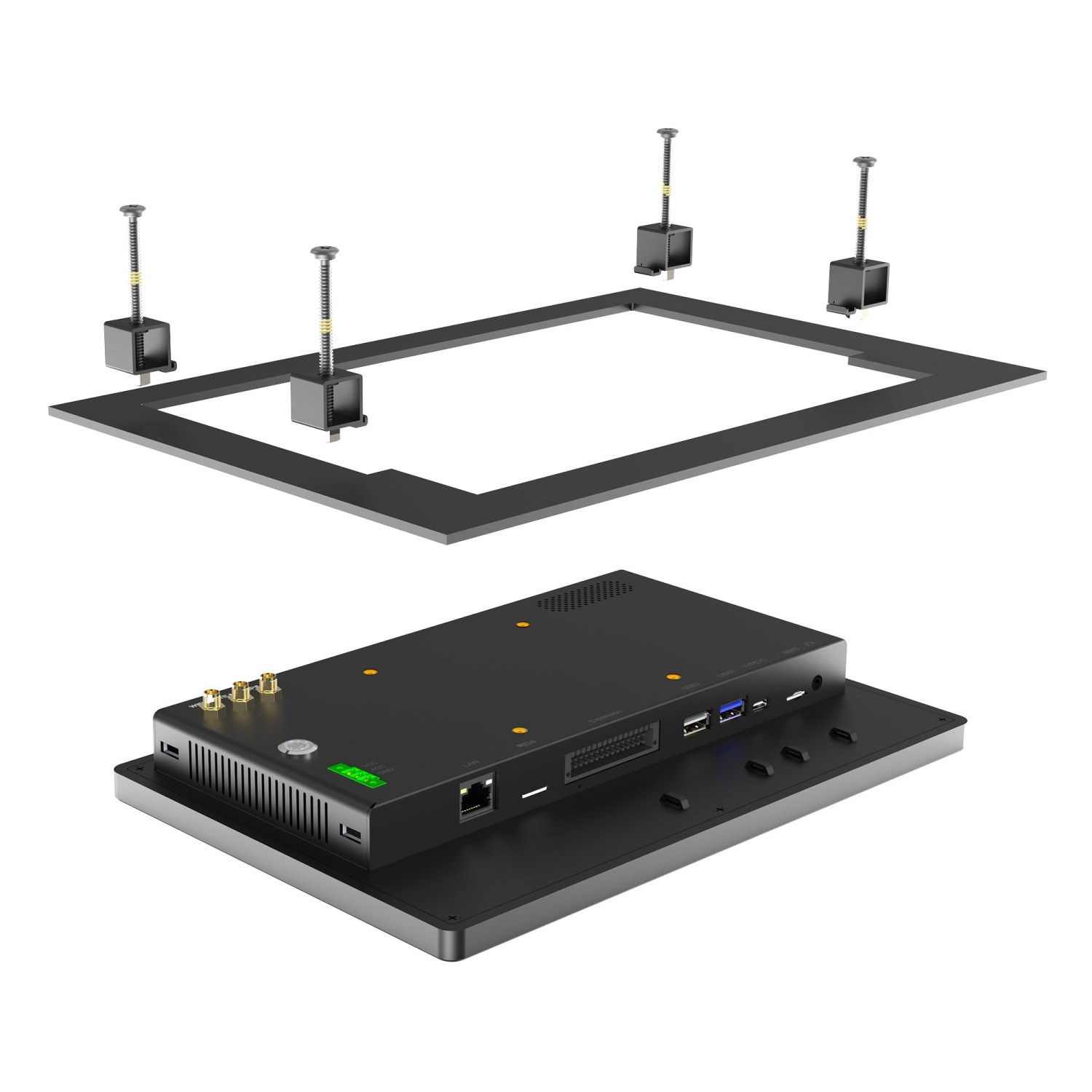

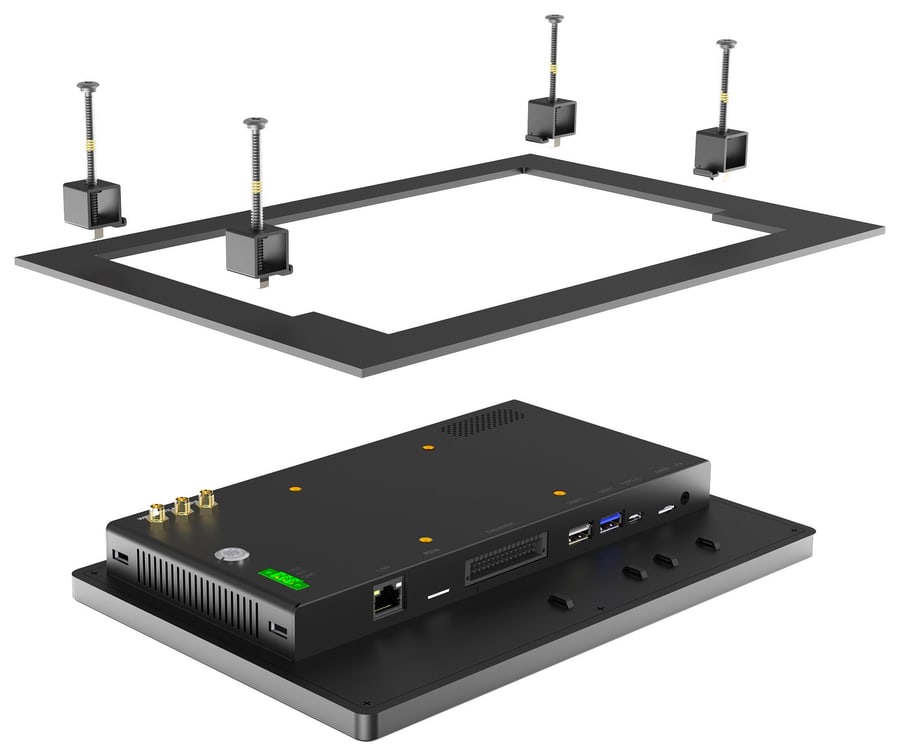

Panel mounting
Fixing screws clamp the PC from behind to the cut-out and waterproof foam seals the front.
More information
About the PC-1011RL
The PC-1011RL is a 10.1" panel PC with 1000 nits brightness and a highly adaptable connectivity set: optional 4G cellular, GPS / GLONASS reception, Wi-Fi and Bluetooth.
It is designed to adapt to a wide range of uses – proven in queuing systems, smart-home control panels and retail digital signage – and also fits factory systems and control rooms.
PACKAGE CONTENT
- Lilliput PC-1011RL panel PC
- Phoenix power terminal
- Matching socket for the expansion port
- USB-A to USB-C cable
- Fixing screws
- Waterproof foam gasket
SPECIFICATIONS
- Model: PC-1011RL

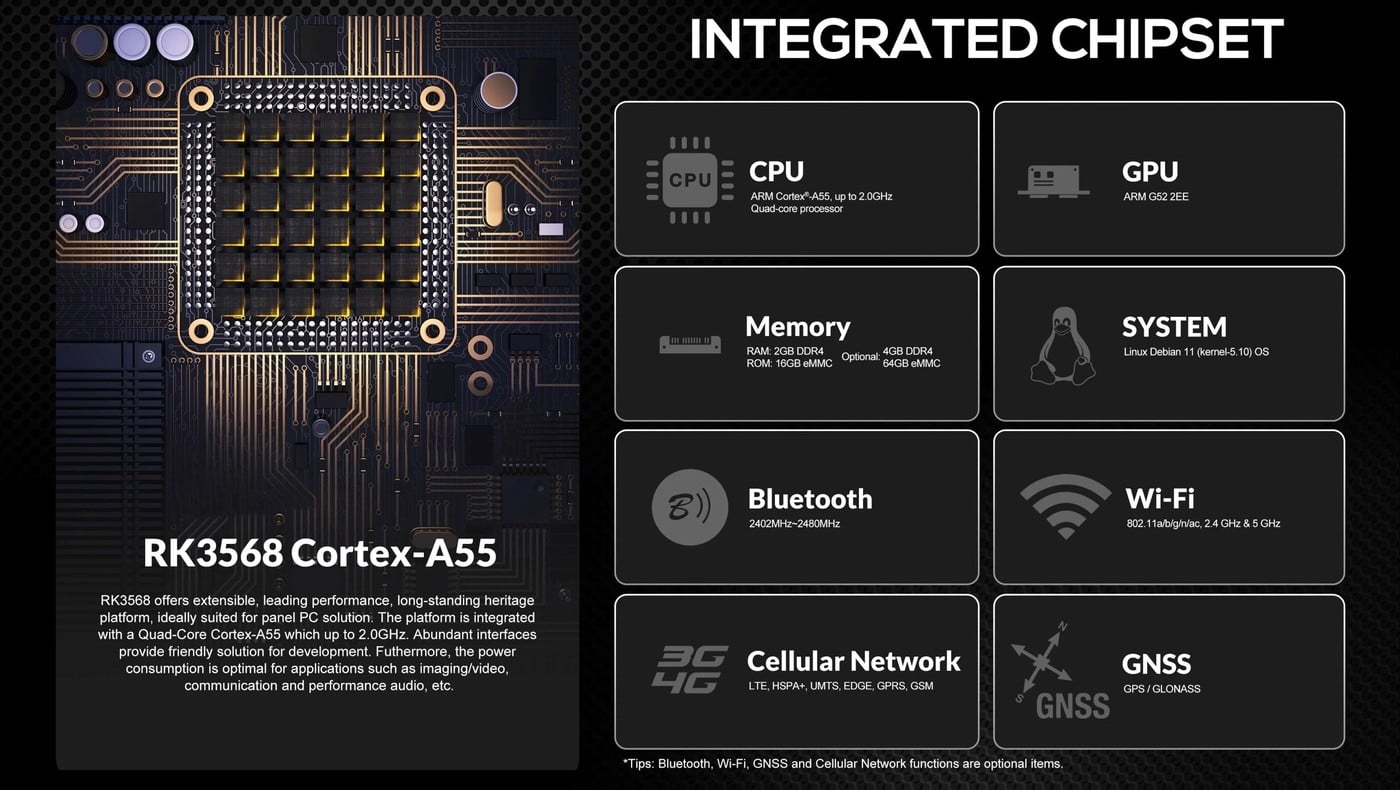

- CPU: Rockchip RK3568, ARM Cortex-A55, quad-core, 2.0 GHz
- GPU: ARM Mali-G52 2EE
- Operating system: Linux Debian 11 (kernel 5.10)
- Memory: 2 GB DDR4 + 16 GB eMMC, optional 4 GB + 64 GB
- Display: 10.1" IPS, 1280 × 800, 1000 nits, 170° / 170°
- Touch panel: multi-point PCAP, G+G technology, transmittance ≥ 86%
- Hardness / impact: ≥ 7H (ASTM D3363) / ≥ IK06 (IEC 62262 / EN 62262)
- Interfaces: LAN 1000M ×1 (optional PoE/PoE+, IEEE 802.3af/at), GPIO ×4 (inputs), RS232 ×2, RS485 ×2, RS422 ×1, CAN 2.0b ×2, nano SIM ×1, microSD ×1 (up to 1 TB), USB-A host ×2, USB-C OTG ×1, ACC ×1, 3.5 mm headphones
- Wireless (optional): Wi-Fi 802.11a/b/g/n/ac (2.4/5 GHz), Bluetooth (2402–2480 MHz), 3G/4G (LTE, DC-HSPA+, UMTS, EDGE, GPRS, GSM), GNSS (GPS, GLONASS)
- Front camera: 5 MP (optional)
- Sensors: light sensor; optional gyroscope, accelerometer, magnetic sensor
- Audio: 1× speaker, 3.5 mm headphone output
- Power input: DC 9–36 V, 3-pin terminal block (ISO 7637-II)
- Power consumption: ≤ 16 W
- Protection rating: front IP65 (IEC 60529), NEMA 4
- Vibration: 1.5 Grms, 5–500 Hz, 1 h/axis (IEC 60068-2-64)
- Shock: 10 G, half-sine, 11 ms (IEC 60068-2-27)
- Operating temperature: −10 to 60 °C
- Storage temperature: −20 to 65 °C
- Dimensions (W × H × D): 255 × 172 × 32 mm
- Weight: 1.36 kg
- Mounting: panel mounting, VESA 75 mm
WE RECOMMEND
Recommended for the Lilliput PC-1011RL:
Mounting – on a stand, an arm or a desk
Storage and network – a microSD card and a network cable
Parameters
| Manufacturer: | Lilliput |
| Category: | Studio Monitors |
Main parameters
| Size | 10.1" |
| Luminosity | 1000cd/m2 |
| Panel resolution | 1280x800 |
| Monitor power supply | DC 9–36 V |
Other parameters
| Tally | No |
| Other features | Touchscreen · Resilient · IP65 · IPS panel |
| High Brightness | Yes |
