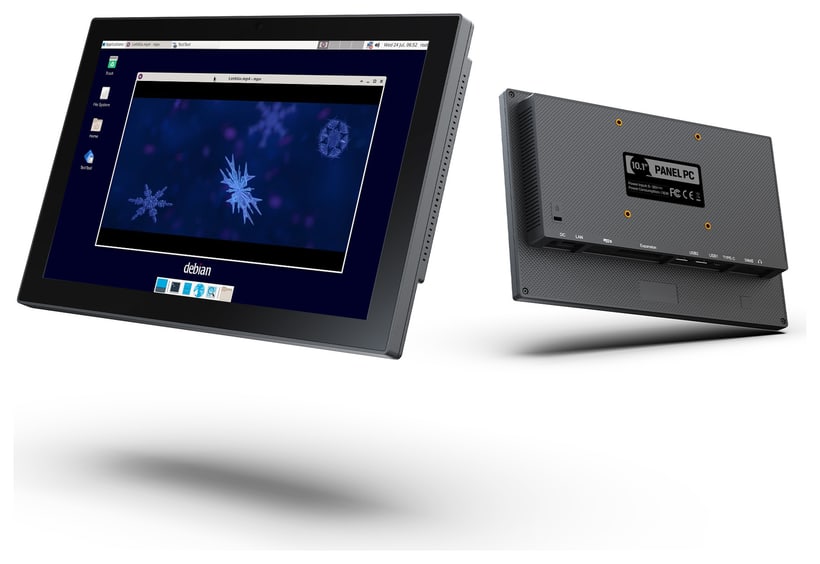

Lilliput PC-1010RL
SKU: PC-1010RL
The Lilliput PC-1010RL is a rugged 10.1" industrial panel PC with 1000 nits brightness, a 1280 × 800 capacitive touch display and Linux Debian 11 preinstalled on a quad-core RK3568. Wide DC 9–36 V input (ISO 7637-II), RS232/485/422, CAN, GPIO and LAN, with optional Wi-Fi, Bluetooth, 4G, GNSS, NFC and PoE.
399 € with VAT
329.75 € without VAT
Availability
on request
Top accessories for Lilliput PC-1010RL
SmallRig Mount Plate for Monitor VESA for Camera Cart 6257
The SmallRig 6257 VESA kit attaches a production monitor to a camera cart or stand
330 €
In stock > 5 pcs
PremiumCord Patch cable CAT 6a S-FTP BLK, 5m
Premiumcord Patch cable CAT 6a S-FTP, RJ45-RJ45, AWG 26/7 black
5.8 €
In stock 2 pcs
SanDisk Extreme Pro MicroSD 256GB V30 UHS-I
The SanDisk Extreme PRO microSDXC 256GB delivers ultra‑fast performance with read
86 €
To be sent 4 pcs
Manfrotto TetherGear VESA Monitor Mount
The TetherGear VESA Monitor Mount is the ideal connecting solution for image makers
197 €
2 pcs in stock at the supplier
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Lilliput PC-1010RL is a rugged 10.1" industrial panel PC with 1000 nits brightness, a 1280 × 800 capacitive touch display and Linux Debian 11 preinstalled on a quad-core RK3568. Wide DC 9–36 V input (ISO 7637-II), RS232/485/422, CAN, GPIO and LAN, with optional Wi-Fi, Bluetooth, 4G, GNSS, NFC and PoE.
Linux panel PC with 1000 nits
Display, computer and industrial interfaces in one compact housing. Ideal for customer feedback, queuing systems, digital signage and smart homes.
10.1" 1280 × 8001000 nitsRK3568 · Debian 11DC 9–36 VPoE / PoE+
Industrial interfaces built into the computer
Two RS232, two RS485 and one RS422 serial ports, two CAN 2.0b buses, four GPIO inputs and an ACC input are brought out to the expansion connector. Gigabit LAN with optional PoE/PoE+, a nano SIM slot and microSD up to 1 TB.
Auto dimming
A light sensor adapts brightness and saves energy.
9–36 V DC
Robust ISO 7637-II supply, vehicle-ready.
905 g
Compact 249 × 166 × 32 mm.
−10 to 60 °C
Operating range for industry and outdoors.

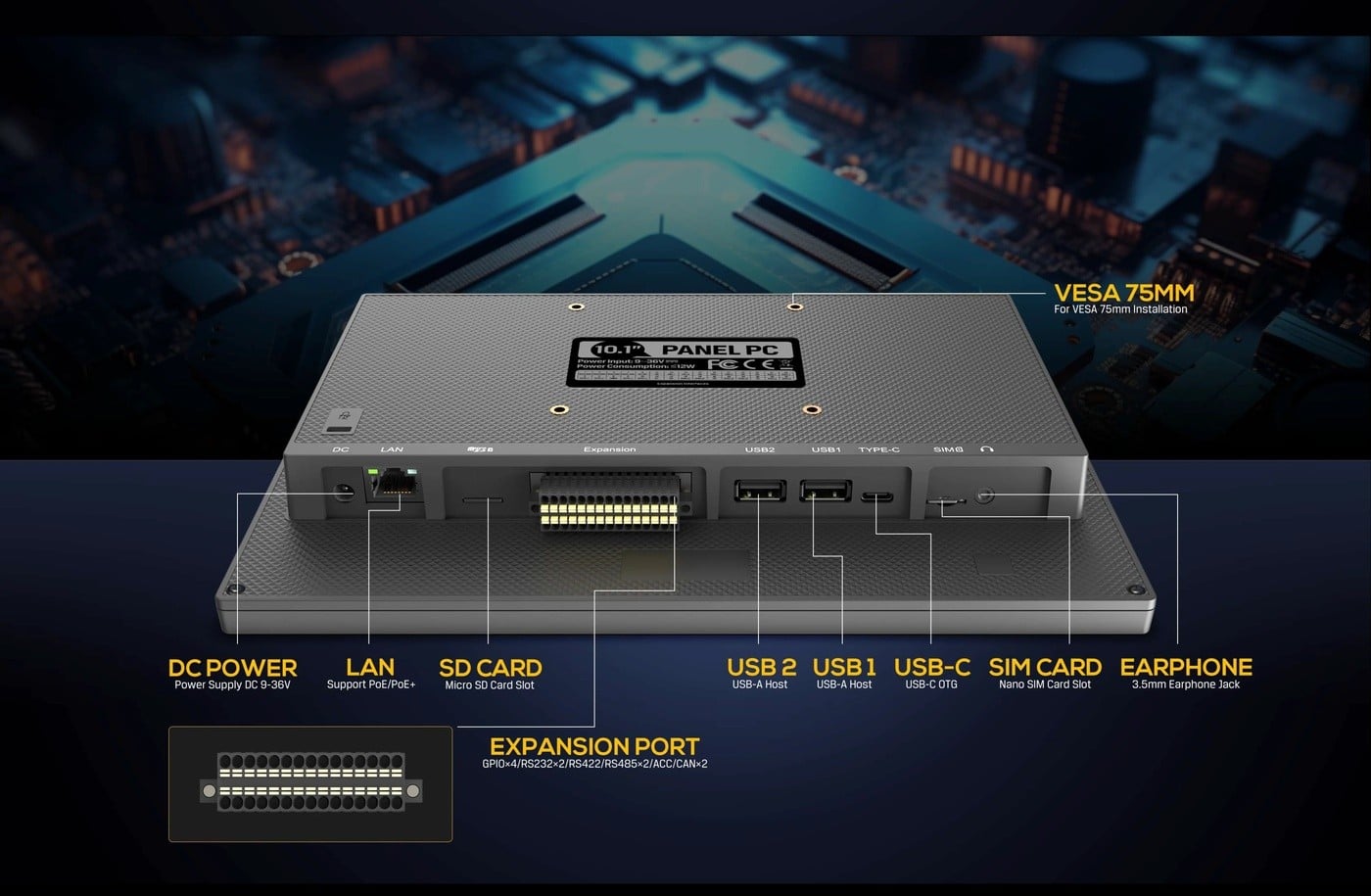

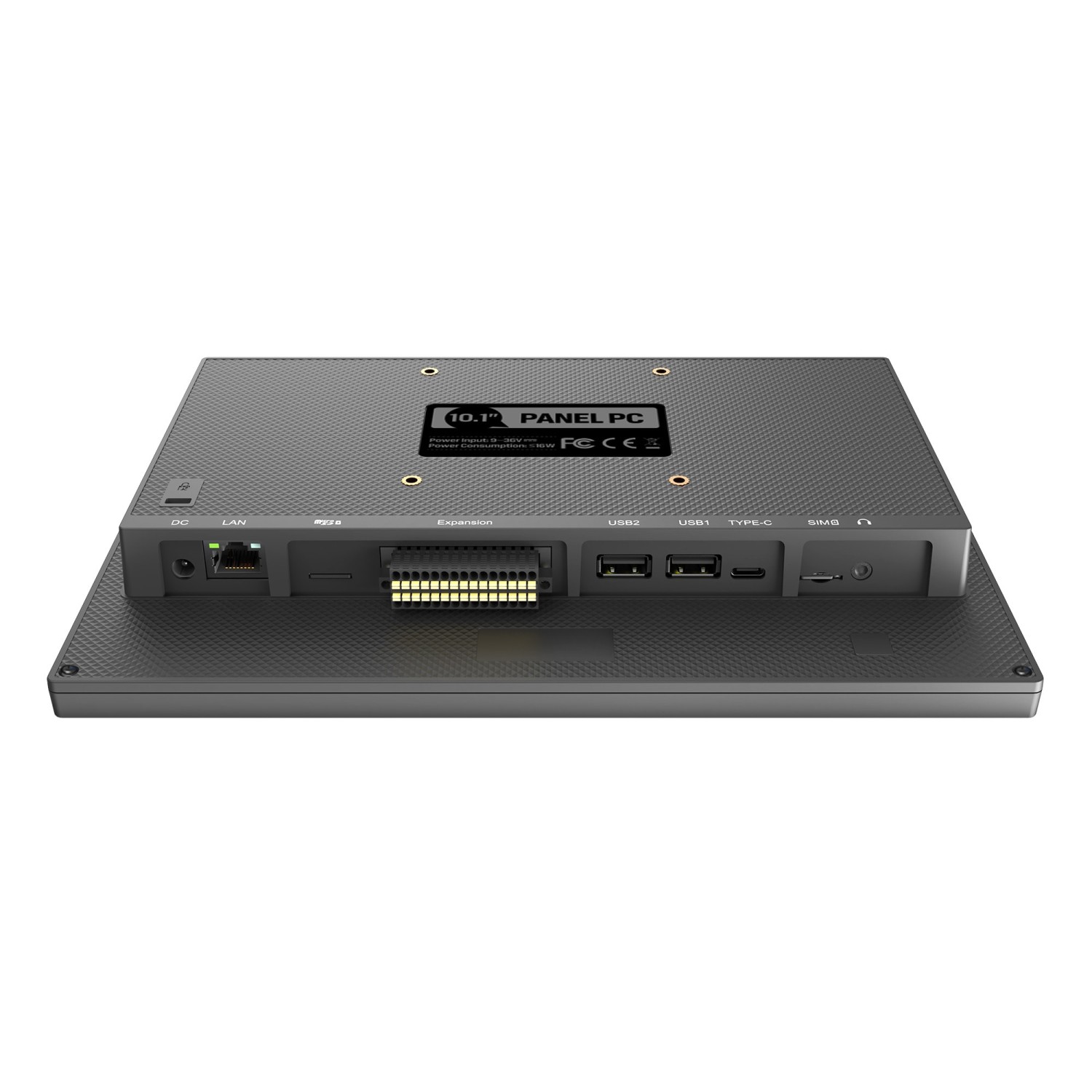

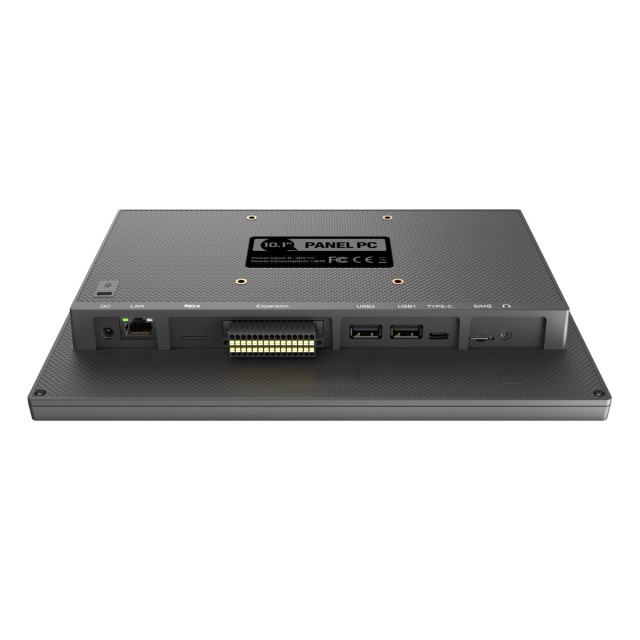

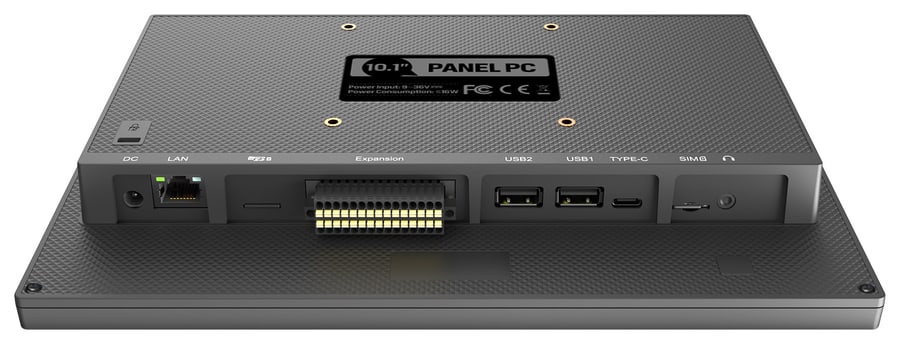

Ports on the bottom edge
DC power, LAN, microSD, expansion port, 2× USB-A, USB-C OTG, SIM and headphones.

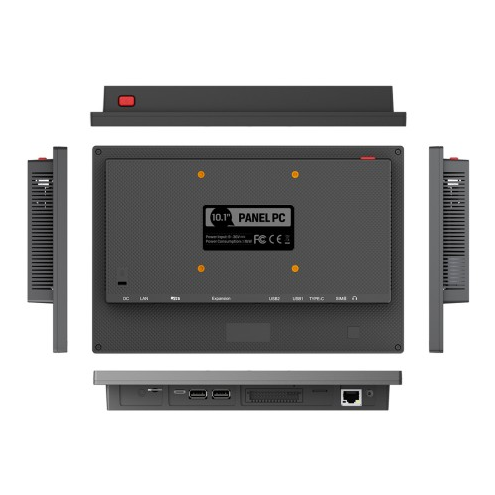

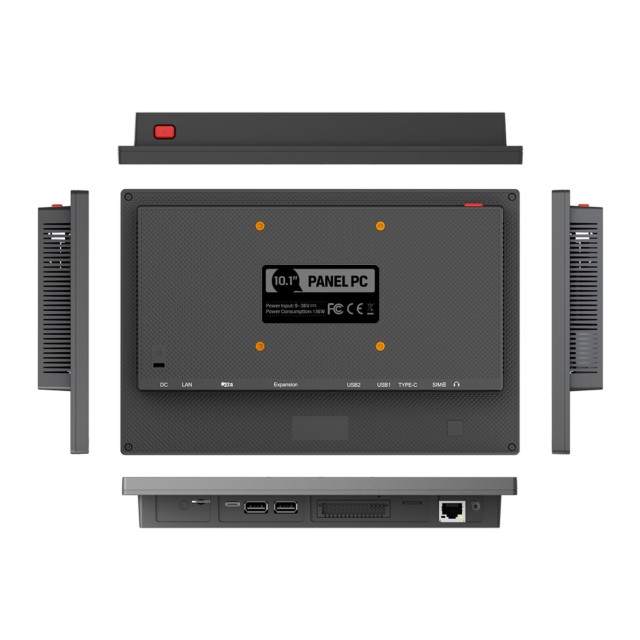

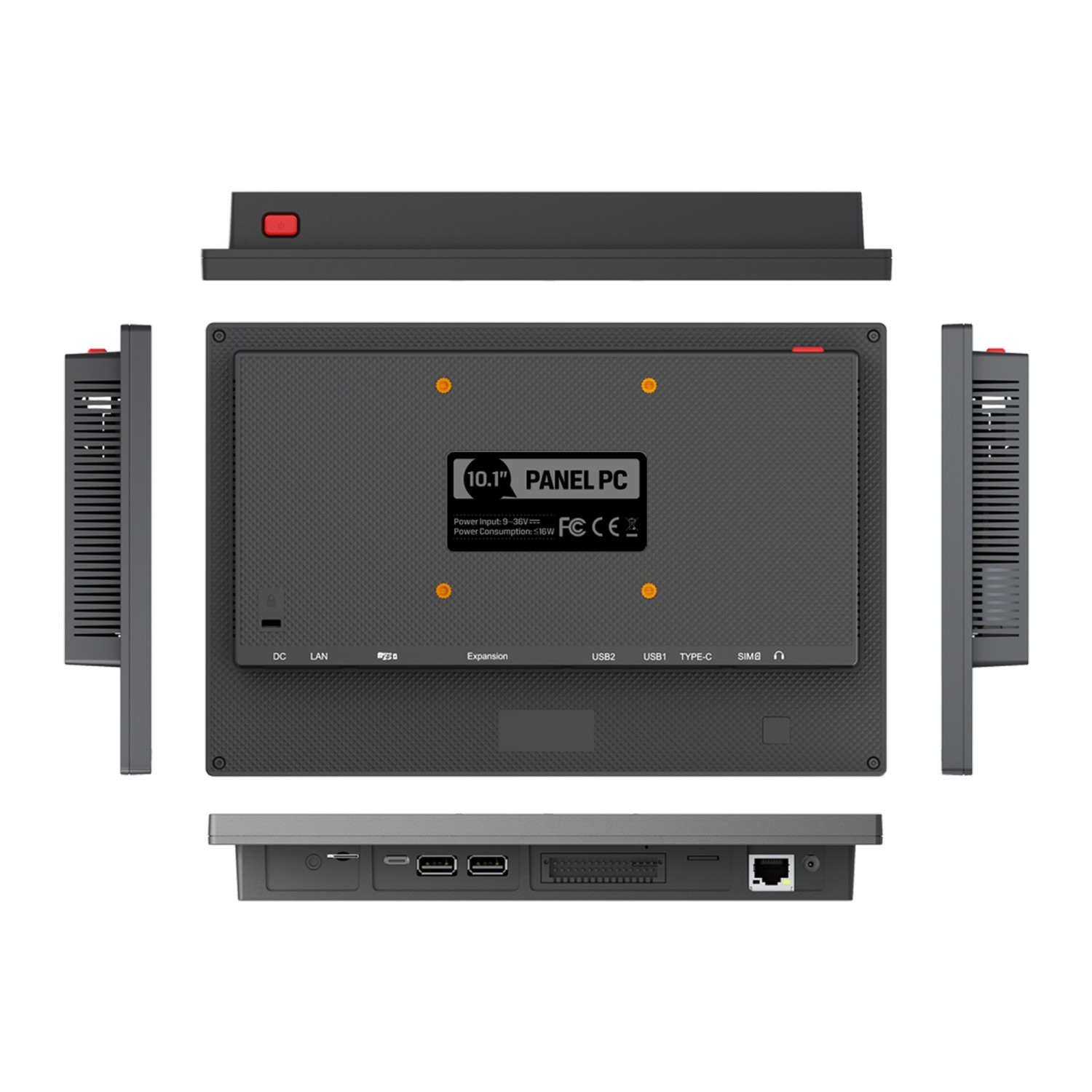

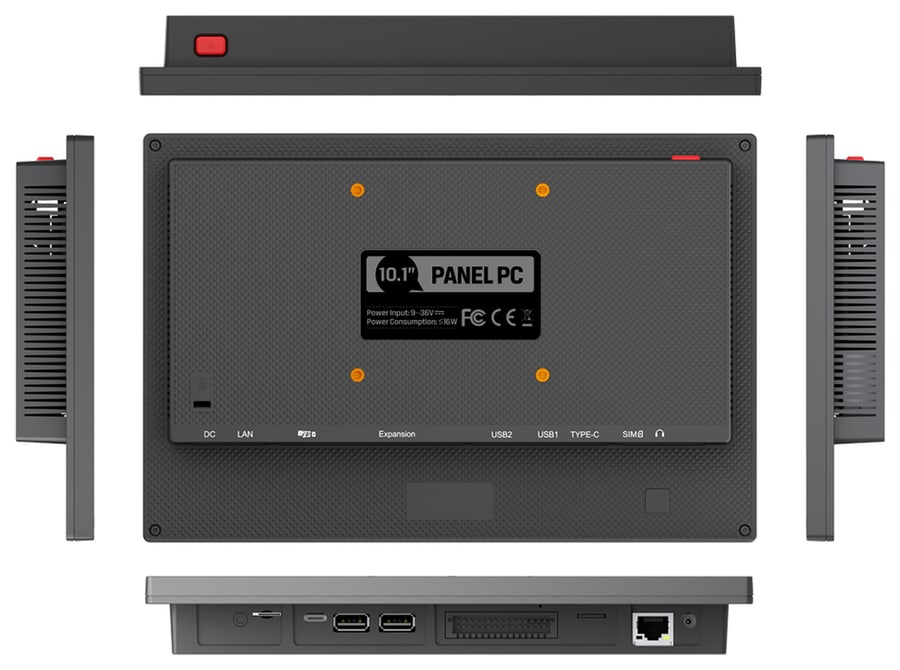

All sides
Rear cover with VESA 75 mm holes and the power switch on the top edge.
More information
About the PC-1010RL

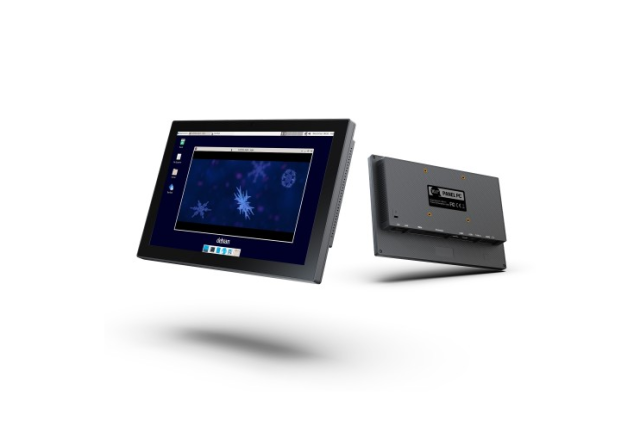

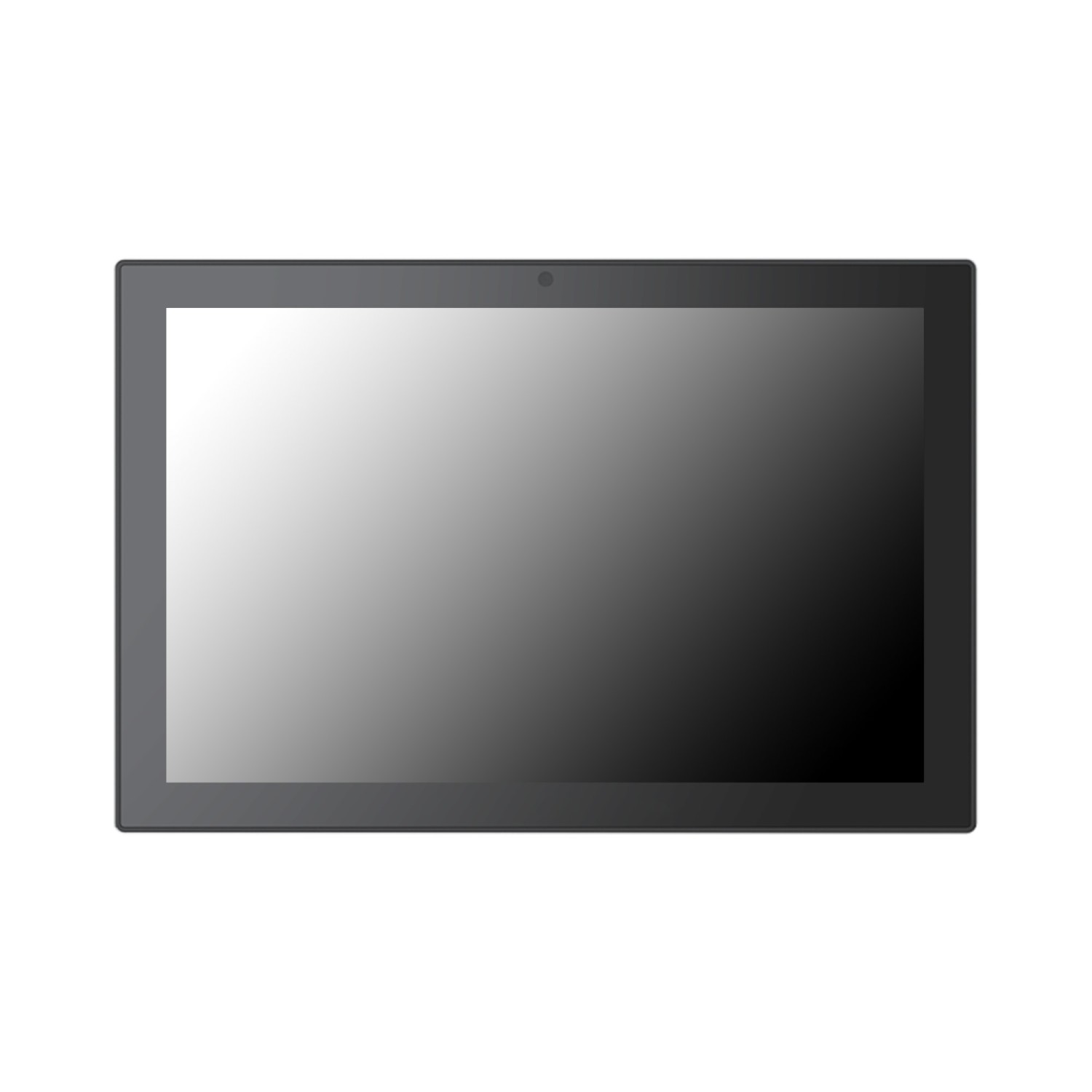

The PC-1010RL is a professional 10.1" industrial panel PC for demanding environments that require high visibility and reliable operation. Its 1280 × 800 IPS display reaches 1000 nits with 170° viewing angles and multi-point capacitive touch; inside, a quad-core Rockchip RK3568 with 2 GB DDR4 and 16 GB eMMC (optional 4 GB + 64 GB) runs Linux Debian 11 (kernel 5.10).
A wide 9–36 V DC input with ISO 7637-II vehicle protection, an operating range of −10 to +60 °C and a compact fanless design ensure durability in industrial, automotive and outdoor environments. Typical uses include digital signage, queuing systems, smart homes and vehicles.
PACKAGE CONTENT
- Lilliput PC-1010RL panel PC
- 12 V / 2 A DC adapter
- USB-A to USB-C cable
- Matching socket for the expansion port
- E-user manual (QR code)
SPECIFICATIONS
- Model: PC-1010RL
- CPU: Rockchip RK3568, ARM Cortex-A55, quad-core, 2.0 GHz
- Operating system: Linux Debian 11 (kernel 5.10)
- Memory: 2 GB DDR4 + 16 GB eMMC, optional 4 GB + 64 GB
- Display: 10.1" IPS, 1280 × 800, 1000 nits, 170° / 170°
- Touch panel: multi-point capacitive
- Interfaces: LAN 1000M ×1 (optional PoE/PoE+, IEEE 802.3af/at), GPIO ×4 (inputs), RS232 ×2, RS485 ×2, RS422 ×1, CAN 2.0b ×2, nano SIM ×1, microSD ×1 (up to 1 TB), USB-A host ×2, USB-C OTG ×1, ACC ×1, 3.5 mm headphones
- Wireless (optional): Wi-Fi 802.11a/b/g/n/ac (2.4/5 GHz), Bluetooth (2402–2480 MHz), 3G/4G (LTE, DC-HSPA+, UMTS, EDGE, GPRS, GSM), GNSS (GPS, GLONASS), NFC (ISO/IEC 14443 A&B, ISO/IEC 15693)
- Front camera: 5 MP (optional)
- Sensors: light sensor; optional gyroscope, accelerometer, magnetic sensor
- Audio: 1× speaker, 3.5 mm headphone output
- Power input: DC 9–36 V (ISO 7637-II)
- Power consumption: ≤ 16 W
- Operating temperature: −10 to 60 °C
- Storage temperature: −20 to 70 °C
- Dimensions (W × H × D): 249 × 166 × 32 mm
- Weight: 905 g
- Mounting: VESA 75 mm
WE RECOMMEND
Recommended for the Lilliput PC-1010RL:
Mounting – on a stand, an arm or a desk
Storage and network – a microSD card and a network cable
Parameters
| Manufacturer: | Lilliput |
| Category: | Studio Monitors |
Main parameters
| Size | 10.1" |
| Luminosity | 1000cd/m2 |
| Panel resolution | 1280x800 |
| Monitor power supply | DC 9–36 V |
Other parameters
| Tally | No |
| Other features | Touchscreen · IPS panel |
| High Brightness | Yes |
