Lilliput TK1010-NP/C/T
SKU: TK1010-NP/C/T

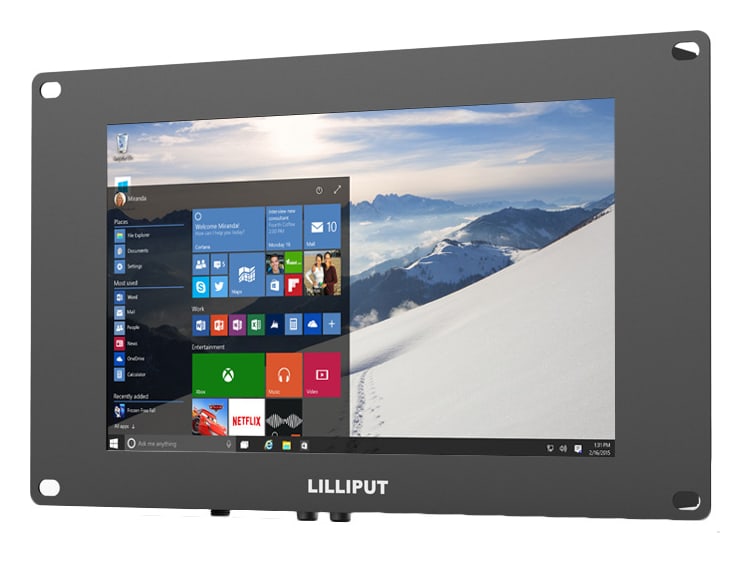

The Lilliput TK1010-NP/C/T is a 10.1" industrial open-frame metal monitor with a resistive touch layer you can operate with a finger, a stylus or gloves. It offers 1024 × 600 resolution, HDMI, DVI, VGA and composite inputs, two speakers and only 5.5 W consumption. Mount it from behind into a panel, kiosk or wall.
219 € with VAT
180.99 € without VAT
Availability
on request
Top accessories for Lilliput TK1010-NP/C/T
PremiumCord USB-C to HDMI Cable, 1.8 m, 4K*2K@60Hz Resolution, Aluminum
This cable enables high-quality video and audio conversion from USB-C to HDMI connector
13 €
In stock 4 pcs
Canare HDMI Cable 5 m
Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.
20 €
In stock 4 pcs
SmallRig Mount Plate for Monitor VESA for Camera Cart 6257
The SmallRig 6257 VESA kit attaches a production monitor to a camera cart or stand
330 €
Backordered > 5 pcs
Manfrotto TetherGear VESA Monitor Mount
The TetherGear VESA Monitor Mount is the ideal connecting solution for image makers
197 €
on request
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Lilliput TK1010-NP/C/T is a 10.1" industrial open-frame metal monitor with a resistive touch layer you can operate with a finger, a stylus or gloves. It offers 1024 × 600 resolution, HDMI, DVI, VGA and composite inputs, two speakers and only 5.5 W consumption. Mount it from behind into a panel, kiosk or wall.

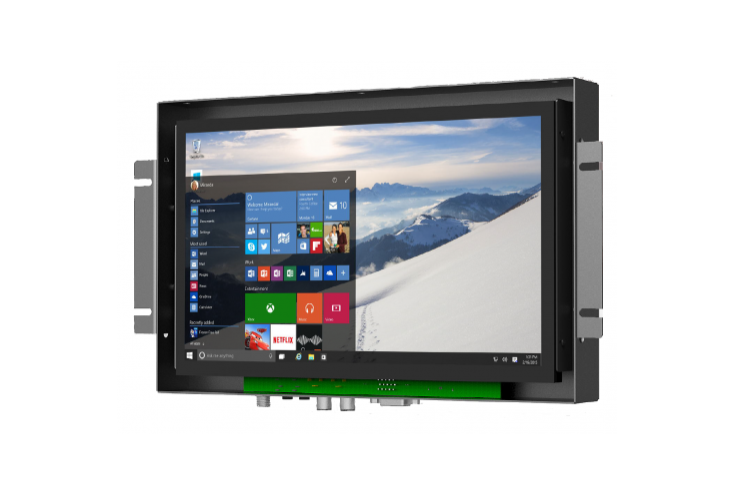

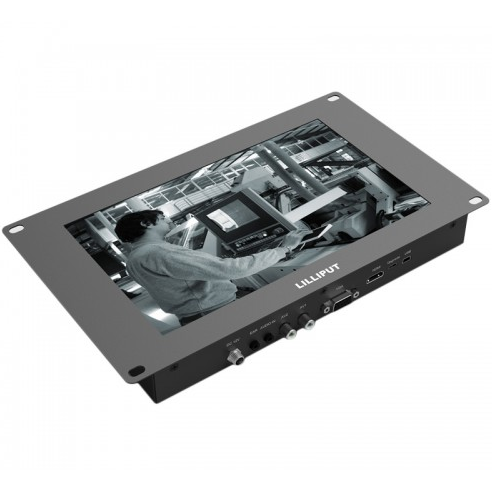

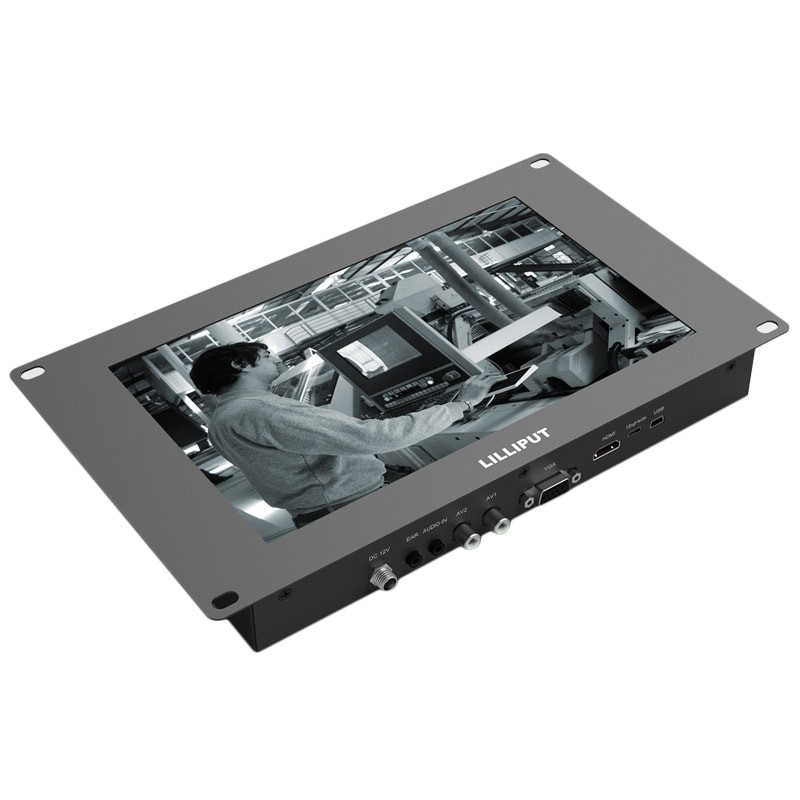

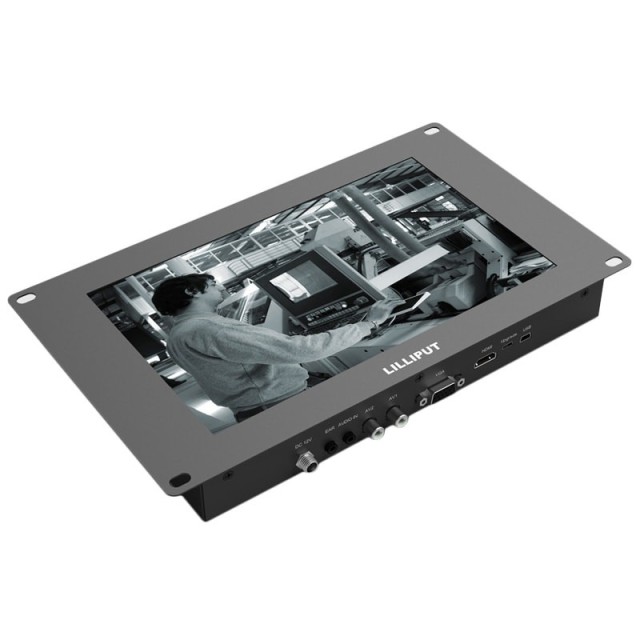

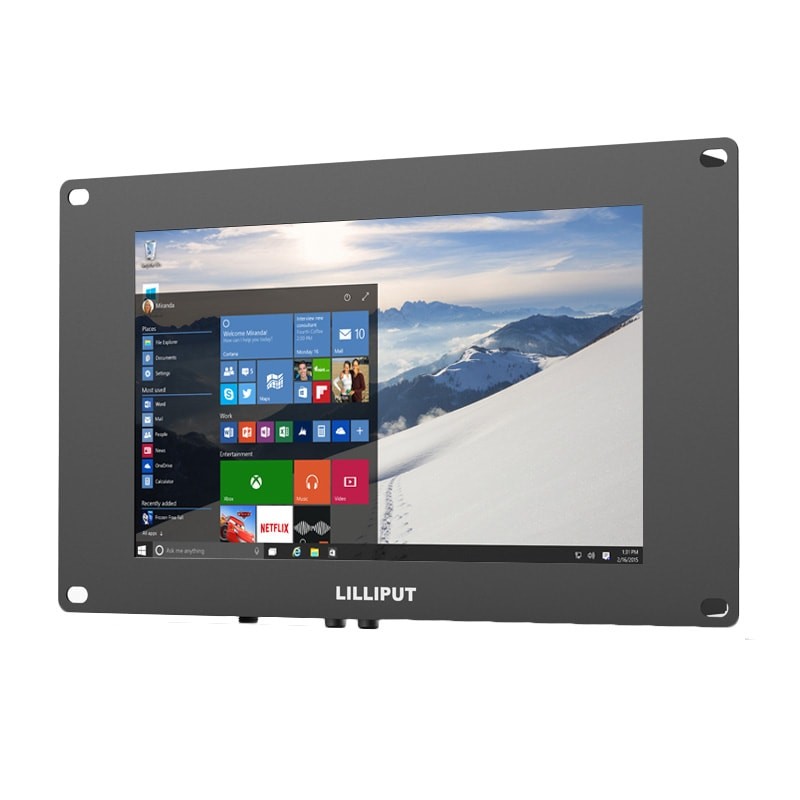

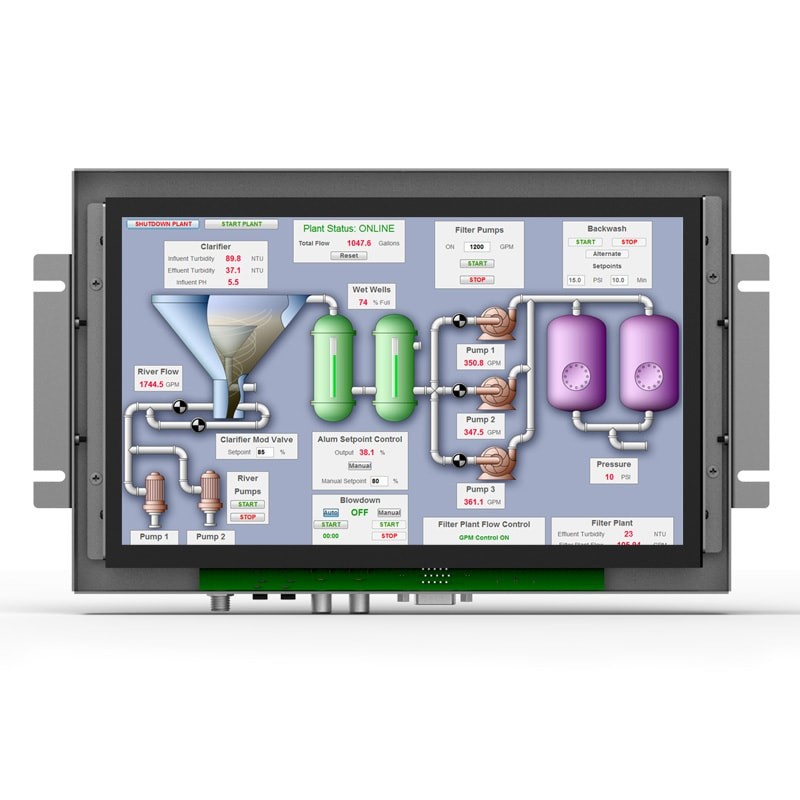

Open-frame touch monitor
The metal frame with side brackets screws from behind to a cut-out in a panel, wall or display case, leaving only the screen visible.
10.1" 1024 × 600HDMI · DVI · VGA · AVResistive touch2 speakers≤ 5.5 W
Touch with a finger, stylus or gloves
The resistive layer reacts to pressure, so an interactive kiosk or museum exhibit can be operated even with work gloves. A stylus is included and touch connects to the computer over USB.
33.5 mm deep
The flat metal frame fits even shallow enclosures.
5.5 W
Low power draw for continuous operation.
VESA 75 mm
Standard VESA mounting besides the frame.
1080p input
HDMI accepts 720p, 1080i and 1080p 50/60 Hz.

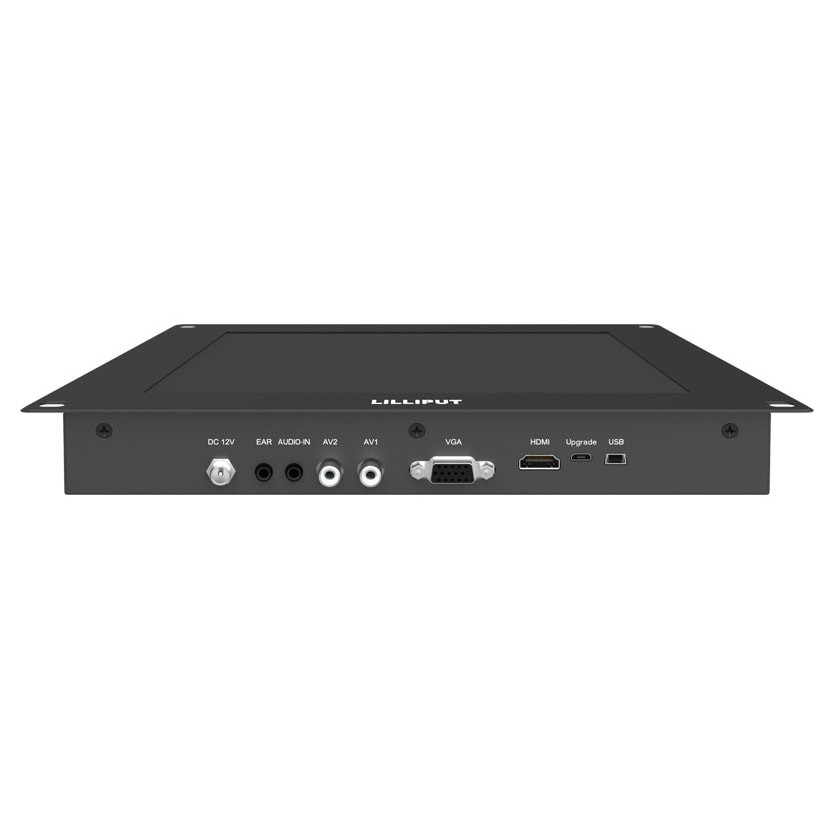

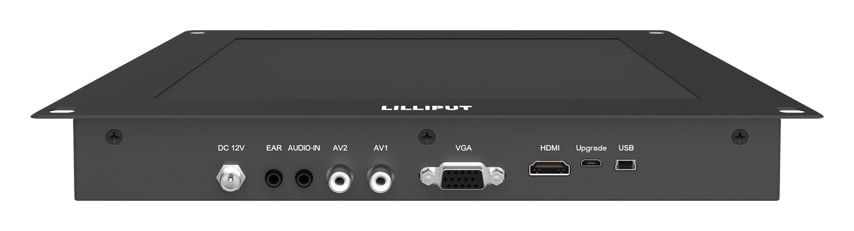

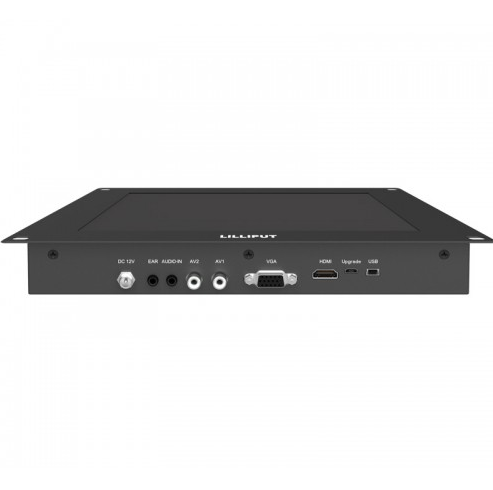

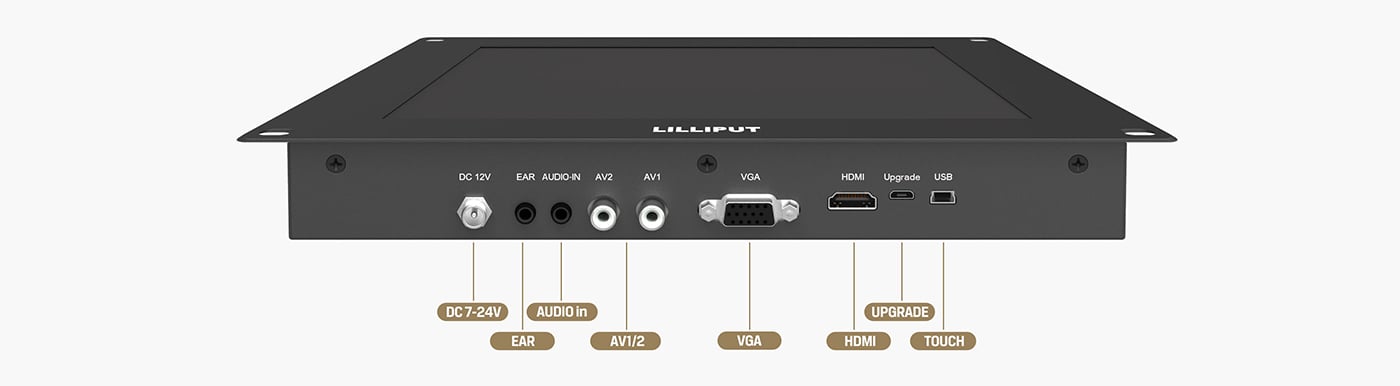

Connectors on the bottom edge
Power, earphones, audio, AV, VGA, HDMI, the service port and touch USB face downwards, away from the panel cut-out.

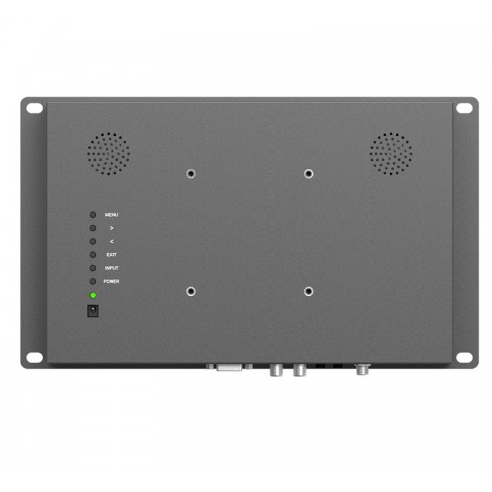

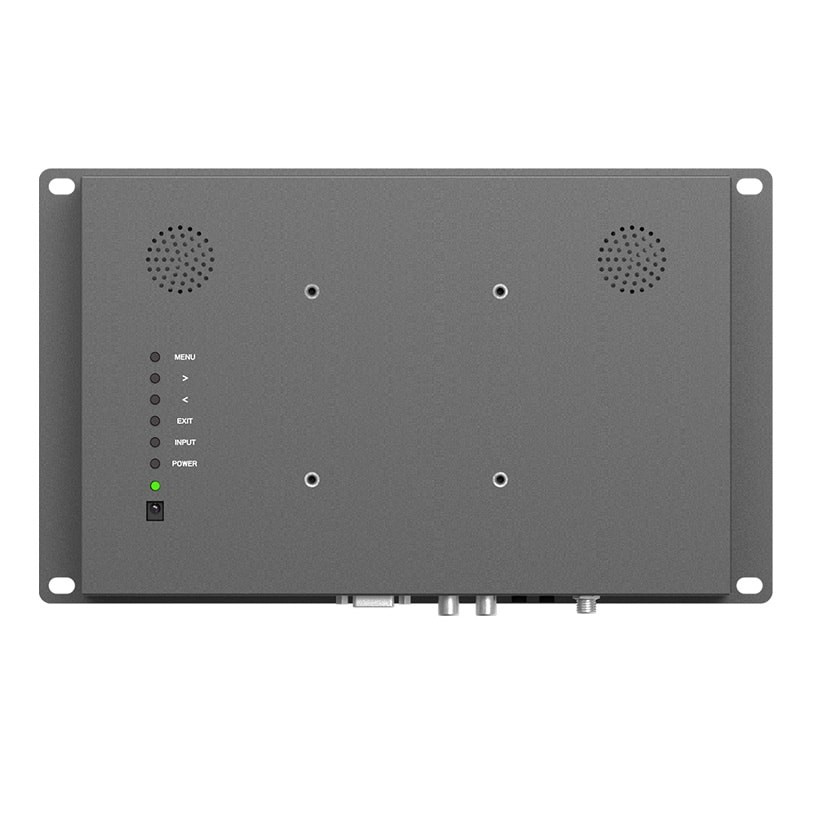

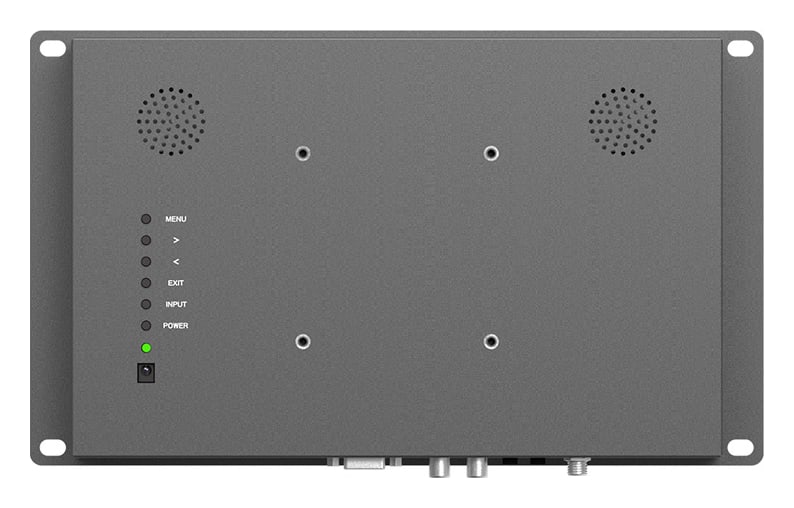

Rear side
Control buttons, two speakers and VESA 75 mm holes on the rear cover.
More information
About the TK1010-NP/C/T
An open-frame monitor is front-mounted – it sits behind a cut-out in a wall, panel or window and blends discreetly into the existing design. The resistive touch turns it into an interactive element of a kiosk or museum display. Native resolution is 1024 × 600 and it accepts input signals up to 1080p.

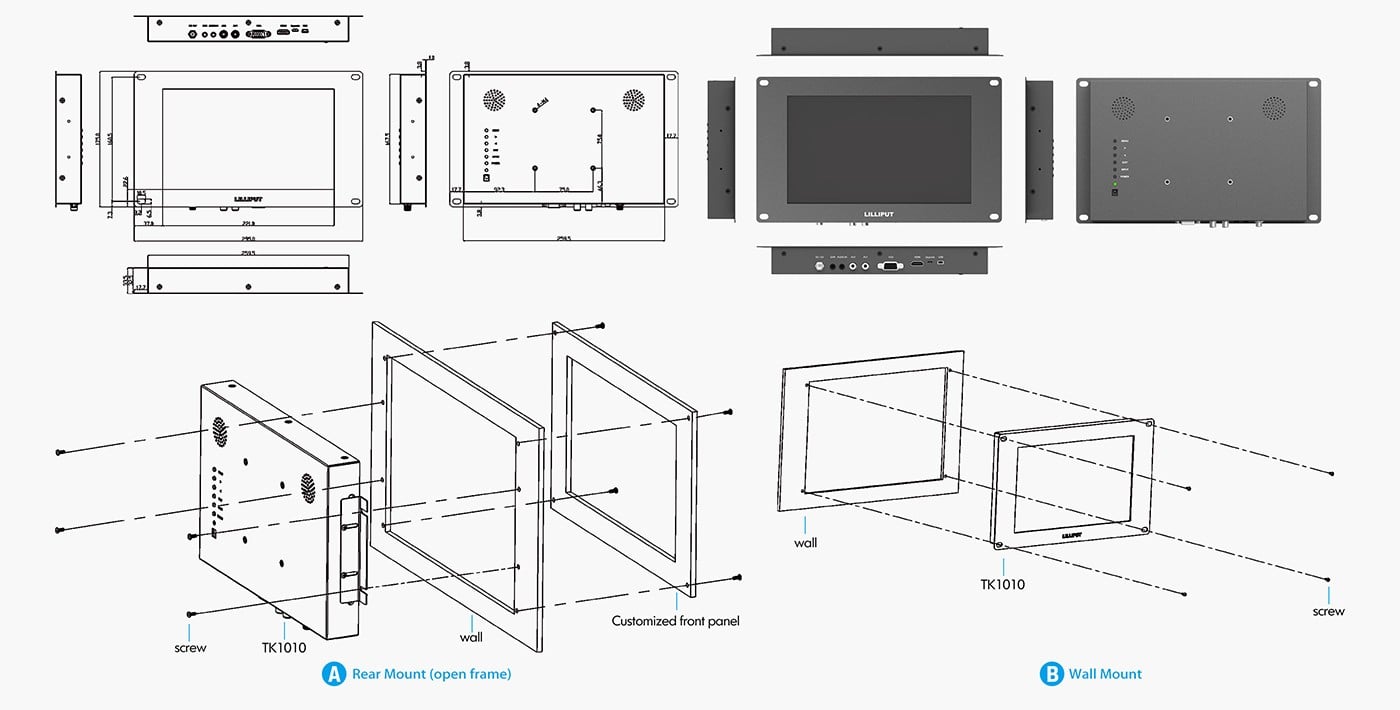

It can be fixed by the side brackets of the frame or by the four VESA 75 mm holes at the back; with a folding VESA bracket (sold separately) it stands on a desk or hangs from a ceiling. The metal frame protects the electronics and a custom front panel is also available.
PACKAGE CONTENT
- Lilliput TK1010-NP/C/T monitor
- 12 V DC power adapter
- HDMI A–A cable
- VGA cable
- USB cable (for touch)
- Audio input cable
- RCA cable (video)
- Driver CD
- Touch pen
- User manual
SPECIFICATIONS
- Model: TK1010-NP/C/T
- Display: 10.1" LED
- Resolution: 1024 × 600
- Brightness: 200 cd/m²
- Contrast: 500:1
- Viewing angle: 140° / 110° (H/V)
- Touch panel: 4-wire resistive
- Inputs: 1× HDMI, 1× DVI, 1× VGA, 1× composite video
- HDMI formats: 720p 50/60, 1080i 50/60, 1080p 50/60
- Audio: 2× speaker, 3.5 mm headphone output (2ch, 48 kHz, 24 bit)
- Power input: DC 7–24 V (12 V adapter)
- Power consumption: ≤ 5.5 W
- Operating temperature: 0 to 50 °C
- Storage temperature: −20 to 60 °C

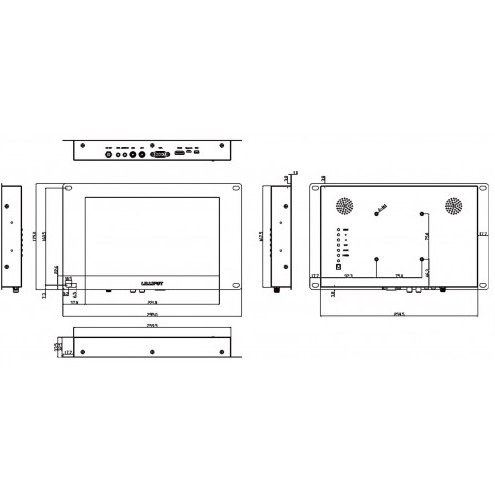

- Dimensions (W × H × D): 295 × 175 × 33.5 mm
- Weight: 1.4 kg
- Mounting: open frame with side brackets, VESA 75 mm
- Housing: metal housing
WE RECOMMEND
Recommended for the Lilliput TK1010-NP/C/T:
Cables – to connect the video source
Mounting – on a stand, an arm or a desk
Parameters
| Manufacturer: | Lilliput |
| Category: | Studio Monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 1080i up to 60i · 720p up to 60p · 1080p up to 60p |
| Size | 10.1" |
| Monitor inputs | HDMI · Composite Video · DVI · VGA |
| Luminosity | 200cd/m2 |
| Panel resolution | 1024x600 |
| Monitor power supply | DC 7-24V |
Other parameters
| Tally | No |
| Other features | Touchscreen |
| High Brightness | No |
