Lilliput TK1010-NP/C
SKU: TK1010-NP/C
The Lilliput TK1010-NP/C is a 10.1" non-touch industrial monitor in an open metal frame. It offers 1024 × 600 resolution, HDMI, DVI, VGA and composite inputs, two built-in speakers and only 5.5 W consumption. Mount it from behind into a panel, information display or wall, or attach it via VESA 75 mm.
197 € with VAT
162.81 € without VAT
Availability
on request
Top accessories for Lilliput TK1010-NP/C
SmallRig Mount Plate for Monitor VESA for Camera Cart 6257
The SmallRig 6257 VESA kit attaches a production monitor to a camera cart or stand
330 €
In stock > 5 pcs
PremiumCord USB-C to HDMI Cable, 1.8 m, 4K*2K@60Hz Resolution, Aluminum
This cable enables high-quality video and audio conversion from USB-C to HDMI connector
13 €
In stock 3 pcs
Canare HDMI Cable 5 m
Canare HDMI cable, 5 m long, with gold-plated HDMI Type A connectors on both ends.
20 €
In stock 4 pcs
Manfrotto TetherGear VESA Monitor Mount
The TetherGear VESA Monitor Mount is the ideal connecting solution for image makers
197 €
4 pcs in stock at the supplier
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Lilliput TK1010-NP/C is a 10.1" non-touch industrial monitor in an open metal frame. It offers 1024 × 600 resolution, HDMI, DVI, VGA and composite inputs, two built-in speakers and only 5.5 W consumption. Mount it from behind into a panel, information display or wall, or attach it via VESA 75 mm.

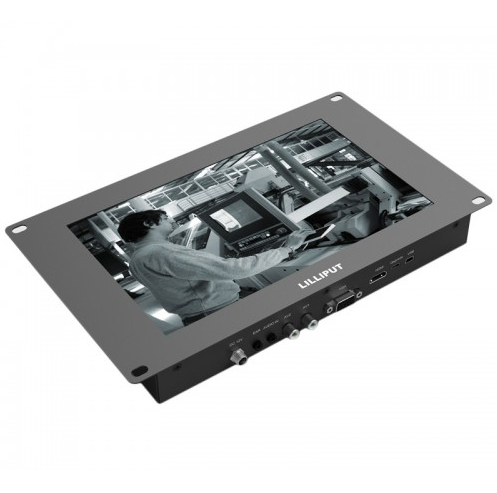

Open-frame monitor for integration
The metal frame with side brackets screws from behind to a cut-out in a panel, wall or display case, leaving only the screen visible.
10.1" 1024 × 600HDMI · DVI · VGA · AVOpen frame2 speakers≤ 5.5 W
Four video inputs in one frame
HDMI, DVI, VGA and composite video let you connect the monitor to a new computer as well as an older control unit or camera. Two built-in speakers and a headphone output take care of sound.
33.5 mm deep
The flat metal frame fits even shallow enclosures.
5.5 W
Low power draw for continuous operation.
VESA 75 mm
Standard VESA mounting besides the frame.
1080p input
HDMI accepts 720p, 1080i and 1080p 50/60 Hz.
Connectors on the bottom edge
Power, earphones, audio, AV, VGA, HDMI and the service port face downwards, away from the panel cut-out.

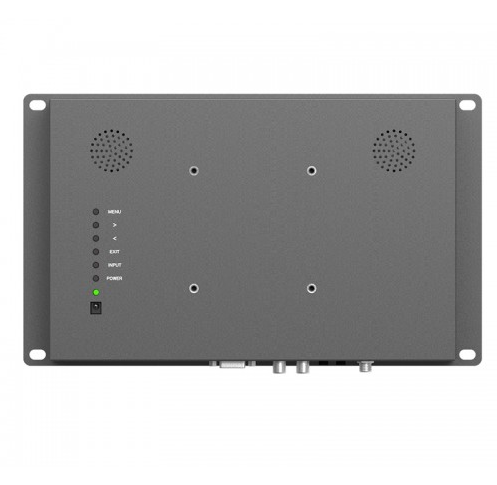

Rear side
Control buttons, two speakers and VESA 75 mm holes on the rear cover.
More information
About the TK1010-NP/C
An open-frame monitor is front-mounted – it sits behind a cut-out in a wall, panel or window and blends discreetly into the existing design. Native resolution is 1024 × 600 and it accepts input signals up to 1080p.
It can be fixed by the side brackets of the frame or by the four VESA 75 mm holes at the back; with a folding VESA bracket (sold separately) it stands on a desk or hangs from a ceiling. The metal frame protects the electronics and a custom front panel is also available.
PACKAGE CONTENT
- Lilliput TK1010-NP/C monitor
- 12 V DC power adapter
- HDMI A–A cable
- VGA cable
- Audio input cable
- RCA cable (video)
- User manual
SPECIFICATIONS
- Model: TK1010-NP/C
- Display: 10.1" LED
- Resolution: 1024 × 600
- Brightness: 200 cd/m²
- Contrast: 500:1
- Viewing angle: 140° / 110° (H/V)
- Touch panel: none (non-touch)
- Inputs: 1× HDMI, 1× DVI, 1× VGA, 1× composite video
- HDMI formats: 720p 50/60, 1080i 50/60, 1080p 50/60
- Audio: 2× speaker, 3.5 mm headphone output (2ch, 48 kHz, 24 bit)
- Power input: DC 7–24 V (12 V adapter)
- Power consumption: ≤ 5.5 W
- Operating temperature: 0 to 50 °C
- Storage temperature: −20 to 60 °C
- Dimensions (W × H × D): 295 × 175 × 33.5 mm
- Weight: 1.4 kg
- Mounting: open frame with side brackets, VESA 75 mm
- Housing: metal housing
WE RECOMMEND
Recommended for the Lilliput TK1010-NP/C:
Cables – to connect the video source
Mounting – on a stand, an arm or a desk
Parameters
| Manufacturer: | Lilliput |
| Category: | Studio Monitors |
Main parameters
| Supported video signal modes (resolution / frame rate) | 1080i up to 60i · 1080p up to 60p · 720p up to 60p |
| Size | 10.1" |
| Monitor inputs | Composite Video · DVI · HDMI · VGA |
| Luminosity | 200cd/m2 |
| Panel resolution | 1024x600 |
| Monitor power supply | DC 7-24V |
Other parameters
| Tally | No |
| High Brightness | No |
