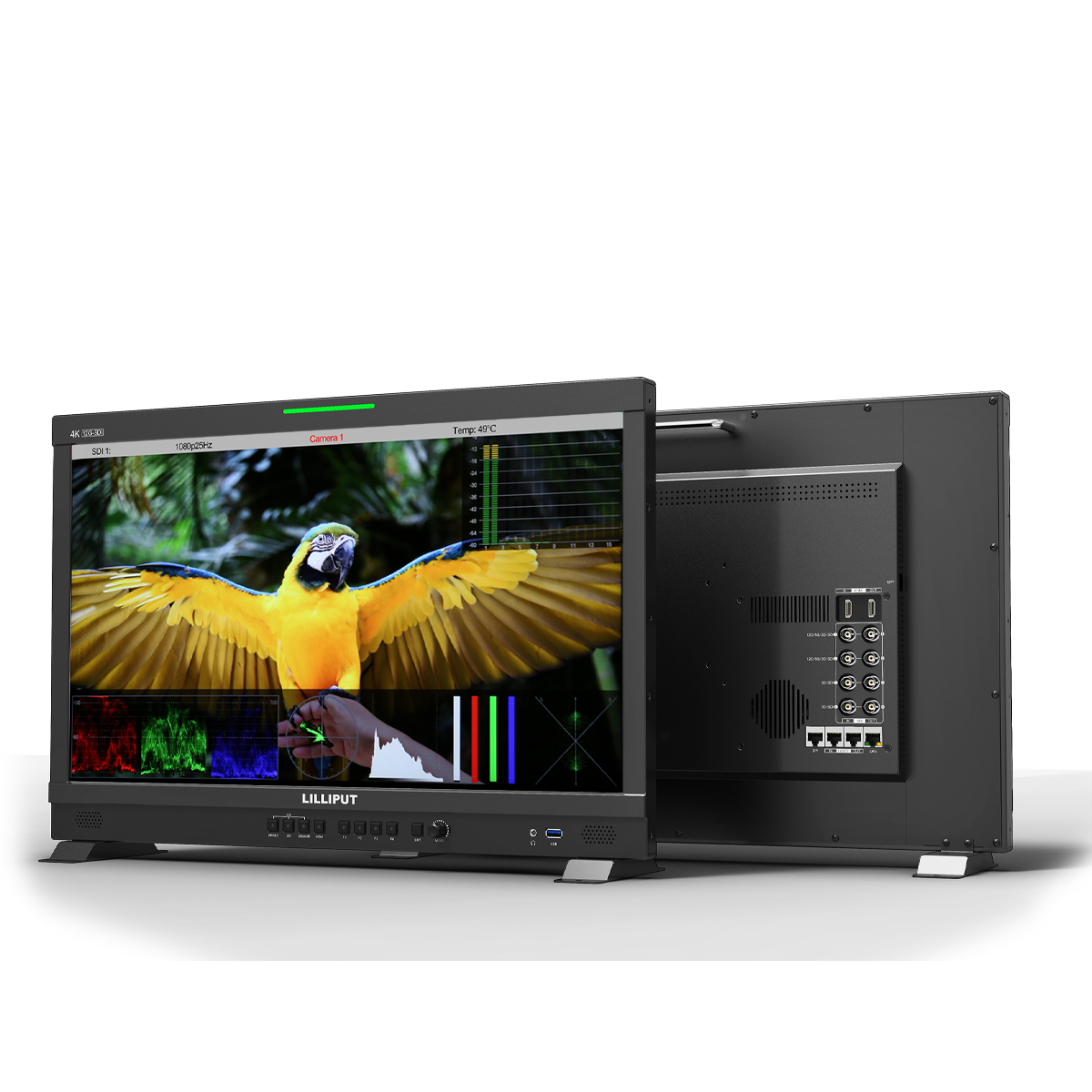

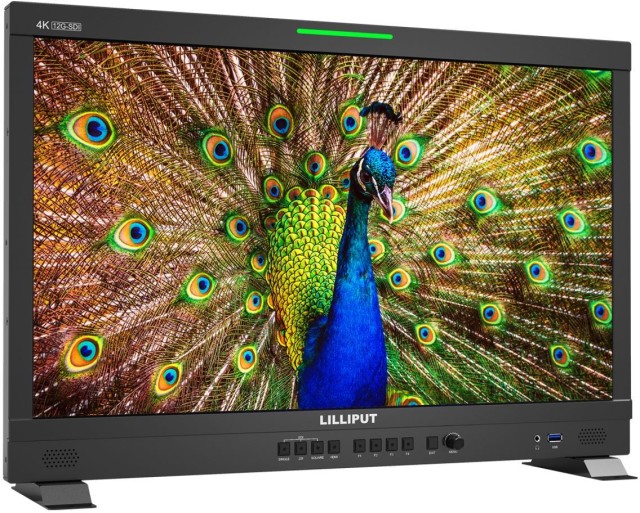

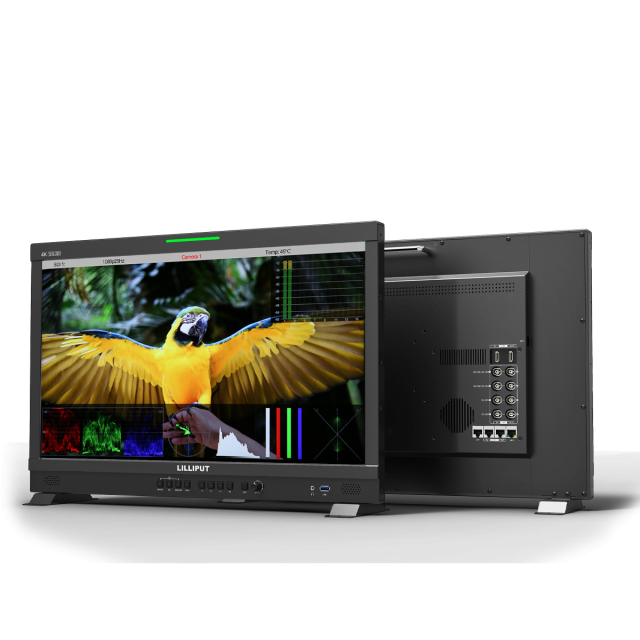

Lilliput Q24 23.6" 12G-SDI/HDMI Broadcast Studio Monitor (V-Mount)

The Lilliput Q24 23.6" 12G-SDI/HDMI Broadcast Studio Monitor is a 23.6" native UHD 4K monitor with a V-mount battery plate, useful for both studio and field situations. Supporting up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160), the monitor features one HDMI 2.0 input and four SDI inputs (two 12G, two 3G), allowing for single-, dual-, and quad-link SDI…

More information

2 108.06 € with VAT 1 742.2 € without VAT
-+
Availability
Shipment day: 01. 04.
To be sent 1 pcs
Bratislava 1 pcs
Product description

Product description

The Lilliput Q24 23.6" 12G-SDI/HDMI Broadcast Studio Monitor is a 23.6" native UHD 4K monitor with a V-mount battery plate, useful for both studio and field situations. Supporting up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160), the monitor features one HDMI 2.0 input and four SDI inputs (two 12G, two 3G), allowing for single-, dual-, and quad-link SDI input. The monitor also features loop-through HDMI and SDI outputs to pass the signal downstream. For critical color work, the monitor supports the PRO/LTE version of LightSpace CMS (not included).

Features

  • Display: 23.6 inch,3840X2160,330 cd/m2/,1000:1
  • Viewing Angle: 176°/176° (H/V)

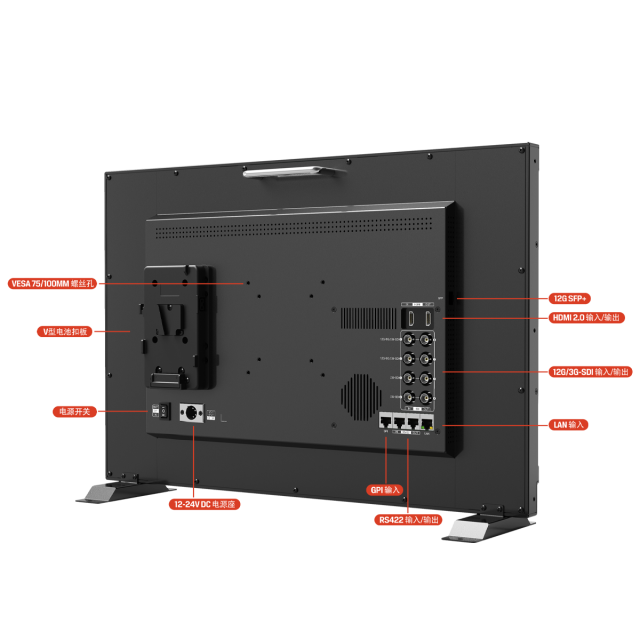

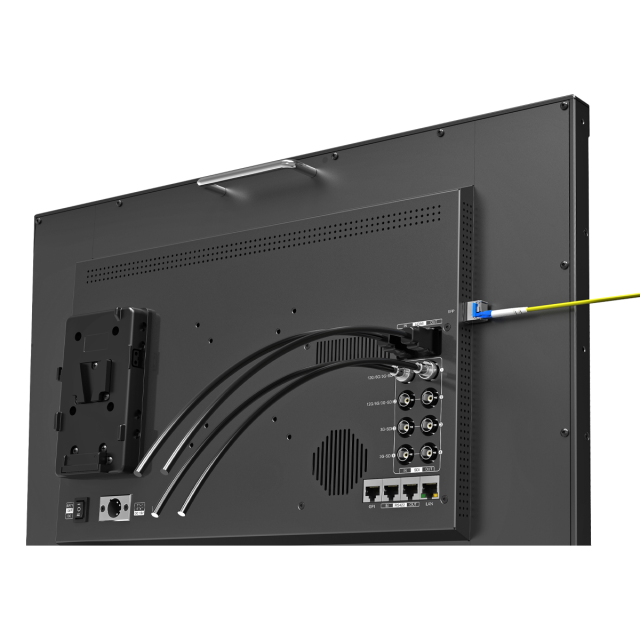

  • Input:2X12G-SDI , 2X3G-SDI, 1XHDMI 2.0, 1X12G SFP
  • Output:2X1
  • 2G-SDI , 2X3G-SDI, 1XHDMI 2.0Software function: - Remote control application by LAN /RS232 - Color Temp, color Gamut, 3D-LUT, HDR, Gamma, UMD, Time code etc

Contents

  • 15V DC Adapter
  • VESA mount Plate
  • V-mount Battery Plate
  • Base bracket
  • USB Flash Disk







Parameters

Parameters

Manufacturer: Lilliput
Category: Camera monitors

Main parameters

Size23.6"
Monitor inputsHDMI
Monitor inputs12G SDI
Monitor inputs3G-SDI
Monitor inputsSFP
Monitor inputsTally
Monitor power supplyV-Mount
Monitor power supply15V DC
Luminosity330cd/m2
Panel resolution3840x2160

Other parameters

TallyYes
Other featuresHDR
Other featuresTally
Other featuresCamera control
Other features3D LUT correction
High Brightness (NITS)No
